LCD Screen Display Solution



Bar displays are horizontal LCD screens with extended aspect ratios-16:3, 32:9, 58:9. They fit shelf rails, door headers, counter edges, wall strips, and other locations where standard 16:9 screens don't make sense.



One network supports over 50,000 displays per location. Content updates push from a central CMS, or sync directly from your POS, inventory, or scheduling systems.

LCD Screen Display Solution





Display formats





Standard bar (16:3)

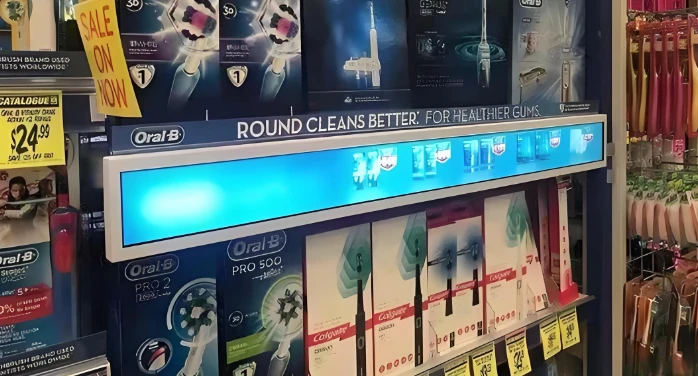

1280×160 resolution. Magnetic or clip mount on gondola rails. Battery-powered e-paper option runs 5+ years on CR2450. NFC and QR code built in. Grocery, pharmacy, electronics-anywhere you need shelf-edge pricing that updates itself.





Ultra-wide bar (32:9 to 58:9)

Higher resolution for video content. LCD or OLED panels. 24/7 commercial-grade with thermal management.

Works for aisle headers, checkout lanes, elevator lobbies, queue displays, meeting room signs-basically any space that's wide but not tall.



Premium OLED Displays

Electronic Shelf Labels



E-paper displays for pricing and product info. Hybrid design adds LCD segments for color highlights. Connects to inventory database-prices update automatically when stock or promotions change.



Specs: 1280×160 px, CR2450 battery (5+ years), 2.4GHz wireless, AES-128 encryption, NFC + QR, magnetic mount

Premium OLED Displays



For jewelry, watches, cosmetics, perfume. Factory-calibrated at 99% Adobe RGB. Anti-reflective coating for showcase lighting. 160° viewing angle. Custom sizes to match fixture dimensions.



Specs: OLED, up to 4K, 99% Adobe RGB, 160°+ viewing angle, 5.9mm bezel, tamper detection, encrypted delivery





Premium OLED Displays





Installation locations

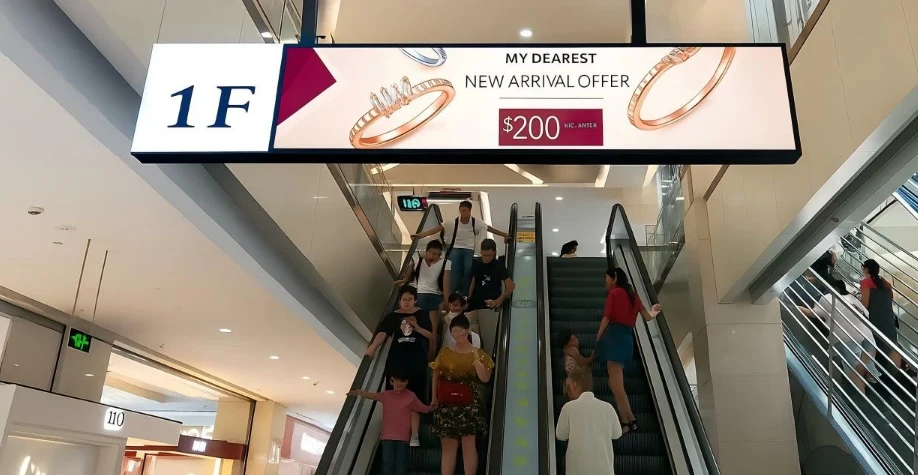

Aisle headers

Category signs, weekly deals. Ultra-wide format for full aisle coverage.

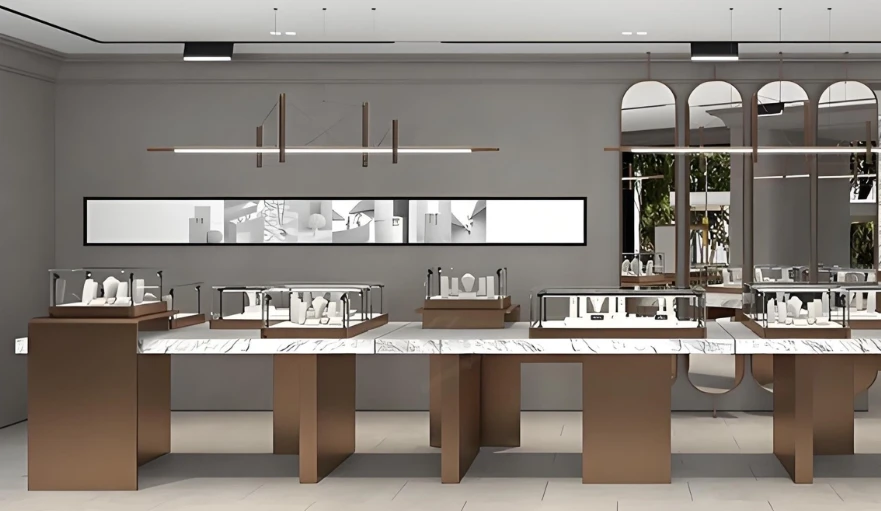

Jewelry showcases

OLED inside cases. 99% Adobe RGB. Anti-glare for showcase lighting. The product does the selling-the screen sets context.

Cosmetics & perfume

Color-accurate displays for skin tones, packaging.

Banking

Queue numbers, wait times, rates. 3840×1080 resolution. Privacy film on counter units keeps customer data visible only to the person in front.

Hospitals

Patient flow, wayfinding, alerts. Antimicrobial coating. HIPAA compliant. Emergency override switches all screens to evacuation routes.

Elevator lobbies

Car position, arrival times from building control. Custom housings-aluminum, wood, powder coat.

Meeting rooms

10"–15" displays. Green = open, red = occupied. Tap to book.

Libraries

Shelf-end displays for collection navigation.





Content management



Browser-based CMS. Connects to ERP, POS, calendar, or hospital systems. Multi-location deployment from one dashboard.

Scheduled playback

By hour, day, or date range. Automatic rotation.

Location grouping

Target by region, store format, or single site.

Data sync

Prices, inventory, schedules from existing systems.

Remote monitoring

Online status, playback logs, fault alerts.





Technical specifications



Aspect ratios 16:3, 32:9, 58:9, custom
Display technology LCD, e-paper + LCD hybrid, OLED
Resolution 1280×160 (ESL) to 3840×2160 (4K)
Color accuracy sRGB standard; 99% Adobe RGB (OLED)
Viewing angle 160° H/V
ESL battery CR2450, 5+ years
Connectivity 2.4GHz IoT, WiFi, LTE optional
Security AES-128; tamper detection on premium units
Network capacity 50,000+ displays per site
Operation 24/7 commercial-grade
Technical specifications
FAQ

Q: What is a bar-shaped LCD screen?

A: A bar-shaped LCD screen is an ultra-wide commercial display designed for locations where a standard 16:9 screen is too tall or difficult to install. It can be integrated into shelf edges, aisle headers, checkout areas, display fixtures, counters and other narrow spaces to present promotional, pricing or informational content.

Q: Where can bar LCD displays be installed?

A: LEGOYO bar-shaped LCD displays can be considered for supermarket shelves, retail endcaps, aisle headers, checkout lanes, cosmetics counters, electronics displays, elevator lobbies, meeting rooms and information systems. The appropriate model depends on the installation space, viewing distance, content requirements and mounting structure.

Q: What screen sizes and aspect ratios are available?

A: Available configurations may include 16:3, 32:9, 58:9 and other stretched formats, depending on the selected model. LEGOYO also offers different display lengths for shelf-edge and commercial-signage applications. Send us the available installation dimensions so we can recommend a suitable screen and enclosure configuration.

Q: What type of content can the display play?

A: Depending on the selected media player and software configuration, the screen can present promotional images, product videos, pricing information, category messages, menus, schedules and other digital content. Resolution, file format, playback method and orientation should be confirmed before preparing the final content.

Q: Can content be updated remotely?

A: Remote content updates can be supported when the selected display is connected to a compatible content management system. Buyers may schedule campaigns, organize displays by store or location and update selected screens without replacing printed materials. Final CMS functions depend on the software and hardware configuration used for the project.

Q: Can the display connect with our POS, ERP or inventory system?

A: Integration can be reviewed according to your existing system, required data flow and available interface. Please provide information about your POS, ERP, inventory platform, API or database environment. LEGOYO will help evaluate whether content, pricing or inventory data can be connected through the proposed solution architecture.

Q: Are the displays suitable for continuous commercial operation?

A: Selected bar LCD models can be configured for extended commercial operation. The required operating schedule, brightness, ventilation, installation environment and thermal conditions should be confirmed before model selection. For continuous-use projects, request the model-specific datasheet and operating recommendations before placing an order.

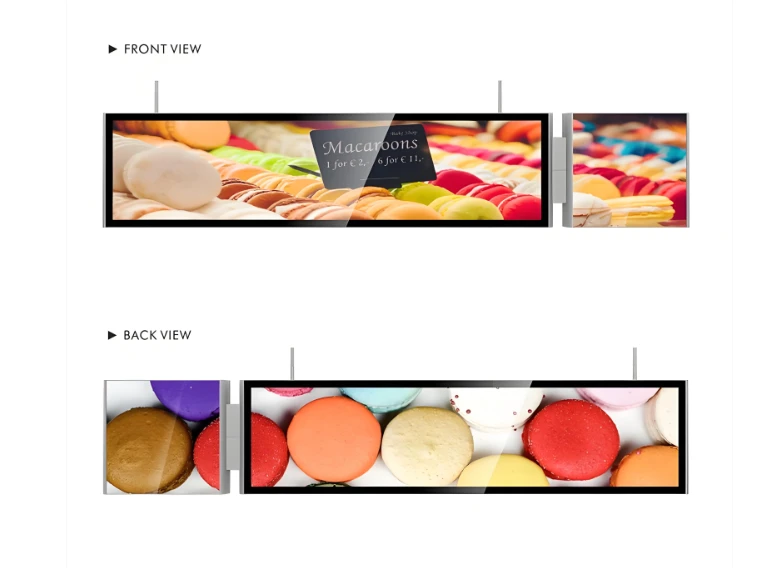

Q: Do you offer single-sided and double-sided bar displays?

A: Single-sided and double-sided configurations may be available for different shelf, aisle and suspended-display applications. A double-sided design can present content in two viewing directions, while a single-sided screen is suitable for wall, shelf-front or fixture integration. Final availability depends on the required size and structure.

Q: What mounting methods are available?

A: Mounting options may include shelf brackets, rail clips, side brackets, suspended structures, wall mounting or custom fixture integration. The correct method depends on the screen dimensions, weight, viewing angle and existing retail fixture. Installation drawings or photographs are recommended for technical review.

Q: Can the enclosure, color or branding be customized?

A: LEGOYO can discuss OEM/ODM requirements including enclosure dimensions, surface color, logo, mounting interfaces, media-player configuration and packaging. Final customization depends on engineering feasibility, tooling requirements and order quantity. Send drawings, fixture dimensions or reference images for evaluation.

Q: Can I request a sample before a bulk order?

A: Yes. Sample evaluation is recommended when the project involves custom dimensions, mounting, software, content playback or system integration. The sample configuration, cost and lead time should be confirmed separately. Buyers should test the screen in the intended installation environment before approving volume production.

Q: What is the MOQ for bar-shaped LCD screens?

A: MOQ depends on the selected model, screen size, enclosure, media player, mounting accessories and customization requirements. Standard products may support a smaller trial quantity, while customized structures may require a higher MOQ. Provide your sample quantity and expected rollout volume for a project-based quotation.

Q: What is the production lead time?

A: Lead time varies according to the selected display, component availability, customization and order quantity. Sample and mass-production schedules should be confirmed separately after the technical specification is approved. Customized enclosures, mounting structures or packaging may require additional preparation time.
