Kiosk Display Solutions

Visitor check-in. Ticket sales. Car wash payments. Retail checkout. Four different jobs, same core idea-let people serve themselves when they don't need staff involved.




  • page-1-1
  • page-1-1
  • page-1-1
  • page-1-1
Visitor Reception
page-1-1

Visitor Reception

Lobby kiosk for offices and clinics. Guest types their name, signs whatever needs signing, prints a badge.
21.5" or 27" screen · Badge printer · Optional ID scanner and camera · Works with Envoy, Proxyclick, or your own system

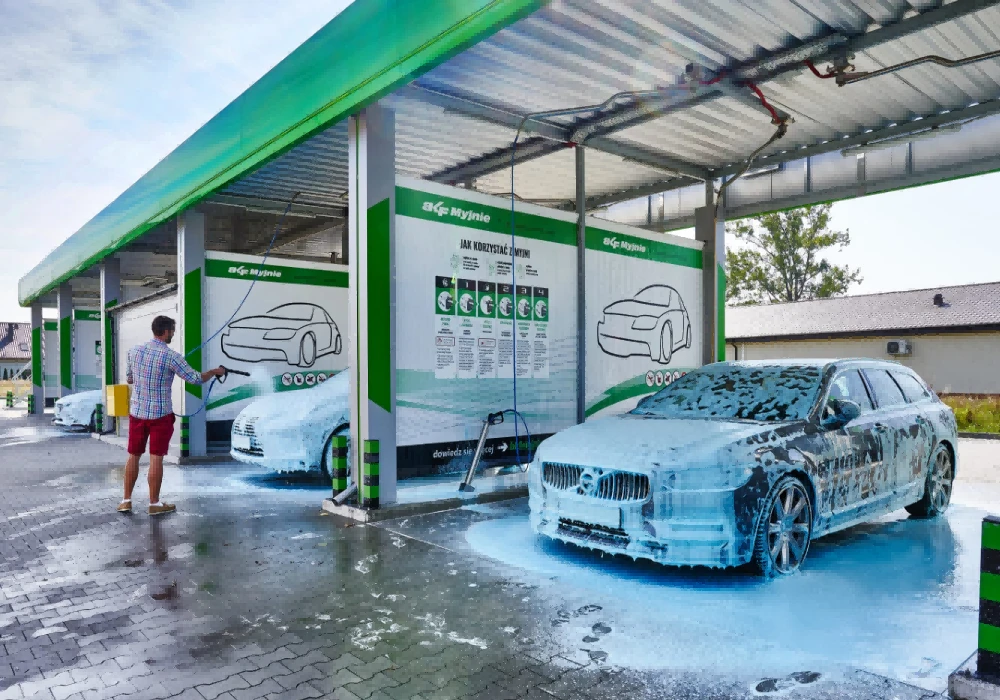

Car Wash Payment
page-1-1

Car Wash Payment

Driver picks a wash, taps their card, gate opens. Runs unattended-handy for sites that stay open late or can't find staff. The enclosure is sealed for outdoor use.
Outdoor-rated IP65 · 1500-nit sunlight display · Connects to Square, Stripe, Heartland · Ties into tunnel controllers

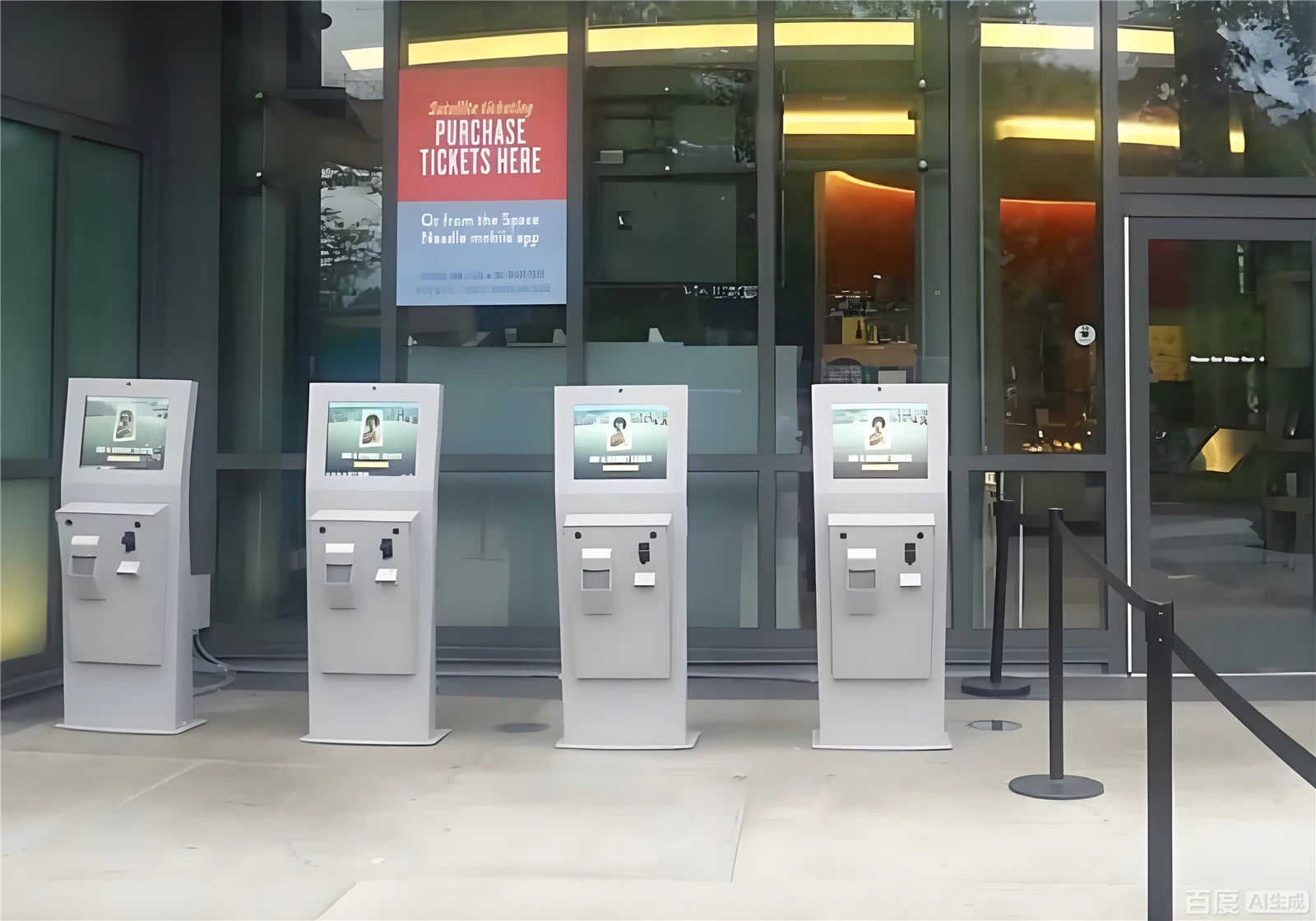

Ticketing
page-1-1

Ticketing

Museums, transit stations, parking garages. Customer picks ticket type, pays, machine spits out a ticket or loads value onto a transit card. High-traffic spots beat these things up, so the glass is 9H hardness and the frame is reinforced steel.
Thermal ticket printer or RFID card dispenser · Tempered touch panel · Integrates with gate and turnstile systems
Retail Checkout
page-1-1

Retail Checkout

Scan, pay, grab your receipt. Grocery, convenience, apparel-anywhere checkout backs up at noon or on weekends. Scanner reads barcodes at any angle, picks up QR codes off phone screens for coupons.
15" to 27" screen sizes · Omnidirectional scanner · Apple Pay, Google Pay, tap cards · Floor or countertop mount

How we build them





Every enclosure is fabricated in-house. We control the whole process from sheet metal to final assembly.

Cutting and forming



Laser-cut steel panels, CNC bending for the frame. Curved profiles available for reception and ticketing models.

Finishing



Electrostatic powder coating, oven-cured. Standard colors ship quick; custom RAL codes take an extra week.

Integration



Display, touch panel, payment terminal, printer, scanner-installed and wired. Firmware loaded, tested before packing.



Shared specs across models



Some components are common to all four kiosk types. Here's what's standard.

Display



  • Sizes: 15.6" / 21.5" / 27"
  • Resolution: 1920 × 1080
  • Brightness: 500 nits standard, 1500 nits outdoor
  • Touch: 10-point capacitive, tempered glass

Payment



  • EMV chip reader
  • NFC for contactless and mobile wallets
  • Magstripe fallback
  • PCI-DSS certified

Connectivity



  • Gigabit Ethernet
  • Dual-band WiFi 6
  • 4G/5G cellular optional
  • USB ports for peripherals

Enclosure



  • Cold-rolled steel, powder-coated
  • IP54 indoor / IP65 outdoor
  • Operating temp: -20°C to 50°C
  • Floor, counter, or wall mount

Accepted payment methods



All models with payment capability support the major card networks and mobile wallets. Contactless runs through NFC-tap a card or hold up a phone.

Visa

Mastercard



American Express

Discover

Apple Pay

Google Pay
