28" Double-Sided Bar LCD Display – Dual-View Shelf Screen

Send Inquiry
28" Double-Sided Bar LCD Display – Dual-View Shelf Screen
Details
The GS280 is a 28-inch double-sided bar LCD display for retail fixtures viewed from two directions. Its 16:3 format and native 1920 × 360 resolution give you room for short promotions, category messages and product graphics where vertical space is limited. The unit measures 729.2 × 161.6 × 55 mm and has a listed brightness of 3,500 cd/m². For a quote, share your fixture dimensions and what you want each side to display.
Category
Bar LCD Display Screen
Share to
Description

GS280 / DOUBLE-SIDED RETAIL SIGNAGE

28-Inch Double-Sided Bar LCD Display

Reach shoppers approaching a shelf, endcap or counter from either direction. The GS280 combines two viewing faces with a wide 16:3 format for short promotions, category messages and product graphics in fixtures with limited vertical space.

28 inches

Screen diagonal

1920 × 360

Native resolution

16:3

Panoramic aspect ratio

3,500 cd/m²

Listed brightness

Request a GS280 Quote

Product Gallery



Explore the GS280 reference images. Use the measurements in the specifications below when planning your fixture.

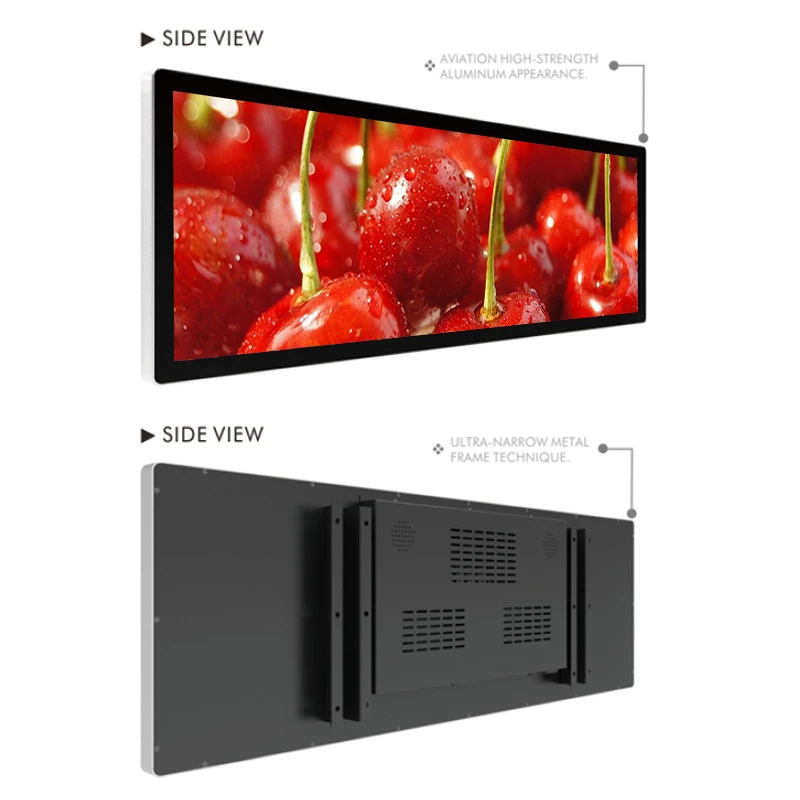

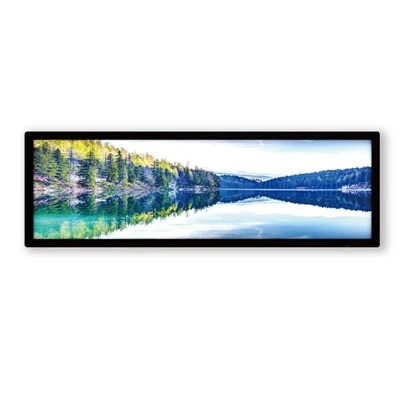

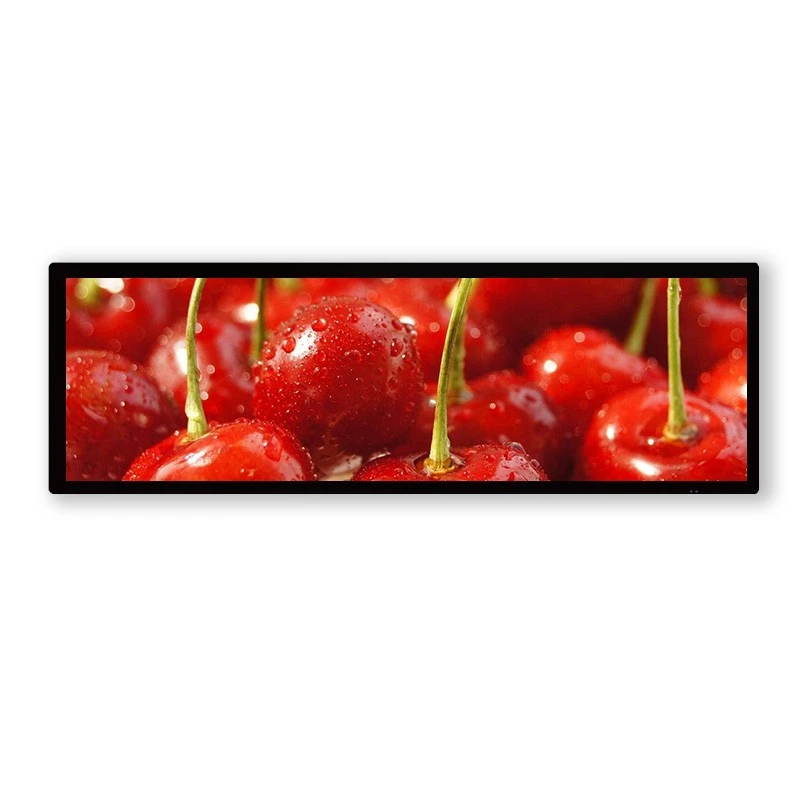

GS280 product reference image 1
GS280 product reference image 2
GS280 product reference image 3
GS280 product reference image 4

Plan for Both Viewing Directions



Choose the message and mounting position around the way shoppers approach the fixture. Start with one clear message per viewing direction and confirm how the two faces will be driven.

Face A: On the Main Approach

Use a product visual and a short offer to introduce the promotion before shoppers reach the display.

Face B: From the Other Direction

Repeat the main message or plan a category cue for the opposite approach. Confirm separate playback if your campaign requires different content on each face.

Where the GS280 Fits



Shelf Headers

Run a product family or a seasonal message along a shelf header where there is little room above the merchandise.

Aisle Endcaps

Position the screen where shoppers enter the aisle from either direction. Keep the headline large enough to read while walking.

Promotional Islands

Carry a campaign across a freestanding display. Check which approach has the clearest line of sight before finalizing the fixture.

Service Counters

Consider short queue messages or offers for customers approaching an island counter from two sides. Check sightlines with the counter fully stocked.

GS280 Technical Specifications



Use the active area for artwork and the unit outline for the first fixture layout. Allow room for the bracket, cable bends and service access.

Parameter GS280 specification
Display
Model GS280
Screen size (diagonal) 28 inches
Native resolution 1920 × 360 pixels
Aspect ratio 16:3
Display colors 16.7 million (8-bit)
Brightness 3,500 cd/m²
Contrast ratio 1400:1
Viewing angle (horizontal / vertical) 178° / 178°
Response time 6 ms
Backlight type LED
Rated backlight life 30,000 hours
Mechanical and board dimensions
Active display area (horizontal × vertical) 698.4 × 130.9 mm

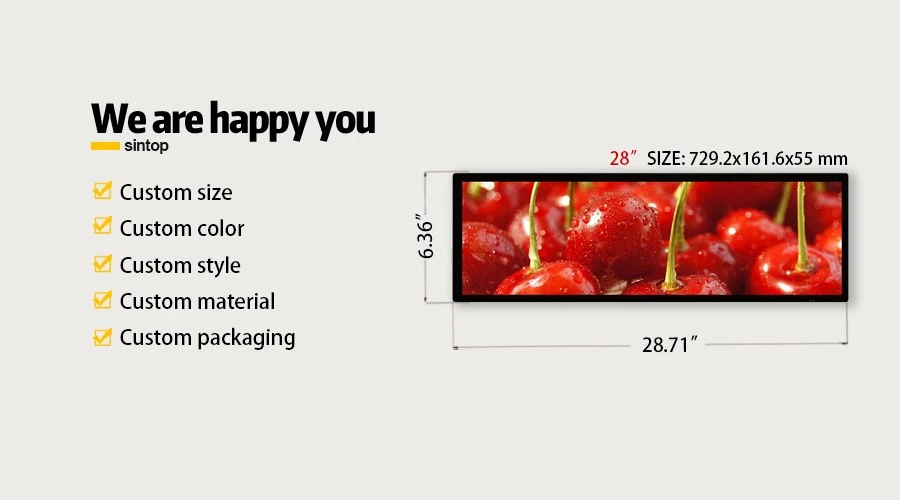

Unit outline (horizontal × vertical × depth) 729.2 × 161.6 × 55 mm
Maximum mainboard size (horizontal × vertical) 126 × 85 mm
Maximum single power board size (horizontal × vertical) 120 × 70 mm
Maximum combined power board size Not specified

Confirm the delivered enclosure drawing, mounting points and brightness of each face before finalizing the installation.

Product Detail Images

Use these images as a visual reference. Request the drawing of the exact assembly before cutting or drilling the fixture.

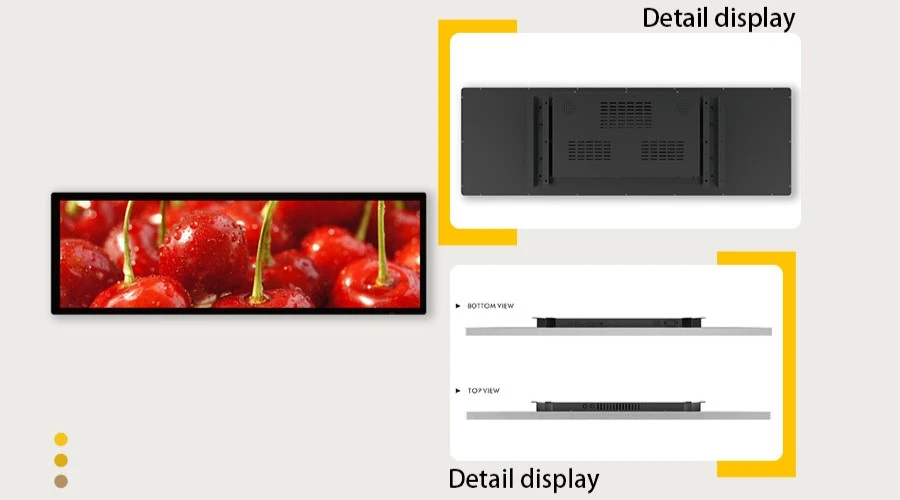

GS280 detail reference image 1
GS280 detail reference image 2
GS280 detail reference image 3
GS280 detail reference image 4

Ask for the Mounting Drawing

Questions Before Ordering



What artwork size should I prepare?

Start with a 1920 × 360 pixel canvas. Use short headlines and preview small text at the intended viewing distance.

Can the two faces show different content?

Tell us whether you need matching or different content on each side so we can confirm the playback setup, inputs and control options for your project.

Can I use it in a bright window or outdoors?

The listed brightness is 3,500 cd/m². For window-facing or outdoor installations, share the light exposure and environment so the enclosure and thermal requirements can be assessed.

What should I include in my inquiry?

Send the fixture opening and depth, viewing directions, ambient lighting, preferred content source and estimated quantity. A fixture photo or drawing is helpful.

Discuss Your GS280 Installation



Share your fixture dimensions and what each side needs to show. We can use that information to review fit, playback requirements and a quotation for your project.

Send a Project Inquiry
