Key Features of the 49-Inch Bar LCD Display
A long-format LCD design with LED backlighting and a metal enclosure for commercial display integration.

Ultra-Wide Screen Format
The 1920 × 426 pixel display provides a stretched content area suited to long-format shelf graphics, product promotion layouts and other commercial signage designs.

LED Backlighting
The original specifications identify an LED backlight and a listed backlight-life figure of 30,000 hours. Actual lifetime depends on operating conditions and the test definition.

Metal Exterior Construction
The product description specifies an industrial-style metal exterior, precision cutting and an automatic sealing process. Construction details should be reviewed for the intended mounting environment.

Brightness Control Technology
The source description mentions hybrid dimming brightness adjustment and high-brightness display capability. Control method, measured luminance and relevant operating settings should be confirmed for each project.
STRETCHED LCD TECHNOLOGY
Why Use an Ultra-Wide Bar LCD Screen for Retail Signage?
A stretched LCD display addresses a different installation requirement from a standard widescreen monitor: it provides a long horizontal content area while occupying less vertical space.
Designed for Long, Narrow Display Areas
Retail shelving, merchandise fixtures and certain architectural display locations can provide long mounting surfaces but limited height. A bar LCD screen allows content to be designed around these proportions rather than cropping a standard 16:9 image to fit an unusually narrow installation.
Space for Multi-Product Promotional Content
An ultra-wide screen can present a horizontal sequence of products, brand graphics, promotional information or category messaging. Content should be designed specifically for the panel's native 1920 × 426 pixel resolution to avoid distortion or unnecessary scaling.
Integration with Retail Display Fixtures

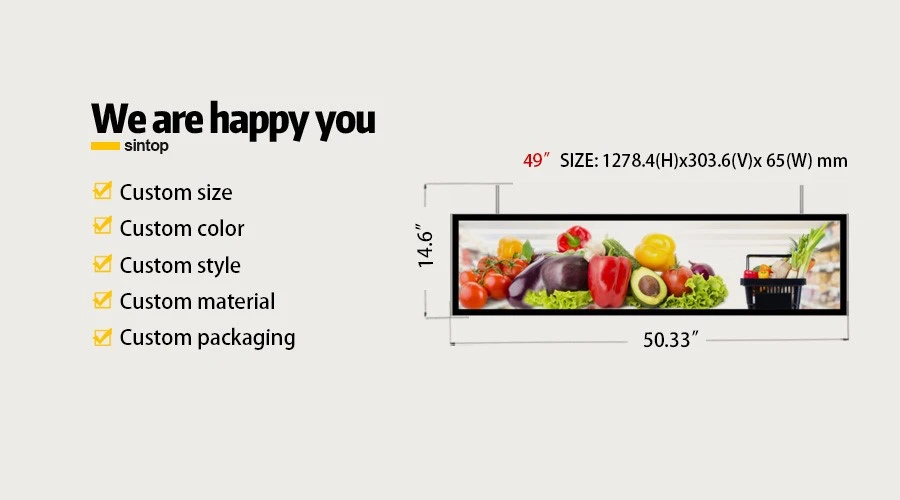

With overall dimensions of 1278.4 × 303.6 × 65 mm, the display should be evaluated together with its mounting frame, power arrangement, ventilation and access for servicing. Custom retail fixtures may require dedicated engineering drawings and installation hardware.
Suitable for Commercial Signage Projects
The screen format can be considered for branded retail areas, specialty store displays and integrated shelf-edge signage. Buyers should confirm the required media player, content distribution method, signal interfaces and power configuration before finalizing a deployment.
TECHNICAL SPECIFICATIONS
49-Inch Ultra-Wide Bar LCD Display Specifications
Original product parameters reorganized into a structured table for B2B buyers, project engineers and commercial display integrators.
| Display Specifications | |
| Screen Size (Diagonal) | 49 Inches |
| Resolution | 1920 × 426 Pixels |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 (as listed; requires confirmation against the native resolution) |
| Brightness | 4500 cd/m² (listed value; verification recommended) |
| Contrast Ratio | 5000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 6 ms |
| Display Area | 1209.6(H) × 268.0(V) mm |
| Backlight Type | LED |
| Backlight Life | 30,000 Hours |
| Electrical & Audio Specifications | |
| Input Power | DC 12V / 220V (listed; power arrangement to be confirmed) |
| Power Consumption (Typical) | 80 W |
| Single Power Consumption (Typical) | ≤ 1 W (original term; definition requires confirmation) |
| Built-in Speakers | 3 W |
| Mechanical & Environmental Specifications | |
| Outline Dimensions | 1278.4(H) × 303.6(V) × 65(W) mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% |
| Package Size | 1360(H) × 385(V) × 145(W) mm |
Technical Confirmation Required
The original parameter sheet lists an aspect ratio of 16:9, but a resolution of 1920 × 426 corresponds to approximately 4.51:1. The native resolution and active display dimensions describe an ultra-wide panel; the 16:9 entry should be checked before final publication.
The listed brightness is 4500 cd/m². Buyers should confirm whether this represents the actual measured panel brightness, its test conditions and whether the figure is typical or peak. The separate ≤1 W power entry is not clearly defined alongside the listed 80 W typical power consumption.
The page title identifies the product as 49 inches, while the existing introductory information also refers to 49.5 inches. Confirm the manufacturer's exact model and approved technical datasheet. Power input, connector configuration, mounting drawings and environmental suitability should likewise be verified before ordering.
DISPLAY PERFORMANCE & CONSTRUCTION
Display Technology and Mechanical Design
The original product description emphasizes brightness control, LED backlighting, color presentation and precision metal construction. The following information explains their relevance to commercial display selection.
01 / High Brightness and Color Presentation
The display specifications list 16.7 million colors, a 5000:1 contrast ratio and a brightness value of 4500 cd/m². These are important evaluation parameters for content visibility, but the luminance and contrast measurement methods should be confirmed before using them as guaranteed performance values in a project specification.
02 / LED Backlight and Brightness Adjustment
The product description identifies LED backlighting, energy-saving design and hybrid dimming brightness adjustment technology. For commercial use, confirm the supported brightness-control method, adjustment range and operational settings. The listed backlight-life figure is 30,000 hours under unspecified test conditions.

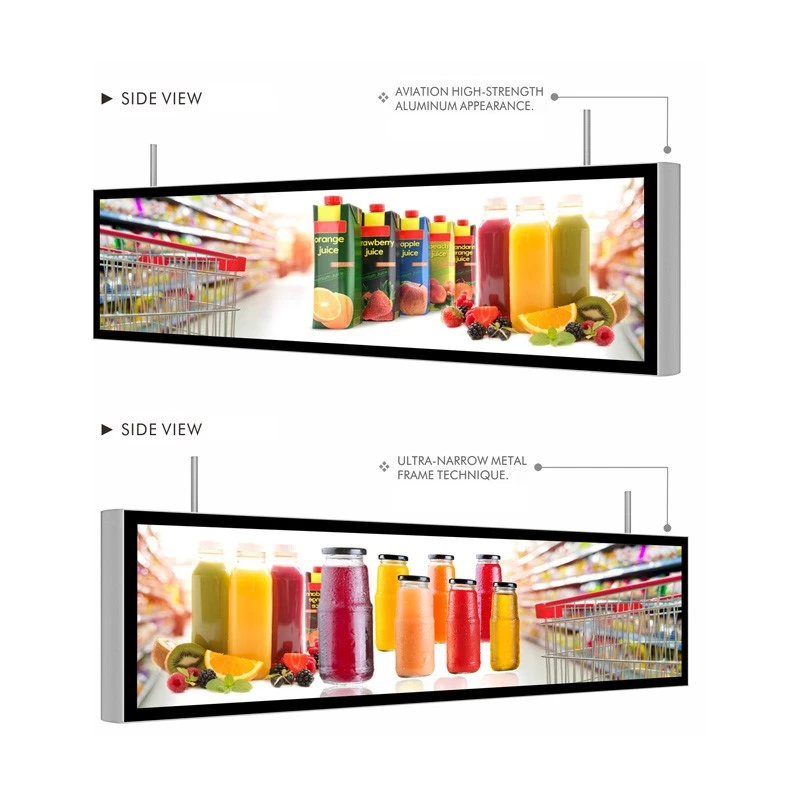

03 / Metal Enclosure and Precision Cutting
The original description highlights an industrial-strength metal plate appearance, precision cutting and an automatic sealing process. These construction details are relevant when integrating a long-format display into a retail fixture. Final enclosure materials, installation tolerances and any sealing or protection rating should be checked with the manufacturer.
04 / Viewing Angle and Visual Performance
A listed viewing angle of 178° horizontally and vertically is relevant for retail environments where customers may view the display from different positions. For installations in high-mounted or recessed fixtures, practical viewing conditions should still be tested using the intended graphics and mounting orientation.
CONTENT PLANNING
Designing Content for a 1920 × 426 Bar LCD Screen
A stretched LCD should use graphics prepared for its actual pixel dimensions. Simply placing a conventional widescreen advertisement on the display may create distortion, letterboxing or unnecessary cropping.
Prepare Native-Resolution Graphics
Use the listed 1920 × 426 pixel format as the starting point for content preparation, subject to confirmation of the final approved panel resolution. The resulting layout should be checked on the actual screen before large-scale installation.
Prioritize Legible Prices and Messages
For shelf-edge signage, important prices, brand identifiers or campaign messages should remain readable from the expected viewing distance. Keep copy concise, avoid placing essential text too close to the screen edges and use sufficient contrast against the background.
Plan Content Around the Installation
Long horizontal content may work differently on an eye-level shelf compared with a high-mounted promotional fixture. The physical location influences text size, pacing, image composition and the amount of detail customers can read.
Check the Required Playback Hardware
The supplied specification does not identify the operating system, media player, video input ports or content-management platform. These details should be confirmed if the screen needs scheduled playback, network-based updates, synchronization or integration with an existing digital signage system.
PRODUCT IMAGE GALLERY

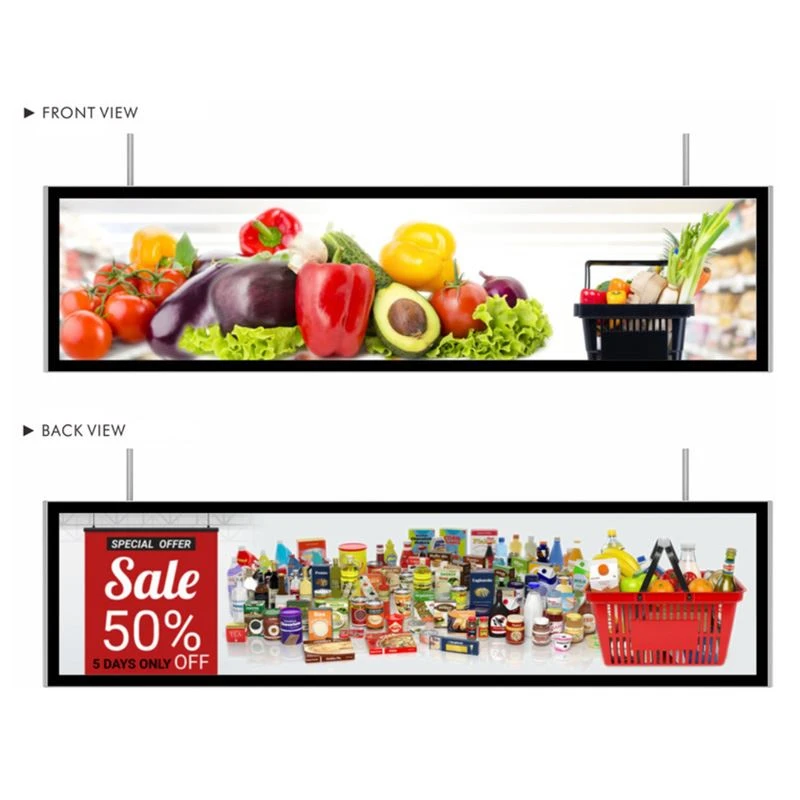

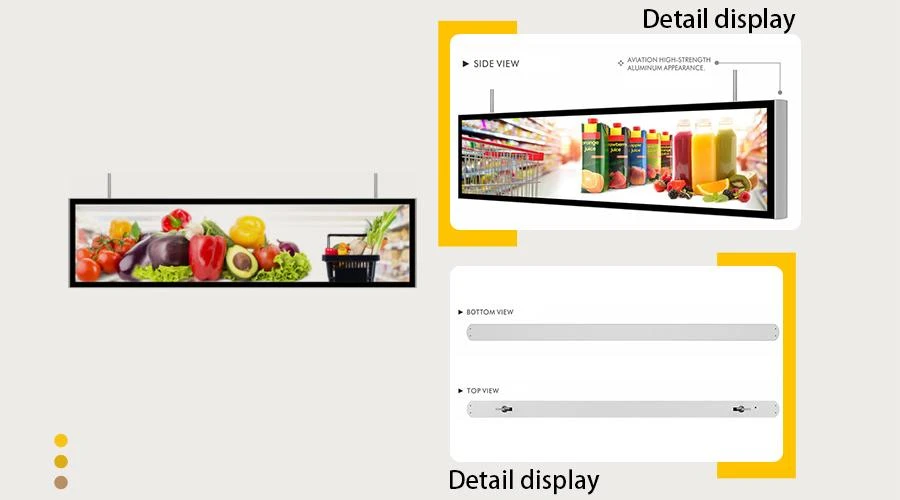

49-Inch Bar LCD Display Product Details
Original product images for reviewing the display appearance and discussing hardware integration requirements.


APPLICATION SCENARIOS

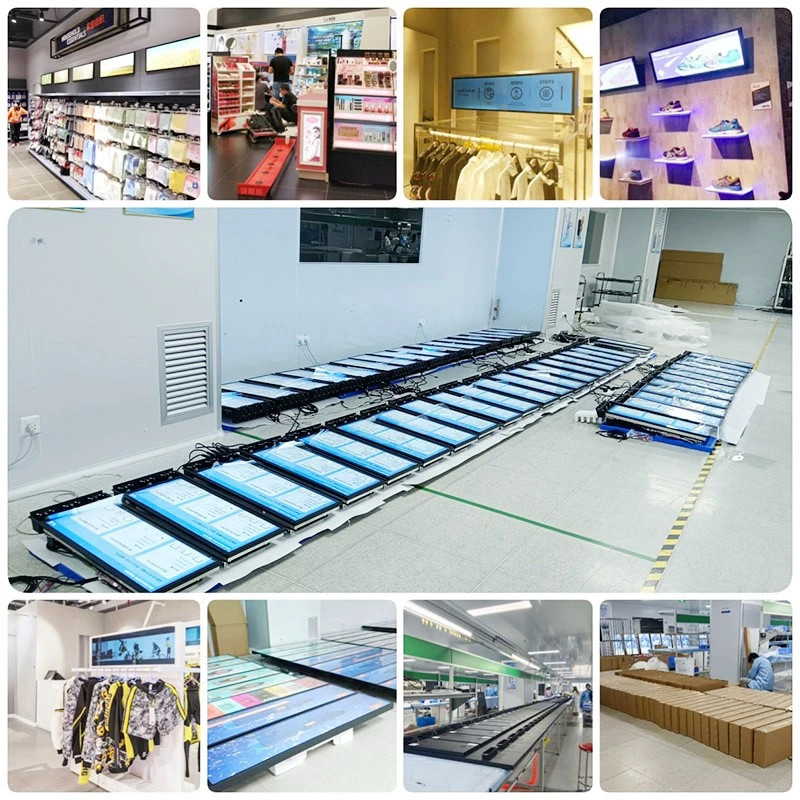

Where Can 49-Inch Bar LCD Digital Signage Be Used?
The long, narrow display format is relevant to retail locations that need digital promotional content across an extended horizontal surface. Each installation should be checked for visibility, fixture dimensions, power access and content requirements.
Supermarkets & Grocery Retail
Large-format bar LCD signage can be evaluated for supermarket shelving, category promotions and selected in-store branding areas. A stretched screen offers room for horizontal campaign graphics, product-group messaging and promotional visuals along a display fixture. The screen should be positioned so that customers can read the content without obstructing access to merchandise.
Cosmetics & Premium Beauty Displays
Beauty retailers may use ultra-wide signage as part of branded display fixtures for product campaigns, collection introductions and visual merchandising. Because the display occupies a wide horizontal area, installation planning should account for cosmetics shelving, tester placement and the intended viewing distance.
Consumer Electronics Stores
Electronics retailers can consider stretched LCD screens for promotional zones or product display areas where a sequence of devices needs to be accompanied by digital brand content. The screen format can support horizontal product imagery, concise technical highlights and campaign messages.
Fashion & Specialty Retail
Fashion and specialty retailers may integrate bar LCD screens into selected shelves, product walls or promotional fixtures. Campaign graphics can be arranged across the panel's wide format, provided the installation and content are tailored to the store's visual merchandising layout.
Promotional & POP Displays
For point-of-purchase installations, an ultra-wide display can be incorporated into a purpose-built fixture to present product highlights or coordinated campaign imagery. Screen integration should be considered alongside the physical display design, power distribution and content playback equipment.


PROJECT INTEGRATION
What to Confirm Before Installing a 49-Inch Bar LCD Display
For an OEM display fixture or commercial digital signage rollout, screen dimensions alone are not enough. Confirm the installation and system requirements before approving a final purchase configuration.
01. Mechanical Dimensions and Mounting Interface
The listed overall dimensions are 1278.4 × 303.6 × 65 mm. Request the complete mechanical drawing to confirm mounting holes, cable access, fixing points, weight, ventilation clearance and any required protective frame.
02. Signal Input and Media Player
The supplied specifications do not identify HDMI, DisplayPort, USB, network connections or built-in media playback capabilities. Confirm the actual interface configuration and whether an external media player or separate controller is required.
03. Power Input and Electrical Requirements
The source lists DC 12V / 220V as power input and 80 W as typical power consumption. Confirm the actual supplied power adapter or power module, input voltage configuration, connectors and power requirements for the intended country or installation.
04. Brightness and Viewing Conditions
Lighting conditions vary considerably between retail shelves, shop windows and premium display fixtures. Confirm the panel's measured brightness, intended indoor use, adjustment functions and performance in the actual installation environment.
05. Operating Conditions and Service Access
The specified operating temperature range is 0°C to 50°C and the listed operating humidity range is 10% to 90%. Confirm whether these values apply under non-condensing conditions and whether the final fixture provides adequate ventilation and access for maintenance.
RELATED DISPLAY PRODUCTS
Explore Other Bar LCD Display Configurations
Different screen sizes and configurations suit different commercial signage projects. Compare the following products when selecting equipment for a particular fixture.
49-Inch Bar LCD Display with LED Light Box
Explore a related 49-inch bar LCD configuration combined with a light-box display concept for retail merchandising and promotional installations.
43.9-Inch Ultra-Wide Bar LCD Screen
Consider a different stretched LCD size for commercial shelf-edge signage when the fixture dimensions are not suitable for the 49-inch format.
28-Inch Stretched Bar LCD Display
Review a smaller stretched-screen alternative when the project requires digital shelf signage over a shorter installation span.
For additional screen sizes and formats, browse the Bar LCD Display Screen category or explore our Bar-Shaped LCD Screen Solutions.
B2B ORDERING PROCESS
How to Order 49-Inch Bar LCD Digital Signage
For commercial display projects, confirm the hardware configuration and fixture requirements before finalizing wholesale quantities or custom installation arrangements.
STEP 01 Share Your Project Requirements
Provide the intended application, installation location, required quantity, approximate fixture dimensions, destination market and project schedule.
STEP 02 Confirm Display and System Specifications
Review the approved screen size, resolution, brightness, power configuration, signal interfaces, mechanical drawings and media playback requirements.
STEP 03 Discuss Sample Evaluation
Where a sample can be supplied, evaluate picture performance, content scaling, fixture fit, electrical compatibility and practical viewing conditions before approving a larger project order.
STEP 04 Confirm Quotation and Delivery
Finalize the approved configuration, order quantity, required accessories, commercial terms, lead time, packaging and shipping arrangements.
FREQUENTLY ASKED QUESTIONS
FAQs About 49-Inch Ultra-Wide Bar LCD Displays
Common technical and procurement questions for commercial stretched LCD signage projects.
Q1. What is a 49-inch ultra-wide bar LCD display?
It is a stretched LCD display with an unusually wide and narrow screen format. This product is intended for commercial signage applications where digital content needs to fit a long horizontal space, such as selected retail shelves, merchandise fixtures or branded displays.
Q2. What is the resolution of the 49-inch bar LCD?
The listed resolution is 1920 × 426 pixels. Content should be prepared for the approved native panel resolution to minimize distortion and cropping. The original 16:9 aspect-ratio entry is inconsistent with this resolution and should be verified.
Q3. What are the overall dimensions of the display?
The listed overall dimensions are 1278.4 × 303.6 × 65 mm, and the active display area is 1209.6 × 268.0 mm. Buyers should request the detailed mechanical drawing to confirm mounting points and installation clearance.
Q4. How bright is this bar LCD display?
The supplied specification lists 4500 cd/m². Because the measurement conditions and typical-versus-peak definition are not provided, buyers should request confirmation of the actual luminance performance before selecting the screen for a particular lighting environment.
Q5. What type of backlight does the screen use?
The original technical table identifies LED backlighting with a listed lifetime of 30,000 hours. The actual performance depends on operating conditions, brightness settings and the manufacturer's lifetime definition.
Q6. What is the power consumption?
The listed typical power consumption is 80 W. The original table also includes a separate ≤1 W entry labeled single power consumption, but does not define this operating mode. The manufacturer should clarify both figures and the actual power-input arrangement.
Q7. Does the display include speakers?
The supplied parameter table lists built-in speakers rated at 3 W. Buyers should confirm the exact audio configuration, available inputs and whether audio playback is supported by the supplied controller or media system.
Q8. Can the screen connect to a digital signage content management system?
The supplied information does not establish the available operating system, video input ports, network interface or CMS compatibility. Confirm the hardware configuration and whether an external media player is needed for the proposed content-management system.
Q9. Can this screen be installed outdoors?
The listed operating temperature range is 0°C to 50°C, but no IP protection rating or outdoor installation approval is included in the supplied specifications. Outdoor use, exposure to rain and direct-sunlight requirements should be evaluated separately.
Q10. What should I provide when requesting a wholesale quotation?
Please provide the required quantity, installation application, fixture dimensions, expected viewing conditions, preferred signal interfaces, media playback requirements, destination market and project schedule. Drawings or photos of the intended mounting location can help clarify the required configuration.
