A fanless kiosk thermal design decision can look like a small mechanical or maintenance detail until the display or kiosk is installed in a real store. The production system is a chain of materials, electronics, enclosure geometry, service procedures, and field conditions. A change at one point can appear somewhere else as an optical defect, thermal fault, intermittent reset, nuisance alarm, or premature service visit. For B2B projects, the useful question is therefore not whether a component exists, but whether the complete configuration has a defined design intent and evidence that it behaves predictably.
This guide treats fanless kiosk thermal design as an engineering and procurement topic. It shows how to map the relevant system, separate failure mechanisms, define controls before tooling or rollout, collect evidence during validation, and turn the result into an RFQ and acceptance plan. Capabilities vary by model, controller, enclosure, material stack, firmware, and destination environment, so project teams should verify the exact proposed configuration instead of borrowing an unsupported number from another product.
This guide covers kiosks designed without internal cooling fans or where fanless operation is a project goal. It does not assume that fanless is always superior. Component limits, enclosure temperatures, and thermal interfaces must be verified for the selected computer, display, power supply, storage, payment, printer, and environmental configuration.

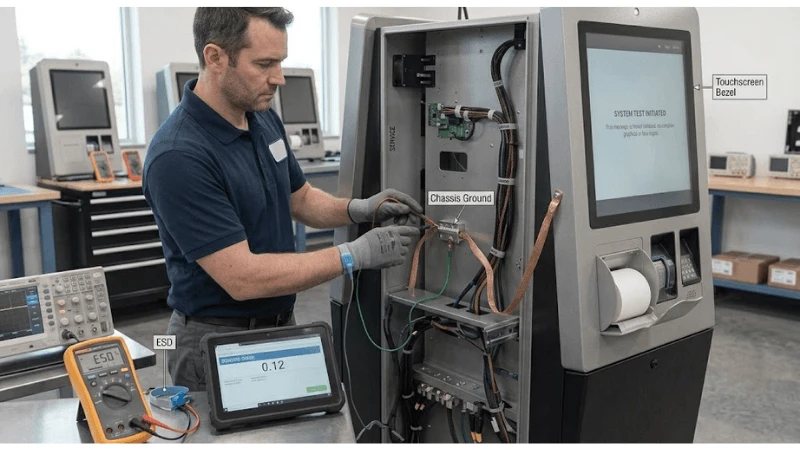

Start With the Complete System, Not a Single Component
The fastest way to create an expensive field problem is to isolate one part of fanless kiosk thermal design from the rest of the system. Procurement sees a line item; engineering sees interfaces. Build a simple block or cross-section drawing that identifies what generates load, what carries it, what senses it, what can be serviced, and what evidence is visible after installation. The drawing does not need to be a full CAD release to be useful. Its purpose is to make assumptions visible before they become production constraints.
| System element | Role in the design | Why buyers should care |
|---|---|---|
| Embedded computer or SBC | often creates a concentrated CPU/SoC and regulator heat load | processor throttling can protect silicon while silently reducing application performance |
| Display and backlight | create a broad heat source across the front assembly | high brightness, cover glass, and sealed bezels can change heat rejection into the enclosure |
| Power supply and DC conversion | convert mains or DC input and dissipate conversion loss | a supply placed in a stagnant upper pocket can run hotter than the average enclosure air |
| Receipt printer and payment peripherals | produce intermittent heat and may have their own environmental limits | worst-case thermal load may occur during transaction bursts rather than idle display operation |
| Storage, modem, and networking | add smaller local heat sources and temperature-sensitive components | write-heavy storage or cellular transmission can create hotspots that are missed by a single air sensor |
| Metal chassis and external surfaces | can act as a heat spreader and natural-convection radiator when designed for it | paint, decorative cladding, wall recesses, and insulating mounting surfaces can reduce the expected heat path |
For each element, identify the controlled document that defines it: mechanical drawing, wiring diagram, component datasheet, material specification, software state diagram, installation instruction, or service procedure. If no document owns an interface, the interface is likely to be improvised during assembly or field service. That is exactly where repeatability is usually lost.
Failure Modes: What the Symptom Can Mean and What Evidence to Collect
Troubleshooting should begin with observable evidence, not a favorite theory. Similar symptoms can come from different mechanisms, and the wrong corrective action can hide the evidence or create a second problem. The table below frames common symptoms as investigation paths rather than diagnoses.
| Observed symptom | Possible mechanism | Evidence to collect | Engineering response |
|---|---|---|---|
| Kiosk becomes slow during busy periods | processor or storage thermal throttling may occur as internal temperature rises | correlate performance logs with CPU/board temperature and transaction/peripheral activity | remove the thermal bottleneck or reduce sustained load rather than treating the slowdown only as software latency |
| Random reboots after long operation | power supply, regulator, embedded PC, or peripheral may be exceeding a thermal/electrical limit | capture temperatures and power events before reboot; compare cold-start and fully heat-soaked behavior | identify the specific hot component and its path to ambient |
| Touch, payment, or USB peripherals disconnect when hot | local controller or hub temperature, power regulation, or cable/connector conditions may degrade | compare device enumeration and temperature around the affected module | improve local thermal path and verify the complete peripheral configuration |
| Display dims or image changes in a sealed front assembly | backlight or panel/controller protection may react to heat | compare brightness/control state and display temperatures against the selected product documentation | address enclosure heat and front-glass solar load as a system |
| One kiosk site fails while laboratory units pass | wall recess, sun exposure, HVAC, floor vents, adjacent equipment, or blocked natural-convection openings may differ | perform an as-installed site comparison rather than swapping computers immediately | bring the installation geometry into the thermal specification |
| Failures start after a hardware upgrade | new CPU, SSD, modem, power supply, cover panel, or peripheral changed heat generation or conduction | compare BOM and power/temperature baseline before and after change | require thermal regression for changes that affect heat generation or path |
A key discipline is to preserve the as-failed state long enough to record it. Photograph the physical condition, capture available logs, note ambient and operating state, and record the exact configuration. If the first response is to tighten hardware, reboot the computer, replace a cable, clean a filter, or disable an alarm, the project may lose the only evidence that distinguishes a design weakness from a one-off assembly error.

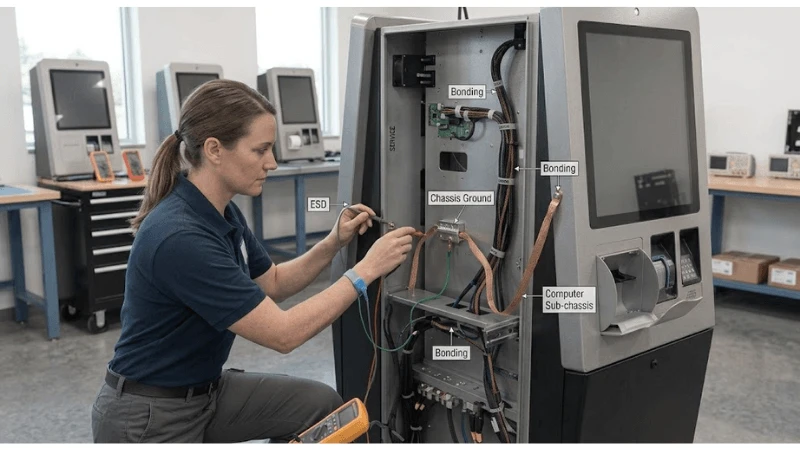

Design Controls That Prevent the Problem From Becoming a Field Routine
Create a heat-source budget before enclosure styling is frozen
List sustained and intermittent loads from the display, computer, PSU, printer, payment, modem, lighting, and accessories. Nameplate power alone is not a thermal model, but the inventory reveals where measurements are needed.
Useful project evidence: Thermal block diagram tied to the production BOM. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Design conductive paths to a usable heat-spreading structure
Heat pipes, spreaders, interface pads, and chassis contact can move heat away from small processors or power devices. The interface must tolerate assembly variation and service replacement.
Useful project evidence: Mechanical section showing thermal interface materials and controlled contact areas. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Use natural convection deliberately
Warm air rises only if it has a continuous path. Shelves, cable bundles, horizontal baffles, and sealed decorative covers can trap hot air pockets.
Useful project evidence: Enclosure airflow sketch and temperature mapping at multiple heights. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Keep hot components away from each other when possible
Stacking the PSU, computer, and printer driver in the same stagnant zone can create a hotspot even when total power seems moderate.
Useful project evidence: Layout review with measured component temperatures. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Plan for installation boundaries
A freestanding kiosk radiates and convects differently from the same enclosure pushed into a wall recess or wrapped in cabinetry.
Useful project evidence: Site clearance requirements in the installation drawing. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Expose thermal evidence to service teams
Available board sensors, SSD temperature, display state, and system logs can help distinguish heat from software or network faults.
Useful project evidence: Known-good sensor baseline and alarm/escalation rules. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Common Mistakes to Eliminate Before Pilot Build
Many failures are created by decisions that seem harmless because the unit still powers on during a short bench demonstration. Remove these habits from drawings, work instructions, and acceptance criteria before the pilot build:
- Assuming "fanless PC" means the whole kiosk is thermally validated
- Measuring only enclosure air temperature and not component hotspots
- Testing on an open bench while the production kiosk is recessed into furniture
- Ignoring intermittent printer, modem, or payment loads
- Using decorative foam or wrap that insulates a chassis designed as a heat spreader
- Replacing a thermal pad or computer module without repeating the heat-soak baseline
The common pattern is uncontrolled substitution. A different screw, filter, film, thermal pad, sensor, cable route, bracket, or software setting can preserve basic functionality while changing reliability. When the item affects the mechanism described in this guide, treat it as an engineering change and decide whether regression testing is needed.
Build an Acceptance Test That Reproduces the Production Configuration
A useful fanless kiosk thermal design acceptance test is not a generic power-on check. It reproduces the mounting, enclosure, player or computer load, cabling, peripherals, materials, environmental boundary, and service steps that the buyer will actually deploy. The goal is not to create an artificially severe laboratory stunt. The goal is to prove that ordinary installation and credible fault conditions lead to deterministic behavior.
| Test stage | Method | Pass evidence |
|---|---|---|
| Instrumented prototype baseline | Place sensors or use component telemetry at the CPU/SoC, storage, PSU zone, display/backlight zone, and representative enclosure air points. | Measurements identify hotspots rather than relying on one ambient sensor. |
| Steady-state high-load run | Operate representative application workload, display brightness, networking, and peripherals until key temperatures stabilize. | No selected component exceeds its specified operating limit and application performance remains acceptable. |
| Transaction-burst test | Exercise printer, scanner, payment, modem, and other intermittent peripherals in realistic sequences. | Short-term heat and power events do not create resets or unacceptable throttling. |
| Worst installation geometry | Test the kiosk with the actual wall/recess clearance, base/floor condition, and decorative covers. | Natural-convection and chassis heat paths remain available in the field configuration. |
| High-ambient qualification | Use a controlled chamber or environmental method appropriate to the project and component specifications. | Thermal margin is demonstrated under the project's defined ambient condition, not inferred from room-temperature testing. |
| Power-loss/recovery after heat soak | Restart the kiosk when the enclosure is already warm. | Boot completes and all peripherals enumerate without relying on a cool-down period unless that limitation is explicitly accepted. |
| Service replacement regression | Replace a thermal-interface or major heat-producing module using the field procedure. | The restored unit returns to the baseline range and no thermal pad/contact is omitted. |
| Software update canary | Run representative CPU/GPU/network load after major application or OS updates on a small controlled group. | A software change that increases sustained load is detected before fleet-wide release. |
Record the test setup with photographs and revision identifiers. If a later unit fails, the team should be able to answer whether it matches the tested build. A pass statement with no configuration is weak evidence because the same display or kiosk can behave differently after a panel, enclosure, PSU, player, sensor, material, or firmware substitution.
Pilot the Design Before Fleet Rollout
Run a small pilot using production hardware, production software, and the intended installation method. The pilot should exercise the day-to-day states that matter to fanless kiosk thermal design: cold start, normal operating load, scheduled operation, service access, power recovery, network recovery where applicable, and representative environmental variation. Keep the pilot long enough to reveal intermittent behavior that a short factory demonstration may miss, but do not convert pilot duration into an unsupported lifetime prediction.
Create an exception log rather than a success-only report. For each anomaly, record unit identity, time, configuration, starting state, action, visible symptom, sensor/log evidence, recovery, and whether the event was reproducible. This log becomes the basis for design changes and the field runbook. It also prevents different teams from using the same word-such as overheating, stress, aging, tamper, or failure-to describe completely different evidence.
Change Control: Keep a Known-Good Configuration Known
Once the pilot passes, freeze the interfaces that materially affect fanless kiosk thermal design. A cosmetic enclosure revision can change stiffness or heat rejection. A new adhesive or film can change optics. A replacement computer can change power density. A new sensor bracket can change switch travel. A software update can change workload or event handling. Change control does not mean refusing improvements; it means deciding which changes require a repeat of part or all of the acceptance plan.
Keep the baseline tied to part numbers, drawings, firmware/software versions, and installation instructions. When a supplier proposes an equivalent component, request the characteristics that matter to the function rather than accepting the word "equivalent" alone. For field replacement, define which items are plug-compatible and which need a regression check before the kiosk or display returns to service.
Write the Requirement Into the RFQ
A strong RFQ describes the operating scenario, required evidence, and acceptance method. It avoids unsupported design prescriptions where the supplier may have a better implementation, but it also avoids vague checkboxes such as "industrial grade," "UV resistant," "fanless," "VESA compatible," or "tamper proof." Ask what configuration was actually tested and how the supplier will keep production aligned with it.
- State the required fanless architecture and explain why it is required; do not use it as a marketing checkbox.
- Provide ambient range, duty cycle, site geometry, display brightness, application load, and peripheral configuration.
- Request a thermal block diagram with major heat sources, conduction paths, and natural-convection assumptions.
- Ask which component temperatures were measured in validation and where sensors were located.
- Request the tested configuration, software/load profile, and installation clearances used for the thermal report.
- Ask how CPU/SoC throttling, display thermal protection, and power-supply protection are monitored during the test.
- Identify thermal pads, heat pipes, spreaders, chassis contacts, and other service-critical thermal parts in the BOM.
- Define post-service thermal regression checks for computer, display, PSU, or enclosure changes.
- Require review of BOM substitutions that change power or thermal resistance.
- Agree on a pilot/soak test that uses production software before volume deployment.
Troubleshooting and Field Service Runbook
Field teams should have a short runbook for fanless kiosk thermal design. First verify the unit identity and current BOM/software revision. Second capture the symptom before changing the state. Third compare the physical installation with the approved photo or drawing. Fourth check available sensor or event logs. Fifth isolate the smallest change that reproduces the problem. Finally, after repair, repeat the relevant acceptance step instead of declaring success as soon as the screen or kiosk appears normal.
The runbook should also tell technicians what not to do. Do not improvise hardware lengths, bypass a sensor permanently, add dense filter media, introduce unapproved optical films, disturb thermal interface materials, or force a warped assembly into position unless an engineering instruction authorizes the change. Those actions can temporarily remove a symptom while making the fleet harder to support.
FAQ
Q: Is a fanless kiosk automatically sealed against dust?
A: No. Fanless only means it does not rely on a cooling fan. The enclosure can still have vents, seams, printer openings, cable entries, and service gaps. Dust and ingress protection are separate design requirements.
Q: What is the biggest risk in fanless kiosk design?
A: A common risk is assuming average enclosure temperature represents every component. Local hotspots at the processor, power supply, storage, or display can be much hotter than the measured air. Validation needs component-level evidence.
Q: Can software reduce kiosk overheating?
A: Power management, brightness control, and workload optimization can reduce heat, but software should not be used to hide an inadequate mechanical thermal path. The deployed application still needs acceptable performance at the qualified environment.
Q: Why does a kiosk pass the lab but overheat in a store?
A: The store may have higher ambient temperature, sun load, wall recesses, blocked convection paths, different application load, or peripheral activity. Reproduce the field geometry and workload before concluding that the hardware itself is defective.
Q: Should a buyer ask for a single "maximum kiosk temperature"?
A: It is more useful to ask which components were monitored, what their manufacturer limits are, what configuration/load was tested, and what ambient/site conditions were used. One enclosure-air number can hide critical hotspots.
Final Procurement Perspective
The best way to manage fanless kiosk thermal design is to turn it from an informal feature into a controlled system behavior. Map the complete path, identify failure mechanisms, protect the interfaces that matter, validate the actual production configuration, preserve evidence, and make service/change control part of the design. This approach gives procurement, engineering, installation, and operations the same definition of "acceptable" before a volume order is placed.
For LEGOYO projects, the article should be used as a planning framework rather than as a statement that every product automatically includes every feature described. Confirm the selected model, customization, environmental requirement, and test evidence with the project team before freezing the specification.
