A commercial LCD airflow dust control decision can look like a small mechanical or maintenance detail until the display or kiosk is installed in a real store. The production system is a chain of materials, electronics, enclosure geometry, service procedures, and field conditions. A change at one point can appear somewhere else as an optical defect, thermal fault, intermittent reset, nuisance alarm, or premature service visit. For B2B projects, the useful question is therefore not whether a component exists, but whether the complete configuration has a defined design intent and evidence that it behaves predictably.
This guide treats commercial LCD airflow dust control as an engineering and procurement topic. It shows how to map the relevant system, separate failure mechanisms, define controls before tooling or rollout, collect evidence during validation, and turn the result into an RFQ and acceptance plan. Capabilities vary by model, controller, enclosure, material stack, firmware, and destination environment, so project teams should verify the exact proposed configuration instead of borrowing an unsupported number from another product.
This guide addresses commercial LCDs and integrated signage enclosures where airflow, dust, fans, vents, or filters influence thermal performance. Maintenance intervals and temperature limits must come from the selected equipment and measured environment; the article does not invent a universal cleaning schedule.

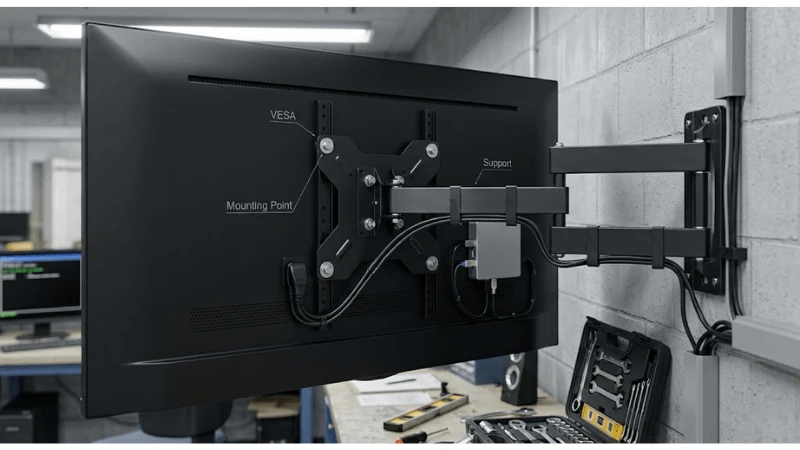

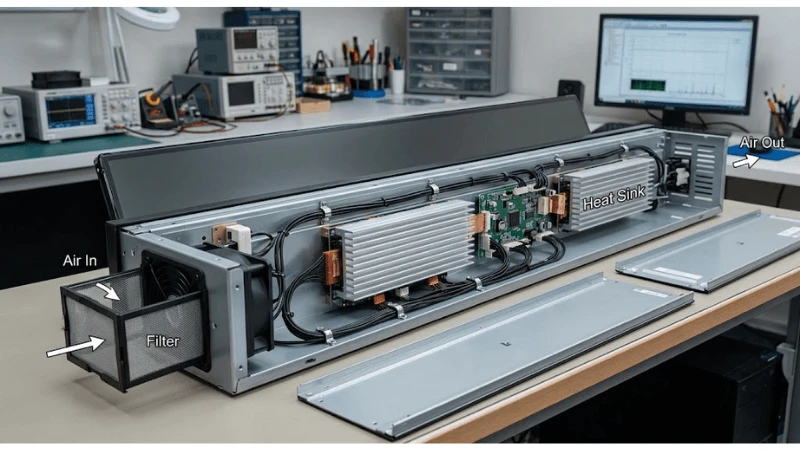

Start With the Complete System, Not a Single Component
The fastest way to create an expensive field problem is to isolate one part of commercial LCD airflow dust control from the rest of the system. Procurement sees a line item; engineering sees interfaces. Build a simple block or cross-section drawing that identifies what generates load, what carries it, what senses it, what can be serviced, and what evidence is visible after installation. The drawing does not need to be a full CAD release to be useful. Its purpose is to make assumptions visible before they become production constraints.
| System element | Role in the design | Why buyers should care |
|---|---|---|
| Heat sources | backlight LEDs, power conversion, controller boards, embedded players, and optional touch electronics generate heat | the thermal load changes with brightness, content, CPU activity, and peripheral use |
| Heat spreaders and chassis | conduct heat away from concentrated electronics | poor contact or added insulation can raise component temperature even if room air is cool |
| Air inlets | admit cooler ambient air in vented or fan-assisted designs | dust loading or placement against a wall can reduce available airflow |
| Fans and blowers | create forced airflow where passive convection is insufficient | fan wear, blocked blades, reduced speed, and noise can become both reliability and service issues |
| Filters and screens | reduce the amount of airborne contamination entering the enclosure | they add airflow resistance and can become restrictive as dust accumulates |
| Exhaust and recirculation path | must discharge warmed air without feeding it directly back into the intake | poor cabinet geometry can create a hot recirculating loop even when fans are running |
For each element, identify the controlled document that defines it: mechanical drawing, wiring diagram, component datasheet, material specification, software state diagram, installation instruction, or service procedure. If no document owns an interface, the interface is likely to be improvised during assembly or field service. That is exactly where repeatability is usually lost.
Failure Modes: What the Symptom Can Mean and What Evidence to Collect
Troubleshooting should begin with observable evidence, not a favorite theory. Similar symptoms can come from different mechanisms, and the wrong corrective action can hide the evidence or create a second problem. The table below frames common symptoms as investigation paths rather than diagnoses.
| Observed symptom | Possible mechanism | Evidence to collect | Engineering response |
|---|---|---|---|
| Display dims, restarts, or behaves differently late in the day | thermal protection, power conversion stress, or a temperature-sensitive component may be responding to accumulated heat | compare internal sensor logs and operating conditions from cold start through the failure window; inspect vents and filters | restore the intended thermal path and confirm the fault under controlled repeat testing |
| Fan becomes loud or changes pitch | bearing wear, contamination, obstruction, or a changed operating point may be increasing fan load | inspect fan condition, tachometer data if available, and dust pattern without touching live rotating parts | service or replace according to the manufacturer's procedure rather than masking the noise |
| Filter looks clean at the front but temperatures rise | fine dust can load deeper in the media or bypass through gaps | compare pressure/airflow indicators if designed in, temperature trend, and filter sealing surfaces | use the specified filter and installation method; do not substitute denser media without thermal review |
| One display in a row runs hotter than identical units | its intake may be obstructed, exhaust may recirculate, or cabinet clearances may differ | compare installation geometry, neighboring heat sources, orientation, fan state, and measured temperature at matched load | correct the environmental difference before assuming a defective panel |
| Dust accumulates on optics or electronics despite a filter | air may be entering through unsealed openings or the enclosure may not be designed as a filtered positive path | inspect dust trails and gasket/cover interfaces during service | improve sealing or airflow architecture through engineering change rather than adding tape ad hoc |
| Repeated thermal faults after maintenance | filter, fan, cable, cover, or thermal pad may have been reinstalled incorrectly | compare the serviced unit against build photos and controlled work instructions | add critical thermal parts and routes to the service checklist |
A key discipline is to preserve the as-failed state long enough to record it. Photograph the physical condition, capture available logs, note ambient and operating state, and record the exact configuration. If the first response is to tighten hardware, reboot the computer, replace a cable, clean a filter, or disable an alarm, the project may lose the only evidence that distinguishes a design weakness from a one-off assembly error.
Design Controls That Prevent the Problem From Becoming a Field Routine
Choose passive, fan-assisted, or sealed cooling deliberately
Fanless designs avoid a moving part and can reduce ingestion of airborne contaminants, but they require a proven conductive and natural-convection path. Fan-assisted designs can handle higher heat density but add service points.
Useful project evidence: Thermal architecture diagram tied to the actual duty cycle and enclosure. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Separate intake and exhaust zones
Short-circuit recirculation can return heated exhaust to the intake. Cabinet cutouts, wall spacing, and neighboring equipment matter as much as the fan specification.
Useful project evidence: Installation drawing showing intake/exhaust keep-out areas. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Treat the filter as part of the thermal system
Filter media, area, sealing, and loading change flow resistance. A replacement chosen only by physical size can change cooling behavior.
Useful project evidence: Controlled filter part number and maintenance record. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Make service access possible without dismantling the display
If a filter or fan requires removing the entire screen, maintenance is likely to be deferred or performed inconsistently.
Useful project evidence: Tool/access review using the installed fixture, not only a bench sample. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Instrument important thermal states where practical
Available temperature sensors, fan tach signals, controller logs, or management alarms make trend-based maintenance more reliable than waiting for a shutdown.
Useful project evidence: Baseline log from a clean production unit under representative load. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Prevent cables and merchandising from becoming airflow blockers
A cable bundle, shelf fascia, decoration, or replacement media player can obstruct a vent after commissioning.
Useful project evidence: Final as-installed photo standard and periodic field inspection item. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Common Mistakes to Eliminate Before Pilot Build
Many failures are created by decisions that seem harmless because the unit still powers on during a short bench demonstration. Remove these habits from drawings, work instructions, and acceptance criteria before the pilot build:
- Setting one cleaning interval for every store regardless of dust and cooking/traffic conditions
- Replacing a washable or specified filter with a denser generic material
- Mounting the display flush against a surface that covers an intake or exhaust
- Assuming a spinning fan proves that airflow is adequate
- Using compressed air or aggressive cleaning methods without the equipment maker's procedure
- Failing to record baseline temperatures when the unit is new and clean
The common pattern is uncontrolled substitution. A different screw, filter, film, thermal pad, sensor, cable route, bracket, or software setting can preserve basic functionality while changing reliability. When the item affects the mechanism described in this guide, treat it as an engineering change and decide whether regression testing is needed.
Build an Acceptance Test That Reproduces the Production Configuration
A useful commercial LCD airflow dust control acceptance test is not a generic power-on check. It reproduces the mounting, enclosure, player or computer load, cabling, peripherals, materials, environmental boundary, and service steps that the buyer will actually deploy. The goal is not to create an artificially severe laboratory stunt. The goal is to prove that ordinary installation and credible fault conditions lead to deterministic behavior.
| Test stage | Method | Pass evidence |
|---|---|---|
| Clean-system baseline | Run the production display, player, brightness setting, and content until temperatures stabilize. | Record sensor values, fan state, ambient conditions, and installation geometry for a known-good reference. |
| Intake clearance check | Inspect the final wall/cabinet gaps and any adjacent fixtures. | No intended inlet is blocked or drawing hot exhaust from another device. |
| Exhaust recirculation check | Observe the route of warmed air and compare inlet conditions during sustained operation. | Exhaust can leave the enclosure instead of immediately returning to the intake. |
| Filter installation check | Confirm correct media, orientation, seal, and retention. | No bypass gaps and no unapproved dense substitute that changes airflow. |
| Fan health check | Verify all specified fans operate and any available speed/health telemetry is visible. | No stalled fan, intermittent start, cable contact, or abnormal mechanical noise. |
| Representative dust/service simulation | Use the supplier's approved method to evaluate a serviced or partially loaded condition without introducing uncontrolled contamination. | Thermal margin and maintenance trigger remain defined by evidence, not a guessed calendar. |
| Power-cycle and recovery | Restart after thermal stabilization and after a normal service procedure. | Fans, monitoring, and display control return to the intended state. |
| Post-service regression | Replace/clean the serviceable thermal items and repeat the baseline. | Temperatures and fan behavior return close to the known-good reference within the project's agreed criteria. |
Record the test setup with photographs and revision identifiers. If a later unit fails, the team should be able to answer whether it matches the tested build. A pass statement with no configuration is weak evidence because the same display or kiosk can behave differently after a panel, enclosure, PSU, player, sensor, material, or firmware substitution.
Pilot the Design Before Fleet Rollout
Run a small pilot using production hardware, production software, and the intended installation method. The pilot should exercise the day-to-day states that matter to commercial LCD airflow dust control: cold start, normal operating load, scheduled operation, service access, power recovery, network recovery where applicable, and representative environmental variation. Keep the pilot long enough to reveal intermittent behavior that a short factory demonstration may miss, but do not convert pilot duration into an unsupported lifetime prediction.
Create an exception log rather than a success-only report. For each anomaly, record unit identity, time, configuration, starting state, action, visible symptom, sensor/log evidence, recovery, and whether the event was reproducible. This log becomes the basis for design changes and the field runbook. It also prevents different teams from using the same word-such as overheating, stress, aging, tamper, or failure-to describe completely different evidence.
Change Control: Keep a Known-Good Configuration Known
Once the pilot passes, freeze the interfaces that materially affect commercial LCD airflow dust control. A cosmetic enclosure revision can change stiffness or heat rejection. A new adhesive or film can change optics. A replacement computer can change power density. A new sensor bracket can change switch travel. A software update can change workload or event handling. Change control does not mean refusing improvements; it means deciding which changes require a repeat of part or all of the acceptance plan.
Keep the baseline tied to part numbers, drawings, firmware/software versions, and installation instructions. When a supplier proposes an equivalent component, request the characteristics that matter to the function rather than accepting the word "equivalent" alone. For field replacement, define which items are plug-compatible and which need a regression check before the kiosk or display returns to service.
Write the Requirement Into the RFQ
A strong RFQ describes the operating scenario, required evidence, and acceptance method. It avoids unsupported design prescriptions where the supplier may have a better implementation, but it also avoids vague checkboxes such as "industrial grade," "UV resistant," "fanless," "VESA compatible," or "tamper proof." Ask what configuration was actually tested and how the supplier will keep production aligned with it.
- Ask whether the proposed configuration is passive, fan-assisted, or otherwise thermally managed.
- Request an airflow/thermal-path drawing showing inlets, exhausts, hot components, and serviceable items.
- Identify filters, fans, gaskets, thermal pads, and other thermal-maintenance parts in the BOM.
- Ask which sensors, fan-health signals, or thermal alarms can be exposed to the management system.
- State the installed orientation, wall/cabinet clearances, ambient range, and nearby heat sources in the RFQ.
- Request the supplier's maintenance and cleaning procedure for vents, filters, and fans.
- Confirm access time and steps for replacing a fan or filter in the final fixture.
- Define an incoming and post-install thermal acceptance run using representative brightness and player load.
- Require engineering review before changing filter media, fan model, vent geometry, enclosure material, or player power.
- Request recommended spare parts for field-serviceable fans/filters without assuming a fixed replacement interval.
Troubleshooting and Field Service Runbook
Field teams should have a short runbook for commercial LCD airflow dust control. First verify the unit identity and current BOM/software revision. Second capture the symptom before changing the state. Third compare the physical installation with the approved photo or drawing. Fourth check available sensor or event logs. Fifth isolate the smallest change that reproduces the problem. Finally, after repair, repeat the relevant acceptance step instead of declaring success as soon as the screen or kiosk appears normal.
The runbook should also tell technicians what not to do. Do not improvise hardware lengths, bypass a sensor permanently, add dense filter media, introduce unapproved optical films, disturb thermal interface materials, or force a warped assembly into position unless an engineering instruction authorizes the change. Those actions can temporarily remove a symptom while making the fleet harder to support.
FAQ
Q: Frequently Asked Questions
A: How often should a commercial LCD air filter be cleaned?
There is no responsible universal interval. The answer depends on filter design, airborne contamination, operating hours, airflow, and the manufacturer's maintenance guidance. Establish a clean baseline, inspect early in the rollout, and adjust the interval using observed loading and thermal trends.
Q: Is fanless always more reliable than fan-cooled?
A: Not automatically. Fanless architecture removes a moving part and can reduce dust ingestion, but it needs sufficient conductive and natural-convection capacity. A high-heat system may require forced airflow. Reliability comes from matching the thermal architecture to the load and environment.
Q: Can I add a stronger fan to fix an overheating display?
A: Not as an uncontrolled field change. Airflow, acoustic, power, vibration, pressure, and dust paths interact. A different fan may move more air in free space but perform poorly against the actual system resistance. Treat fan changes as engineering changes.
Q: Why does a display overheat after being built into a cabinet?
A: The cabinet can block vents, trap exhaust, add heat from players or lighting, or reduce natural convection. Validate the complete installed system rather than relying on an open-bench display test.
Q: What evidence should maintenance teams record?
A: At minimum, record the unit/site, ambient condition, filter/fan condition, alarm or temperature trend available from the system, cleaning/replacement action, and whether values returned toward the clean baseline.
Final Procurement Perspective
The best way to manage commercial LCD airflow dust control is to turn it from an informal feature into a controlled system behavior. Map the complete path, identify failure mechanisms, protect the interfaces that matter, validate the actual production configuration, preserve evidence, and make service/change control part of the design. This approach gives procurement, engineering, installation, and operations the same definition of "acceptable" before a volume order is placed.
For LEGOYO projects, the article should be used as a planning framework rather than as a statement that every product automatically includes every feature described. Confirm the selected model, customization, environmental requirement, and test evidence with the project team before freezing the specification.
