Many deployment defects survive laboratory demos because the demo never recreates the geometry, service action, or exception that occurs in the field. For transparent LCD anti-reflection glass, the narrow question is How should AR or related front-glass treatments be chosen when both digital content and the physical merchandise behind a transparent LCD must remain visible? This guide is written for transparent-display engineers, luxury-retail fixture designers, glass suppliers, visual-merchandising teams, and QA staff. It deliberately owns front-glass surface treatment on a see-through showcase, distinct from internal panel haze/transmittance; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
Treating the complete assembly as the test object prevents a passing component certificate from becoming a substitute for integration evidence. The project should be able to name the approved state for reflection target, show how haze and product visibility interacts with it, and reproduce at least one adverse condition such as "A treatment is optimized for a lab source angle that does not match the installed showcase." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Transparent LCD Screen, Transparent LCD Installation Acceptance Checklist, Transparent LCD Touch Integration. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from Crystal Display Systems, Japan Display Inc., and Pro Display was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing transmittance/haze and cleaning pages own internal stack/general maintenance; this page owns the front protective glass coating trade-off. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Reflection target | Identify the real reflected sources-storefront, ceiling lights, customer clothing, opposite displays-before choosing a treatment. | A treatment is optimized for a lab source angle that does not match the installed showcase. |
| Haze and product visibility | Check whether the surface treatment changes clarity of the physical product behind the display, not only the digital image. | A diffuse surface reduces glare but makes fine product details look hazy. |
| Coating color/neutrality | Review whether reflected or transmitted light acquires a visible tint in premium product presentations. | An AR coating creates a colored residual reflection that conflicts with brand presentation. |
| Cleaning durability | Validate approved chemicals, cloths and frequency on the actual coating. | Daily cleaning creates micro-scratches or streaking that were absent on the sample. |
| Edge and printing interaction | Check printed borders, adhesives, seals and exposed coating edges after cutting/assembly. | A masked border creates a visible transition or coating damage at the perimeter. |
| Replacement consistency | Control glass supplier, coating lot/revision and visual golden sample so replacement doors do not look different. | One replaced front pane has noticeably different reflection color from adjacent showcases. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for transparent LCD anti-reflection glass, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
Reflection target
Put this item in the controlled requirement set before the pilot is signed off. Identify the real reflected sources-storefront, ceiling lights, customer clothing, opposite displays-before choosing a treatment. The evidence should make it possible to distinguish a defect in reflection target from a change in haze and product visibility. A useful negative case is: A treatment is optimized for a lab source angle that does not match the installed showcase. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes reflection target. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Haze and product visibility
This control needs a reproducible baseline, not an informal setup note. Check whether the surface treatment changes clarity of the physical product behind the display, not only the digital image. The evidence should make it possible to distinguish a defect in haze and product visibility from a change in coating color/neutrality. A useful negative case is: A diffuse surface reduces glare but makes fine product details look hazy. Record the configuration before corrective action so the recovery does not erase the cause.
Coating color/neutrality
Review this interface with production and service in the same room, because both can change it. Review whether reflected or transmitted light acquires a visible tint in premium product presentations. The evidence should make it possible to distinguish a defect in coating color/neutrality from a change in cleaning durability. A useful negative case is: An AR coating creates a colored residual reflection that conflicts with brand presentation. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes coating color/neutrality. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Cleaning durability
The supplier answer is only the starting point; the delivered configuration must make the result observable. Validate approved chemicals, cloths and frequency on the actual coating. The evidence should make it possible to distinguish a defect in cleaning durability from a change in edge and printing interaction. A useful negative case is: Daily cleaning creates micro-scratches or streaking that were absent on the sample. Record the configuration before corrective action so the recovery does not erase the cause.
Edge and printing interaction
Treat this as a change-controlled parameter whenever it can alter field behavior. Check printed borders, adhesives, seals and exposed coating edges after cutting/assembly. The evidence should make it possible to distinguish a defect in edge and printing interaction from a change in replacement consistency. A useful negative case is: A masked border creates a visible transition or coating damage at the perimeter. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes edge and printing interaction. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Replacement consistency
A design review should connect this item to a test, an owner, and a retest trigger. Control glass supplier, coating lot/revision and visual golden sample so replacement doors do not look different. The evidence should make it possible to distinguish a defect in replacement consistency from a change in reflection target. A useful negative case is: One replaced front pane has noticeably different reflection color from adjacent showcases. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A treatment is optimized for a lab source angle that does not match the installed showcase. | Reflection target | bare front glass and complete showcase under target lights | capture the state before changing configuration |
| A diffuse surface reduces glare but makes fine product details look hazy. | Haze and product visibility | dark and bright digital content with real merchandise behind | isolate the interface and reproduce on a known-good reference |
| An AR coating creates a colored residual reflection that conflicts with brand presentation. | Coating color/neutrality | several viewer positions including storefront approach | compare unit/revision history before replacing parts |
| Daily cleaning creates micro-scratches or streaking that were absent on the sample. | Cleaning durability | approved cleaning cycles and post-clean inspection | restore the approved baseline and rerun the adverse case |
| A masked border creates a visible transition or coating damage at the perimeter. | Edge and printing interaction | edge/printed-mask review under grazing light | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.
Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For transparent LCD anti-reflection glass, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence

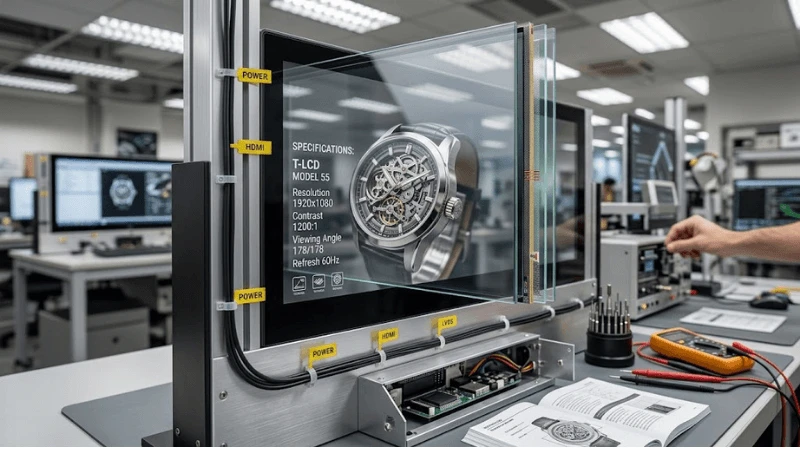

- Bare front glass and complete showcase under target lights

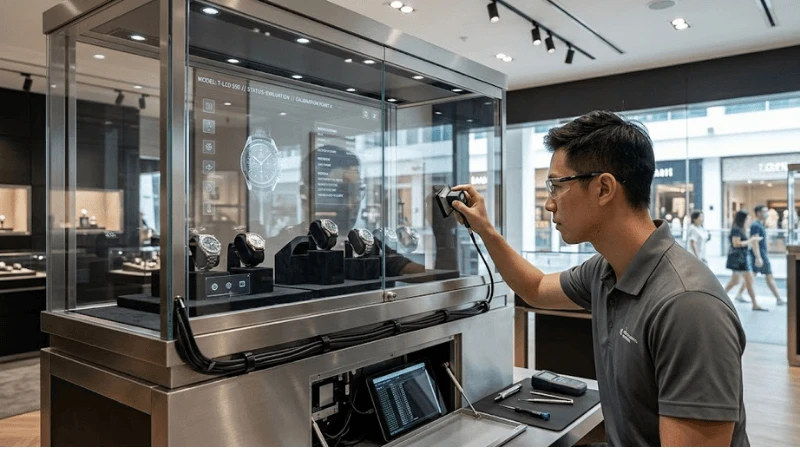

- Dark and bright digital content with real merchandise behind
- Several viewer positions including storefront approach
- Approved cleaning cycles and post-clean inspection
- Edge/printed-mask review under grazing light

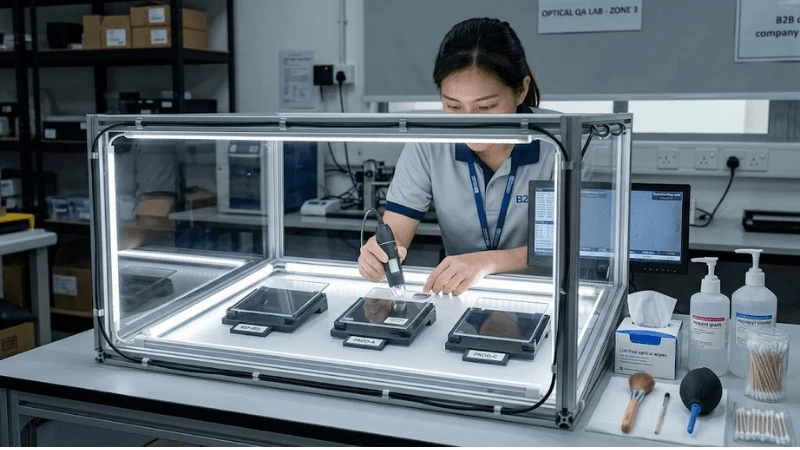

- Replacement glass sample versus golden reference
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Bare front glass and complete showcase under target lights | Reflection target | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Dark and bright digital content with real merchandise behind | Haze and product visibility | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Several viewer positions including storefront approach | Coating color/neutrality | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Approved cleaning cycles and post-clean inspection | Cleaning durability | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Edge/printed-mask review under grazing light | Edge and printing interaction | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Replacement glass sample versus golden reference | Replacement consistency | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For transparent LCD anti-reflection glass, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- What surface treatment is used on the quoted front glass?
- Which optical effects are characterized for the exact glass/coating stack?
- What cleaning chemicals and cloths are approved?
- How are cosmetic coating defects and edge damage controlled?
- Can production replacement glass be matched to a golden sample?
- What supplier/process changes trigger renewed optical approval?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for reflection target, haze and product visibility, and coating color/neutrality; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- front-glass reflection complaints
- coating cleaning damage
- replacement color/appearance mismatch
- cosmetic glass rejects
- site rework caused by glare
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes reflection target or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect haze and product visibility.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters coating color/neutrality.
- A field replacement changes cleaning durability or removes a calibration/configuration dependency.
- The adverse condition "A treatment is optimized for a lab source angle that does not match the installed showcase." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for reflection target?
- Interface: Is ownership clear where haze and product visibility interacts with coating color/neutrality?
- Adverse case: Did the test include "A treatment is optimized for a lab source angle that does not match the installed showcase." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when cleaning durability or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Transparent LCD Cleaning and Optical-Stack Maintenance, Transparent LCD Content Design, How Transparent LCD Showcases Work, LEGOYO Solutions.
FAQ
Q: What is the first thing to verify for transparent LCD anti-reflection glass?
A: Start with the approved baseline for reflection target and haze and product visibility. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include bare front glass and complete showcase under target lights, dark and bright digital content with real merchandise behind, and one adverse/service condition such as replacement glass sample versus golden reference. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect reflection target, haze and product visibility, or coating color/neutrality.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to transparent LCD anti-reflection glass is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
