Procurement becomes easier when a broad feature claim is converted into a reproducible test on the production configuration. For kiosk secure boot TPM, the narrow question is How should Secure Boot, TPM-backed identity, firmware updates, recovery keys, and service procedures be designed so a kiosk remains both trustworthy and repairable? This guide is written for enterprise security teams, kiosk OEM engineers, fleet administrators, integrators, and compliance reviewers. It deliberately owns platform trust chain and recoverability rather than general kiosk cybersecurity; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
That distinction matters because the same symptom can come from hardware, configuration, installation, environment, or service history. The project should be able to name the approved state for uefi and secure boot state, show how tpm ownership and attestation interacts with it, and reproduce at least one adverse condition such as "A depot repair disables Secure Boot to make a replacement image boot and never restores it." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Kiosk Display, Kiosk Peripheral Integration, Kiosk FAT and SAT Checklist. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from KIOSK Information Systems, Zebra Technologies, and Samsung Business was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing cybersecurity/OS lockdown content is broader; this page owns hardware-rooted boot trust and service recovery. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| UEFI and Secure Boot state | Record the approved UEFI mode, Secure Boot state, boot order and allowed signing chain as part of the kiosk baseline. | A depot repair disables Secure Boot to make a replacement image boot and never restores it. |
| TPM ownership and attestation | Define TPM initialization, ownership, attestation use and the relationship between TPM identity and device management. | A motherboard replacement leaves the management platform expecting the previous hardware identity. |
| Disk encryption recovery | Plan recovery-key custody, escrow, rotation and authorized retrieval for unattended field devices. | A legitimate service event becomes a truck-roll escalation because the recovery key cannot be located. |
| Firmware update trust | Control BIOS/UEFI, embedded controller and peripheral firmware update sources and rollback behavior. | An unsigned or mismatched firmware package breaks the boot trust chain after a routine update. |
| Service replacement | Document the sequence for replacing motherboard, TPM-bearing compute module or storage while preserving asset identity and re-establishing trust. | A technician swaps hardware successfully but leaves the kiosk outside device-compliance policy. |
| Audit evidence | Make boot security state observable remotely or during service so compliance does not depend on a one-time factory screenshot. | Configuration drift persists because no fleet check verifies Secure Boot or encryption state. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk secure boot TPM, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
UEFI and Secure Boot state
Treat this as a change-controlled parameter whenever it can alter field behavior. Record the approved UEFI mode, Secure Boot state, boot order and allowed signing chain as part of the kiosk baseline. The evidence should make it possible to distinguish a defect in uefi and secure boot state from a change in tpm ownership and attestation. A useful negative case is: A depot repair disables Secure Boot to make a replacement image boot and never restores it. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes uefi and secure boot state. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.

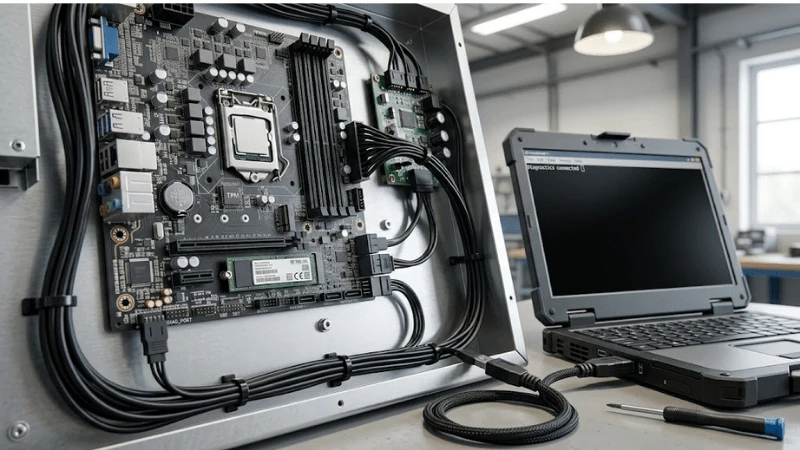

TPM ownership and attestation
A design review should connect this item to a test, an owner, and a retest trigger. Define TPM initialization, ownership, attestation use and the relationship between TPM identity and device management. The evidence should make it possible to distinguish a defect in tpm ownership and attestation from a change in disk encryption recovery. A useful negative case is: A motherboard replacement leaves the management platform expecting the previous hardware identity. Record the configuration before corrective action so the recovery does not erase the cause.
Disk encryption recovery
Put this item in the controlled requirement set before the pilot is signed off. Plan recovery-key custody, escrow, rotation and authorized retrieval for unattended field devices. The evidence should make it possible to distinguish a defect in disk encryption recovery from a change in firmware update trust. A useful negative case is: A legitimate service event becomes a truck-roll escalation because the recovery key cannot be located. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes disk encryption recovery. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Firmware update trust
This control needs a reproducible baseline, not an informal setup note. Control BIOS/UEFI, embedded controller and peripheral firmware update sources and rollback behavior. The evidence should make it possible to distinguish a defect in firmware update trust from a change in service replacement. A useful negative case is: An unsigned or mismatched firmware package breaks the boot trust chain after a routine update. Record the configuration before corrective action so the recovery does not erase the cause.
Service replacement
Review this interface with production and service in the same room, because both can change it. Document the sequence for replacing motherboard, TPM-bearing compute module or storage while preserving asset identity and re-establishing trust. The evidence should make it possible to distinguish a defect in service replacement from a change in audit evidence. A useful negative case is: A technician swaps hardware successfully but leaves the kiosk outside device-compliance policy. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes service replacement. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Audit evidence
The supplier answer is only the starting point; the delivered configuration must make the result observable. Make boot security state observable remotely or during service so compliance does not depend on a one-time factory screenshot. The evidence should make it possible to distinguish a defect in audit evidence from a change in uefi and secure boot state. A useful negative case is: Configuration drift persists because no fleet check verifies Secure Boot or encryption state. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A depot repair disables Secure Boot to make a replacement image boot and never restores it. | UEFI and Secure Boot state | verify Secure Boot and approved UEFI configuration | capture the state before changing configuration |
| A motherboard replacement leaves the management platform expecting the previous hardware identity. | TPM ownership and attestation | confirm TPM presence/state and expected attestation path | isolate the interface and reproduce on a known-good reference |
| A legitimate service event becomes a truck-roll escalation because the recovery key cannot be located. | Disk encryption recovery | test encrypted storage recovery with authorized key retrieval | compare unit/revision history before replacing parts |
| An unsigned or mismatched firmware package breaks the boot trust chain after a routine update. | Firmware update trust | apply approved firmware update and controlled rollback path | restore the approved baseline and rerun the adverse case |
| A technician swaps hardware successfully but leaves the kiosk outside device-compliance policy. | Service replacement | replace a representative compute module and re-establish device trust | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.
Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For kiosk secure boot TPM, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Verify secure boot and approved uefi configuration
- Confirm tpm presence/state and expected attestation path
- Test encrypted storage recovery with authorized key retrieval
- Apply approved firmware update and controlled rollback path

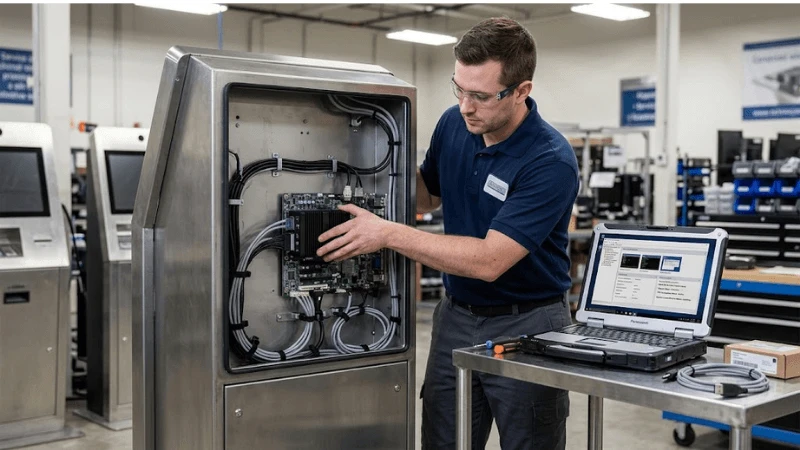

- Replace a representative compute module and re-establish device trust
- Detect a deliberately changed boot/security setting through fleet or service checks
|
Step |
Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Verify secure boot and approved uefi configuration | UEFI and Secure Boot state | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Confirm tpm presence/state and expected attestation path | TPM ownership and attestation | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Test encrypted storage recovery with authorized key retrieval | Disk encryption recovery | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Apply approved firmware update and controlled rollback path | Firmware update trust | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Replace a representative compute module and re-establish device trust | Service replacement | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Detect a deliberately changed boot/security setting through fleet or service checks | Audit evidence | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk secure boot TPM, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- Which TPM implementation and firmware are present in the quoted compute platform?
- Who owns Secure Boot signing keys and firmware update approval?
- How are recovery keys escrowed and retrieved during service?
- What parts replacement changes the device trust identity?
- Can compliance state be queried remotely?
- What is the documented recovery process after motherboard or storage replacement?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for uefi and secure boot state, tpm ownership and attestation, and disk encryption recovery; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- noncompliant boot-state detections
- recovery-key retrieval failures
- firmware rollback incidents
- post-repair re-enrollment time
- security-baseline drift rate
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes uefi and secure boot state or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect tpm ownership and attestation.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters disk encryption recovery.
- A field replacement changes firmware update trust or removes a calibration/configuration dependency.
- The adverse condition "A depot repair disables Secure Boot to make a replacement image boot and never restores it." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for uefi and secure boot state?
- Interface: Is ownership clear where tpm ownership and attestation interacts with disk encryption recovery?
- Adverse case: Did the test include "A depot repair disables Secure Boot to make a replacement image boot and never restores it." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when firmware update trust or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk secure boot TPM?
A: Start with the approved baseline for uefi and secure boot state and tpm ownership and attestation. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include verify Secure Boot and approved UEFI configuration, confirm TPM presence/state and expected attestation path, and one adverse/service condition such as detect a deliberately changed boot/security setting through fleet or service checks. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect uefi and secure boot state, tpm ownership and attestation, or disk encryption recovery.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk secure boot TPM is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
