A component can meet its datasheet and still fail once it is installed in a complete commercial system. For kiosk cash acceptor integration, the narrow question is How should a kiosk integrate note and coin acceptance so escrow, rejects, jams, full cashboxes, removal, and reconciliation remain observable and serviceable? This guide is written for payment-kiosk engineers, unattended-retail operators, cash-handling integrators, field-service teams, and procurement managers. It deliberately owns mechanical/electrical cash-path integration and exception handling, not payment software in general; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
The project therefore needs a boundary that lets an engineer prove what changed instead of guessing from the visible symptom. The project should be able to name the approved state for accepted and rejected paths, show how escrow state and timeout interacts with it, and reproduce at least one adverse condition such as "A rejected note catches on an enclosure lip and appears to the software as a customer retry." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Kiosk Display, Kiosk Peripheral Integration, Kiosk FAT and SAT Checklist. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from KIOSK Information Systems, Zebra Technologies, and Samsung Business was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing payment-hardware content owns PCI/payment-terminal scope; this page owns cash acceptor and cashbox physical integration. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Accepted and rejected paths | Map note/coin entry, validation, escrow, acceptance, rejection and return paths with service-clearance around every moving element. | A rejected note catches on an enclosure lip and appears to the software as a customer retry. |
| Escrow state and timeout | Define when value is held, committed or returned and how the host behaves if the session or power state changes. | A transaction is cancelled while a note remains physically in escrow. |
| Cashbox presence/full sensing | Use device-supported sensors and host state to distinguish box removed, full, jammed and normal. | The kiosk continues accepting value after the cashbox is removed for collection. |
| Jam access | Provide a service path that clears note/coin jams without dismantling unrelated modules or exposing live power unnecessarily. | A minor coin jam requires removing the display and disconnecting several harnesses. |
| Host protocol and event logging | Preserve validator state changes, accepted denomination, rejects, errors, door events and cashbox state with transaction correlation. | A cash discrepancy cannot be reconstructed because only the final transaction amount was logged. |
| Collection and security workflow | Coordinate lock, door sensor, cashbox seal/identity, technician authorization and reconciliation records. | Two cashboxes are swapped between kiosks without a traceable collection record. |

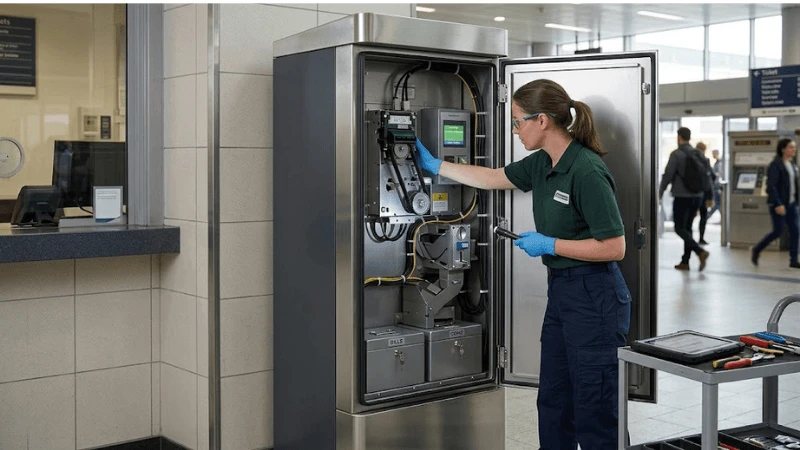

Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk cash acceptor integration, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.

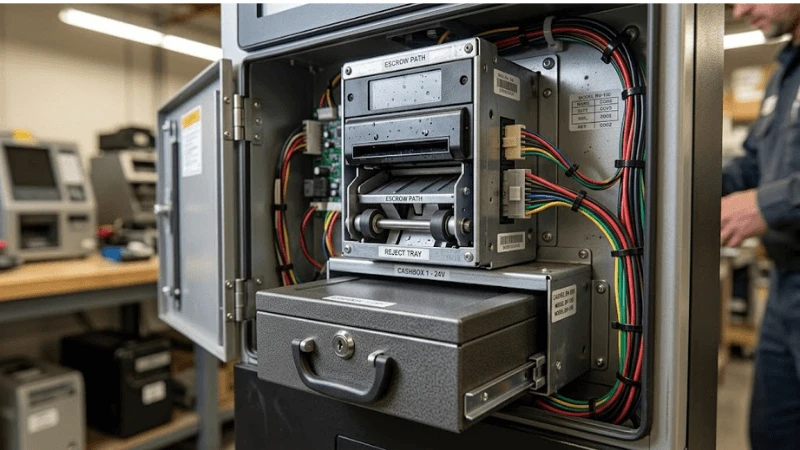

Accepted and rejected paths
A design review should connect this item to a test, an owner, and a retest trigger. Map note/coin entry, validation, escrow, acceptance, rejection and return paths with service-clearance around every moving element. The evidence should make it possible to distinguish a defect in accepted and rejected paths from a change in escrow state and timeout. A useful negative case is: A rejected note catches on an enclosure lip and appears to the software as a customer retry. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes accepted and rejected paths. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Escrow state and timeout
Put this item in the controlled requirement set before the pilot is signed off. Define when value is held, committed or returned and how the host behaves if the session or power state changes. The evidence should make it possible to distinguish a defect in escrow state and timeout from a change in cashbox presence/full sensing. A useful negative case is: A transaction is cancelled while a note remains physically in escrow. Record the configuration before corrective action so the recovery does not erase the cause.
Cashbox presence/full sensing
This control needs a reproducible baseline, not an informal setup note. Use device-supported sensors and host state to distinguish box removed, full, jammed and normal. The evidence should make it possible to distinguish a defect in cashbox presence/full sensing from a change in jam access. A useful negative case is: The kiosk continues accepting value after the cashbox is removed for collection. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes cashbox presence/full sensing. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Jam access
Review this interface with production and service in the same room, because both can change it. Provide a service path that clears note/coin jams without dismantling unrelated modules or exposing live power unnecessarily. The evidence should make it possible to distinguish a defect in jam access from a change in host protocol and event logging. A useful negative case is: A minor coin jam requires removing the display and disconnecting several harnesses. Record the configuration before corrective action so the recovery does not erase the cause.
Host protocol and event logging
The supplier answer is only the starting point; the delivered configuration must make the result observable. Preserve validator state changes, accepted denomination, rejects, errors, door events and cashbox state with transaction correlation. The evidence should make it possible to distinguish a defect in host protocol and event logging from a change in collection and security workflow. A useful negative case is: A cash discrepancy cannot be reconstructed because only the final transaction amount was logged. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes host protocol and event logging. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Collection and security workflow
Treat this as a change-controlled parameter whenever it can alter field behavior. Coordinate lock, door sensor, cashbox seal/identity, technician authorization and reconciliation records. The evidence should make it possible to distinguish a defect in collection and security workflow from a change in accepted and rejected paths. A useful negative case is: Two cashboxes are swapped between kiosks without a traceable collection record. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A rejected note catches on an enclosure lip and appears to the software as a customer retry. | Accepted and rejected paths | mixed valid denominations and representative rejects | capture the state before changing configuration |
| A transaction is cancelled while a note remains physically in escrow. | Escrow state and timeout | escrow cancel/commit behavior | isolate the interface and reproduce on a known-good reference |
| The kiosk continues accepting value after the cashbox is removed for collection. | Cashbox presence/full sensing | cashbox removed and full-state simulation | compare unit/revision history before replacing parts |
| A minor coin jam requires removing the display and disconnecting several harnesses. | Jam access | controlled coin/note jam and service clear | restore the approved baseline and rerun the adverse case |
| A cash discrepancy cannot be reconstructed because only the final transaction amount was logged. | Host protocol and event logging | power interruption at defined cash-path states | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.

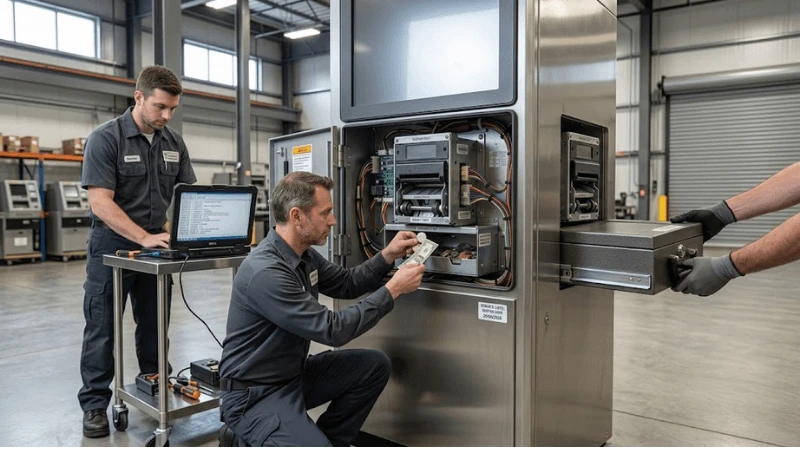

Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For kiosk cash acceptor integration, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Mixed valid denominations and representative rejects
- Escrow cancel/commit behavior
- Cashbox removed and full-state simulation
- Controlled coin/note jam and service clear
- Power interruption at defined cash-path states
- Cash collection followed by reconciliation and return to service
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Mixed valid denominations and representative rejects | Accepted and rejected paths | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Escrow cancel/commit behavior | Escrow state and timeout | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Cashbox removed and full-state simulation | Cashbox presence/full sensing | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Controlled coin/note jam and service clear | Jam access | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Power interruption at defined cash-path states | Host protocol and event logging | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Cash collection followed by reconciliation and return to service | Collection and security workflow | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk cash acceptor integration, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- Which validator/acceptor models and host protocols are included?
- Is escrow supported and how is it exposed to the application?
- Which sensors report cashbox presence/full/jam state?
- What physical clearances are required to clear each jam path?
- Which events are available for transaction-level reconciliation?
- How is cashbox identity or collection custody recorded?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for accepted and rejected paths, escrow state and timeout, and cashbox presence/full sensing; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- cash acceptance rate by denomination
- reject rate by reason
- cash-path jams per transaction volume
- cashbox sensor exceptions
- reconciliation discrepancies
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes accepted and rejected paths or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect escrow state and timeout.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters cashbox presence/full sensing.
- A field replacement changes jam access or removes a calibration/configuration dependency.
- The adverse condition "A rejected note catches on an enclosure lip and appears to the software as a customer retry." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for accepted and rejected paths?
- Interface: Is ownership clear where escrow state and timeout interacts with cashbox presence/full sensing?
- Adverse case: Did the test include "A rejected note catches on an enclosure lip and appears to the software as a customer retry." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when jam access or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk cash acceptor integration?
A: Start with the approved baseline for accepted and rejected paths and escrow state and timeout. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include mixed valid denominations and representative rejects, escrow cancel/commit behavior, and one adverse/service condition such as cash collection followed by reconciliation and return to service. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect accepted and rejected paths, escrow state and timeout, or cashbox presence/full sensing.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk cash acceptor integration is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
