The expensive failures in unattended and retail display projects often happen at interfaces, not inside the headline component. For kiosk UPS controlled shutdown, the narrow question is When does a kiosk need battery ride-through, and how should the team validate graceful shutdown, peripheral state, battery health, and restart after power returns? This guide is written for kiosk electrical engineers, site-facilities teams, enterprise IT, operators, and reliability engineers. It deliberately owns short-outage behavior and orderly state transition, distinct from basic AC power sizing; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
Treating the complete assembly as the test object prevents a passing component certificate from becoming a substitute for integration evidence. The project should be able to name the approved state for protected load boundary, show how runtime objective interacts with it, and reproduce at least one adverse condition such as "The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Kiosk Display, Kiosk Peripheral Integration, Kiosk FAT and SAT Checklist. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from KIOSK Information Systems, Zebra Technologies, and Samsung Business was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing power and outage pages are broader; this page owns UPS communication, controlled shutdown and restart state. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Protected load boundary | List which loads are on UPS output-compute, display, network, printer, cash devices-and which are intentionally shed. | The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server. |
| Runtime objective | Define the operational purpose of ride-through: bridge short interruptions, finish a transaction, close data safely, or support an orderly shutdown. | A battery is sized around a marketing runtime number unrelated to actual shutdown time and load. |
| UPS-to-host communication | Use a supported USB/network contact or software interface to expose on-battery, low-battery and battery-health states. | The UPS protects power but the kiosk OS never learns that shutdown should begin. |
| Peripheral safe state | Define what printers, payment devices, cash acceptors and actuators should do as the kiosk enters shutdown. | A printer begins a job after shutdown has started and leaves paper jammed at restart. |
| Restart policy | Control restart delay, boot sequencing and backend readiness after utility power returns. | Hundreds of kiosks reboot simultaneously while the network or application service is still recovering. |
| Battery maintenance | Treat battery age, self-test, replacement and environment as fleet-managed service items. | A UPS passes installation but years later has no useful ride-through because degraded batteries were never detected. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk UPS controlled shutdown, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.

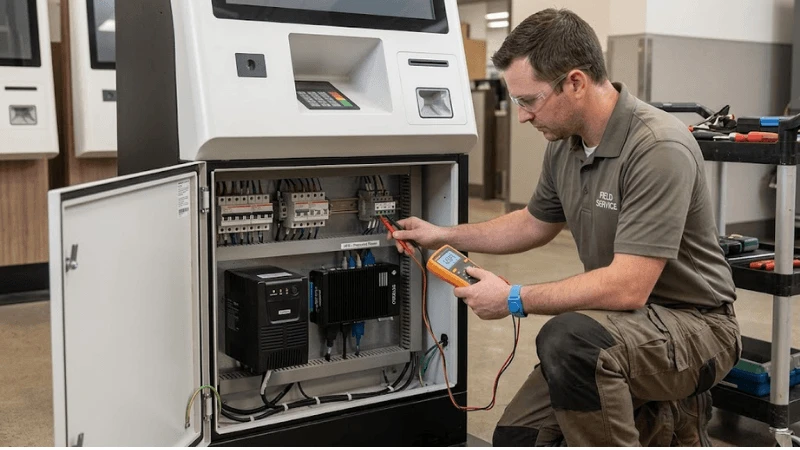

Protected load boundary
Put this item in the controlled requirement set before the pilot is signed off. List which loads are on UPS output-compute, display, network, printer, cash devices-and which are intentionally shed. The evidence should make it possible to distinguish a defect in protected load boundary from a change in runtime objective. A useful negative case is: The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes protected load boundary. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Runtime objective
This control needs a reproducible baseline, not an informal setup note. Define the operational purpose of ride-through: bridge short interruptions, finish a transaction, close data safely, or support an orderly shutdown. The evidence should make it possible to distinguish a defect in runtime objective from a change in ups-to-host communication. A useful negative case is: A battery is sized around a marketing runtime number unrelated to actual shutdown time and load. Record the configuration before corrective action so the recovery does not erase the cause.

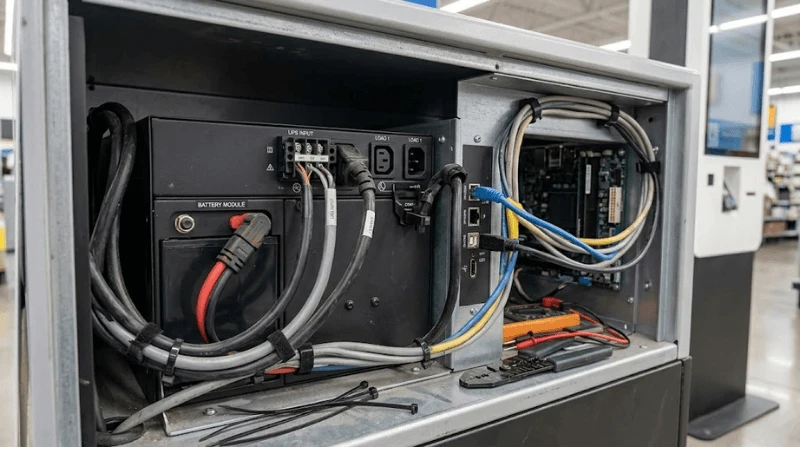

UPS-to-host communication
Review this interface with production and service in the same room, because both can change it. Use a supported USB/network contact or software interface to expose on-battery, low-battery and battery-health states. The evidence should make it possible to distinguish a defect in ups-to-host communication from a change in peripheral safe state. A useful negative case is: The UPS protects power but the kiosk OS never learns that shutdown should begin. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes ups-to-host communication. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Peripheral safe state
The supplier answer is only the starting point; the delivered configuration must make the result observable. Define what printers, payment devices, cash acceptors and actuators should do as the kiosk enters shutdown. The evidence should make it possible to distinguish a defect in peripheral safe state from a change in restart policy. A useful negative case is: A printer begins a job after shutdown has started and leaves paper jammed at restart. Record the configuration before corrective action so the recovery does not erase the cause.
Restart policy
Treat this as a change-controlled parameter whenever it can alter field behavior. Control restart delay, boot sequencing and backend readiness after utility power returns. The evidence should make it possible to distinguish a defect in restart policy from a change in battery maintenance. A useful negative case is: Hundreds of kiosks reboot simultaneously while the network or application service is still recovering. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes restart policy. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Battery maintenance
A design review should connect this item to a test, an owner, and a retest trigger. Treat battery age, self-test, replacement and environment as fleet-managed service items. The evidence should make it possible to distinguish a defect in battery maintenance from a change in protected load boundary. A useful negative case is: A UPS passes installation but years later has no useful ride-through because degraded batteries were never detected. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server. | Protected load boundary | full configured kiosk load on utility power | capture the state before changing configuration |
| A battery is sized around a marketing runtime number unrelated to actual shutdown time and load. | Runtime objective | utility interruption long enough to enter on-battery state | isolate the interface and reproduce on a known-good reference |
| The UPS protects power but the kiosk OS never learns that shutdown should begin. | UPS-to-host communication | controlled low-runtime shutdown sequence | compare unit/revision history before replacing parts |
| A printer begins a job after shutdown has started and leaves paper jammed at restart. | Peripheral safe state | transaction/peripheral state check during shutdown | restore the approved baseline and rerun the adverse case |
| Hundreds of kiosks reboot simultaneously while the network or application service is still recovering. | Restart policy | utility restoration with delayed or sequenced restart | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.

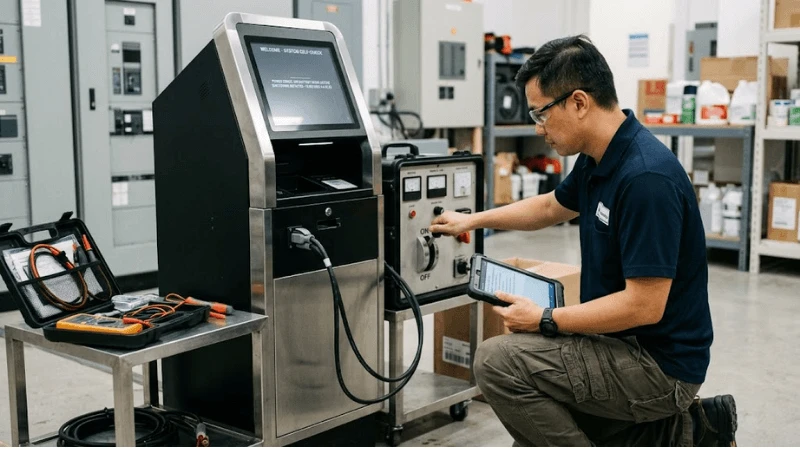

Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For kiosk UPS controlled shutdown, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Full configured kiosk load on utility power
- Utility interruption long enough to enter on-battery state
- Controlled low-runtime shutdown sequence
- Transaction/peripheral state check during shutdown
- Utility restoration with delayed or sequenced restart
- Aged/failed battery alert or simulated battery-health exception
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Full configured kiosk load on utility power | Protected load boundary | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Utility interruption long enough to enter on-battery state | Runtime objective | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Controlled low-runtime shutdown sequence | UPS-to-host communication | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Transaction/peripheral state check during shutdown | Peripheral safe state | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Utility restoration with delayed or sequenced restart | Restart policy | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Aged/failed battery alert or simulated battery-health exception | Battery maintenance | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk UPS controlled shutdown, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- Which loads are protected by the quoted UPS and which are not?
- How does the UPS communicate power and battery state to the kiosk OS?
- What is the project-defined shutdown trigger and maximum shutdown time?
- How are payment/cash/printer devices placed into a safe state?
- What restart behavior occurs when AC returns?
- How are battery health and replacement tracked across the fleet?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for protected load boundary, runtime objective, and ups-to-host communication; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- unexpected hard shutdowns
- UPS battery-health alarms
- shutdown completion time
- restart failures after outages
- battery replacement age and exceptions
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes protected load boundary or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect runtime objective.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters ups-to-host communication.
- A field replacement changes peripheral safe state or removes a calibration/configuration dependency.
- The adverse condition "The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for protected load boundary?
- Interface: Is ownership clear where runtime objective interacts with ups-to-host communication?
- Adverse case: Did the test include "The PC remains alive but the network switch loses power, preventing shutdown status from reaching the server." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when peripheral safe state or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk UPS controlled shutdown?
A: Start with the approved baseline for protected load boundary and runtime objective. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include full configured kiosk load on utility power, utility interruption long enough to enter on-battery state, and one adverse/service condition such as aged/failed battery alert or simulated battery-health exception. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect protected load boundary, runtime objective, or ups-to-host communication.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk UPS controlled shutdown is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
