A component can meet its datasheet and still fail once it is installed in a complete commercial system. For commercial LCD cold start, the narrow question is How should a project validate commercial LCD behavior during cold start and repeated temperature transitions, including image stability, response, condensation, electronics, and recovery? This guide is written for retail refrigeration projects, transportation/vestibule signage teams, AV integrators, reliability engineers, and buyers. It deliberately owns startup and transition behavior across temperature states rather than generic operating-temperature ratings; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
The practical goal is not to eliminate every exception; it is to make the supported range, failure state, and recovery path explicit. The project should be able to name the approved state for storage versus operating condition, show how cold-start sequence interacts with it, and reproduce at least one adverse condition such as "A unit is rated for storage at a temperature that does not imply immediate powered operation there." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Bar LCD Display Screen, Commercial LCD VESA Mounting, Commercial LCD Airflow and Dust Control. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from Samsung Business, LG Business, and E3 Displays was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Cold-storage bar-LCD installation content is application-specific; this page owns the display-level transition test method. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Storage versus operating condition | Separate storage exposure, powered operation and transition states in the test plan. | A unit is rated for storage at a temperature that does not imply immediate powered operation there. |
| Cold-start sequence | Observe power supply, backlight, panel drive, source lock and application behavior from the defined cold-soak state. | The player boots but the panel remains unstable until it warms, causing false service alarms. |
| Image and motion stabilization | Track uniformity, black level, color, response and visible artifacts during warm-up if they matter to the use case. | A screen technically turns on but fine motion/text is unusable during the opening period. |
| Condensation control | Assess dew risk when cold equipment enters warm humid air or when doors/airflow create rapid transitions. | Moisture forms on or inside the optical stack after a maintenance door opens. |
| Mechanical cycling | Inspect seals, connectors, mounts and cable strain across repeated contraction/expansion. | A marginal connector becomes intermittent only after several thermal cycles. |
| Recovery criteria | Define when the display is considered fully available and what fault state or delay is acceptable during transition. | Operators repeatedly power-cycle a slow-starting screen, making recovery worse. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for commercial LCD cold start, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
Storage versus operating condition
The supplier answer is only the starting point; the delivered configuration must make the result observable. Separate storage exposure, powered operation and transition states in the test plan. The evidence should make it possible to distinguish a defect in storage versus operating condition from a change in cold-start sequence. A useful negative case is: A unit is rated for storage at a temperature that does not imply immediate powered operation there. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes storage versus operating condition. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.

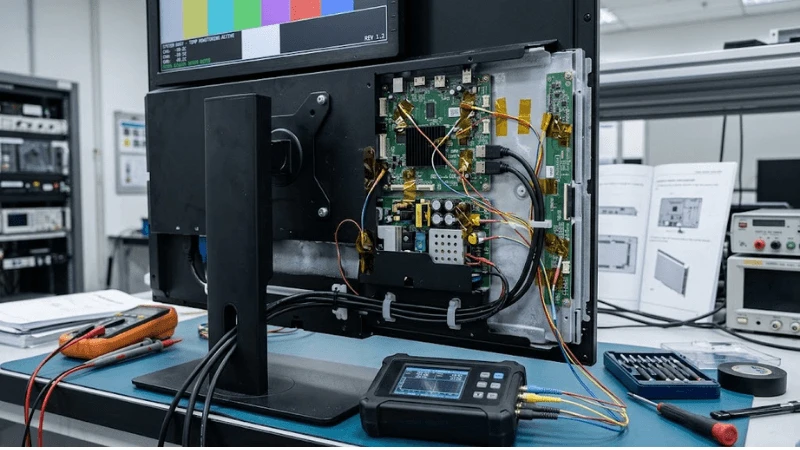

Cold-start sequence
Treat this as a change-controlled parameter whenever it can alter field behavior. Observe power supply, backlight, panel drive, source lock and application behavior from the defined cold-soak state. The evidence should make it possible to distinguish a defect in cold-start sequence from a change in image and motion stabilization. A useful negative case is: The player boots but the panel remains unstable until it warms, causing false service alarms. Record the configuration before corrective action so the recovery does not erase the cause.
Image and motion stabilization
A design review should connect this item to a test, an owner, and a retest trigger. Track uniformity, black level, color, response and visible artifacts during warm-up if they matter to the use case. The evidence should make it possible to distinguish a defect in image and motion stabilization from a change in condensation control. A useful negative case is: A screen technically turns on but fine motion/text is unusable during the opening period. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes image and motion stabilization. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Condensation control
Put this item in the controlled requirement set before the pilot is signed off. Assess dew risk when cold equipment enters warm humid air or when doors/airflow create rapid transitions. The evidence should make it possible to distinguish a defect in condensation control from a change in mechanical cycling. A useful negative case is: Moisture forms on or inside the optical stack after a maintenance door opens. Record the configuration before corrective action so the recovery does not erase the cause.
Mechanical cycling
This control needs a reproducible baseline, not an informal setup note. Inspect seals, connectors, mounts and cable strain across repeated contraction/expansion. The evidence should make it possible to distinguish a defect in mechanical cycling from a change in recovery criteria. A useful negative case is: A marginal connector becomes intermittent only after several thermal cycles. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes mechanical cycling. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Recovery criteria
Review this interface with production and service in the same room, because both can change it. Define when the display is considered fully available and what fault state or delay is acceptable during transition. The evidence should make it possible to distinguish a defect in recovery criteria from a change in storage versus operating condition. A useful negative case is: Operators repeatedly power-cycle a slow-starting screen, making recovery worse. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A unit is rated for storage at a temperature that does not imply immediate powered operation there. | Storage versus operating condition | documented cold-soak condition appropriate to project | capture the state before changing configuration |
| The player boots but the panel remains unstable until it warms, causing false service alarms. | Cold-start sequence | first power-on from cold state | isolate the interface and reproduce on a known-good reference |
| A screen technically turns on but fine motion/text is unusable during the opening period. | Image and motion stabilization | timed observations during warm-up | compare unit/revision history before replacing parts |
| Moisture forms on or inside the optical stack after a maintenance door opens. | Condensation control | representative moving and static content | restore the approved baseline and rerun the adverse case |
| A marginal connector becomes intermittent only after several thermal cycles. | Mechanical cycling | warm/humid transition with condensation inspection where relevant | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.
Build an acceptance test that represents the field

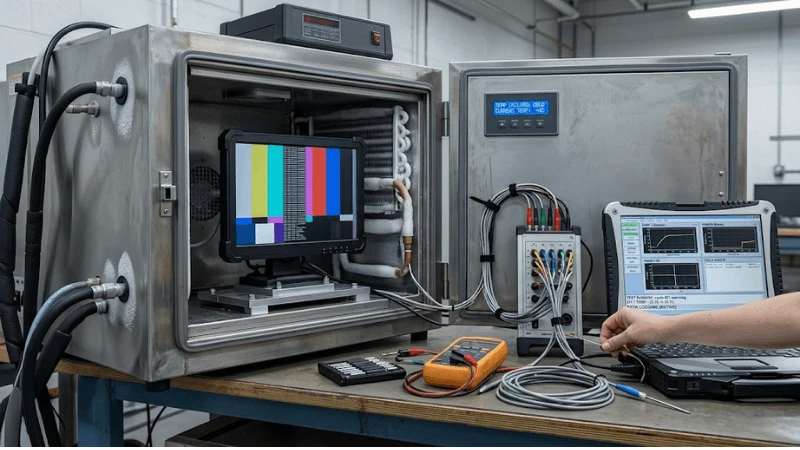

A factory demo should answer the project question, not merely show that the product turns on. For commercial LCD cold start, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Documented cold-soak condition appropriate to project
- First power-on from cold state
- Timed observations during warm-up
- Representative moving and static content
- Warm/humid transition with condensation inspection where relevant
- Several controlled temperature cycles followed by connector/mount inspection
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Documented cold-soak condition appropriate to project | Storage versus operating condition | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | First power-on from cold state | Cold-start sequence | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Timed observations during warm-up | Image and motion stabilization | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Representative moving and static content | Condensation control | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Warm/humid transition with condensation inspection where relevant | Mechanical cycling | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Several controlled temperature cycles followed by connector/mount inspection | Recovery criteria | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For commercial LCD cold start, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- What model-specific storage and operating conditions apply?
- Does the supplier state any required acclimation before power-on?
- What startup behavior should be expected at the project's low temperature?
- Which optical/electrical characteristics may need project acceptance during warm-up?
- How should condensation risk be managed in the enclosure?
- Which component changes require repeating the cycling test?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for storage versus operating condition, cold-start sequence, and image and motion stabilization; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- cold-start incidents
- warm-up time to project acceptance
- condensation findings
- temperature-linked input/power faults
- post-cycle connector or mount repairs
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes storage versus operating condition or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect cold-start sequence.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters image and motion stabilization.
- A field replacement changes condensation control or removes a calibration/configuration dependency.
- The adverse condition "A unit is rated for storage at a temperature that does not imply immediate powered operation there." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for storage versus operating condition?
- Interface: Is ownership clear where cold-start sequence interacts with image and motion stabilization?
- Adverse case: Did the test include "A unit is rated for storage at a temperature that does not imply immediate powered operation there." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when condensation control or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Commercial LCD Input Signal Failover, Commercial LCD Scheduled Power Control, Commercial LCD Luminance Uniformity Testing, Stretched LCD Player, EDID, and Interface Compatibility.
FAQ
Q: What is the first thing to verify for commercial LCD cold start?
A: Start with the approved baseline for storage versus operating condition and cold-start sequence. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include documented cold-soak condition appropriate to project, first power-on from cold state, and one adverse/service condition such as several controlled temperature cycles followed by connector/mount inspection. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect storage versus operating condition, cold-start sequence, or image and motion stabilization.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to commercial LCD cold start is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
