Procurement becomes easier when a broad feature claim is converted into a reproducible test on the production configuration. For commercial LCD power quality, the narrow question is How should a multi-screen commercial LCD installation be reviewed for startup inrush, steady load, power factor/harmonics, surge environment, circuit distribution, and restart behavior? This guide is written for AV system designers, electrical engineers, facilities teams, signage integrators, and commissioning engineers. It deliberately owns branch-circuit behavior for multiple displays rather than individual display wattage; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
Treating the complete assembly as the test object prevents a passing component certificate from becoming a substitute for integration evidence. The project should be able to name the approved state for measured load profile, show how startup sequencing interacts with it, and reproduce at least one adverse condition such as "A design has ample steady capacity but trips during simultaneous startup." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Bar LCD Display Screen, Commercial LCD VESA Mounting, Commercial LCD Airflow and Dust Control. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from Samsung Business, LG Business, and E3 Displays was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing scheduled-power article owns control timing; this page owns electrical branch quality and multi-screen distribution. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Measured load profile | Use production displays/settings to record representative startup and operating load rather than multiplying a nominal wattage. | A design has ample steady capacity but trips during simultaneous startup. |
| Startup sequencing | Coordinate display, player and accessory start times where simultaneous inrush can challenge protection or site supply. | A scheduled power-on event causes every display on one circuit to energize at the same instant. |
| Power factor and harmonics | Where project scale or site rules make it relevant, have the electrical team assess aggregate current waveform and upstream equipment. | A large installation behaves differently from a single display sample despite the same per-unit power. |
| Surge and grounding context | Coordinate facility surge protection, equipment protective earth and any point-of-use protection with the electrical design. | Individual plug-in protectors are added without a defined grounding or replacement strategy. |

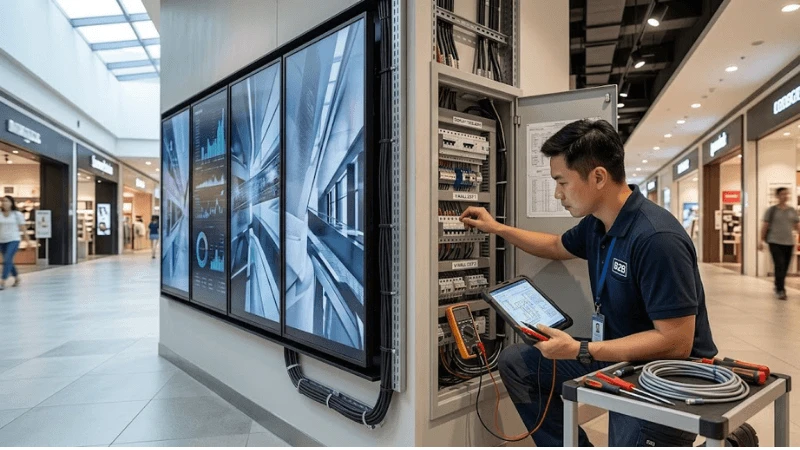

| Circuit distribution | Document which displays, players, network devices and service outlets share each branch and what happens if one circuit opens. | One breaker removes an entire customer-facing wall and its network switch. |
| Power-return behavior | Validate restart, source selection and content recovery after brownout or complete outage. | Screens return at different times and remain on no-signal inputs after power restoration. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for commercial LCD power quality, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
Measured load profile
Review this interface with production and service in the same room, because both can change it. Use production displays/settings to record representative startup and operating load rather than multiplying a nominal wattage. The evidence should make it possible to distinguish a defect in measured load profile from a change in startup sequencing. A useful negative case is: A design has ample steady capacity but trips during simultaneous startup. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes measured load profile. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Startup sequencing
The supplier answer is only the starting point; the delivered configuration must make the result observable. Coordinate display, player and accessory start times where simultaneous inrush can challenge protection or site supply. The evidence should make it possible to distinguish a defect in startup sequencing from a change in power factor and harmonics. A useful negative case is: A scheduled power-on event causes every display on one circuit to energize at the same instant. Record the configuration before corrective action so the recovery does not erase the cause.
Power factor and harmonics
Treat this as a change-controlled parameter whenever it can alter field behavior. Where project scale or site rules make it relevant, have the electrical team assess aggregate current waveform and upstream equipment. The evidence should make it possible to distinguish a defect in power factor and harmonics from a change in surge and grounding context. A useful negative case is: A large installation behaves differently from a single display sample despite the same per-unit power. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes power factor and harmonics. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Surge and grounding context
A design review should connect this item to a test, an owner, and a retest trigger. Coordinate facility surge protection, equipment protective earth and any point-of-use protection with the electrical design. The evidence should make it possible to distinguish a defect in surge and grounding context from a change in circuit distribution. A useful negative case is: Individual plug-in protectors are added without a defined grounding or replacement strategy. Record the configuration before corrective action so the recovery does not erase the cause.
Circuit distribution
Put this item in the controlled requirement set before the pilot is signed off. Document which displays, players, network devices and service outlets share each branch and what happens if one circuit opens. The evidence should make it possible to distinguish a defect in circuit distribution from a change in power-return behavior. A useful negative case is: One breaker removes an entire customer-facing wall and its network switch. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes circuit distribution. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Power-return behavior
This control needs a reproducible baseline, not an informal setup note. Validate restart, source selection and content recovery after brownout or complete outage. The evidence should make it possible to distinguish a defect in power-return behavior from a change in measured load profile. A useful negative case is: Screens return at different times and remain on no-signal inputs after power restoration. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A design has ample steady capacity but trips during simultaneous startup. | Measured load profile | measure representative startup event | capture the state before changing configuration |
| A scheduled power-on event causes every display on one circuit to energize at the same instant. | Startup sequencing | simultaneous versus sequenced power-on comparison | isolate the interface and reproduce on a known-good reference |
| A large installation behaves differently from a single display sample despite the same per-unit power. | Power factor and harmonics | steady operation at intended brightness/content | compare unit/revision history before replacing parts |
| Individual plug-in protectors are added without a defined grounding or replacement strategy. | Surge and grounding context | open one branch and observe system containment | restore the approved baseline and rerun the adverse case |
| One breaker removes an entire customer-facing wall and its network switch. | Circuit distribution | utility interruption and power-return recovery | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.

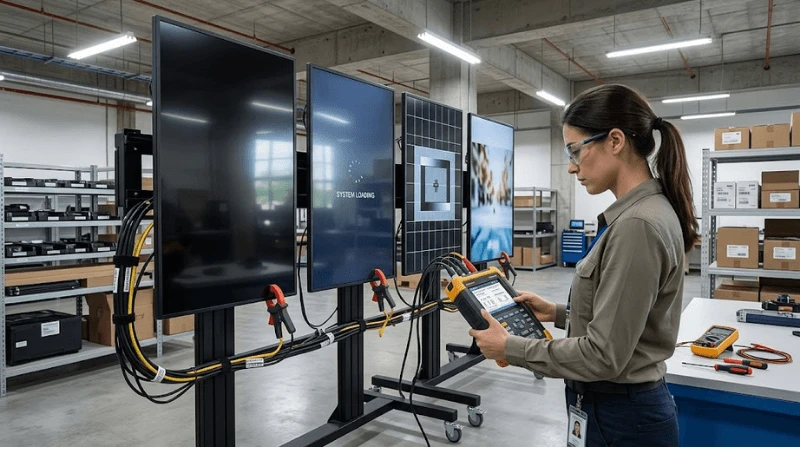

Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For commercial LCD power quality, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Measure representative startup event
- Simultaneous versus sequenced power-on comparison
- Steady operation at intended brightness/content
- Open one branch and observe system containment
- Utility interruption and power-return recovery
- Verify documented circuit-to-display mapping
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Measure representative startup event | Measured load profile | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Simultaneous versus sequenced power-on comparison | Startup sequencing | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Steady operation at intended brightness/content | Power factor and harmonics | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Open one branch and observe system containment | Surge and grounding context | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Utility interruption and power-return recovery | Circuit distribution | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Verify documented circuit-to-display mapping | Power-return behavior | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For commercial LCD power quality, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- What input-power information is available for the exact display model?
- Can startup be scheduled or sequenced at the display/controller level?
- What site surge/grounding requirements should be coordinated?
- Which peripherals are included in the quoted load boundary?
- Can the system report loss/restoration of display power?
- What electrical changes require a renewed circuit review?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for measured load profile, startup sequencing, and power factor and harmonics; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- branch breaker trips
- power-return recovery failures
- screens lost per single circuit event
- surge-related replacements
- unmapped circuit/service incidents
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes measured load profile or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect startup sequencing.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters power factor and harmonics.
- A field replacement changes surge and grounding context or removes a calibration/configuration dependency.
- The adverse condition "A design has ample steady capacity but trips during simultaneous startup." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for measured load profile?
- Interface: Is ownership clear where startup sequencing interacts with power factor and harmonics?
- Adverse case: Did the test include "A design has ample steady capacity but trips during simultaneous startup." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when surge and grounding context or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Commercial LCD Input Signal Failover, Commercial LCD Scheduled Power Control, Commercial LCD Luminance Uniformity Testing, Stretched LCD Player, EDID, and Interface Compatibility.
FAQ
Q: What is the first thing to verify for commercial LCD power quality?
A: Start with the approved baseline for measured load profile and startup sequencing. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include measure representative startup event, simultaneous versus sequenced power-on comparison, and one adverse/service condition such as verify documented circuit-to-display mapping. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect measured load profile, startup sequencing, or power factor and harmonics.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to commercial LCD power quality is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
