A fixed scanner can read a perfect barcode on an open bench and still frustrate kiosk users after the same engine is installed behind a bezel. The exit window may clip part of the field of view, a glossy cover can reflect the scanner illumination, the product or phone may be presented outside the useful working volume, or the application may accept a decode without giving the user timely feedback.

Successful kiosk barcode and QR scanner integration therefore depends on the complete path from code to host application: code quality, user presentation, optical window, scanner field of view, focus/working range, ambient light, interface behavior, and retry feedback. The correct dimensions and angles are scanner-specific; the design method is to preserve the engine's usable optical volume and prove it with representative printed and screen-displayed codes.

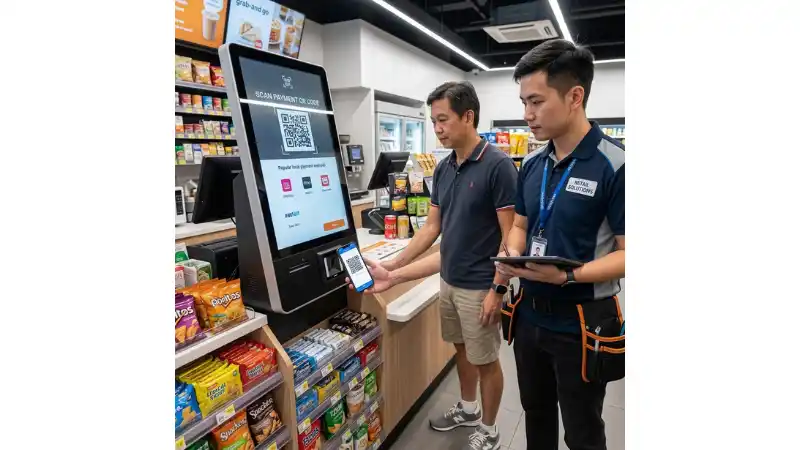

Self-service kiosk with an integrated barcode and QR scanner for phone and printed codes



Start with the scan jobs the kiosk must perform

List the actual media and symbologies before selecting the scanner or cutting the bezel. A kiosk may need to read printed tickets, paper receipts, loyalty cards, product labels, phone-wallet QR codes, boarding passes, or a mix. Some jobs involve small high-density symbols; others involve large codes held at awkward angles. The host may need a decoded identifier only, or it may need structured data from a particular symbology.

Confirm supported barcode types, working range, field of view, illumination, host interfaces, configuration method, and screen-reading claims from the exact scanner-engine documentation. Do not assume that every imager supports every code type or that a scanner described as "2D" will meet the phone-screen and distance requirements of a particular kiosk.

For GS1 retail use cases, the GS1 2D Barcodes at Retail POS Implementation Guideline is useful context for symbol quality, sizing, contrast, reflectance, and scanner readiness. It does not replace the scanner manufacturer's integration limits or the kiosk's own acceptance test.



Preserve the scanner's field of view through the bezel

The scanner does not see through the decorative opening as a single ray. It uses an optical field that expands from the engine toward the presentation area. A bezel or exit-window aperture that looks generous from straight ahead can clip the field at close range or oblique presentation angles.

Build a simple section drawing from the scanner aperture through every layer in front of it: engine window, mounting bracket, air space, protective window, adhesive or gasket, decorative bezel, and any nearby lip. Overlay the scanner manufacturer's specified optical keep-out or field-of-view geometry when available. The opening must remain clear across the intended working region, not only at the centerline.

Verify the final molded or machined bezel, not just a CAD cutout. Paint buildup, gasket squeeze, assembly tolerances, or a shifted scanner bracket can reduce the clear aperture.

Kiosk barcode scanner field of view passing through the exit window and bezel opening



Define a presentation volume, not one sweet spot

Users will not hold every barcode at the same distance and orientation. Map the region where the kiosk should reliably accept a code: too close, nominal, farther away, left/right offset, and reasonable pitch/yaw. The objective is not to maximize range at any cost; it is to create a forgiving zone that matches how the physical kiosk invites users to present paper or a phone.

Mark that zone on the mechanical drawing and relate it to the user interface. If the screen says "scan here," the indicated location should fall inside the proven volume. A recessed scanner can protect the engine but may force users into a narrow angle. A flush scanner can be easier to approach but may need more protection from ambient light, impacts, and cleaning.

Presentation volume in front of a fixed kiosk barcode scanner showing valid and invalid regions



Control the exit window as an optical component

A protective window can change scanner performance through reflection, transmission loss, surface haze, contamination, scratches, and refraction. Use the material, thickness, coating, orientation, and spacing allowed by the selected scanner documentation where such guidance is provided.

During prototype testing, compare the engine first without the final bezel/window and then with the complete installed stack. If performance falls after enclosure integration, isolate the window angle, surface reflection, aperture clipping, contamination, and engine position before blaming software.

Do not invent a universal tilt angle. Some scanner vendors provide recommended window geometry or integration keep-outs for specific engines. Use those exact instructions and validate the finished kiosk under its real light sources.



Printed codes and phone screens are different optical targets

Paper reflects the scanner's illumination; a phone emits light through its own display stack. Phone brightness, screen protector, viewing angle, OLED/LCD behavior, automatic brightness, dark mode, and surface reflections can all change the capture. A phone held too close may also fall outside the scanner's focus or usable presentation region.

Build separate test groups for printed and screen-displayed codes. The phone set should include representative device sizes and display technologies actually expected in the deployment, with normal protectors if those are common. Test several practical screen-brightness states rather than only maximum brightness.

For printed media, include clean production examples plus realistic wear: folds, minor abrasion, glossy stock, matte stock, thermal printing, and the expected range of symbol sizes. Do not deliberately use nonconforming symbols as the only basis for acceptance; distinguish scanner integration failure from source-code quality failure.

Ambient light can help one code and hurt another

Retail ceiling lights, sunlight through a storefront, accent LEDs, and the kiosk display itself can enter the scanner window. Direct reflections can reduce contrast or saturate parts of the captured image. Very dim conditions may depend more heavily on the engine's illumination.

Test the real lighting scenes: normal store light, the brightest credible daylight or spotlight condition, and the dimmer condition if the kiosk operates after-hours. Observe both paper and phone codes. If a specific luminaire produces a failure, first determine whether its geometry can be changed before adding filters or darker windows that may reduce useful signal in every condition.

Keep user guidance aligned with the optical volume

A scanner can be technically capable while the kiosk UX teaches the wrong behavior. The prompt should show where and how to present the code, whether the user should hold still, and what success looks like. Avoid an animation that implies contact with the glass if the scanner works better at a standoff distance.

Feedback should occur quickly enough that the user does not repeatedly move the code after a successful decode. Depending on the application, feedback can include a visible confirmation, sound, screen transition, or other accessible cue. Do not rely on the scanner's internal beep if it is hidden or disabled in the final enclosure.

Define what happens after an unsuccessful attempt. The application should distinguish "waiting for a scan" from "code decoded but rejected by the business workflow" where practical. A valid optical decode that fails account validation is not a scanner-focus problem.

Validate the host interface and duplicate-event behavior

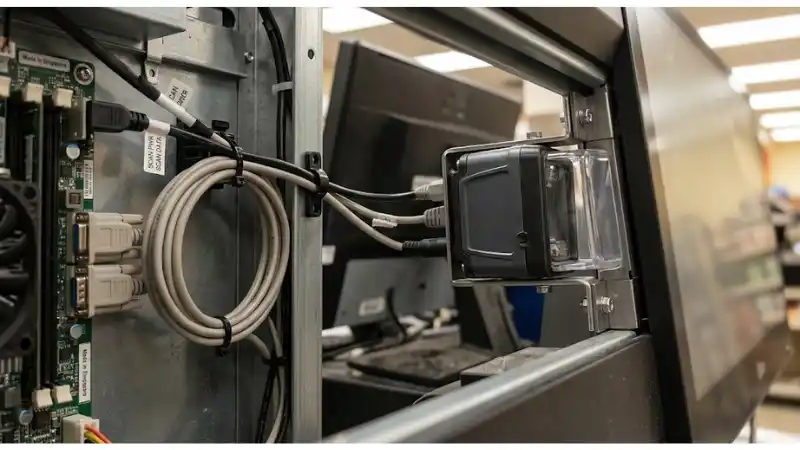

Fixed scanners may present data through USB HID, serial/virtual COM, SDK/API, or other interfaces depending on the selected engine. The host application must handle enumeration, configuration, delimiters, character encoding, symbology identifiers where needed, disconnect/reconnect, and the possibility of repeated reads while a code remains in view.

Test whether the application can recover after the scanner is unplugged and reconnected during authorized service, after the kiosk reboots, and after the scanner resumes from any configured power-saving state. If the application must suppress duplicate scans, implement that rule at the business level rather than assuming every scanner will emit only one event.

The broader Kiosk Peripheral Integration guide covers shared host/power/service architecture. This page owns the optical and interaction details specific to barcode scanning.

Build a scan matrix that represents the field

Variable Representative states What to record
Medium Paper, label, phone screen Code source and display/print condition
Symbol All required 1D/2D types Data payload and intended workflow
Size/density Expected smallest, typical, largest Actual symbol dimensions or source file
Presentation Near, nominal, far, offset, angled Position/orientation within the defined scan volume
Lighting Normal, bright/direct, dim if relevant Site scene and luminaire state
Phone state Several brightness levels/protectors Device model and screen condition
System state Cold boot, normal, reconnect, wake Decode result, application feedback, recovery

Judge the complete task, not only whether the engine decodes eventually. Record whether a normal user can present the code within the intended zone, receive unambiguous feedback, and proceed without repeated repositioning.

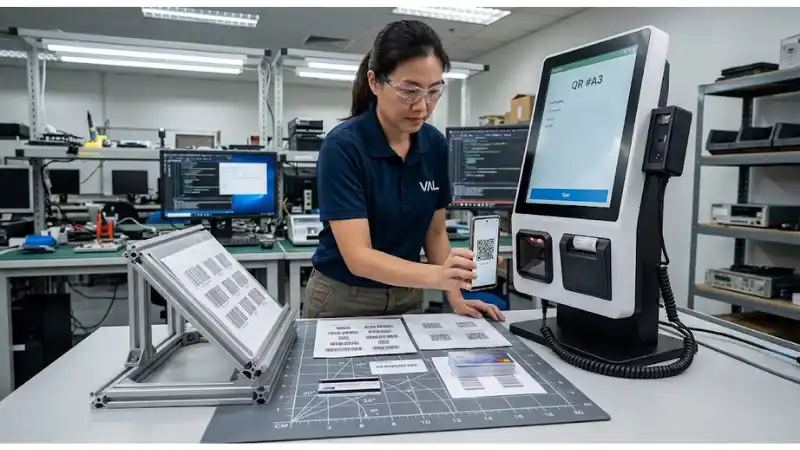

Kiosk barcode scanner validation using printed codes and smartphones under different lighting conditions



Use failures to identify the correct layer

  • Only close-range codes fail: check focus/working range, aperture clipping, and user guidance.
  • Only phone screens fail: check phone brightness, reflections, display characteristics, and whether the selected engine supports the required screen-reading use case.
  • Only bright-site tests fail: identify direct ambient-light/reflection paths through the exit window.
  • Scanner decodes but the kiosk does nothing: inspect host interface, application parsing, workflow state, and duplicate filtering.
  • Performance changed after service: verify scanner bracket position, window cleanliness, cable/connector seating, and configuration restoration.

Do not confuse this with document imaging. The Kiosk Document and ID Scanner Integration guide owns document/ID capture geometry, glare, document completeness, and image-quality validation rather than barcode decode performance.



Revalidate changes that alter the optical path or decode workflow

Repeat the affected matrix after changing the scanner engine, firmware/configuration, mounting bracket, bezel aperture, window material/coating, lighting, kiosk height/angle, host driver, application parsing, code format, phone-wallet design, or user prompt. A mechanically compatible replacement engine is not automatically an optically or software-compatible substitute.

Keep the approved scanner model/revision, integration drawing, configuration export where available, test-code set, phone/print matrix, and application recovery procedure with the kiosk configuration record. For the commercial system boundary, link back to Self-Service Kiosk Displays.

A reliable kiosk scanner is not defined by one successful barcode read. Preserve the engine's optical field through the enclosure, define a forgiving presentation volume, test paper and phones under real lighting, and verify that the host application turns a decode into clear user progress and safe recovery.
