Kiosk NFC Reader RF Design: Metal Detuning, Antenna Integration, and Tap-Zone Validation

Aug 18, 2026

Leave a message

Leo Chen
Leo Chen
Leo joined Legoyo's hardware team in 2018 and has been involved in bar LCD and ESL development since then, including certification work for CE, FCC, and several other markets. He writes about the technical side of display systems — mounting specs, en

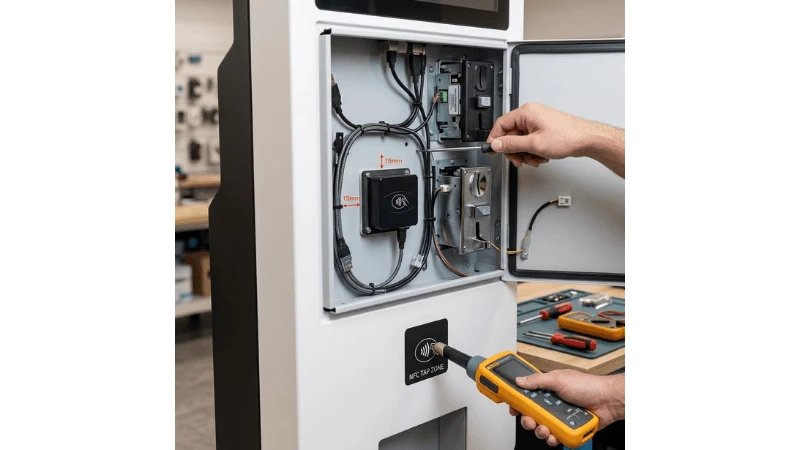

NFC reader antenna mounted behind a non-metallic tap window in a metal kiosk enclosure



An NFC reader that works reliably on an open bench can lose usable tap area after it is mounted behind a kiosk fascia. Conductive bezels, brackets, display assemblies, fasteners, cable shields, batteries, and other nearby structures can alter the antenna environment. A cosmetic tap icon can also be placed away from the strongest coupling region, forcing customers to hunt for the reader.

Treat NFC as an installed RF subsystem. The production antenna, matching network, ferrite or shielding specified by the reader vendor, non-metallic window, surrounding metalwork, cable routing, and user tap geometry must be validated as one assembly. Mechanical changes that look minor can require renewed RF verification.



Freeze the exact RF stack before judging performance

Document the components and geometry that determine the reader's installed RF environment:

  • reader electronics and antenna revision;
  • antenna position and orientation;
  • matching components or tuning state supplied for that assembly;
  • ferrite, shielding, spacer, adhesive, or carrier used by the approved design;
  • distance to conductive bezel, chassis, display frame, brackets, fasteners, and cable shields;
  • material and thickness of the user-facing non-metallic window;
  • routing of power and data cables near the antenna;
  • location of the printed or illuminated tap target relative to the antenna.

Keep this stack in the mechanical and electrical configuration record. "Same NFC reader" is not sufficient if the antenna carrier, ferrite, front panel, or mounting geometry changed.

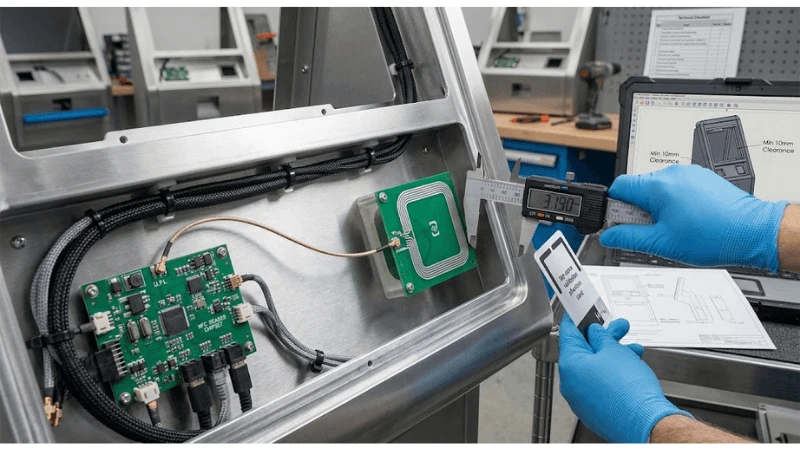

Conceptual NFC kiosk stack showing tap window, antenna, ferrite and nearby metal chassis



Why nearby metal changes the antenna environment

NFC relies on near-field magnetic coupling. Conductive material close to the antenna can alter the field and the antenna's electrical behavior, reducing the margin available for communication. The effect depends on geometry, material, spacing, antenna design, and the reader's matching strategy.

NXP's public NFC Antenna Design Hub emphasizes antenna design, tuning, matching, and measurement as core parts of reader implementation. Use the exact reader manufacturer's integration guide for the production design rather than transferring a clearance or ferrite thickness from an unrelated reference antenna.



Do not add ferrite as a generic after-the-fact fix

Ferrite can be part of a valid antenna stack in a metal environment, but it changes the antenna system and may affect matching. The correct material, dimensions, placement, and tuning depend on the reader and antenna design. If the approved reader module includes a tuned antenna/ferrite assembly, preserve that assembly as a controlled part.

If the design team adds or changes ferrite, moves the antenna, changes the metal distance, or modifies the matching network, treat the result as an RF design change. Measure and retest; do not assume that more ferrite or more clearance automatically produces the intended result.



Use a non-metallic tap window as a controlled mechanical interface

The customer-facing area should make the intended tap zone obvious while preserving the RF geometry required by the selected reader. Record the window material, thickness, adhesive stack, paint or decorative layers, and the antenna-to-window datum.

A late industrial-design revision can be risky when it introduces metalized coatings, decorative foil, a new reinforcing bracket, a larger fastener, or a display frame near the antenna. These changes may not be visible in the electrical schematic, so they belong in the RF change-control list.



Map the actual tap zone instead of testing one perfect position

A single successful tap at the antenna center is weak evidence. Build a repeatable tap map over the user-facing target. Use the credentials and devices required by the project and test realistic orientations and approach angles.

  • Map where communication starts reliably within the printed tap target.
  • Check whether the successful region is centered on the visual instruction.
  • Rotate cards or supported devices through the orientations users are expected to present.
  • Test realistic approach angles and user hand positions.
  • Exercise repeated tap, cancel, and retry sequences to verify recovery.

Do not publish one universal read distance for all credentials and phones. Acceptance must reflect the exact reader, antenna, kiosk stack, supported credential population, and application protocol.

NFC tap-zone map showing the visual target, tested positions and example reliable region



Validate with the final industrial design installed

Stage What it proves What it cannot prove
Reader/antenna bench test Basic hardware and software function Performance behind the production fascia
Mechanical prototype Effect of representative bezel, metalwork, and antenna placement Final production tolerances and cable routing
Production-equivalent kiosk Complete RF stack, tap target, display, cables, power, and software Long-term service consistency unless replacement procedures are also tested
Field pilot Real user approaches, device mix, site conditions, cleaning, and service behavior Future revisions that have not been revalidated

Move from one stage to the next without discarding the earlier measurements. A bench baseline is useful when a finished kiosk later shows reduced margin because the comparison helps isolate the installation effect.



Measure the antenna state when the design process supports it

For readers that permit antenna tuning or measurement, follow the vendor's approved method and equipment. Record the production mechanical condition when the measurement is taken. The value is meaningful only when it is tied to the exact antenna, matching network, fixture, metal stack, and measurement setup.

Do not create a generic acceptance limit from a different reader IC or antenna geometry. If the module supplier provides a tuned, closed assembly with no field-adjustable RF design, the correct action may be to preserve its specified installation envelope and validate the end-user tap behavior rather than modifying the antenna.



Keep cable routing and service hardware out of the RF blind spot

Late service changes can move conductive objects into the near field. Include cable clips, shielded harnesses, USB cable shells, ground straps, screws, and replacement brackets in the mechanical inspection around the reader. A cable tied neatly against the antenna carrier can be electrically different from the same cable routed along the chassis wall.

Photograph or draw the approved routing and include it in the service document. If a reader is replaced, the technician should have a mechanical datum for the antenna and a routing reference for nearby conductors.



Separate RF failure from payment or application failure

A failed customer tap can occur at several layers:

  • no RF coupling or insufficient margin;
  • credential detected but protocol exchange fails;
  • reader service or driver unavailable;
  • payment/access SDK rejects the transaction;
  • backend or network service fails after the NFC exchange;
  • UI state does not prompt the customer at the correct time.

Log the strongest status available from the production reader and application so "tap failed" does not automatically become an antenna replacement. For the broader peripheral boundary, see Kiosk Peripheral Integration.



Build a production acceptance matrix

Test the final kiosk with the supported credential/device families and the customer behaviors the project expects. A matrix can include:

  • center, edge, and off-center positions within the visual tap target;
  • required card orientations;
  • representative supported phones or mobile wallets where applicable;
  • normal and difficult approach angles;
  • repeated tap/cancel/retry sequences;
  • operation during nearby display, printer, or other peripheral activity if those devices can affect the physical or electrical environment;
  • post-service tests after reader, fascia, cable, or bracket replacement.

Use a defined result such as reliable transaction initiation under the approved conditions rather than a subjective "seems to read fine." Preserve failures by credential/device, position, orientation, kiosk revision, and reader revision.

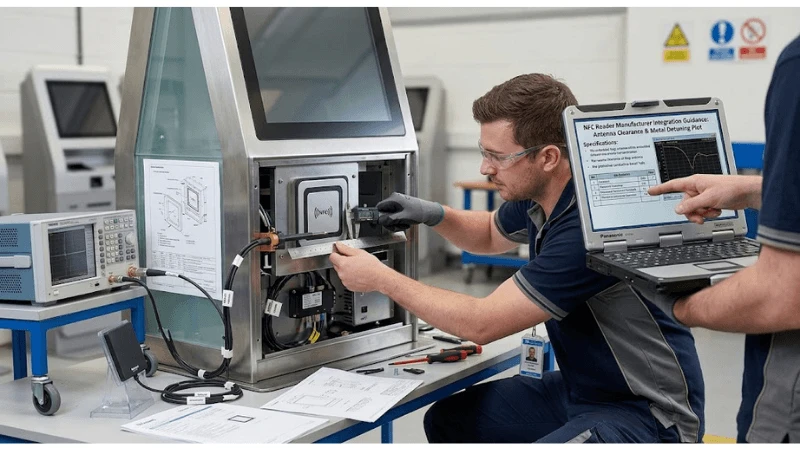

Technician validating NFC tap positions with generic cards and phones on a production-equivalent kiosk



Changes that should trigger RF revalidation

  • reader or antenna revision;
  • matching-network or ferrite change;
  • front-panel material, coating, thickness, or adhesive change;
  • metal bracket, fastener, display frame, or chassis change near the antenna;
  • antenna position or orientation change;
  • cable routing change near the reader;
  • tap-target artwork moved relative to the antenna;
  • new supported credential or phone population;
  • recurring field complaints concentrated on one mechanical revision.

For product context, return to Kiosk Display. If touch or peripheral resets accompany tap problems, the Kiosk ESD Protection and Grounding guide can help separate RF coupling from transient electrical faults.



FAQ

Q: Why does an NFC reader work outside the kiosk but poorly after installation?

A: The installed antenna sees a different environment. Nearby conductive parts, spacing, ferrite/shielding, window materials, cables, and mounting geometry can change RF behavior and the usable tap zone.

Q: Should every metal kiosk use ferrite behind the NFC antenna?

A: No universal stack applies. Use the selected reader or antenna manufacturer's integration guidance and validate the actual design. Ferrite is an RF component of the stack, not a generic cosmetic fix.

Q: Is read distance the best acceptance metric?

A: Not by itself. A kiosk needs a reliable user tap zone for the supported credentials and device orientations. A large maximum distance at one ideal point can still coexist with a confusing or offset practical tap area.

Q: When should an antenna be retuned?

A: When the selected reader design supports or requires tuning and a change affects the antenna environment. Follow the reader manufacturer's method; do not retune a closed module simply because another design uses an adjustable network.

Q:

A: NFC reliability is won or lost in the finished mechanical stack. Freeze the RF geometry, control nearby metal and cables, align the visual tap target with the real coupling region, and retest every change that can alter the antenna environment.
