A kiosk can pass every peripheral test on a developer's desk and still fail after the printer, scanner, card reader, camera, touchscreen, service port, and other USB devices are connected through the production hub. The reason is simple: USB is both a data topology and a power topology. A device can disappear because software bound to the wrong instance, because a shared hub reset, because a branch ran out of power margin during simultaneous startup, or because a marginal cable failed under the installed condition.

The engineering task is therefore not "add enough USB ports." It is to document the tree, budget the power using production-device evidence, define how the software identifies each device, and test cold boot, reconnect, reset, and fault recovery with the complete kiosk configuration.







Draw two trees for the same kiosk

Start with one physical drawing and annotate it in two ways.

The data tree

Map the host controller or root ports, each hub, every downstream port, cable, connector, and peripheral. Mark which devices share the same hub branch and therefore may share a reset or failure domain. If a service technician cannot tell which scanner or printer is on which branch, the drawing is not detailed enough.

The power tree

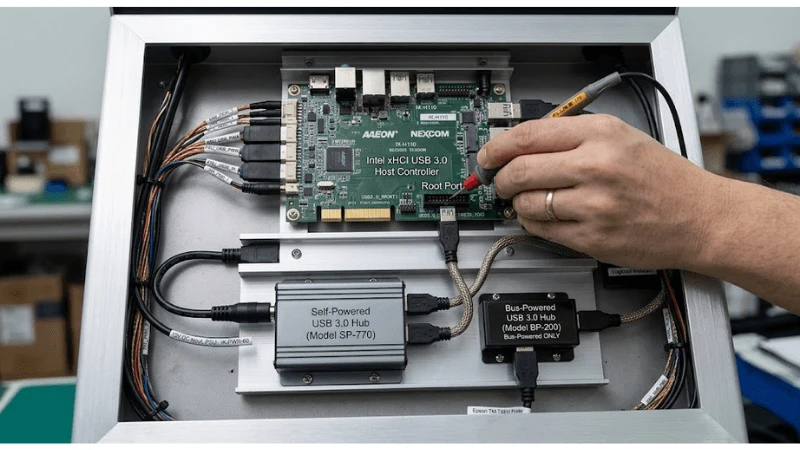

On the same drawing, show which hubs are self-powered, which devices are bus-powered, which devices have separate supplies, which rails feed the hubs, and where total or per-port limits apply. A four-port connector layout does not prove that four high-demand devices can run simultaneously.

Keep this drawing tied to the production bill of materials. A different hub, longer cable, new printer, or added service accessory can change both trees even when the application software is unchanged.

Kiosk USB data tree and power tree showing host, hub and peripheral relationships

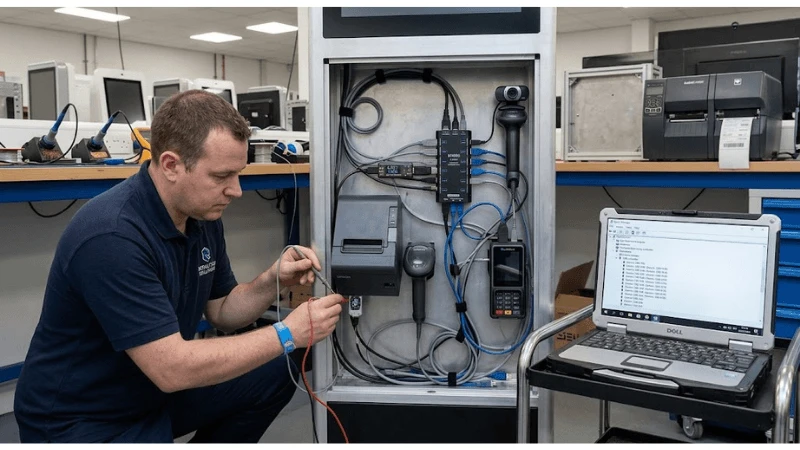

Build the power budget from worst-case device evidence

Use the exact peripheral and hub documentation rather than a generic current allowance. USB power rules depend on the applicable USB generation, connector, hub architecture, and-in USB Type-C systems-whether power is negotiated through USB Power Delivery.

Device / branch Evidence to record Design question
Peripheral Normal demand, startup/peak demand, bus-powered or self-powered, source document Can the port and upstream source support the device in its worst approved operating state?
Hub Upstream input, total downstream budget, per-port limit if specified, hub's own consumption Is the constraint per port, shared across all ports, or both?
Cable / connector Approved cable type, length, retention method, Type-C capability where relevant Does the production cable support the required data and power mode?
Power supply / rail Rated output, loads sharing the rail, environmental or thermal derating from its documentation Does simultaneous kiosk startup leave sufficient project-defined margin?
Recovery hardware Whether a branch or port can actually be power-cycled independently Can software reset one device without interrupting critical neighbors?

A useful design calculation is:

Required branch power = sum of worst-case approved peripheral demand + hub/controller demand + project reserve

The reserve is a project decision, not a universal percentage. Define it from the power-supply design, temperature, aging policy, peripheral tolerances, and the consequence of a brownout.

The USB-IF maintains the current USB 2.0 specification package and the current USB Power Delivery specification. USB Power Delivery can materially change the power available on a Type-C connection, but only when the source, sink, cable, and negotiated mode support it. Do not treat a Type-C connector as proof of a particular power capability.



Recognize when a brownout looks like an enumeration problem

Power faults are often reported as "USB randomly disconnects" because the visible event occurs at the software layer. The incident pattern can help narrow the cause.

  • A scanner disappears exactly when another device starts, charges, cuts paper, or activates a motor.
  • Several devices on one hub branch reset together while devices on another branch stay online.
  • A device is reliable when connected directly to a development computer but unstable through the production hub.
  • A cold boot fails more often than a warm restart because several peripherals draw startup current at the same time.
  • A reconnect works only after power is removed from the hub rather than after an operating-system rescan.

These symptoms do not prove a power problem. Cable integrity, EMI, hub firmware, drivers, connector retention, and application behavior can produce similar symptoms. The value of the topology map is that it tells the team where to measure and which devices share the failure domain.

Kiosk USB brownout causing a peripheral disconnect on a shared hub branch



Select hubs by failure domain, not port count

A kiosk hub is part of the reliability architecture. Before approving one, document:

  • whether it is bus-powered or self-powered;
  • the upstream input and downstream power limits for the exact model;
  • whether downstream limits are independent per port, shared, or both;
  • the host interface and required data rate for each attached device;
  • supported cable and connector arrangements;
  • whether the model supports controlled downstream reset or power switching, if the recovery design depends on that feature;
  • the temperature and enclosure conditions covered by its documentation;
  • what happens to neighboring ports during a hub reset, firmware update, or upstream disconnect.

Do not write a software recovery procedure that says "power-cycle port 3" until the production hub has been proven to support independent power control for that port.



Do not bind business logic to enumeration order

Two similar USB devices can appear in a different order after boot, service, hub replacement, or reconnect. Application logic should identify the intended device using stable information that the production peripheral actually exposes.

Useful identity evidence may include vendor and product identifiers, a unique device serial number where available, a physical port or hub-path relationship, and an application-level handshake. No single method is universal. Some peripherals do not expose a unique serial number, and physical topology can change after service. The integration specification should therefore state the primary identity method and the fallback behavior when identity is ambiguous.

If a payment device, scale, or other regulated peripheral requires a vendor SDK or service, follow that device's integration rules rather than replacing them with a generic USB probe.

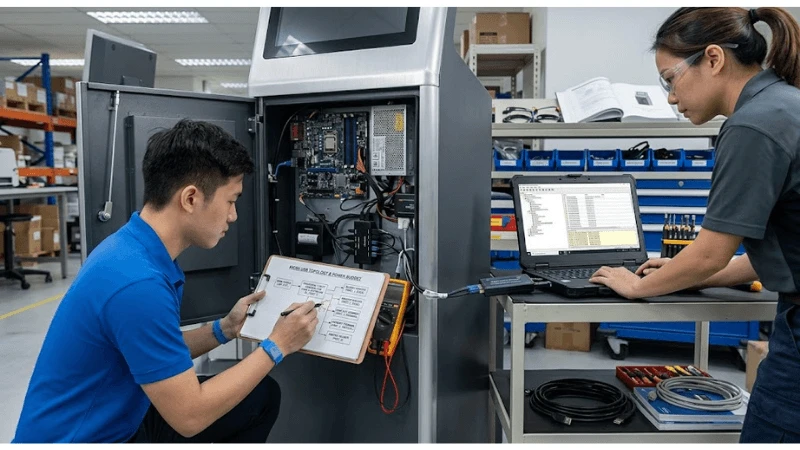

Test enumeration as a timeline, not a screenshot

A one-time Device Manager or lsusb screenshot only proves that the devices were visible at that moment. Acceptance should exercise the transitions that the kiosk will experience in the field.

Test What to observe Evidence to keep
Cold boot with all peripherals connected Enumeration sequence, peak load, device readiness, application binding Timestamped logs plus power/voltage evidence where required
Warm OS restart Whether devices recover without removing hub power Device identities and application readiness
Simultaneous peripheral startup Whether one high-demand device resets a neighbor Hub branch, event time, electrical evidence
Single-device unplug/replug Correct rebinding without duplicating or swapping logical devices Before/after identity and application state
Hub upstream disconnect/reconnect Shared failure-domain behavior and recovery order All affected device events
Approved hub reset Which ports actually reset and which transactions are interrupted Reset reason, affected devices, recovery result
Slow or delayed peripheral Whether the kiosk waits, degrades, or starts without the device according to policy Readiness-state timeline
Service cable movement Connector retention and cable-margin behavior in the final enclosure Physical configuration and fault log

The related Kiosk Boot Sequencing and Peripheral Readiness guide covers how these device transitions become application startup gates rather than indefinite waits.

Kiosk USB enumeration and reconnect testing timeline from cold boot to verified recovery



Log enough context to distinguish root causes

A useful kiosk log correlates device and application events. Keep timestamps for USB connect/disconnect/reset events, hub or port identifiers available to the OS, device identifiers, driver or service status, application readiness, and the recovery action that was attempted. If the team captures rail voltage or hub power telemetry during validation, align those timestamps with the USB event log.

When a field incident occurs, preserve the original event sequence before rebooting. "Reboot fixed it" is not a diagnosis, and repeated blind reboots can conceal a branch that is close to its power limit.



Protect the production topology from field drift

Service changes can invalidate a USB design. A replacement hub with the same number of ports may have a different downstream power budget. A longer cable may reduce margin. An added Wi-Fi dongle, service camera, or phone charger can consume a port or power reserved for production hardware.

Place the approved USB topology, hub model, cable list, and allowed service accessories in the kiosk configuration record. If a change affects a critical branch, rerun the relevant cold-boot and reconnect tests.



Internal integration path for kiosk projects

The Kiosk Display collection provides the broader product context. Use Kiosk Peripheral Integration for the wider printer, scanner, payment, and accessory boundary. This page remains focused on USB topology, power margin, enumeration identity, and reconnect evidence.



Procurement and design-review questions

  • Which host controller and hub port will each production peripheral use?
  • Which peripherals are bus-powered, self-powered, or USB-PD powered?
  • What are the documented normal and peak/startup demands for the exact peripheral revisions?
  • What total and per-port power limits apply to the exact hub?
  • Which devices share a reset or power failure domain?
  • How does software identify two identical devices after reconnect?
  • Which recovery actions are supported by the production hub hardware?
  • What cold-boot, delayed-device, unplug/replug, and simultaneous-load tests must pass before rollout?



FAQ

Q: Does a powered USB hub automatically solve kiosk brownouts?

A: No. The hub still has model-specific upstream, total downstream, and possibly per-port limits. The complete branch must be budgeted against the actual peripherals and supply.

Q: Can USB-C be assumed to provide high power?

A: No. Connector shape alone is not enough. Available power depends on the applicable USB Type-C and USB Power Delivery capabilities of the source, sink, cable, and negotiated mode.

Q: Why do two identical USB devices sometimes swap roles after reboot?

A: If the application binds by discovery order rather than a stable identity, enumeration changes can map the wrong physical device to the logical role. Define an identity method using the information the production devices actually expose.

Q: What is the best test for a suspected USB power problem?

A: Reproduce the failure with the production topology while correlating USB event logs with the branch's electrical behavior. Do not infer power failure from a disconnect message alone.

Q:

A: A reliable kiosk USB design makes the invisible dependencies visible. Draw the data tree, draw the power tree, budget each production branch, define device identity, and validate the transitions that occur during boot and service. That is how a bench configuration becomes a field-supportable topology.
