A commercial LCD can remain powered while its screen shows no useful information. The HDMI source may have rebooted, a converter may have lost synchronization, the player may be outputting a black frame, or a source switch may have returned to an input that was never ready. None of those conditions is automatically repaired by installing a display with two input sockets. Source failover is a verified behavior of the complete video system, not a count of connectors.
This guide describes how retail integrators, signage operators and kiosk engineering teams can specify and accept video input failover. It distinguishes electrical signal loss from failed content, shows how to choose the decision layer, defines source-selection states and return-to-primary policy, and walks through a repeatable fault-injection test. Numerical timing examples are explicitly hypothetical; they are not published performance claims for any KioskTagScreen display or controller.
Decide what business failure the standby source must prevent
First define "service restored." For a promotional sign, showing an approved local fallback message may be sufficient. For a queue display, it may be essential that the live queue number be current. For a transaction terminal, a backup picture alone does not preserve payment state or user-session integrity. The specification must identify the actual content or workflow that the operator expects after failover.
Translate the desired outcome into a measurable scenario: what event initiates failover; what content is shown while the alternate starts; how long disruption may be visible; whether interrupted content may resume; how the system logs the event; and when the primary may reclaim the screen. Avoid a generic instruction to "switch instantly." The maximum tolerated interruption must come from the business task and a verified pilot, not from a universal assumed number.
Keep the problem distinct from diagnosing a defective panel. If the issue is random flicker or persistent lines on a known-good source, use the site's LCD fault-isolation guide. This article owns the selection and recovery of valid video sources, including cases where the display itself is healthy.
Draw the complete primary and backup signal paths
A meaningful topology drawing contains both sources and every intermediate element: media player, graphics port, converter, extender, wall outlet, matrix/switcher, cable, input port, display controller and final LCD. Record the AC power source, local UPS where relevant, network dependencies, and whether any controller or switcher is common to both paths. The standby path is not independent just because the players have different labels.
Consider a store with two media players but one upstream network-only content source. If both players need the same network service to show the required item information, a network outage can make both screens useless even though both video cables work. Likewise, two independent players connected through a single failed extender or common switcher do not provide protection against that component. For each credible failure, mark the component that can fail and whether the backup path avoids it.
| Failure domain | Primary route | Backup route | Design question |
|---|---|---|---|
| Media player | Player A | Player B | Are images, power and recovery policies independent? |
| Video conversion | Converter A | Same converter or Converter B? | Is the converter a shared single point? |
| Network/content | Remote content service | Local approved asset or same service? | Will fallback still be meaningful without the network? |
| LCD electronics | Display controller and panel | Same controller and panel | Input failover cannot fix common display hardware failure |
| Power | Supply circuit A | Supply circuit A or B? | What happens during local power interruption? |
Record where the selection authority sits. A display's own input logic may be sufficient if the only required condition is carrier loss and its source-priority behavior has been demonstrated. An external switcher can provide routing and input priority but adds another device and configuration responsibility. A software supervisor may detect frozen application content, but cannot assume that an unrelated LCD controller accepts source-selection commands. These functions should not be attributed to the display without model-level documentation.

Separate four kinds of "screen failure"
A controller should not treat all black pictures identically. A cable disconnected from the player is different from a player sending a perfectly valid black frame. Define detection signals and the diagnostic limit of each layer before writing recovery rules.
| Observed state | What could be known | What cannot be inferred | Appropriate investigation |
|---|---|---|---|
| No electrical video/carrier | No usable input detected at a particular port | That the panel or application itself failed | Source power, output, link, switching path |
| Carrier present, unsupported timing | Input activity exists but sink cannot display the mode | That selecting a second port fixes source configuration | EDID, native mode, refresh, converter settings |
| Valid picture timing, black or frozen content | Electrical link is present | That customer-facing information is healthy | Player/application heartbeat, image proof, content checks |
| Both sources valid, LCD still dark | Input selection alone did not resolve symptom | That the selected source is necessarily bad | Display power, backlight, controller and panel service path |
A simple monitor may only expose its selected input and no-signal state. Detecting content freshness may require a separate player heartbeat, controlled video probe, or application-side confirmation. Such telemetry must be explicitly designed and validated; a remote screenshot is not guaranteed to prove that the actual panel is illuminated.
Write a source-selection state machine rather than a vague priority rule
Define states that operations and engineering can both recognize. A minimal deterministic policy might use PRIMARY_ACTIVE, PRIMARY_SUSPECT, BACKUP_ACTIVE, PRIMARY_RECOVERY_WAIT, NO_VALID_SOURCE, and MANUAL_OVERRIDE. Each transition requires an event, a confirmation rule and a log entry. If the selected hardware exposes fewer controls, document its fixed behavior and decide whether it is sufficient before procurement.
| Current state | Event | Action | Required safeguard |
|---|---|---|---|
| PRIMARY_ACTIVE | Primary no longer meets defined health criterion | Enter suspect state; begin confirmation | Do not switch for a single brief expected mode change unless policy says so |
| PRIMARY_SUSPECT | Fault persists for configured interval | Select healthy backup, then verify useful output | Capture source/port and error event |
| BACKUP_ACTIVE | Primary signal briefly reappears | Keep backup until restoration condition met | Hysteresis prevents source bouncing |
| PRIMARY_RECOVERY_WAIT | Primary stable for documented hold period | Return automatically or seek operator approval | Check business continuity before switching |
| NO_VALID_SOURCE | Neither source acceptable | Use approved no-signal/local fallback behavior | Do not claim valid content is shown unless fallback is supported |
| MANUAL_OVERRIDE | Operator selects a source | Honor defined override scope | Explicit release back to automatic policy |
Debounce and hysteresis solve different problems. Debounce prevents transient loss from immediately triggering a switch. Hysteresis prevents an unstable restored primary from repeatedly taking back the picture. The optimal periods cannot be copied between systems because the player boot time, link negotiation, switching controller and business content all vary. When a display offers only "last connected input" behavior, it may not implement the prioritized restoration logic described here; acceptance must reflect what is actually supplied.

Calculate a recovery-time budget and test the actual elapsed interval
For a simple serial process, estimate the visible outage from detection and confirmation, route-selection command, video negotiation, and content becoming usable. A hypothetical allocation might be 3.0 seconds to confirm a failed primary, 1.2 seconds for source selection, 2.5 seconds for the sink and source to establish a valid picture, and 1.5 seconds for the backup application to render approved content. Total: 3.0 + 1.2 + 2.5 + 1.5 = 8.2 seconds. If the acceptance requirement were 10 seconds, this leaves 1.8 seconds of nominal margin.
That calculation is not a product guarantee. Some activities overlap, startup can be longer than warm switching, and a content heartbeat may lag after the picture becomes electrically valid. Measure start and finish using a defined event timeline, preferably synchronized logs and a time-stamped video of the screen. State whether recovery time ends when a signal locks, when any pixel appears, or when the correct business content is visible. The last definition is usually more meaningful to an operator.
Do not combine detection success from one device with switching time from another vendor's marketing brochure and claim the total is demonstrated. Time must be measured on the final combination, including the player OS image, output format, cable and extender topology, display-controller revision, and fallback asset. Repeat after a cold start, not only a warm test.
Handle EDID, hot-plug and protected-content dependencies
For HDMI-related paths, the source may use EDID information to select supported modes and hot-plug information to decide whether a display is available. Analog Devices' EDID engineering FAQ explains these separate roles. A switcher, extender, dock or matrix can change what EDID the player sees or when hot-plug transitions occur. An intermediate device may also retain or emulate EDID, but that behavior requires verification on the specific hardware; do not assume the device is equivalent to a passive cable.
When direct source-to-LCD connection works but the installed path fails after switching, record the EDID seen by the source in each state, the negotiated resolution/refresh mode, the video output enable state, and any device reboot or graphics restart. A source that falls back to an unsupported mode may keep outputting a signal while the LCD displays nothing useful. Avoid allowing an unexpected resolution change to create a second fault as the system tries to recover from the first.
Where protected content is legitimately used, the path may depend on appropriate HDCP negotiation and capabilities. Validate the licensed hardware and content chain as intended; do not propose defeating or bypassing content-protection mechanisms to make a failover demonstration succeed. If USB-C is involved, verify that the source, adapter and cable support the required video mode-Microsoft's USB-C troubleshooting guidance notes that support for alternate video modes is not automatic for every USB-C port and accessory.

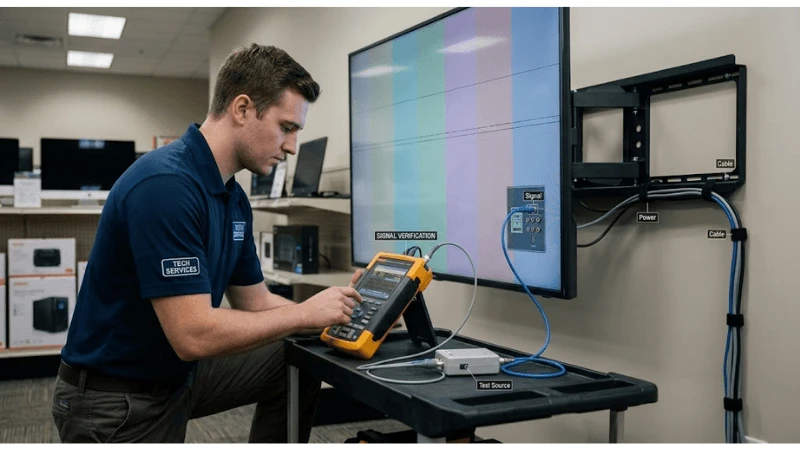

Run fault injection that separates software, source path and display
Set up the entire production video route and capture a baseline: player image versions, output settings, switcher/controller settings, source priority, input identifiers, cable and converter part numbers, EDID behavior, and where diagnostics are collected. A laboratory laptop connected directly to the screen is a useful isolation tool, but it cannot replace the installed-topology acceptance test.
Use the following fault matrix. Every row should specify the starting state, exact action, allowed automatic action, measured customer-visible result, telemetry expected and recovery owner. If the system cannot perform an action automatically, write "manual service required" rather than treating it as a pass.
| Injected condition | Correct observation to verify | Likely gap exposed |
|---|---|---|
| Cold boot: primary absent, backup ready | Specified fallback input and content appear without relying on a remembered manual setting | Boot priority not persistent |
| Primary HDMI removed while active | Fault is logged, backup selected, useful image shown within agreed time | Signal detection or routing |
| Primary player crashes but HDMI carrier remains | Supervisor behavior matches agreed content-health capability | Carrier-only health measurement |
| Primary returns and drops again | Return policy prevents repeated visible source bouncing | Hysteresis or unstable recovery |
| Backup power removed while backup is active | Defined no-valid-source or degraded state and alarm | Unrecognized second failure |
| LCD power cycled while backup is active | Documented priority restored after reboot | Controller setting not retained |
| Source format changes during recovery | Supported mode negotiated and content becomes visible | EDID/mode disagreement |
| Manual override then release | Operator can return to automatic policy in a documented manner | Permanent hidden manual state |
To observe intermittent faults, perform repeated trials on the scenarios that carry the highest business risk. Record individual outcomes and their conditions. For example, if 22 of 24 illustrative trials met the specified picture-restoration criterion, the observed test pass fraction would be 22 ÷ 24 = 91.7%. That is not evidence of a guaranteed field availability, reliability or SLA, nor a reason to hide the two failures. Investigate their states and rerun the affected conditions after corrective changes.
Record a complete incident rather than only a "pass" checkbox
A useful evidence record makes fault investigation repeatable by a second team. Record date/time reference, site or bench ID, display/controller model and firmware, source A/B models and OS images, selected input before and after, command or automatic trigger, fault injection, EDID and video mode when available, first visible blank frame, first correct fallback content, return policy, result, and supporting video/log file names. Where timing is measured, specify clock synchronization and whether values are taken from logs or video inspection.
Consider a hypothetical log: at 10:00:00.0 the primary source is removed; at 10:00:03.1 the controller declares primary invalid; at 10:00:04.2 the backup route is selected; at 10:00:07.6 approved content first appears. Recovery from injected fault to correct content is 7.6 seconds. This example is a method, not a recorded test for a brand product. The engineer can compare that observation with the buyer's agreed acceptance limit and identify which stage needs improvement if it fails.
Keep fault evidence before rebooting or reseating cables where safe. Resetting all components together may restore a picture but destroy the clues distinguishing source failure, EDID renegotiation and application crash. Use physical cable access and power cycling only under an approved service procedure; avoid unqualified internal power or high-voltage troubleshooting.
Prevent return-to-primary from breaking an otherwise stable backup
Return policy is a separate design decision from failover. Immediate return may be attractive for promotional media but disruptive when the primary is rebooting repeatedly. Options include automatic return after a continuous healthy interval, supervised return on a maintenance schedule, or manual return after an engineer has verified the primary image and content. Document which of these the actual controller implements and which requires an external supervisor.
In public or unattended applications, also specify what happens after someone changes the input using front-panel controls, remote-control commands or remote-management software. A manual override that survives silently can make an otherwise good failover design look unreliable during the next incident. Define the permitted operator roles, how override is logged, and the exact route back to the automatic state.
Translate the policy into a supplier-verifiable RFQ clause
A requirement saying "two HDMI, auto switching" is not sufficient. A stronger clause names the exact source configuration, required topology, preferred/backup inputs, signal modes, detection criterion, minimum working fallback content, source-restoration policy, reset behavior and test evidence. Make the supplier say where the feature is implemented: LCD input controller, external switcher, media player or management platform. Do not imply the display alone provides an application watchdog or local cached content.
Example requirement language: "For the approved primary and backup sources and controller revisions, demonstrate the specified priority policy under primary signal removal, cold boot without primary, repeated primary recovery, display reboot and manual override. Report measured time from fault injection to first correct backup content in each trial. Any requirement for application-level frozen-frame detection must identify its separate monitoring component and implementation." Replace the scenario and acceptance values with project-approved details before a purchase order is issued.
Link the requirement to the broader commercial LCD product context and, if it is part of a user-facing terminal, to the kiosk system integration boundary. Those pages cover purchasing and whole-system scope; this article owns video path continuity.
Control revisions and revalidate after a change
Input behavior may change after display-controller firmware updates, video driver changes, new HDMI extenders, replacement switchers, OS updates or revised player startup scripts. Preserve a known-good baseline for every accepted topology. A spare screen with the same visible panel can still have a different controller implementation and source-priority behavior. Test replacements against the baseline rather than assuming the front-panel menu and exterior appearance guarantee the same state machine.
Use a canary deployment for changes where loss of the screen would disrupt operations. Retest signal removal, dual-source boot, primary return, manual override and the failure scenario that originally triggered the change. Keep a rollback or manual-service procedure even if automatic recovery worked in the pilot. Where remote telemetry or automatic reset is available, verify authorization and the effect on any active transactions before allowing an unattended power cycle.
Approve the observed behavior, not the feature label
Reliable LCD source failover depends on a shared definition of useful content, a documented signal path, detectable failures, a deterministic selection policy, measured recovery time, and controlled return to normal service. A display with multiple inputs may be the right component, but only the validated combination of display, source, cables, controller, firmware and operating process can justify a continuity claim. Keep the event log and exception list with the configuration baseline, and repeat the test after changes that could affect source negotiation or recovery logic.
