A transparent LCD UV exposure decision can look like a small mechanical or maintenance detail until the display or kiosk is installed in a real store. The production system is a chain of materials, electronics, enclosure geometry, service procedures, and field conditions. A change at one point can appear somewhere else as an optical defect, thermal fault, intermittent reset, nuisance alarm, or premature service visit. For B2B projects, the useful question is therefore not whether a component exists, but whether the complete configuration has a defined design intent and evidence that it behaves predictably.
This guide treats transparent LCD UV exposure as an engineering and procurement topic. It shows how to map the relevant system, separate failure mechanisms, define controls before tooling or rollout, collect evidence during validation, and turn the result into an RFQ and acceptance plan. Capabilities vary by model, controller, enclosure, material stack, firmware, and destination environment, so project teams should verify the exact proposed configuration instead of borrowing an unsupported number from another product.
This guide focuses on transparent LCD showcases exposed to daylight or strong window light. It distinguishes ultraviolet exposure from visible-light glare and solar heat. Exact service life, UV dose limits, and material performance must be supported by component or system evidence; no universal lifetime is assumed.

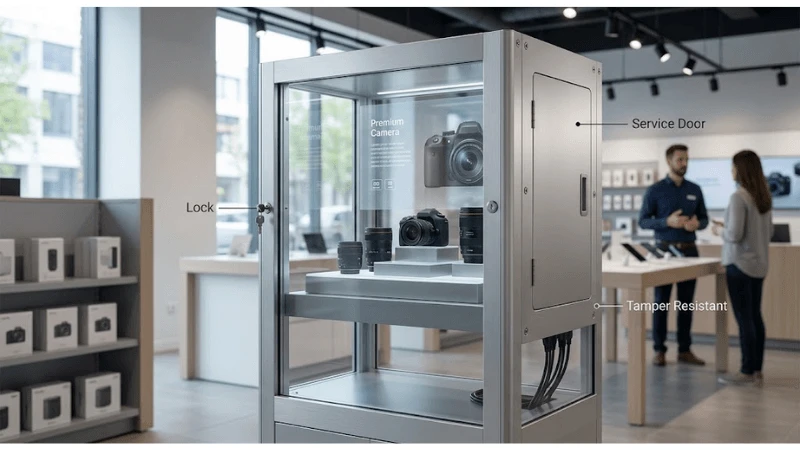

Start With the Complete System, Not a Single Component
The fastest way to create an expensive field problem is to isolate one part of transparent LCD UV exposure from the rest of the system. Procurement sees a line item; engineering sees interfaces. Build a simple block or cross-section drawing that identifies what generates load, what carries it, what senses it, what can be serviced, and what evidence is visible after installation. The drawing does not need to be a full CAD release to be useful. Its purpose is to make assumptions visible before they become production constraints.
| System element | Role in the design | Why buyers should care |
|---|---|---|
| Front cover glass or protective window | is the first optical and environmental barrier | its coatings or laminates can reduce selected wavelengths, reflections, impact exposure, or contamination depending on the design |
| Front polarizer | converts and filters polarized light as part of the LCD optical stack | UV-sensitive materials can fade, yellow, or change optical behavior over time |
| Liquid-crystal cell | modulates transmitted light to create the image | excessive UV and temperature can contribute to material degradation or nonuniform optical behavior |
| Adhesives and optical films | bond layers and maintain optical alignment | yellowing, haze, bubbles, or edge degradation can reduce transparency and contrast |
| Rear polarizer and lighting cavity | work with the product-zone illumination behind a transparent LCD | transparent showcases rely on controlled light behind the panel; external sunlight is not a stable substitute for engineered backlighting |
| Displayed product and enclosure | add their own heat, reflection, shadow, and color background | product placement and internal lighting can either reinforce or hide early optical degradation |
For each element, identify the controlled document that defines it: mechanical drawing, wiring diagram, component datasheet, material specification, software state diagram, installation instruction, or service procedure. If no document owns an interface, the interface is likely to be improvised during assembly or field service. That is exactly where repeatability is usually lost.
Failure Modes: What the Symptom Can Mean and What Evidence to Collect
Troubleshooting should begin with observable evidence, not a favorite theory. Similar symptoms can come from different mechanisms, and the wrong corrective action can hide the evidence or create a second problem. The table below frames common symptoms as investigation paths rather than diagnoses.
| Observed symptom | Possible mechanism | Evidence to collect | Engineering response |
|---|---|---|---|
| Gradual yellow or warm tint that does not follow content | polarizer, adhesive, protective film, or other optical material may be aging | compare against a retained reference unit or baseline color/neutral images under the same lighting; inspect whether the shift is local to sun-exposed zones | separate optical aging from a software color-profile change before replacing parts |
| Yellow spots or nonuniform patches | localized optical or liquid-crystal degradation, heat concentration, pressure, contamination, or adhesive change may be involved | map the patch against window exposure, internal lighting, heat sources, and mechanical support | investigate the stack and environment rather than assuming all discoloration is UV |
| Transparency decreases or image looks hazy | surface contamination, coating damage, adhesive haze, condensation, or film aging can reduce transmission | clean only by the approved method, then compare reflected/transmitted appearance with a known-good reference | replace or redesign the affected optical layer only after the mechanism is identified |
| Image is washed out during daytime but normal at night | visible ambient light may be overwhelming the contrast even without permanent UV damage | measure/record lighting condition, shade state, product-zone backlight, and viewing direction | improve optical/lighting architecture; do not diagnose short-term washout as material aging |
| Panel becomes very hot near a storefront window | solar infrared load, greenhouse heating inside the case, and backlight/product lighting can raise temperature independently of UV | record case, glass, and internal air/component temperatures under representative solar exposure | address solar heat gain and ventilation in parallel with UV protection |
| Edge discoloration or bubbles | adhesive/film edge exposure, seal condition, humidity, heat, or UV may be interacting | inspect edge construction, lamination, black masking, and sealing history | treat edge protection as a material-and-process control issue |
A key discipline is to preserve the as-failed state long enough to record it. Photograph the physical condition, capture available logs, note ambient and operating state, and record the exact configuration. If the first response is to tighten hardware, reboot the computer, replace a cable, clean a filter, or disable an alarm, the project may lose the only evidence that distinguishes a design weakness from a one-off assembly error.
Design Controls That Prevent the Problem From Becoming a Field Routine
Separate UV control from thermal control
A UV-cut layer can reduce ultraviolet exposure but does not automatically remove solar infrared heating or visible glare. Conversely, tinting or shading that reduces heat may not provide the UV performance required by the optical materials.
Useful project evidence: Optical/environmental specification that lists UV, heat, glare, and transparency as separate requirements. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Define the entire front optical stack
Cover glass, UV-cut laminate/coating, AR/AG treatment, polarizer, adhesive, and edge masking interact. Adding a film without checking polarization, reflection, transmission, and adhesion can create new problems.
Useful project evidence: Stack drawing and supplier-approved material set. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Use controlled backlighting behind the transparent LCD
Transparent LCD image quality depends strongly on illumination behind the panel. Daylight changes by hour, weather, and window orientation, so a showcase should not rely on sunlight alone for repeatable content appearance.
Useful project evidence: Lighting layout and baseline photos at day/night conditions. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Protect edges and bonding materials
Optical adhesives and polarizer edges may see different light, heat, and moisture exposure than the center area. Edge masking and construction should be part of durability planning.
Useful project evidence: Section drawing and material/process control for bonded edges. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Record the real solar exposure of the site
A north-facing indoor case and a west-facing storefront can have very different exposure. Procurement should capture window orientation, direct-sun periods, glazing, shading, and HVAC conditions.
Useful project evidence: Site survey with photos and daylight/shading notes. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Use evidence-based material qualification
Accelerated UV or weathering tests are useful only when the method, sample construction, dose, temperature, pass criteria, and correlation limits are understood.
Useful project evidence: Supplier or laboratory report tied to the proposed materials rather than a generic "UV resistant" claim. This evidence should be tied to a drawing, BOM, software revision, or test configuration so it can be reproduced on later production units.
Common Mistakes to Eliminate Before Pilot Build
Many failures are created by decisions that seem harmless because the unit still powers on during a short bench demonstration. Remove these habits from drawings, work instructions, and acceptance criteria before the pilot build:
- Treating "sunlight readable" as proof of unlimited UV durability
- Using daylight as the only backlight source for a transparent LCD showcase
- Adding a UV film without checking polarization, transmission, color, adhesion, and cleaning compatibility
- Ignoring solar heat because a UV-cut layer is present
- Comparing color photos taken under different lighting and calling the difference aging
- Accepting a generic UV-resistance statement that is not tied to the proposed optical stack
The common pattern is uncontrolled substitution. A different screw, filter, film, thermal pad, sensor, cable route, bracket, or software setting can preserve basic functionality while changing reliability. When the item affects the mechanism described in this guide, treat it as an engineering change and decide whether regression testing is needed.
Build an Acceptance Test That Reproduces the Production Configuration
A useful transparent LCD UV exposure acceptance test is not a generic power-on check. It reproduces the mounting, enclosure, player or computer load, cabling, peripherals, materials, environmental boundary, and service steps that the buyer will actually deploy. The goal is not to create an artificially severe laboratory stunt. The goal is to prove that ordinary installation and credible fault conditions lead to deterministic behavior.
| Test stage | Method | Pass evidence |
|---|---|---|
| Optical baseline | Photograph neutral white/gray/black content and transparent regions under controlled internal lighting before deployment. | Creates a reference for later color, haze, and transmission comparisons. |
| Daylight worst-window review | Observe the final showcase during the site's strongest expected daylight period. | Content remains usable or the project documents the limitation and mitigation. |
| Thermal mapping | Record front-glass, enclosure-air, lighting-zone, and relevant internal temperature locations under representative solar and operating load. | Temperatures remain within the selected components' specified operating limits. |
| UV-protection material verification | Confirm the exact glass, laminate, coating, polarizer, and adhesive configuration from purchasing through assembly. | Production unit matches the qualified optical stack. |
| Backlight consistency check | Compare product-zone illumination at representative points and operating states. | Transparent areas do not depend on accidental external daylight for acceptable appearance. |
| Cleaning compatibility check | Apply only the approved cleaning process to sample material or a controlled area. | No coating haze, edge lift, stress cracking, or visible residue is introduced. |
| Aging evidence review | If accelerated tests are supplied, verify sample construction, test method, temperature, exposure, and pass criteria. | Buyer can understand what the report demonstrates and what it does not predict. |
| Field trend inspection | At defined project checkpoints, compare photos and observations against the baseline under similar lighting. | Changes can be separated from content, cleaning, lighting, and site modifications. |
Record the test setup with photographs and revision identifiers. If a later unit fails, the team should be able to answer whether it matches the tested build. A pass statement with no configuration is weak evidence because the same display or kiosk can behave differently after a panel, enclosure, PSU, player, sensor, material, or firmware substitution.
Pilot the Design Before Fleet Rollout
Run a small pilot using production hardware, production software, and the intended installation method. The pilot should exercise the day-to-day states that matter to transparent LCD UV exposure: cold start, normal operating load, scheduled operation, service access, power recovery, network recovery where applicable, and representative environmental variation. Keep the pilot long enough to reveal intermittent behavior that a short factory demonstration may miss, but do not convert pilot duration into an unsupported lifetime prediction.
Create an exception log rather than a success-only report. For each anomaly, record unit identity, time, configuration, starting state, action, visible symptom, sensor/log evidence, recovery, and whether the event was reproducible. This log becomes the basis for design changes and the field runbook. It also prevents different teams from using the same word-such as overheating, stress, aging, tamper, or failure-to describe completely different evidence.
Change Control: Keep a Known-Good Configuration Known
Once the pilot passes, freeze the interfaces that materially affect transparent LCD UV exposure. A cosmetic enclosure revision can change stiffness or heat rejection. A new adhesive or film can change optics. A replacement computer can change power density. A new sensor bracket can change switch travel. A software update can change workload or event handling. Change control does not mean refusing improvements; it means deciding which changes require a repeat of part or all of the acceptance plan.
Keep the baseline tied to part numbers, drawings, firmware/software versions, and installation instructions. When a supplier proposes an equivalent component, request the characteristics that matter to the function rather than accepting the word "equivalent" alone. For field replacement, define which items are plug-compatible and which need a regression check before the kiosk or display returns to service.
Write the Requirement Into the RFQ
A strong RFQ describes the operating scenario, required evidence, and acceptance method. It avoids unsupported design prescriptions where the supplier may have a better implementation, but it also avoids vague checkboxes such as "industrial grade," "UV resistant," "fanless," "VESA compatible," or "tamper proof." Ask what configuration was actually tested and how the supplier will keep production aligned with it.
- Describe the storefront/window orientation, glazing, shading, and direct-sun exposure in the RFQ.
- Ask for the proposed cover glass, UV-cut layer, polarizer, adhesive, and optical-coating stack.
- Request evidence supporting UV resistance for the actual materials or a materially equivalent stack.
- Ask how the design addresses solar heat in addition to ultraviolet exposure.
- Define the product-zone lighting strategy behind the transparent LCD and required service access.
- Request cleaning chemicals/processes compatible with coatings, adhesives, and polarizers.
- Ask for edge-sealing or masking details where bonding materials are exposed to light.
- Define incoming optical baseline images or measurements for future comparison.
- Require engineering review before changing glass, film, adhesive, polarizer, lighting, or enclosure ventilation.
- Avoid contractual lifetime claims unless the supplier provides a stated basis, conditions, and evidence.
Troubleshooting and Field Service Runbook
Field teams should have a short runbook for transparent LCD UV exposure. First verify the unit identity and current BOM/software revision. Second capture the symptom before changing the state. Third compare the physical installation with the approved photo or drawing. Fourth check available sensor or event logs. Fifth isolate the smallest change that reproduces the problem. Finally, after repair, repeat the relevant acceptance step instead of declaring success as soon as the screen or kiosk appears normal.
The runbook should also tell technicians what not to do. Do not improvise hardware lengths, bypass a sensor permanently, add dense filter media, introduce unapproved optical films, disturb thermal interface materials, or force a warped assembly into position unless an engineering instruction authorizes the change. Those actions can temporarily remove a symptom while making the fleet harder to support.
FAQ
Q: FCan transparent LCD be installed in direct sunlight?
A: It can be engineered for bright environments, but direct sunlight creates several separate challenges: visible contrast, ultraviolet exposure, solar heating, and variable illumination behind the panel. The complete showcase must be designed and validated for the actual window condition.
Q: Does UV protection also solve overheating?
A: No. UV and heat are related parts of solar exposure but not the same problem. A UV-cut layer may protect sensitive optical materials while infrared and visible solar energy still heat the glass and enclosure.
Q: What does polarizer aging look like?
A: Possible symptoms include fading, yellowing, color shift, nonuniform patches, or reduced optical quality. Those symptoms are not unique to UV, so also investigate heat, humidity, adhesives, pressure, contamination, and content/calibration.
Q: Can I use an aftermarket UV film on the front glass?
A: Only after optical and material compatibility is reviewed. The film can change reflection, transmission, color, polarization behavior, adhesion, cleaning resistance, and heat absorption. Treat it as part of the engineered stack.
Q: How should buyers validate an accelerated UV test report?
A: Check the test method, exposure source, temperature/humidity conditions, sample construction, duration or dose, pass criteria, and which properties were measured. Do not convert an accelerated test into a field-life claim unless a qualified methodology supports that correlation.
Final Procurement Perspective
The best way to manage transparent LCD UV exposure is to turn it from an informal feature into a controlled system behavior. Map the complete path, identify failure mechanisms, protect the interfaces that matter, validate the actual production configuration, preserve evidence, and make service/change control part of the design. This approach gives procurement, engineering, installation, and operations the same definition of "acceptable" before a volume order is placed.
For LEGOYO projects, the article should be used as a planning framework rather than as a statement that every product automatically includes every feature described. Confirm the selected model, customization, environmental requirement, and test evidence with the project team before freezing the specification.
