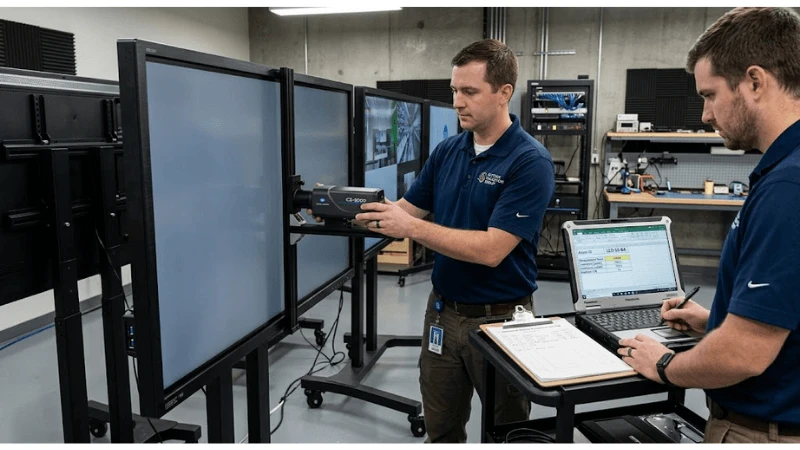

 Technician measuring a commercial bar LCD with a professional luminance meter

A commercial LCD can become visibly inconsistent long before anyone can agree that it has "failed." One unit may look dimmer because its backlight has aged; another may only be running a different brightness setting, automatic-dimming state, test image, or thermal condition. If those variables are not separated, a maintenance team can create a convincing trend chart that measures its own process more than the displays.

The practical solution is to treat luminance drift as a repeatable measurement problem. Establish a controlled commissioning baseline, reproduce the same measurement conditions later, compare each display with its own history and appropriate peer units, and use model-specific or project-specific limits for the final service decision. This approach is useful for retail signage, shelf-edge LCD, menu boards, control displays, and other commercial LCD fleets where visual consistency matters.







Measure the right thing before calling it backlight aging

"Brightness" is often used to describe several different observations. A useful maintenance record keeps them separate because they answer different questions.

Measurement Question it answers Typical decision use
Absolute luminance How much light is the display producing under the defined test condition? Compare with an approved commissioning condition or a model-specific requirement.
Relative luminance drift How far has the same unit moved from its own approved baseline? Trend aging or change over time without assuming that every unit started at exactly the same value.
Uniformity or neighbor mismatch Is one area or one display visibly different from adjacent areas or peer displays? Evaluate multi-screen fixtures, shelf runs, video walls, or other installations where visual consistency matters.
A unit can pass one of these checks and still create a project problem in another. For example, a replacement display may meet its individual specification yet look conspicuously brighter than neighboring units. Conversely, two adjacent displays may look similar while both have drifted from the operating target originally approved for the site.



Build a commissioning baseline that can actually be repeated

The best time to create a luminance baseline is when the production-equivalent unit is known to be acceptable. The record should describe enough of the test condition that another technician can reproduce it months later.

  1. Identify the exact display configuration. Record the production model or panel assembly, controller or player configuration, firmware where relevant, and any setting that can alter optical output.
  2. Use controlled test content. Measure with the same full-screen pattern or other approved test image rather than whatever marketing content happens to be playing.
  3. Lock brightness-related controls. Record manual brightness, automatic brightness or ambient-light control state, local dimming or power-saving mode where applicable, and any scheduler that can change those settings.
  4. Define stabilization conditions. Follow the display or panel manufacturer's applicable warm-up and operating procedure. Record the approximate operating condition rather than mixing measurements taken immediately after power-on with measurements taken after sustained operation.
  5. Fix the measurement geometry. Record the measurement location, orientation, distance or contact method required by the instrument and procedure. Consistent geometry is especially important on narrow bar displays where a small angular change can alter the reading.
  6. Identify the instrument. Record the meter type and asset identifier, plus calibration status when the organization maintains calibrated measurement equipment.
  7. Capture the surrounding condition. If ambient light cannot be isolated, document it consistently enough to recognize when a later reading was taken under a different condition.

The current ISO 9241-307:2008 establishes analysis and compliance test methods for electronic visual displays and was confirmed by ISO in 2024. It can be useful standards context, but it does not create a universal "replace this display after X percent drift" rule for a particular commercial fleet. The service threshold still needs to come from the applicable product documentation, project specification, warranty terms, or a buyer-approved visual-consistency requirement.

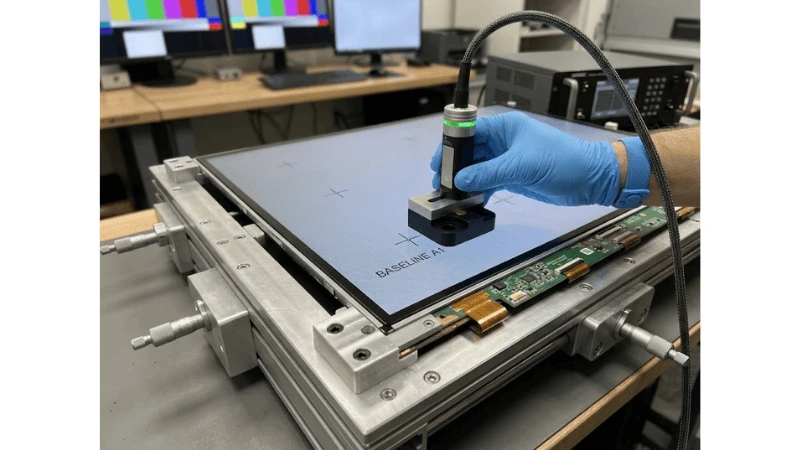

Baseline and repeat LCD luminance measurements using the same controlled conditions



Use relative drift to compare a display with itself

When the measurement method is repeatable, relative change is often easier to interpret than a raw value alone. A simple project calculation is:

Relative drift (%) = (current luminance − baseline luminance) ÷ baseline luminance × 100

A negative result indicates lower measured luminance than the baseline. The formula is not an acceptance limit; it is only a way to normalize the change. The project still needs to decide what amount of change is important for that display, fixture, visual task, and warranty or maintenance policy.

Keep the original measured value as well as the calculated percentage. Normalized percentages make unlike starting values easier to compare, while the absolute measurements preserve the evidence needed for later engineering review.



Rule out false drift before opening a service ticket

A surprising measurement should trigger a short verification sequence before the team concludes that the LED backlight or panel has degraded.

Confounder What to verify Why it matters
Brightness setting changed Compare the current setting with the approved baseline and configuration history. A service reset or software update can imitate optical aging.
Automatic dimming active Check ambient-light control, schedules, power-saving modes, and sensor state. The display may be behaving as configured rather than losing output.
Different test content Re-run the approved measurement pattern. Average picture level and signal processing can change measured output on some systems.
Different measurement geometry Reposition the instrument according to the baseline method. Viewing-angle effects can create an artificial trend.
Thermal condition changed Compare operating temperature and airflow conditions with the baseline. Temperature can affect optical behavior and may also point to a separate thermal-management problem.
Instrument or calibration changed Check meter identity, setup, and calibration process. Fleet drift should not be confused with instrument drift.

If temperature or enclosure airflow is changing, investigate that as its own root cause instead of compensating by increasing brightness indefinitely. The site's Bar LCD Thermal Management guide covers that neighboring decision in more detail.



Trend a fleet without hiding the outlier that matters

A fleet dashboard should retain unit-level history. Store averages are useful for seeing broad movement, but an average can hide one display that is drifting much faster than the rest of a shelf run.

For each measurement event, retain at least the display identifier, date, test condition, absolute luminance, baseline luminance, relative drift, relevant brightness-control state, instrument identifier, operating-history information if available, and any service action taken. Then compare units within sensible peer groups: same display family, similar fixture, similar operating schedule, and similar environmental exposure.

Peer comparison is diagnostic, not a substitute for the approved requirement. If one fixture type is consistently drifting faster than the rest, that may justify checking enclosure temperature, ventilation, supply conditions, content schedule, or service practices before replacing a large number of panels.



Make recalibration, repair, and replacement three different decisions

Maintenance becomes clearer when the team separates an apparent optical change from the corrective action.

  1. Verify the measurement. Reproduce the baseline condition and repeat the reading.
  2. Check configuration and environment. Confirm brightness settings, automatic control, content, temperature, power state, and measurement geometry.
  3. Compare the trend. Review the unit's own history and appropriate peer units.
  4. Classify the cause. Decide whether the evidence points to a configuration issue, an environmental or thermal issue, instrument/process error, or persistent hardware-related drift.
  5. Apply the approved limit. Use the exact model documentation, contractual visual requirement, warranty condition, or project maintenance rule. Do not import an arbitrary percentage from another product family.
  6. Choose the least disruptive valid correction. Depending on the cause and supported controls, the answer may be restore a setting, correct cooling, recalibrate the approved operating point, repair the display, or replace it.
  7. Create a new baseline only when justified. After a panel, backlight, power assembly, controller, or other change that materially alters output, document a fresh controlled baseline instead of silently continuing the old trend.

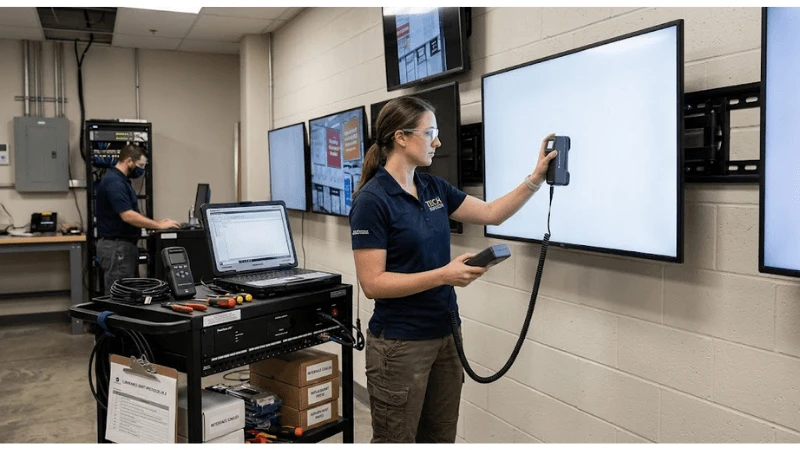

Workflow for verifying LCD luminance drift before recalibration, repair or replacement





Replacement LCD appearing brighter than neighboring displays in the same retail shelf run

Plan replacement around visual matching, not only individual compliance

Multi-display fixtures create a practical problem: the newest unit is often the brightest one. Before replacing a single panel in a visible row, decide whether the project accepts a local mismatch, allows approved calibration to match neighboring units, or requires replacement in a larger visual group.

This is a design and operations policy, not a universal display rule. Capture it during rollout rather than waiting until the first service replacement. The same policy should say whether a replacement triggers a new baseline for only that unit or a comparative measurement of the entire fixture.





What a useful luminance drift record looks like

  • Display and fixture identifier
  • Production model or assembly revision
  • Approved test image or pattern
  • Brightness, dimming, and power-saving state
  • Measurement point and geometry
  • Instrument identifier and calibration status where applicable
  • Baseline and current absolute luminance
  • Calculated relative drift
  • Operating or thermal context available to the service team
  • Observed neighbor mismatch or uniformity concern
  • Diagnostic checks performed
  • Disposition: no action, configuration correction, further investigation, repair, recalibration, or replacement
  • Reason for creating a new baseline, if one is created

For product-family context, review the Bar LCD Display Screen collection. For a separate optical-quality issue, see Commercial LCD Pixel Defect Acceptance. Long-duration static-content risk is covered separately in LCD Image Retention Prevention.



Questions to put in the supplier or maintenance brief

  • What luminance measurement condition does the exact model documentation require?
  • Which settings or automatic controls can change output during a measurement?
  • What model-specific tolerances, warranty boundaries, or service criteria apply to optical degradation?
  • Which replacement parts can change optical output enough to require a new baseline?
  • What operating-temperature and thermal conditions should be verified before diagnosing backlight drift?
  • Can the supplier provide a repeatable factory or commissioning measurement record for the production configuration?



FAQ

Q: Is there a universal percentage of luminance loss that means an LCD must be replaced?

A: No. A replacement limit must be tied to the exact product documentation, warranty, visual task, and project requirement. Relative drift is useful for trending, but the calculation itself is not an acceptance threshold.

Q: Can automatic brightness control make a healthy display look like it is aging?

A: Yes. Any control that changes the operating brightness can change the measured result. Record and reproduce the approved control state before diagnosing hardware degradation.

Q: Should every display in a fleet use the same baseline luminance?

A: Not necessarily. A baseline should represent the approved condition for that unit or controlled peer group. Relative drift lets the team compare change over time without assuming that every display began at an identical measured value.

Q: What should happen after a display is replaced?

A: Verify the replacement in the installed fixture, check visual matching with neighboring units where relevant, and create a controlled new baseline for the changed unit or assembly.

Q:

A: A defensible luminance-drift program does not begin with a replacement percentage. It begins with a repeatable measurement condition. Once the fleet can distinguish a real optical trend from settings, environment, thermal effects, content, and measurement variation, service decisions become easier to explain, reproduce, and audit.
