Define the system boundary before you compare solutions
Existing kiosk power articles cover load budget and uptime; this page owns mains entry protection and isolation layout. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|

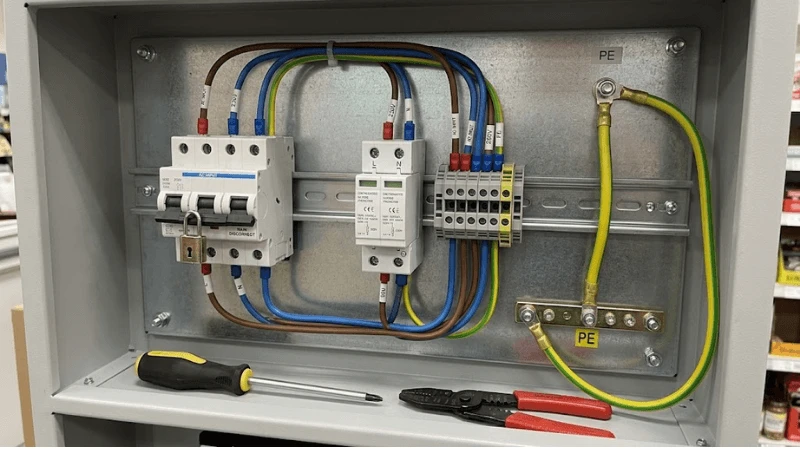

| Input connector and strain relief | Choose a mains inlet or fixed connection method appropriate to the site, with controlled cord retention and mechanical strain relief. | A service pull transfers cable force directly to energized terminals. |
| Overcurrent protection | Coordinate fuse/breaker selection with conductor, downstream power supplies and expected fault behavior using applicable project/safety requirements. | An oversized protective device allows a small branch conductor to become the weak link. |
| Inrush and nuisance tripping | Evaluate simultaneous power-supply and display inrush against the site branch circuit and kiosk protection. | A row of kiosks starts after an outage and trips the local circuit despite normal steady-state load. |
| Surge protection location | Place surge protection with a defined protective-earth path and replacement/health strategy. | A protector is present but long wiring makes the protection path ineffective for the intended disturbance. |
| Service isolation | Provide a clear means to de-energize hazardous circuits before technicians work inside the enclosure. | A technician switches off the application but mains remains live on an exposed internal terminal. |
| Protective earth continuity | Keep protective bonding separate from functional signal grounding and verify continuity after doors/panels or modules are replaced. | A painted replacement panel interrupts the intended protective bond. |

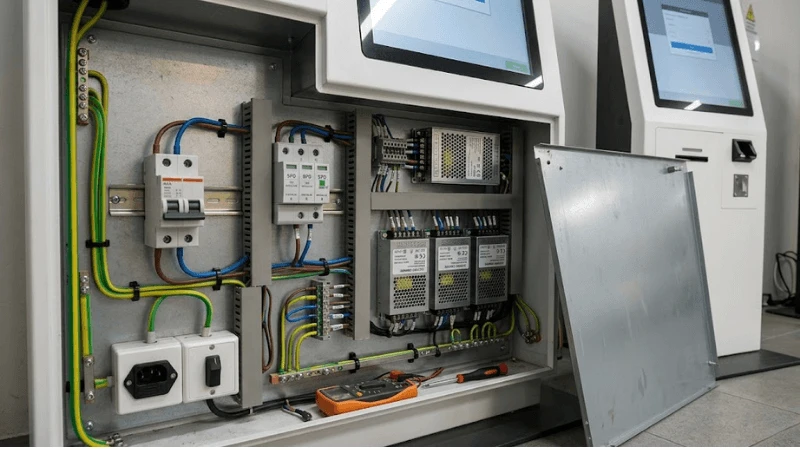

Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk AC power entry design, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
Input connector and strain relief
The supplier answer is only the starting point; the delivered configuration must make the result observable. Choose a mains inlet or fixed connection method appropriate to the site, with controlled cord retention and mechanical strain relief. The evidence should make it possible to distinguish a defect in input connector and strain relief from a change in overcurrent protection. A useful negative case is: A service pull transfers cable force directly to energized terminals. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes input connector and strain relief. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Overcurrent protection
Treat this as a change-controlled parameter whenever it can alter field behavior. Coordinate fuse/breaker selection with conductor, downstream power supplies and expected fault behavior using applicable project/safety requirements. The evidence should make it possible to distinguish a defect in overcurrent protection from a change in inrush and nuisance tripping. A useful negative case is: An oversized protective device allows a small branch conductor to become the weak link. Record the configuration before corrective action so the recovery does not erase the cause.
Inrush and nuisance tripping
A design review should connect this item to a test, an owner, and a retest trigger. Evaluate simultaneous power-supply and display inrush against the site branch circuit and kiosk protection. The evidence should make it possible to distinguish a defect in inrush and nuisance tripping from a change in surge protection location. A useful negative case is: A row of kiosks starts after an outage and trips the local circuit despite normal steady-state load. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes inrush and nuisance tripping. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Surge protection location
Put this item in the controlled requirement set before the pilot is signed off. Place surge protection with a defined protective-earth path and replacement/health strategy. The evidence should make it possible to distinguish a defect in surge protection location from a change in service isolation. A useful negative case is: A protector is present but long wiring makes the protection path ineffective for the intended disturbance. Record the configuration before corrective action so the recovery does not erase the cause.
Service isolation
This control needs a reproducible baseline, not an informal setup note. Provide a clear means to de-energize hazardous circuits before technicians work inside the enclosure. The evidence should make it possible to distinguish a defect in service isolation from a change in protective earth continuity. A useful negative case is: A technician switches off the application but mains remains live on an exposed internal terminal. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes service isolation. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Protective earth continuity
Review this interface with production and service in the same room, because both can change it. Keep protective bonding separate from functional signal grounding and verify continuity after doors/panels or modules are replaced. The evidence should make it possible to distinguish a defect in protective earth continuity from a change in input connector and strain relief. A useful negative case is: A painted replacement panel interrupts the intended protective bond. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A service pull transfers cable force directly to energized terminals. | Input connector and strain relief | visual/wiring review against controlled schematic | capture the state before changing configuration |
| An oversized protective device allows a small branch conductor to become the weak link. | Overcurrent protection | protective-earth continuity check per applicable project method | isolate the interface and reproduce on a known-good reference |
| A row of kiosks starts after an outage and trips the local circuit despite normal steady-state load. | Inrush and nuisance tripping | normal and worst-case startup sequence without nuisance trip | compare unit/revision history before replacing parts |
| A protector is present but long wiring makes the protection path ineffective for the intended disturbance. | Surge protection location | controlled mains interruption and restart | restore the approved baseline and rerun the adverse case |
| A technician switches off the application but mains remains live on an exposed internal terminal. | Service isolation | service isolation verification at relevant internal points | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.
Build an acceptance test that represents the field

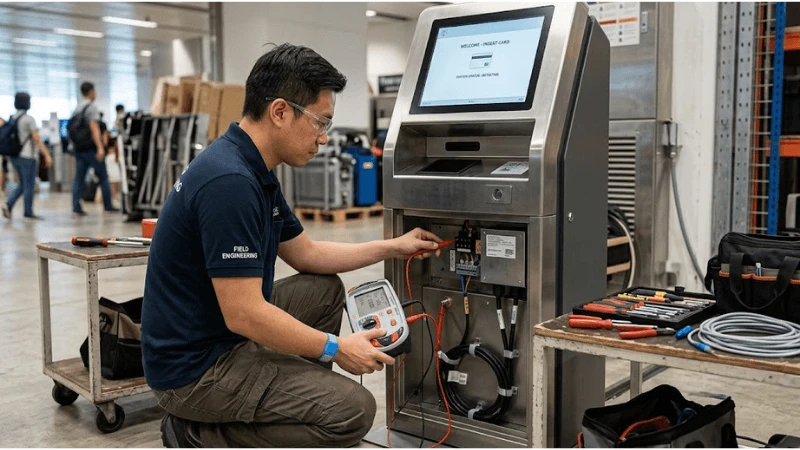

A factory demo should answer the project question, not merely show that the product turns on. For kiosk AC power entry design, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Visual/wiring review against controlled schematic
- Protective-earth continuity check per applicable project method
- Normal and worst-case startup sequence without nuisance trip
- Controlled mains interruption and restart
- Service isolation verification at relevant internal points
- Post-service inspection after removing/reinstalling bonded panels
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Visual/wiring review against controlled schematic | Input connector and strain relief | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Protective-earth continuity check per applicable project method | Overcurrent protection | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Normal and worst-case startup sequence without nuisance trip | Inrush and nuisance tripping | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Controlled mains interruption and restart | Surge protection location | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Service isolation verification at relevant internal points | Service isolation | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Post-service inspection after removing/reinstalling bonded panels | Protective earth continuity | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk AC power entry design, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- What mains input configurations are available for the target country/site?
- Which overcurrent protection is included and what downstream conductors does it protect?
- How has startup inrush been considered for multi-kiosk circuits?
- Where is surge protection located and how is its health/replacement handled?
- What is the technician's documented isolation point?
- Which panels/doors require protective bonding checks after service?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for input connector and strain relief, overcurrent protection, and inrush and nuisance tripping; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- nuisance breaker trips
- power-entry component failures
- surge-protection replacements
- service isolation nonconformities
- protective-bond repair findings
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes input connector and strain relief or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect overcurrent protection.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters inrush and nuisance tripping.
- A field replacement changes surge protection location or removes a calibration/configuration dependency.
- The adverse condition "A service pull transfers cable force directly to energized terminals." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for input connector and strain relief?
- Interface: Is ownership clear where overcurrent protection interacts with inrush and nuisance tripping?
- Adverse case: Did the test include "A service pull transfers cable force directly to energized terminals." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when surge protection location or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk AC power entry design?
A: Start with the approved baseline for input connector and strain relief and overcurrent protection. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include visual/wiring review against controlled schematic, protective-earth continuity check per applicable project method, and one adverse/service condition such as post-service inspection after removing/reinstalling bonded panels. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect input connector and strain relief, overcurrent protection, or inrush and nuisance tripping.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk AC power entry design is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
