A useful engineering specification begins with the field condition that must work, not with a supplier checkbox. For kiosk barcode scanner window design, the narrow question is How can a kiosk enclosure protect a barcode imager without sacrificing decode margin under reflections, scratches, contamination, and real user presentation angles? This guide is written for kiosk mechanical engineers, scanner integrators, retail IT, industrial designers, and acceptance-test teams. It deliberately owns optical path through the kiosk window rather than generic barcode-scanner selection; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
Treating the complete assembly as the test object prevents a passing component certificate from becoming a substitute for integration evidence. The project should be able to name the approved state for window material and surface quality, show how scanner-to-window geometry interacts with it, and reproduce at least one adverse condition such as "A cosmetically acceptable plastic window adds distortion that reduces decode performance." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Kiosk Display, Kiosk Peripheral Integration, Kiosk FAT and SAT Checklist. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from KIOSK Information Systems, Zebra Technologies, and Samsung Business was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing peripheral-integration pages own port/power mapping; this page owns the optical window between scanner and code. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Window material and surface quality | Specify optical quality, surface finish, scratch resistance and cleaning compatibility for the protective window in front of the scanner. | A cosmetically acceptable plastic window adds distortion that reduces decode performance. |
| Scanner-to-window geometry | Control distance, tilt, aperture size and the scanner field of view so the enclosure does not vignette or reflect illumination back into the imager. | The scanner sees its own illumination as a bright reflection near the center of the field. |
| Ambient-light paths | Test ceiling lights, sunlight, display reflections and nearby glossy surfaces at installed angles. | A kiosk passes on the bench but fails at the store because a luminaire creates specular glare. |
| Contamination and cleaning | Use representative fingerprints, dust, splash and approved cleaning methods during validation. | A thin greasy film diffuses illumination and increases retries on low-contrast codes. |
| Code population | Include the actual 1D/2D formats, print quality, phone screens, curved packages and damaged codes expected in service. | Only pristine paper codes were tested, masking weak performance on phone screens. |
| Service datum | Make the scanner bracket and window replaceable without losing the validated optical alignment. | A field replacement shifts angle enough to create a new reflection path. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk barcode scanner window design, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.

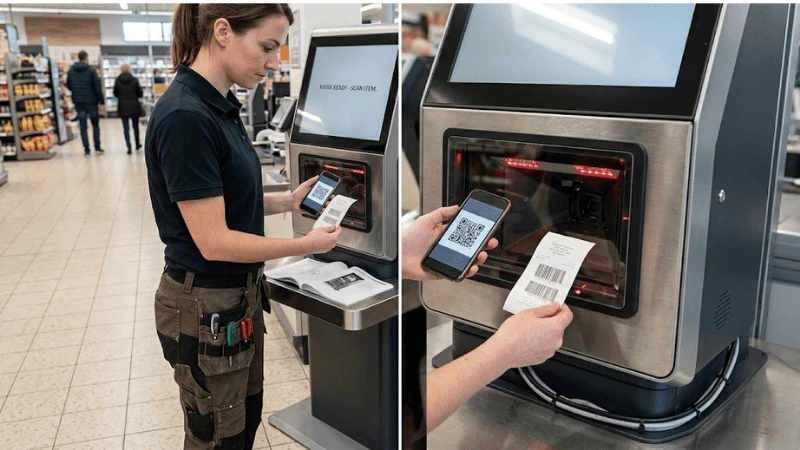

Window material and surface quality
Review this interface with production and service in the same room, because both can change it. Specify optical quality, surface finish, scratch resistance and cleaning compatibility for the protective window in front of the scanner. The evidence should make it possible to distinguish a defect in window material and surface quality from a change in scanner-to-window geometry. A useful negative case is: A cosmetically acceptable plastic window adds distortion that reduces decode performance. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes window material and surface quality. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.

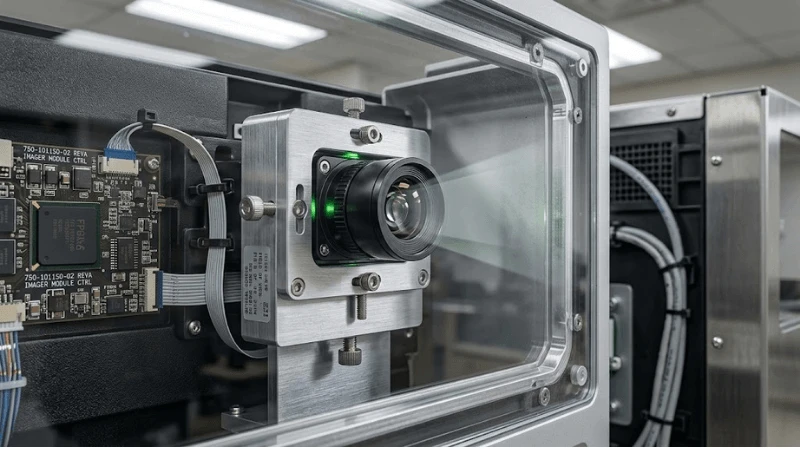

Scanner-to-window geometry
The supplier answer is only the starting point; the delivered configuration must make the result observable. Control distance, tilt, aperture size and the scanner field of view so the enclosure does not vignette or reflect illumination back into the imager. The evidence should make it possible to distinguish a defect in scanner-to-window geometry from a change in ambient-light paths. A useful negative case is: The scanner sees its own illumination as a bright reflection near the center of the field. Record the configuration before corrective action so the recovery does not erase the cause.
Ambient-light paths
Treat this as a change-controlled parameter whenever it can alter field behavior. Test ceiling lights, sunlight, display reflections and nearby glossy surfaces at installed angles. The evidence should make it possible to distinguish a defect in ambient-light paths from a change in contamination and cleaning. A useful negative case is: A kiosk passes on the bench but fails at the store because a luminaire creates specular glare. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes ambient-light paths. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Contamination and cleaning
A design review should connect this item to a test, an owner, and a retest trigger. Use representative fingerprints, dust, splash and approved cleaning methods during validation. The evidence should make it possible to distinguish a defect in contamination and cleaning from a change in code population. A useful negative case is: A thin greasy film diffuses illumination and increases retries on low-contrast codes. Record the configuration before corrective action so the recovery does not erase the cause.
Code population
Put this item in the controlled requirement set before the pilot is signed off. Include the actual 1D/2D formats, print quality, phone screens, curved packages and damaged codes expected in service. The evidence should make it possible to distinguish a defect in code population from a change in service datum. A useful negative case is: Only pristine paper codes were tested, masking weak performance on phone screens. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes code population. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Service datum
This control needs a reproducible baseline, not an informal setup note. Make the scanner bracket and window replaceable without losing the validated optical alignment. The evidence should make it possible to distinguish a defect in service datum from a change in window material and surface quality. A useful negative case is: A field replacement shifts angle enough to create a new reflection path. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A cosmetically acceptable plastic window adds distortion that reduces decode performance. | Window material and surface quality | reference code set at nominal presentation distance | capture the state before changing configuration |
| The scanner sees its own illumination as a bright reflection near the center of the field. | Scanner-to-window geometry | worst-case expected phone-screen brightness | isolate the interface and reproduce on a known-good reference |
| A kiosk passes on the bench but fails at the store because a luminaire creates specular glare. | Ambient-light paths | high-angle ambient lighting and direct reflection challenge | compare unit/revision history before replacing parts |
| A thin greasy film diffuses illumination and increases retries on low-contrast codes. | Contamination and cleaning | fingerprint/smudge and post-cleaning condition | restore the approved baseline and rerun the adverse case |
| Only pristine paper codes were tested, masking weak performance on phone screens. | Code population | scratched or aged representative window sample | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.

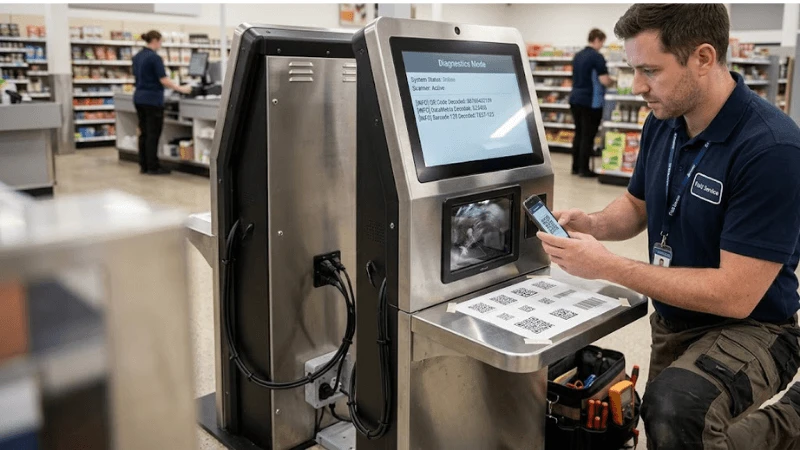

Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For kiosk barcode scanner window design, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Reference code set at nominal presentation distance
- Worst-case expected phone-screen brightness
- High-angle ambient lighting and direct reflection challenge
- Fingerprint/smudge and post-cleaning condition
- Scratched or aged representative window sample
- Remove/reinstall scanner and window followed by decode retest
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Reference code set at nominal presentation distance | Window material and surface quality | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Worst-case expected phone-screen brightness | Scanner-to-window geometry | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | High-angle ambient lighting and direct reflection challenge | Ambient-light paths | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Fingerprint/smudge and post-cleaning condition | Contamination and cleaning | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Scratched or aged representative window sample | Code population | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Remove/reinstall scanner and window followed by decode retest | Service datum | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk barcode scanner window design, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- What protective-window materials and optical finishes are approved with the scanner?
- What scanner-to-window distance and angle are required?
- Which code symbologies and presentation ranges are included in supplier validation?
- How are specular reflections controlled in the final enclosure?
- What cleaning products are allowed on the window?
- What service fixture or datum preserves optical alignment after replacement?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for window material and surface quality, scanner-to-window geometry, and ambient-light paths; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- first-pass decode rate
- repeat presentation count
- scanner-window cleaning tickets
- window replacement frequency
- site-specific scan-failure clusters
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes window material and surface quality or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect scanner-to-window geometry.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters ambient-light paths.
- A field replacement changes contamination and cleaning or removes a calibration/configuration dependency.
- The adverse condition "A cosmetically acceptable plastic window adds distortion that reduces decode performance." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for window material and surface quality?
- Interface: Is ownership clear where scanner-to-window geometry interacts with ambient-light paths?
- Adverse case: Did the test include "A cosmetically acceptable plastic window adds distortion that reduces decode performance." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when contamination and cleaning or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk barcode scanner window design?
A: Start with the approved baseline for window material and surface quality and scanner-to-window geometry. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include reference code set at nominal presentation distance, worst-case expected phone-screen brightness, and one adverse/service condition such as remove/reinstall scanner and window followed by decode retest. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect window material and surface quality, scanner-to-window geometry, or ambient-light paths.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk barcode scanner window design is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
