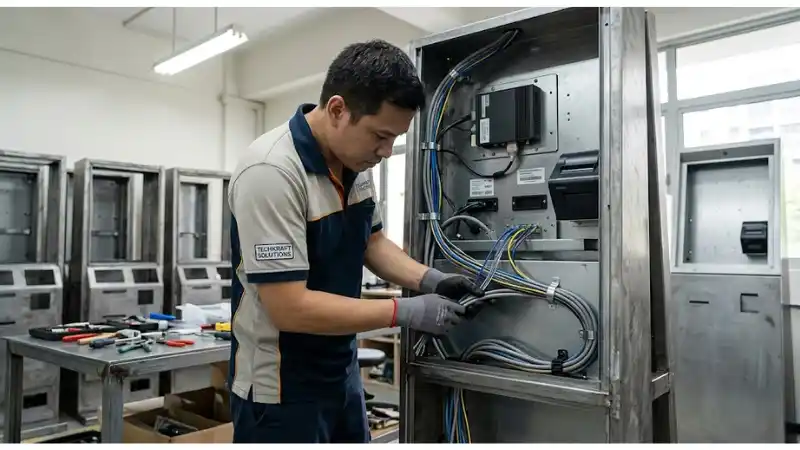

A kiosk harness can be electrically correct and still fail in the field. A USB lead can be pulled sideways every time a printer tray is serviced. A door harness can rub against a sheet-metal edge until the insulation wears through. A service loop can be so short that a connector carries the load, or so long that it falls into a fan path. A power cable can be bundled beside a sensitive data or RF path and create an intermittent problem that appears only after the enclosure is closed.
Kiosk cable harness design is therefore not just a wiring task. It is the physical architecture that connects power, data, displays, printers, scanners, payment devices, radios, fans, doors, and replaceable modules while surviving assembly, transport, service movement, and repeated field intervention. This guide focuses on that architecture: route planning, mechanical protection, strain relief, service loops, moving joints, connector control, EMC-aware separation, production documentation, and field validation.
The page does not replace the detailed design work for protective earth, chassis bonding, cable-shield termination, antenna placement, or service ergonomics. Those remain separate owners. Start with the Kiosk Display category for the commercial product boundary, then use this guide to define how the internal harness should be engineered and reproduced.

Design a Harness Architecture Before You Route Individual Cables
The shortest path between two connectors is rarely enough information for a production kiosk. Before routing begins, divide the internal wiring into functional groups and identify what each group must survive.
| Harness group | Typical examples | Main routing questions |
|---|---|---|
| AC / high-energy power | AC inlet, internal PSU feed, switched mains where applicable | Safety boundary, segregation, edge protection, service isolation, heat exposure |
| Low-voltage power | DC distribution to PC, display, printer, scanner, fans | Current path, voltage drop, connector loading, bundle heating, fault isolation |
| High-speed data / video | USB, Ethernet, HDMI, DisplayPort, camera or scanner links | Bend control, connector retention, noise coupling, adapter support, service access |
| RF / antenna coax | Wi-Fi, LTE, GNSS or other radio coax | Minimum bend requirement, connector stress, metal clearance, RF noise environment |
| Door / moving-module harness | Service-door switches, display doors, sliding trays, hinged panels | Repeated flex, pinch points, neutral routing path, strain transfer, full travel |
| Low-level control / sensor | Buttons, switches, sensors, tamper lines, LEDs | Noise susceptibility, identification, branch support, service replacement |
This classification prevents the harness from becoming a bundle chosen only for convenience. It also makes cross-discipline reviews clearer: the electrical engineer can define current and interface requirements, the mechanical engineer can define physical routes and movement, and the service team can verify that a technician can reproduce the approved arrangement after replacing a module.
NASA-STD-8739.4A is written for NASA hardware rather than commercial kiosks, but its design-practice section is useful as a high-reliability reference because it explicitly calls for harness design to consider installation stress, final lay, confined spaces, thermal effects, electrical isolation, repairability, and connector/harness identification. See NASA-STD-8739.4A. A kiosk project should apply only the requirements that are relevant to its own contractual and regulatory context.
Route for Mechanical Survival, Not Just Electrical Connection
A cable route should be evaluated through the complete enclosure, not only at the endpoints. The cable jacket, conductors, shielding, connector, strain-relief feature, clips, grommets, and surrounding structure all participate in the mechanical result.
Keep harnesses away from edges, heat, and moving hardware
Inspect every route for unfinished or sharp sheet-metal edges, screw tips, hinge hardware, latches, fan blades, printer mechanisms, sliding rails, hot power components, and areas where a cover can trap the bundle. Use an appropriate grommet, edge protector, conduit, sleeve, or controlled route where the harness crosses a potentially damaging boundary.
Do not assume that a cable is safe because it clears an edge in CAD. Harnesses have thickness, branch points, labels, connectors, tie heads, and natural spring-back. Assembly tolerance can move a bundle enough to turn a nominal clearance into a rub point. Verify the installed harness on production-equivalent hardware with the covers and doors closed.
Use the cable manufacturer's bend requirement
Minimum bend radius depends on the cable construction, conductor size, shielding, jacket, temperature, installation method, and whether the cable is static or repeatedly flexed. Do not create one universal kiosk multiplier and apply it to every wire, USB cable, video cable, coax lead, or flex assembly.
Instead, retain the approved cable part number and its manufacturer guidance, then check the actual route against that requirement. Pay particular attention immediately behind connectors, at branch breakouts, around clips, and where a door or removable module changes position. A service loop that contains enough length but folds the cable into a tight U-shape has not solved the problem.
Strain Relief Must Transfer Load Away From the Termination
A connector is an electrical interface, not a structural anchor for the harness behind it. If the cable mass, door movement, technician pull, or bundle stiffness is transmitted directly into the contacts or soldered connector, an intermittent electrical symptom can begin as a mechanical design problem.
Strain relief can be created by a connector backshell, boot, gland, clamp, saddle, bracket, overmold, or another approved restraint. Inside a kiosk, a common solution is a fixed support point that carries the bundle before the cable reaches the connector. The exact method depends on the interface and service requirement.
The support itself should not become the new failure point. A tie or clamp that is too tight can deform insulation, flatten a cable, or create a stiff transition where repeated bending concentrates. A support that is too loose may allow the bundle to vibrate, rub, or transfer load back into the connector. Inspect the completed installation rather than approving the restraint method from a parts list.
Place the restraint with the service action in mind
The first fixed point near a connector controls how the branch moves. If it is too close, there may be no room to press a latch, rotate a connector, or pull a module into its service position. If it is too far away, a long unsupported section can carry its own mass and move during transport or door operation.
Define the service motion first, then locate the restraint so that the connector can be mated, unmated, inspected, and replaced without putting tension on the conductors. This is also where service-loop design and strain relief have to be reviewed together rather than as separate checklist items.

Size Service Loops for a Defined Maintenance Motion
A service loop is intentional usable cable allowance. Its purpose is to let a technician move a component, open a door, access a connector, or complete an approved re-termination without loading the termination. It is not leftover cable hidden in the enclosure.
For each service loop, record:
- the component or connector the loop serves;
- the maintenance motion it must allow;
- the cable part and bend requirement;
- the fixed support point before or after the loop;
- the normal operating location of the loop;
- the service position of the loop;
- the surfaces and mechanisms it must not touch;
- how production verifies the final geometry.
Too little allowance pulls the connector, forces a sharp bend, or makes a module impossible to remove. Too much allowance can fall into a fan, catch a printer tray, cross an EMI-sensitive zone, interfere with a lock, or become pinched when the door closes. The correct amount is derived from the actual movement and cable geometry, not from a generic length copied between projects.
The Kiosk Maintenance Access page owns the wider technician work envelope. This harness page owns the cable allowance required for that service motion.

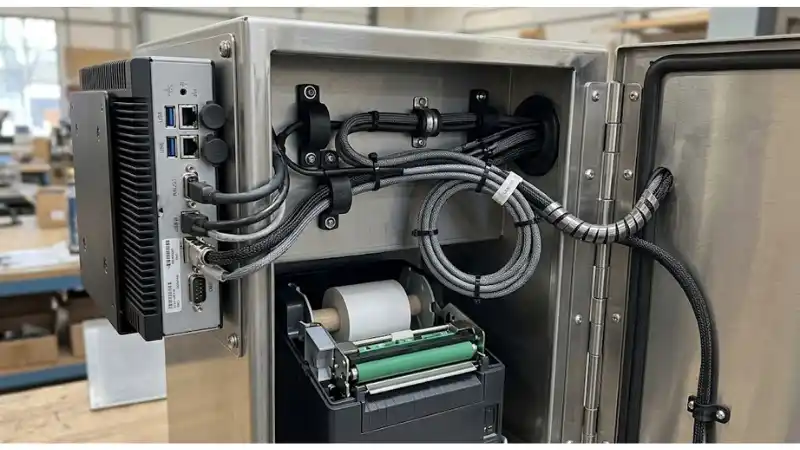

Engineer Door, Hinge, and Sliding-Module Crossings as Dynamic Zones
A cable that crosses from the fixed chassis to a moving door or tray should be treated differently from a static cable tied to a stationary frame. The repeated motion can bend conductors, work a shield, pull a crimp, or move a loop into a pinch point.
Observe the complete travel from closed to fully open or fully extended. The harness should follow a controlled bend rather than fold sharply at the hinge line. The moving section should not scrape against hinge hardware, lock mechanisms, sheet-metal corners, or nearby cable bundles. The fixed-side and moving-side restraints should guide the flexing into the intended zone instead of forcing the connector to absorb the motion.
Where a door also requires a protective-earth or bonding strap, keep the electrical-safety/bonding function distinct from the signal harness. The detailed bonding architecture belongs in the Kiosk ESD Protection and Grounding guide. Do not substitute a signal-cable shield or an arbitrary wire for a designed bond.
Validate the actual movement cycle required by the project
There is no universal number of open-close cycles that proves every kiosk harness is reliable. Define the expected service frequency, operating life, cable construction, hinge geometry, and failure consequence, then select a representative cycle test. Inspect the flex zone during and after testing for jacket wear, conductor fatigue symptoms, connector movement, clamp migration, and changes in the loop geometry.

Control Connector Orientation, Retention, and Identification
Connector problems are often created by the harness around the connector rather than by the connector itself. The cable may exit in the wrong direction, an adapter may hang from a port, two similar connectors may be easy to swap, or a technician may need to pull the cable because the latch cannot be reached.
Review the following at every serviceable interface:
- Can the connector latch or locking feature be reached without pulling on the wires?
- Does the cable exit naturally without an immediate forced bend?
- Is the connector supported if the attached adapter or cable is heavy?
- Can adjacent similar connectors be confused during service?
- Is labeling visible from the service position?
- Can the technician confirm full engagement after replacement?
- Does the connector remain retained through transport, vibration, and the expected service motion?
Keying, polarization, different connector families, position control, and durable labels can all reduce mismating risk. NASA-STD-8739.4A specifically discusses preventing connector mismating through constraints, different sizes, keying, and clear marking. The exact solution in a commercial kiosk should match the interface, component documentation, and service model.
Use EMC-Aware Routing Without Inventing One Universal Separation Distance
Power/data separation is useful only when the design identifies what is actually noisy and what is actually susceptible. A kiosk can contain AC mains, switching power supplies, DC power trunks, fan and printer loads, USB, Ethernet, video, low-level sensor wiring, and RF coax. Those paths do not all require the same separation rule.
As a general engineering principle, avoid unnecessarily long parallel runs between high-current or switching-power wiring and sensitive signal paths. Where different cable classes must cross, minimize the shared coupling length and follow the interface or equipment manufacturer's EMC guidance. Some industrial equipment manufacturers publish explicit separation distances for their own systems; those values are product-specific and should not be copied into a kiosk as a universal requirement.
Schneider Electric's published wiring guidance, for example, separates communication and power wiring and specifies routing rules for its own TeSys equipment. It is useful evidence for the principle that EMC routing belongs to the complete equipment design, not evidence for a universal kiosk spacing number.
Keep shield and grounding decisions with the correct owner
A harness drawing should show which cable is shielded and how it is routed, but the shield-termination strategy should come from the interface and grounding design. A shield bonded at the wrong location can change ESD or common-mode behavior even when the physical route looks neat.
Use the Kiosk ESD Protection and Grounding guide for chassis, protective-earth, bonding, and shield-termination decisions. The harness page should preserve those decisions physically and make them repeatable in production.
Keep RF coax inside the antenna design boundary
Miniature RF coax can be mechanically fragile and sensitive to bend, connector load, and route changes. Its path may also affect antenna performance. The Kiosk Wi-Fi and LTE Antenna Placement guide owns antenna location, metal clearance, coax length, and RF validation. This page only owns the harness-control practices needed to reproduce the approved coax route without pinching or stressing it.
Turn the Harness Into a Reproducible Production Artifact
A good engineering prototype can become a bad production kiosk if the approved routing exists only in one engineer's memory. The manufacturing package should make the routing observable and repeatable.
Useful production artifacts include:
- a harness drawing or controlled installation drawing;
- a wire list or from-to list where appropriate;
- approved cable and connector part numbers;
- branch breakout locations;
- connector orientation and identification;
- clip, clamp, tie, gland, grommet, and sleeve locations;
- service-loop location and intended service position;
- door/hinge moving-zone geometry;
- shield/bonding references linked to the grounding design;
- first-article photographs showing installed and service positions;
- harness revision and kiosk revision relationship.
IPC/WHMA-A-620 is a widely used industry-consensus standard for cable and wire harness assemblies. IPC lists IPC/WHMA-A-620 Revision E as the current revision and describes it as covering materials, methods, tests, and acceptability criteria for cable and harness assembly. It is primarily a workmanship and acceptance standard; the kiosk project still has to define the system-level route, service motion, connector choice, electrical architecture, and installation geometry.
If a supplier claims conformance to a harness workmanship standard, confirm the exact revision, class or contractual requirement, inspection scope, and whether the standard applies to the loose harness, the installed harness, or both. Do not translate a supplier certification into an unverified claim that the complete kiosk is compliant with a different product or safety standard.

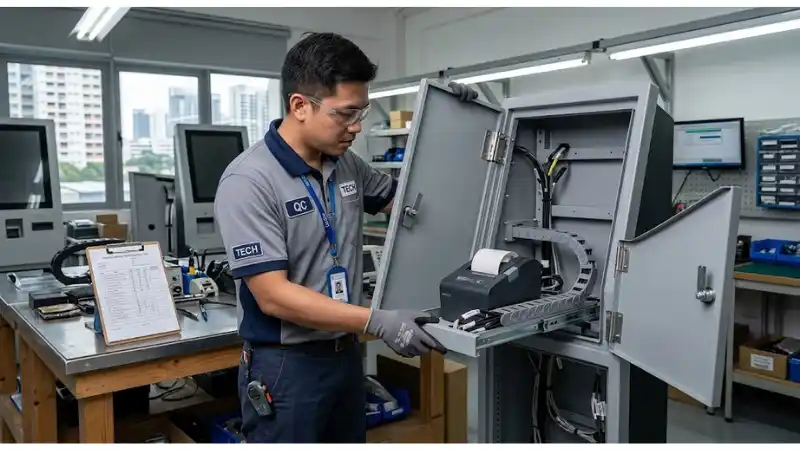

Validate the Harness in the Closed, Fully Populated Kiosk
Harness validation should reproduce the states that create mechanical and electrical stress. An open bench build misses door movement, cover pressure, nearby electronics, final fan airflow, real service access, and the possibility that a loop changes position when the enclosure closes.
A practical validation sequence is:
- Freeze the cable, connector, harness, clip, and enclosure revisions being tested.
- Photograph the approved static routing before movement.
- Open and close every service door, tray, or removable module through the full intended travel while watching the harness.
- Move each field-serviceable module into its service position and confirm the connector is not carrying the load.
- Inspect the full route for rub points, pinch points, sharp edges, hot surfaces, fan paths, and lock or latch interference.
- Check connector engagement and retention after movement and transport simulation appropriate to the project.
- Operate the printer, display, scanner, camera, payment device, fans, network, and other relevant loads while observing for intermittent USB, video, power, or communication faults.
- Close the enclosure and repeat the functional check in the final cable position.
- Compare the finished unit with the controlled drawing and first-article photographs.
- After a harness or routing defect is corrected, repeat the affected movement and any neighboring checks that the change could influence.
A continuity test alone is not enough. A harness can have perfect continuity while the door is open and fail only when the cable is pinched, flexed, heated, vibrated, or coupled to a noisy power path.
Troubleshoot Symptoms by the Harness Mechanism
| Observed symptom | First harness checks | What the result can separate |
|---|---|---|
| USB device disappears when a service door moves | Door crossing, connector side-load, strain relief, pinch point, service-loop travel | Mechanical route problem versus software/driver fault |
| Display flickers after transport | Video connector retention, adapter support, sharp bend behind connector, cable abrasion | Harness/connector fault versus display or source fault |
| Printer resets when the cutter or motor runs | Power routing, shared bundle, connector engagement, local DC drop, signal/power proximity | Harness/power-distribution issue versus printer electronics fault |
| Wi-Fi or LTE becomes worse after service | Coax route, bend, connector seating, new cable bundle near antenna area | Changed RF integration versus network/site issue |
| Intermittent fault appears only with enclosure closed | Cover pinch, bundle compression, shifted loop, connector deflection, thermal/fan interaction | Installed geometry problem versus open-bench electronics fault |
| Replacement module is difficult to unplug | Service allowance, latch access, first clamp position, cable exit direction | Harness serviceability issue versus module mounting issue |
| Repeated insulation damage at one location | Edge protection, clamp position, relative movement, vibration, branch stiffness | Route/control defect versus isolated damaged cable |
Preserve the failed routing before moving cables to "see if it helps." A photograph of the as-found position, connector state, and nearby hardware can reveal a repeatable production or service pattern that disappears as soon as the bundle is rearranged.
Write Harness Requirements Into the RFQ and Handover Package
For a configurable kiosk project, the RFQ should make the harness ownership visible. Useful questions include:
- Who owns the kiosk-level harness drawing, wire list, and revision control?
- Which cable and connector families are included in the quoted configuration?
- Which cables are custom harnesses and which are off-the-shelf assemblies?
- What restraint, edge-protection, sleeving, or gland methods are included?
- Which modules or doors require service loops or repeated-flex sections?
- Which cable routes are EMC-sensitive or tied to a specific shield/bonding design?
- How are identical or adjacent connectors prevented from being mismated?
- What first-article evidence proves the production route matches the approved design?
- How are replacement harnesses identified and controlled after handover?
- Which substitutions or enclosure changes require engineering review and retest?
Do not ask only whether the supplier can "provide cables." The deliverable is the installed and controlled interconnection system. A low-cost harness that forces field technicians to improvise routing or repeatedly loads a connector can create more operational cost than the cable itself.
Retest When the Harness Geometry or Electrical Context Changes
Repeat the affected harness checks when a revision can change load, bend, abrasion, coupling, service movement, or connector retention. Typical triggers include:
- cable or connector supplier substitution;
- change in cable jacket, shielding, diameter, flexibility, or connector exit direction;
- new printer, scanner, display, payment module, PC, power supply, fan, or radio;
- door, hinge, bracket, tray, lock, enclosure, or service-access revision;
- new clip, clamp, cable tie, grommet, edge protector, or sleeve;
- power-distribution or grounding change;
- antenna or coax relocation;
- production work-instruction change;
- field repair that reroutes the harness;
- a recurring intermittent fault that appears after transport or service.
Keep the approved state small enough to control: exact harness revision, key cable/connector parts, controlled routes, support points, service-loop positions, moving-zone geometry, first-article photos, and the tests that prove the arrangement.
Bottom Line
Kiosk cable harness design succeeds when the wiring remains electrically correct after it has been routed, restrained, serviced, moved, closed inside the enclosure, and reproduced by production. The design should control mechanical load at connectors, preserve manufacturer bend requirements, keep service allowance intentional, protect door and hinge crossings, separate cable classes where the EMC design requires it, and make the accepted route visible in drawings and first-article evidence.
The strongest harness is not the one with the most ties or the shortest cable. It is the one whose route, restraint, movement, identification, serviceability, and electrical context are deliberately engineered and repeatable. For a project-specific kiosk configuration, use the inquiry page to confirm the exact peripherals, enclosure, cable interfaces, and responsibility boundary before treating any harness feature as part of the delivered system.
