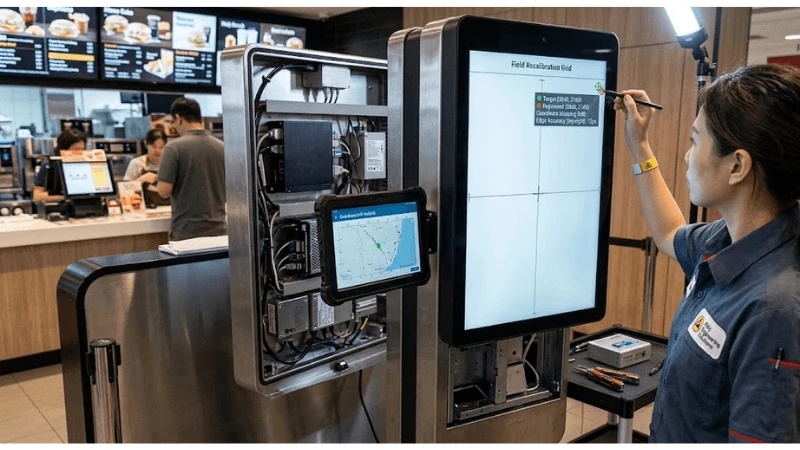

Technician diagnosing a modest touch-coordinate offset near the edge of a kiosk screen

When a kiosk registers a touch several millimeters away from the user's finger, recalibration is an obvious suspect-but it is not the only one. A rotated display can be mapped to the wrong coordinate transform, the operating system can bind touch to the wrong monitor, browser zoom can move application hit boxes, bezel pressure can disturb a local region, or a replacement controller can load different defaults.

The fastest diagnosis is to locate the layer where the error begins. Test raw touch coordinates, display mapping, application targets, and mechanical behavior separately before writing new calibration data. Recalibration should correct a proven coordinate-transform problem; it should not be used to hide intermittent touch hardware, false touches, or UI targets that are simply too difficult to hit.



Classify the symptom before touching calibration

Symptom First layer to check Why
Same offset everywhere Coordinate transform / calibration A consistent translation or scale error is compatible with a mapping error.
Axes swapped or touch moves in the wrong direction Orientation and transform Rotation or inversion is often a mapping problem rather than sensor drift.
Correct center, poor edges or corners Calibration model, mechanical registration, sensor behavior Non-linear edge error needs more than a center-tap test.
Touch lands on the correct screen but the wrong button Application viewport, scaling, browser zoom, hit-box layout The pointer can be correct while the UI target is not where the application thinks it is.
Random taps, stuck touches, or wet-screen false input Touch hardware, controller tuning, grounding/ESD, contamination Calibration does not repair unstable raw input.
Touch appears on another monitor OS display association Multi-display binding can be wrong even when each device works independently.

This classification prevents a common service error: recalibrating repeatedly until an intermittent hardware or application problem happens to disappear for a few minutes.



Trace the coordinate path from finger to application

A kiosk touch event usually crosses several coordinate spaces. The exact implementation depends on the platform, but the diagnostic path is conceptually:

touch sensor → touch controller → driver / HID input → operating-system display mapping → application viewport → clickable target

Record the display resolution, orientation, scaling, monitor order, touch-device identity, controller/driver version, application build, and browser zoom or rendering scale where relevant. A field unit should be compared with a known-good configuration before calibration data is changed.

If the operating system can expose raw or pre-application touch coordinates, use them to determine whether the error already exists below the application. If raw coordinates are correct but the application misses, move the investigation upward rather than rewriting the touch controller's calibration.

Kiosk touchscreen coordinate path from sensor and controller through OS mapping to application target



Use a measurement grid that includes the edges

Casual tapping in the center of the screen is a poor acceptance test. Build a fixed test grid with points in the center, along each edge, and near each corner. For every point, record the commanded screen coordinate and the reported touch coordinate, then calculate the error vector.

Two views are useful:

  • absolute position error at each test point, which shows how far the touch lands from the intended location;
  • error pattern across the screen, which reveals whether the problem is a uniform offset, scale error, rotation, local deformation, or non-linear edge behavior.

The pass limit must come from the selected touch/display specification and the application's real target geometry. Do not invent one universal millimeter tolerance for every kiosk size, sensor technology, and use case.

Touchscreen test grids comparing uniform offset, edge error and rotation mapping patterns



Do not confuse UI target size with touch calibration accuracy

A perfectly calibrated screen can still feel inaccurate when controls are too small or tightly packed. Conversely, large buttons can hide a poor coordinate map. Treat these as separate acceptance layers.

For web-based kiosk interfaces, WCAG 2.2 includes target-size criteria for pointer inputs. The Level AA Target Size (Minimum) criterion uses 24 by 24 CSS pixels with specified exceptions, while the enhanced Level AAA criterion uses 44 by 44 CSS pixels. Those values are accessibility target-size requirements-not touchscreen calibration tolerances.

Use accessibility guidance to make the application easier to operate, then independently verify the touch system's physical coordinate accuracy.



Verify orientation, scaling, and multi-display mapping

Any service or software change that alters display topology can break an otherwise good touch system. Test every supported orientation and resolution used in the production image. If the kiosk contains a service monitor, customer display, or mirrored output, verify that the touch device is bound to the intended screen after cold boot and after any supported cable or controller replacement.

For browser-based applications, include full-screen state, browser zoom, device-pixel scaling, viewport resizing, and any remote-management action that can alter display settings. Save the approved values with the kiosk image so a technician can compare them without guessing.



Check mechanical and electrical causes before recalibrating an edge problem

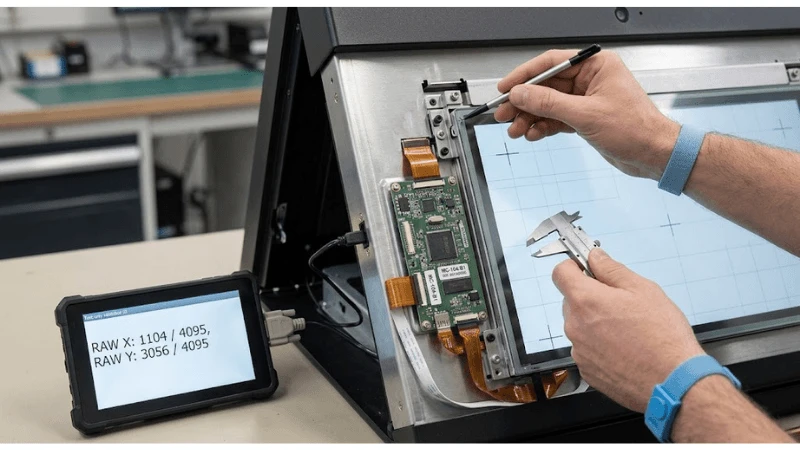

Edge-only symptoms deserve a mechanical inspection. Bezel pressure, glass/sensor movement, adhesive-stack changes, frame distortion, contamination, or an incorrectly seated replacement assembly can affect local touch behavior. If the symptom changes when the enclosure is opened, fasteners are loosened, or pressure is removed, a new calibration file may only mask the underlying problem.

Also separate coordinate drift from false-input behavior. The site's Touchscreen Water and Glove Rejection guide owns wet-screen and glove behavior, while Kiosk ESD Protection and Grounding covers transient and grounding paths that can reset or disturb touch electronics.



Recalibrate only after the mapping fault is proven

Once the project has shown that the raw touch system is stable and the error is a persistent coordinate-transform problem, use the calibration method supported by the production controller, driver, or operating system. Keep the previous approved configuration so the change can be rolled back.

A controlled recalibration record should include:

  • kiosk asset ID and display/touch assembly revision;
  • controller firmware and driver version;
  • display resolution, orientation, scaling, and monitor mapping;
  • calibration utility or supported procedure used;
  • pre-calibration grid results;
  • new calibration data or configuration revision where export is supported;
  • post-calibration grid results;
  • technician and date;
  • reason recalibration was necessary.

Do not perform uncontrolled per-store "eyeball calibration" that produces unique settings with no traceability.



Prove that calibration survives restart and service

A calibration that disappears after a reboot is not a field solution. After adjustment, test cold boot, operating-system restart, kiosk-application restart, remote-management restart, and any service workflow that can reload drivers or display settings. Confirm that calibration data is stored in the intended layer and returns with the approved configuration.

Then simulate the changes most likely to occur in service: display replacement, touch-controller replacement, reimage, graphics-driver update, port change, and orientation reset. The required retest scope can be smaller than full factory acceptance, but it must cover the interfaces the change can disturb.

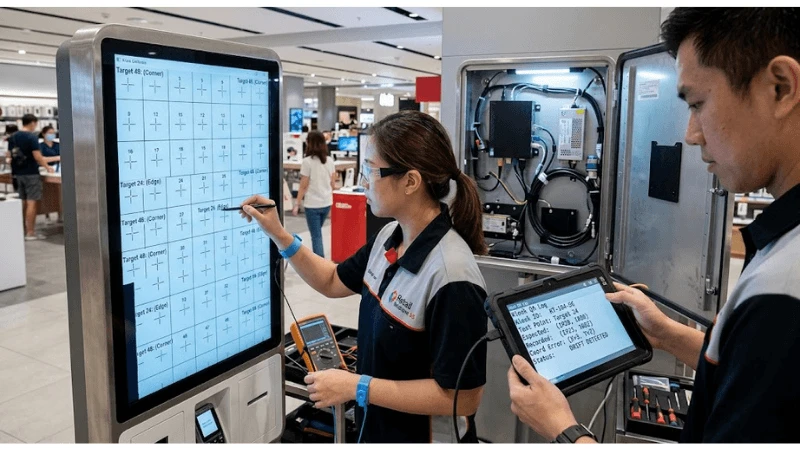

Field technician recalibrating a kiosk touchscreen and preparing restart and retest validation



Use the application itself as the final acceptance layer

A low-level grid proves coordinate behavior; it does not prove the customer workflow. After the grid passes, run the production application and test small or edge-adjacent controls, destructive actions, on-screen keyboard keys, scroll areas, and any gesture needed by the transaction.

Record mis-taps by screen region and application version. If low-level coordinates stay stable while one software release creates a spike in edge mis-taps, the evidence points toward UI layout or rendering rather than sensor drift.



Field troubleshooting sequence

  1. Preserve the current configuration and symptom before changing settings.
  2. Test a known grid and classify the error pattern.
  3. Compare raw/device-level coordinates with application behavior where the platform permits.
  4. Verify orientation, scaling, monitor mapping, driver, and application viewport.
  5. Inspect mechanical registration, bezel pressure, contamination, grounding, and false-touch conditions.
  6. Recalibrate only if a stable mapping error remains.
  7. Repeat the grid and the production UI acceptance test.
  8. Restart the kiosk and prove the corrected state persists.

For the broader system context, use Kiosk Display and Kiosk Peripheral Integration.



FAQ

Q: Does every projected-capacitive kiosk touchscreen need periodic recalibration?

A: No universal schedule applies. Many systems are designed to maintain their coordinate mapping without routine field calibration. Recalibrate when the supported platform requires it or when diagnosis proves a stable mapping error.

Q: Why is touch accurate in the center but wrong at one edge?

A: Possible causes include calibration-model error, sensor-to-display registration, bezel pressure, local sensor behavior, or application layout near that edge. A multi-point grid helps separate these causes.

Q: Can a browser zoom change look like calibration drift?

A: Yes. If touch coordinates are correct but the application's viewport or hit boxes move, users experience a mis-tap even though the touch hardware is still mapped correctly.

Q: Should accessibility target-size guidance be used as a calibration tolerance?

A: No. Target-size requirements help make controls easier to activate. Calibration accuracy is a separate hardware-and-mapping measurement.

Q:

A: Touchscreen drift should be diagnosed as a coordinate-path problem, not treated as an automatic request for recalibration. Measure the error pattern, isolate the layer, fix the real cause, and prove the corrected mapping survives the same boot and service events that occur in the field.
