The expensive failures in unattended and retail display projects often happen at interfaces, not inside the headline component. For kiosk touchscreen water glove rejection, the narrow question is How should a kiosk team prove that the production touch stack still works with intended gloves and rejects water, cleaning residue, palms, and accidental contact? This guide is written for kiosk product engineers, retail IT teams, food-service operators, outdoor-kiosk integrators, and QA teams. It deliberately owns environmental touch behavior and false-input control rather than generic touchscreen technology; neighboring pages should keep ownership of broader selection, networking, software, optical, or maintenance topics.
The project therefore needs a boundary that lets an engineer prove what changed instead of guessing from the visible symptom. The project should be able to name the approved state for touch controller tuning profile, show how cover-glass and sensor stack interacts with it, and reproduce at least one adverse condition such as "A service update silently restores default sensitivity and creates edge false touches." on production-equivalent hardware. Where a numerical limit matters, use the exact model documentation, applicable standard, or an approved project requirement; do not turn a sample value into a universal claim.
For adjacent context, use Kiosk Display, Kiosk Peripheral Integration, Kiosk FAT and SAT Checklist. Those resources provide broader product or integration context; the acceptance result for this article still has to be proven on the exact project configuration.
During topic research, public technical/product material from KIOSK Information Systems, Zebra Technologies, and Samsung Business was reviewed to understand category terminology and common buyer questions. Competing commercial claims are not treated as LEGOYO facts and are not linked from this publishable article. Model-specific limits, certifications, measured performance, case outcomes, and ROI must be verified against the applicable primary source before they are used in a project decision.
Define the system boundary before you compare solutions
Existing touchscreen articles discuss technology choice broadly; this page owns wet/glove false-touch validation on the final stack. A clear boundary prevents two common mistakes: buying a component because a generic capability sounds right, and rejecting a component for a failure that is actually caused by the enclosure, player, site, workflow, or service process. The test object should be the production-equivalent system with the same interfaces that will exist after rollout.
Start the design review by writing three columns: what is controlled by the component supplier, what is created by integration, and what can change after handover. Then add the user-visible consequence when each item leaves the approved state. This creates a useful handoff between engineering, procurement, commissioning, and field service.
Scope-to-failure map
| Control point | What the project must define | Representative failure to challenge |
|---|---|---|
| Touch controller tuning profile | Record the controller firmware, tuning file, sensitivity and glove-mode state that defines the approved baseline. | A service update silently restores default sensitivity and creates edge false touches. |
| Cover-glass and sensor stack | Validate production glass thickness, coatings, printed borders, adhesive or air gap, and the final sensor/controller combination. | A prototype sensor passes bare-finger tests but the production cover lens reduces glove margin. |
| Water and residue rejection | Test droplets, films, spray, cleaning solution residue and drying transitions instead of a single dry-screen check. | A thin conductive film creates phantom touches while the user is not touching the screen. |
| Glove population | Define the actual glove materials, thickness ranges and user tasks rather than a generic "glove compatible" label. | One glove family works while insulated or damp gloves fail intermittently. |
| Edge and bezel behavior | Exercise corners, edges, bezel transitions and palm-rest positions where field noise often appears. | A user braces a hand against the bezel and unintended controls activate. |
| Recovery after cleaning | Confirm that normal cleaning, wipe-down and reboot procedures restore the approved state without hidden recalibration. | Cleaning staff leave residue and the kiosk opens with unstable touch for the next customer. |
Engineering controls that deserve explicit requirements
The following controls are not generic feature-list items. Each one can change the field result for kiosk touchscreen water glove rejection, so the approved state, evidence method, owner, and retest trigger should be visible in the project record.
Touch controller tuning profile
This control needs a reproducible baseline, not an informal setup note. Record the controller firmware, tuning file, sensitivity and glove-mode state that defines the approved baseline. The evidence should make it possible to distinguish a defect in touch controller tuning profile from a change in cover-glass and sensor stack. A useful negative case is: A service update silently restores default sensitivity and creates edge false touches. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes touch controller tuning profile. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Cover-glass and sensor stack
Review this interface with production and service in the same room, because both can change it. Validate production glass thickness, coatings, printed borders, adhesive or air gap, and the final sensor/controller combination. The evidence should make it possible to distinguish a defect in cover-glass and sensor stack from a change in water and residue rejection. A useful negative case is: A prototype sensor passes bare-finger tests but the production cover lens reduces glove margin. Record the configuration before corrective action so the recovery does not erase the cause.

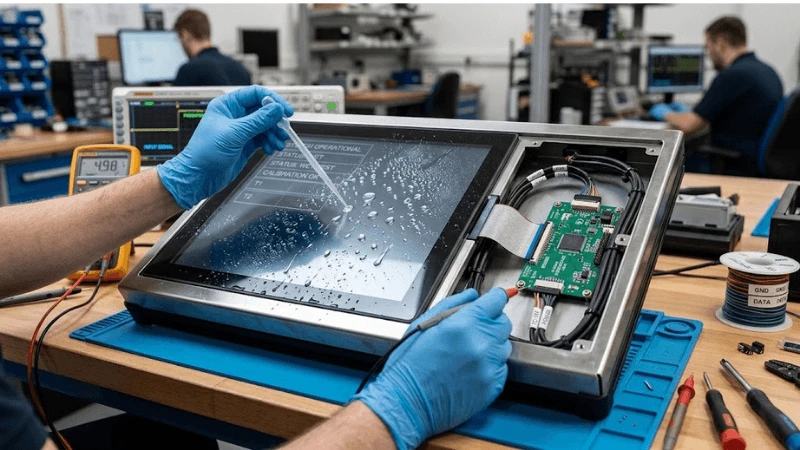

Water and residue rejection
The supplier answer is only the starting point; the delivered configuration must make the result observable. Test droplets, films, spray, cleaning solution residue and drying transitions instead of a single dry-screen check. The evidence should make it possible to distinguish a defect in water and residue rejection from a change in glove population. A useful negative case is: A thin conductive film creates phantom touches while the user is not touching the screen. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes water and residue rejection. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Glove population
Treat this as a change-controlled parameter whenever it can alter field behavior. Define the actual glove materials, thickness ranges and user tasks rather than a generic "glove compatible" label. The evidence should make it possible to distinguish a defect in glove population from a change in edge and bezel behavior. A useful negative case is: One glove family works while insulated or damp gloves fail intermittently. Record the configuration before corrective action so the recovery does not erase the cause.
Edge and bezel behavior
A design review should connect this item to a test, an owner, and a retest trigger. Exercise corners, edges, bezel transitions and palm-rest positions where field noise often appears. The evidence should make it possible to distinguish a defect in edge and bezel behavior from a change in recovery after cleaning. A useful negative case is: A user braces a hand against the bezel and unintended controls activate. Record the configuration before corrective action so the recovery does not erase the cause.
For production and service, identify the physical datum, software setting, firmware revision, material, or workflow that establishes edge and bezel behavior. State which substitutions are allowed without retest and which ones invalidate the old result. This turns a one-time pilot observation into a maintainable requirement.
Recovery after cleaning
Put this item in the controlled requirement set before the pilot is signed off. Confirm that normal cleaning, wipe-down and reboot procedures restore the approved state without hidden recalibration. The evidence should make it possible to distinguish a defect in recovery after cleaning from a change in touch controller tuning profile. A useful negative case is: Cleaning staff leave residue and the kiosk opens with unstable touch for the next customer. Record the configuration before corrective action so the recovery does not erase the cause.
Failure modes: diagnose the interface, not just the visible symptom
Field teams often replace the most visible component first. That can make an intermittent problem disappear while leaving the true interface defect in place. A better fault model starts with the observable symptom, lists the two or three controlled variables that can create it, and captures evidence before reset or replacement.
| Observed failure | Primary control to inspect | Useful reproduction condition | First diagnostic action |
|---|---|---|---|
| A service update silently restores default sensitivity and creates edge false touches. | Touch controller tuning profile | dry bare-finger grid and gesture baseline | capture the state before changing configuration |
| A prototype sensor passes bare-finger tests but the production cover lens reduces glove margin. | Cover-glass and sensor stack | representative approved gloves across center and edge targets | isolate the interface and reproduce on a known-good reference |
| A thin conductive film creates phantom touches while the user is not touching the screen. | Water and residue rejection | controlled water droplets and thin surface film | compare unit/revision history before replacing parts |
| One glove family works while insulated or damp gloves fail intermittently. | Glove population | approved cleaning chemical followed by incomplete and complete drying | restore the approved baseline and rerun the adverse case |
| A user braces a hand against the bezel and unintended controls activate. | Edge and bezel behavior | palm/bezel contact while intended touches continue | contain the user impact, then preserve logs/photos/measurements |
Do not use a single successful retry as proof of root cause. If a reboot, reconnection, cleaning step, or module swap restores service, record it as recovery evidence and keep the incident open until the team can explain why the state changed. Recurrence after the same service action is especially valuable evidence.

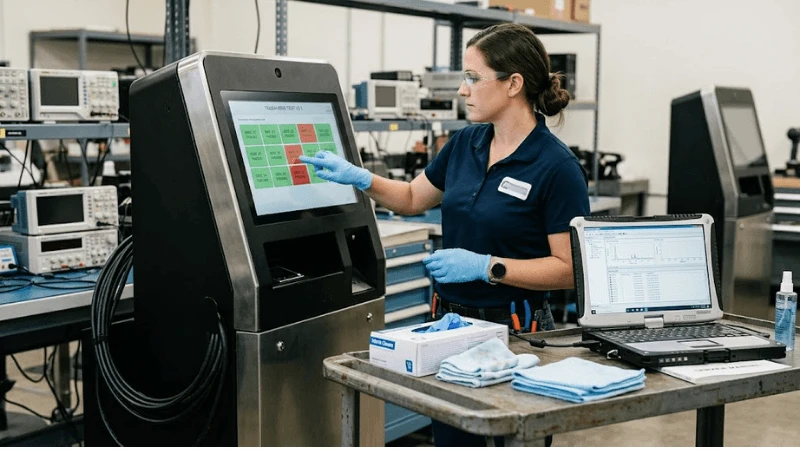

Build an acceptance test that represents the field
A factory demo should answer the project question, not merely show that the product turns on. For kiosk touchscreen water glove rejection, include the normal condition, a tolerance edge, a service/replacement state, and at least one controlled failure. Preserve the exact unit and revision so the evidence can be reused during troubleshooting without pretending that a later substitution is identical.
Minimum test sequence
- Dry bare-finger grid and gesture baseline
- Representative approved gloves across center and edge targets
- Controlled water droplets and thin surface film
- Approved cleaning chemical followed by incomplete and complete drying
- Palm/bezel contact while intended touches continue
- Reboot and power-cycle with the same production tuning
| Step | Condition | Main control exercised | Evidence to retain |
|---|---|---|---|
| 1 | Dry bare-finger grid and gesture baseline | Touch controller tuning profile | Pass/fail result tied to unit, revision, configuration, and test condition |
| 2 | Representative approved gloves across center and edge targets | Cover-glass and sensor stack | Pass/fail result tied to unit, revision, configuration, and test condition |
| 3 | Controlled water droplets and thin surface film | Water and residue rejection | Pass/fail result tied to unit, revision, configuration, and test condition |
| 4 | Approved cleaning chemical followed by incomplete and complete drying | Glove population | Pass/fail result tied to unit, revision, configuration, and test condition |
| 5 | Palm/bezel contact while intended touches continue | Edge and bezel behavior | Pass/fail result tied to unit, revision, configuration, and test condition |
| 6 | Reboot and power-cycle with the same production tuning | Recovery after cleaning | Pass/fail result tied to unit, revision, configuration, and test condition |
Acceptance criteria should be observable. "Works normally" is weak because it does not define the task, population, environment, duration, or failure threshold. Prefer statements such as "the defined workflow completes under the approved production configuration and the specified adverse condition produces the expected state, alert, containment, or recovery." Attach measurements where the decision genuinely depends on them.
What to save in the evidence package
- Exact product model, hardware/firmware/software revision and production BOM state
- Fixture, enclosure, player, network, power, content, merchandise or peripheral configuration that affects the test
- Test method, tools and relevant environmental or operating conditions
- Pass/fail result plus photographs, logs, measurements, event records or inspection notes appropriate to the topic
- Open deviations, corrective actions, temporary controls and the person who can close them
- Retest triggers for supplier substitution, software update, site change and field replacement
RFQ questions that expose hidden integration scope
Two quotations are not comparable until they carry the same responsibility boundary. For kiosk touchscreen water glove rejection, ask suppliers to answer with the exact quoted configuration, the evidence they can provide, and the conditions they exclude. A "yes" to a feature question is less useful than a drawing, supported-state definition, test record, service instruction, or sample that the buyer can verify.
- Which exact controller firmware and tuning file is supplied?
- Which glove materials have been tested on the quoted glass/sensor stack?
- How is water rejection configured and how are false touches logged?
- What cover-glass or coating changes require retuning?
- Can the supplier provide a production-equivalent sample for wet/glove validation?
- What field procedure restores the approved touch state after controller or screen replacement?
Normalize the quote before comparing price
- Exact model and revision, including accessories and project options
- Included integration work versus buyer/system-integrator responsibility
- Test evidence supplied with the production configuration
- Known exclusions, tolerance limits and conditions that require a different design
- Spare/replacement strategy and configuration restoration method
- Change-notification commitment for parts or firmware that can alter the approved result
A different technical architecture is not automatically inferior. Keep the outcome and evidence requirement fixed, then allow each supplier to show how its architecture achieves them. Mandating an implementation only makes sense when an adjacent system interface genuinely requires it.
Keep the approved state alive after handover
Commissioning closes the project only if operations can recognize the same state later. Give field teams a concise baseline for touch controller tuning profile, cover-glass and sensor stack, and water and residue rejection; include a safe recovery sequence and say which actions require engineering review. If a technician can change the result during normal service, that service step belongs in the control plan.
Fleet signals worth trending
- false-touch incidents per site
- touch-related session abandonment
- glove-mode support tickets
- post-cleaning touch complaints
- controller or touch-stack replacements
Trend these signals by site, hardware revision, software release and last service action. One incident rarely proves a design defect, but clustering can reveal a supplier lot, configuration change, environmental condition, or maintenance practice that was invisible during pilot testing. Preserve enough history to compare "before" and "after" rather than counting tickets alone.
Retest triggers
- A supplier substitution changes touch controller tuning profile or the part that establishes it.
- A firmware, driver, player, OS or configuration change can affect cover-glass and sensor stack.
- A fixture, enclosure, mounting, wiring, lighting, power, cleaning, site or workflow change alters water and residue rejection.
- A field replacement changes glove population or removes a calibration/configuration dependency.
- The adverse condition "A service update silently restores default sensitivity and creates edge false touches." appears again in the field.
Decision gate: approve, revise, or stop
- Boundary: Can another team reproduce the approved state for touch controller tuning profile?
- Interface: Is ownership clear where cover-glass and sensor stack interacts with water and residue rejection?
- Adverse case: Did the test include "A service update silently restores default sensitivity and creates edge false touches." or an equally representative failure?
- Recovery: Can service restore operation without destroying diagnostic evidence?
- Lifecycle: Is there a retest trigger when glove population or another controlled dependency changes?
Close the review as approve, revise, or stop. If a gap is accepted temporarily, record the owner, temporary control, evidence still required, and the event that closes the exception. For related engineering boundaries, see Kiosk Remote Monitoring, Kiosk OS Lockdown, Kiosk Offline Mode and Network Failover, Payment Kiosk Hardware Design.
FAQ
Q: What is the first thing to verify for kiosk touchscreen water glove rejection?
A: Start with the approved baseline for touch controller tuning profile and cover-glass and sensor stack. Capture the current configuration and recent service/change history before resetting or replacing parts.
Q: Can a supplier datasheet replace project acceptance testing?
A: No. Product documentation defines a starting capability boundary. Project testing proves the final combination of hardware, configuration, enclosure, site conditions, workflow and service method that will actually be deployed.
Q: Which test should be included in a pilot?
A: At minimum include dry bare-finger grid and gesture baseline, representative approved gloves across center and edge targets, and one adverse/service condition such as reboot and power-cycle with the same production tuning. The objective is to expose the interface most likely to change after rollout.
Q: What should trigger a retest?
A: Retest after a component, firmware, driver, mounting, optical, electrical, environment, workflow or service change that can affect touch controller tuning profile, cover-glass and sensor stack, or water and residue rejection.
Q: How should two supplier solutions be compared?
A: Normalize the exact configuration, inclusions, exclusions, evidence, integration responsibility, service access, replacement method and change-control commitment. Only then compare commercial terms.
Q: What evidence is most useful months after deployment?
A: Evidence tied to unit identity and revision: configuration readback, photographs, measurements, logs, test conditions, defect disposition, service history and the exact acceptance requirement. Context makes the record reusable.
Final recommendation
The strongest approach to kiosk touchscreen water glove rejection is to make the field condition reproducible. Freeze the configuration that matters, challenge it with a realistic adverse case, preserve evidence, and make service/revision changes trigger an explicit retest. That is more useful than a long feature list because it tells procurement what to buy, commissioning what to prove, and operations what to protect.
