Color Electronic Shelf Labels: Choose the Right Display and Prove Shelf-Level Value

Aug 07, 2024

Leave a message

Grace Lin
Grace Lin
Grace has spent the past seven years working directly with supermarket and convenience store buyers — mostly helping them figure out whether an ESL rollout actually makes sense for their operation, and then making it work when it does. She's covered

Color on an electronic shelf label should answer a question for the shopper, not merely decorate the price. A red promotion cue can be useful; an entire aisle of competing red badges can make the shelf harder to scan. For a retailer choosing between three-color, four-color, broader-palette e-paper and LCD shelf displays, the real buying decision is about which messages need color, how often they change, and whether the system can reliably deliver them to the right product.

This guide gives merchandising, retail IT and procurement teams a practical method for making that decision. It covers color meaning, label technology, template fallback, an executable store pilot and a simple cost test. It does not claim that every KioskTagScreen label offers the same palette, response time or management controls. Those facts must be confirmed for the precise device and software configuration. For the overall data-to-label workflow, see the electronic shelf label solution.





Decide what color must communicate before choosing the screen

Start with a shelf task, not a color specification. On a grocery shelf, the shopper typically wants the correct item and price first. A promotion, member-only price or validated product attribute may deserve secondary emphasis. The design fails when color implies something that the pricing system does not actually mean.

Message state Primary information Possible color role Authoritative source and fallback
Regular price Item identity, price, unit price if required Neutral base treatment Approved price feed; always remains legible in monochrome
Time-limited offer Current offer and, where appropriate, end conditions Single promotional accent Promotion engine; remove accent when offer expires
Member price Eligibility and applicable member price Distinct marker, not color alone Loyalty/pricing rule; text label must still convey membership condition
Verified product attribute Approved factual statement Subordinate category cue Product information owner; suppress if attribute validation expires
Staff-only exception Operational action, not a shopper price Separate, unmistakable staff treatment Store operations workflow; never imitate a discount

Make a one-page color semantics register with fields for state ID, meaning, triggering data field, business owner, precedence, eligible device groups, start/end rule, non-color fallback and verification owner. The register is more valuable than a palette PDF because it tells the retailer what must happen when data changes. Two teams should not be able to assign different meanings to the same treatment.



Worked example: two valid prices, one misleading label

Consider a hypothetical item with a regular price of $4.80 and a member price of $4.20. A label that shows $4.20 in red but fails to identify it as a member price can mislead non-members even if the red looks attractive. A safer template retains the regular price and adds the words Member price adjacent to $4.20, with an accent as supplemental emphasis. If the limited-color device cannot render the planned accent, the words and prices still distinguish the states.

This example is illustrative; it is not a statement about an actual retailer's pricing system or a claim of legal compliance. Requirements for unit pricing, promotional statements and eligibility vary by jurisdiction and retail category. Have the retailer's pricing and compliance owner approve the actual copy.

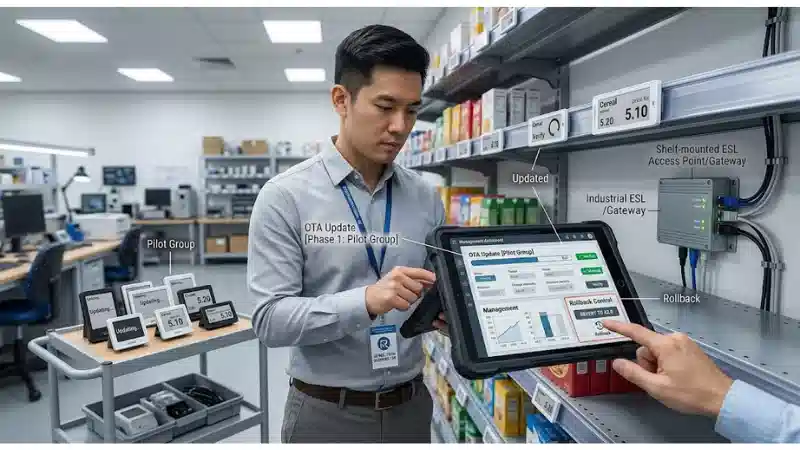

Three illustrative shelf-label states showing regular price, promotion and member-price hierarchy with text alongside color cues.





Understand the display families without assuming one-size-fits-all specifications

The name "color ESL" covers different technologies. E Ink Spectra 3100, for example, is a four-color electronic-paper platform using black, white, red and yellow. E Ink Spectra 6 is a different, broader-color technology. They should not be treated as interchangeable on color gamut, refresh behavior, temperature range or device suitability. Neither reference verifies which technology a given KioskTagScreen SKU uses.

Display class Most relevant shelf job What to prove on the quoted model Common wrong assumption
Black-and-white e-paper Stable price and item information Text legibility, contrast, data mapping, update path That color is necessary for every aisle
Limited-accent e-paper Regular price with a small set of promotions and flags Exact palette, color-state update behavior, monochrome fallback That red/yellow always update like black text
Broader-color e-paper Category images and more expressive, relatively stable shelf content Rendering quality, update mode, duty cycle, operating conditions That "full color" means LCD-like video or universal fast refresh
LCD shelf signage Motion, rapidly changing media or continuously powered messaging Power, thermal design, content scheduling, mounting and serviceability That its power and maintenance model matches battery ESLs

E-paper's visible transition, wireless transfer and end-to-end business update are separate events. A supplier's display-module update specification does not automatically predict how long it takes for a price change to move from POS to the correct label. The site's ESL refresh and display-performance guide addresses that broader distinction. For LCD comparisons, use the separate LCD versus E-Ink shelf label guide rather than turning this page into a general display comparison.





Engineer a template around the worst shelf condition

Design from the smallest intended label and the densest legitimate price state. If one template must fit a long product name, a unit price, a discount and a membership condition, the layout must work in that case-not only on a sample showing "Milk $2.99." Begin with price and identifier hierarchy, then reserve measured regions for secondary content. Color is the last layer.

  1. Fix mandatory content. Identify fields that must never be omitted when the template switches state.
  2. Set a single price priority. Specify which numeric value is the buying price for the intended shopper and how qualification is shown.
  3. Define state precedence. Resolve what happens when a promotion and member price are both active. Do not leave precedence to arbitrary template rendering order.
  4. Define fallback behavior. Map every color-only cue to text, shape or positional logic that survives on a monochrome model.
  5. Approve device variants. Keep one state model but separate renderings for different display sizes, palettes and orientations.
  6. Check actual shelf optics. Review at shopper viewing distance and angle, under normal store lighting, next to both bright and muted packaging.

A practical failure case is the same campaign sent to a limited-accent label and a full-color label. If the campaign image uses a color that the first label cannot render, the system should select an approved fallback template rather than silently drop the promotional condition or substitute an illegible color. Where the management system does not support automatic capability-based templates, the deployment process needs an explicit manual device-group assignment and acceptance check.





Design a pilot that can disprove the color hypothesis

A colorful demonstration is not sufficient evidence. The pilot should test a question such as "Do shoppers identify the correct promotion and qualifying price faster without sacrificing price accuracy?" Use representative aisles and display sizes, and record whether the result holds in ordinary store conditions. Color may be valuable for one use case and wasteful for another.

Pilot element Test method What counts as useful evidence
Correct-price recognition Ask participants to identify the applicable price for normal, offer and member states Correct answer and error type, not opinion alone
Visual search Compare comparable shelves and tasks with controlled templates Task completion time and the number of wrong labels selected
Legibility Test from ordinary viewing distances and oblique angles Readable price and eligibility text under actual lighting
Change delivery Publish and revoke a promotion from the source system Source-event time, label-state confirmation and exceptions
Fallback Send the same state to all proposed label classes Comprehensible output on limited-color and offline devices
Operations Have store staff identify and correct a deliberately stale label Detection path, owner, resolution and audit record



A small numerical example, not a performance claim

Suppose 40 pilot tasks use a monochrome design and 40 matched tasks use the color variant. If 32 monochrome tasks and 36 color tasks identify the correct price, the observed correct-answer rates are 80% and 90%, a 10-percentage-point difference in that illustrative sample. That is not evidence of a 10% sales uplift, and the sample is far too limited to generalize without a proper design. Task assignment, store selection, user mix and learning effects can distort the result.

The same test can reveal a counterexample: if the colored member-price badge increases incorrect answers for non-members, the template needs revision even if the average completion time falls. Define the failure conditions before running the pilot. A successful test is one that protects the shopper's correct understanding, not one that makes the chosen technology look good.

Technical pilot design comparing two shelf-label template conditions and the evidence recorded for correct price recognition.





Decide whether a mixed-color estate is worth the operational complexity

Using different labels in different departments can be sensible if the information needs are unequal. But mixed estates add device-group, template, mounting, stock, training and replacement complexity. A replacement label with a different palette may display the same campaign incorrectly unless device capabilities are represented in the platform or in the operating procedure.

For a hypothetical purchase of 1,000 labels, suppose the color option costs an additional $3 per label and the first template migration requires 24 hours of work at an internal planning rate of $50 per hour. The initial incremental amount would be 1,000 × $3 + 24 × $50 = $4,200, excluding integration, replacement stock, training and future maintenance. The numbers are teaching inputs, not actual vendor prices or an ROI estimate. The question is whether the measured shelf-task improvement and business need justify that added cost and complexity.

Compare at least three allocation policies: color on all labels, color only where the defined messages exist, and monochrome labels with separate promotional signage. Consider future campaigns and replacement logistics-not just the first promotion. If only one department needs a complex visual state, the second policy may be the most defensible; if no reliable benefit survives the pilot, it is reasonable not to buy color for that task.





Use an explicit pass/fail rubric for the color pilot

Do not decide whether a pilot passed after seeing the results. Write down the intended outcome, minimum sample coverage and disqualifying errors before the store trial. An example rubric could require every tested mandatory price field to remain readable, zero unresolved wrong-price states at sign-off, a documented and comprehensible monochrome fallback, and no unowned failed update. These are illustrative gate categories; each retailer must determine its actual counts, tolerances, sample sizes and legally relevant conditions.

Record each sample as store + aisle + device model + template revision + product state + test timestamp + expected result + observed result + issue owner. This creates a defensible trail between a visual design decision and the shelf condition. A generic note saying "the label looked good" cannot identify whether a later production issue came from color rendering, data mapping, radio delivery or an unauthorized template change.

Separate three different kinds of success

Perceptual success means a shopper or associate understands the message correctly. System success means the intended state was transmitted and rendered on the right label. Operational success means a store can resolve an exception and reverse the campaign on schedule. A pilot that demonstrates the first while ignoring the other two does not justify a fleet rollout.

For instance, a shelf test could show a promotion badge is easier to notice, but the campaign can be reversed only by manually changing every device group. That may be acceptable in a ten-label display, yet costly or hazardous in a network of stores. Record the number of manual intervention steps per campaign and who performs them; do not hide ongoing operating work behind a single attractive screenshot.





Protect contrast and accessibility when using color

Color must not be the only method for expressing a discount, membership requirement or alert. An associate with color-vision differences should still distinguish a current promotion from normal pricing using text and layout; a shopper looking under an unusual angle should still find the price. Printed or electronic viewing conditions are not equivalent to a desktop screen, so do not assume web-page contrast ratios automatically certify a particular e-paper shelf display.

Include tests with the label mounted at the upper and lower shelf heights actually used. Read the smallest text and the longest permitted item name. Ask participants to identify which price applies to them without being told what the accent means. This avoids a common research mistake: teaching users the code in advance, then concluding the interface is self-explanatory.





Check the image-production pipeline for color loss

A management platform may accept a rich source image yet render it through a limited device palette. Request a complete demonstration from asset creation through template compilation, transfer and final label display. Save the source asset, exported display image, label photograph and firmware/template versions together. Differences could come from palette conversion, text rasterization, unsupported fonts, compression or a device-specific driver mode; the observed artifact alone does not identify the cause.

Test tiny glyphs, decimal points, unit-price separators, long currency formats and a promotional badge next to saturated product packaging. If the final image makes "4.20" and "4.80" hard to differentiate or clips eligibility wording, revise the design before considering color quality. For multi-store content, lock template revisions so one branch cannot improvise an unreviewed treatment while another is using an older version.





Make the content-to-label chain testable

The retail price source, template engine and electronic display do different jobs. A template can be correct but applied to the wrong SKU. A label can receive the correct color image but remain bound to a discontinued item. Maintain a traceable chain: price/promotion record → approved state rule → template revision → intended label/SKU binding → delivery job → observed shelf result.

For a campaign with a defined end time, test all three transitions: ordinary price to promotion, promotion to member state if applicable, and final return to the correct regular state. Record both the source-system result and the visible shelf state. If one device stays offline, the exception process must flag the potentially stale presentation; it cannot simply assume a message was delivered because it entered a queue. See the independent ESL update troubleshooting guide for device-level fault triage.





What the supplier must demonstrate before approval

Ask for a specific device-and-software configuration rather than a product-family promise. The evidence package should include sample labels at the intended sizes, supported color modes, required operating conditions, template import/output rules, update demonstrations, mixed-device fallback behavior and available job-status evidence. A device described as four-color in a general brochure is not enough to prove every size or firmware version behaves identically.

For the pilot sign-off, retain the approved color-state register, template revisions, test tasks, raw results, exception log and a named decision owner. Label any unexplained results as unresolved. Once deployed, review the color hierarchy when a new promotion or pricing rule changes the meaning of existing treatments-not every time the merchandising team asks for another brighter badge.





Worked release scenario: a promotion ending while some labels are offline

Imagine a hypothetical evening campaign with 250 participating labels across three device classes. At its end time, the price source restores the approved regular price. The management platform dispatches the change, but the store audit finds six labels that cannot be confirmed in the new state. It would be unsafe to treat all 250 as successfully reverted merely because the promotion job was submitted.

The control sequence is: identify the exact six device IDs, map them back to shelf positions and source-state versions, check whether a supported delivery acknowledgment exists, and verify the actual displayed content. If some devices remain unreachable, store operations must use an approved temporary procedure for those shelf positions until the current price is confirmed. A second campaign must not silently reuse a template revision that leaves the six exceptions unresolved.

This scenario tests two things that a color showroom demo cannot: whether the meaning of a visual promotion ends at the correct time, and whether the mixed fleet provides enough device-level evidence to identify stale presentations. The retailer should record campaign start/end identifiers, expected device count, observed new-state count, exception count and closure owner. In this example, 244 confirmed reversions out of 250 targeted devices would represent 97.6% confirmed at the audit point; that is not 100% success and does not prove a vendor's performance.





Demand an approval trail for future new color meanings

Color semantics have a lifecycle. When marketing asks to make a new product attribute amber, someone must establish whether amber already means a clearance price, whether the source attribute is validated, whether the chosen display renders it distinctly, and whether the claim is appropriate for the intended market. Put those checks into a content-change request with a versioned decision record. A store manager should not have to infer the difference between two badges that share a color.

Before releasing a new visual state, check how it interacts with higher-priority price text, disabled or old campaign data, the monochrome fallback and other device classes. If any of those outcomes cannot be demonstrated, the appropriate action is to hold the state change while the underlying ESL price workflow continues normally. This governance protects a retail business from converting each short-term campaign into an unmaintainable collection of one-off display variants.





Choose the display based on what the shelf must communicate

Color electronic shelf labels are useful when color has a stable meaning and the retailer can prove that shoppers understand it. The right choice may be limited-accent e-paper for clearly defined promotions, broader-color e-paper for relatively static rich information, or LCD for applications that genuinely require dynamic media. None is automatically superior, and none can substitute for correct product data, readable pricing and verified updates.

For a configuration discussion, provide the intended label sizes, state register, sample templates, store environment, update frequency and pilot acceptance questions through the KioskTagScreen inquiry channel. Those inputs make a supplier recommendation testable rather than a generic color-count comparison.
