Automatic brightness control sounds simple: measure the room light and make the display brighter or darker. In a real commercial installation, the difficult part is everything between those two actions.
An ambient-light sensor can be pointed at the wrong light source, partially covered by a bezel or product, affected by the display itself, or placed behind material that changes its response. A poorly tuned control curve can make the screen jump between levels whenever a cloud passes or a customer casts a shadow. A night schedule can conflict with sensor control. A manual override can remain active for days. Two screens on the same fixture can respond differently even though both are technically working.
This guide focuses on that control loop: how to place and validate the sensor, map ambient light to a useful brightness range, prevent hunting, coordinate schedules and overrides, and verify the complete behavior during commissioning. It does not define a universal nit target for every display. For the separate question of how much luminance and reflection control an installation needs, use the commercial LCD brightness and reflection guide.

Think of auto brightness as a control loop, not a checkbox
A commercial display with automatic brightness control usually contains five logical stages:
- Ambient-light input: a sensor measures light reaching its optical window.
- Signal conditioning: the controller filters noise, short shadows, spikes, or unstable readings.
- Mapping: a curve or set of thresholds converts ambient light into a target brightness command.
- Guardrails: minimum/maximum limits, schedules, manual overrides, and fault behavior constrain the command.
- Backlight response: the display changes backlight output using the hardware and control method supported by that model.
| Control-loop element | Main engineering question | Typical failure |
|---|---|---|
| Ambient-light sensor | Does it see the light condition that matters to the viewer? | It sees a spotlight, the display itself, or an obstructed local pocket instead of representative ambient light. |
| Filtering / persistence | How long must a change persist before the system reacts? | Passing shadows or short lighting changes cause visible brightness hunting. |
| Dimming curve | What output should correspond to each relevant ambient condition? | Transitions are too aggressive, too flat, or poorly matched to the installed environment. |
| Limits and schedules | Which minimum, maximum, day/night, and override rules constrain the curve? | Night output remains too high or a schedule unexpectedly overrides sensor behavior. |
| Backlight actuation | How does the exact display implement brightness changes? | A setting change introduces flicker, step changes, or model-specific behavior not seen on the sample. |
Commercial-display manufacturers implement these stages differently. EIZO's Auto EcoView documentation, for example, allows separate maximum and minimum brightness values and separate ambient-light settings for the bright and dark ends of the adjustment range. LG commercial-signage documentation also shows implementations where an ambient sensor adjusts brightness inside user-defined minimum and maximum backlight limits. Those are useful examples of the control concept, not proof that every commercial LCD exposes the same controls.

Place the sensor where it measures the viewer's environment
Sensor placement is the first design decision because software cannot correct a sensor that is observing the wrong environment.
The sensor should respond to the ambient light that changes how the display is perceived. It should not be dominated by the screen's own backlight, decorative fixture lighting, a nearby spotlight, or an unusually dark cavity in the enclosure. In a retail shelf application, also consider temporary conditions: stocked products, promotional headers, cleaning tools, price strips, or a customer's hand can block a poorly placed sensor.
Before freezing the enclosure, check the intended sensor position against these failure modes:
- Display self-light: a bright white scene raises the sensor reading even though the room has not changed.
- Local spotlight: the sensor sees a concentrated luminaire that does not represent the shopper's view.
- Window asymmetry: one end of a long display run receives daylight while another sits in a darker zone.
- Physical obstruction: trim, glass, shelving, product stock, signage, or cleaning residue partially covers the sensor.
- Tinted optical path: smoked glass, dark bezels, coatings, or a sensor window alter the light reaching the sensing element.
Ambient-light sensor manufacturers warn that optical covers can change spectral response. Analog Devices has published application guidance showing that dark glass can alter the light spectrum reaching a sensor and require calibration or compensation. The practical lesson for commercial signage is simple: validate the sensor in the final enclosure and optical path, not only as a bare component on a bench.

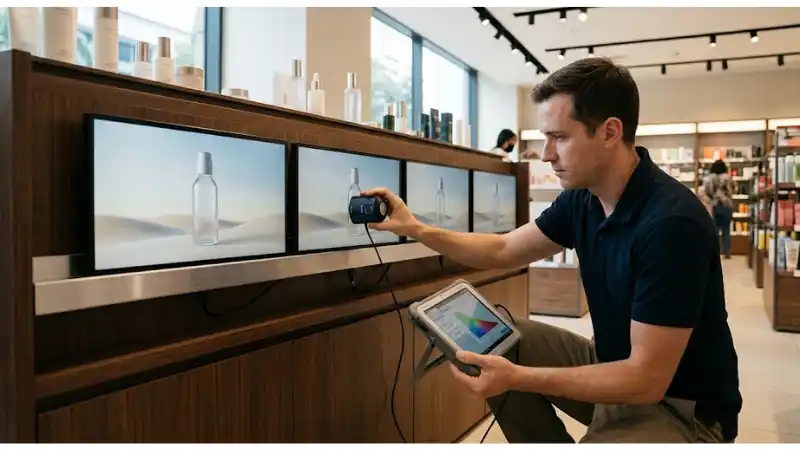

Define the control zone before deciding how many sensors you need
A long bar LCD installation may contain several screens but only one lighting zone-or several very different zones. The sensor architecture should follow the environment rather than the screen count.
One sensor can control several displays when the screens share approximately the same ambient condition and are intended to behave as one visual group. Separate control zones are more appropriate when one section is beside a window, another is under a brighter fixture, or local reflections change the visibility requirement.
Do not assume that "one sensor per screen" is automatically better. Multiple sensors can create a different problem: adjacent screens may choose different brightness levels and make a coordinated shelf run look uneven. If several screens are intended to appear as one ribbon, define whether they should share one control input, use a common site reading, or apply synchronized limits. Optical matching across adjacent displays is a separate task covered by the multi-screen Bar LCD color-matching guide.

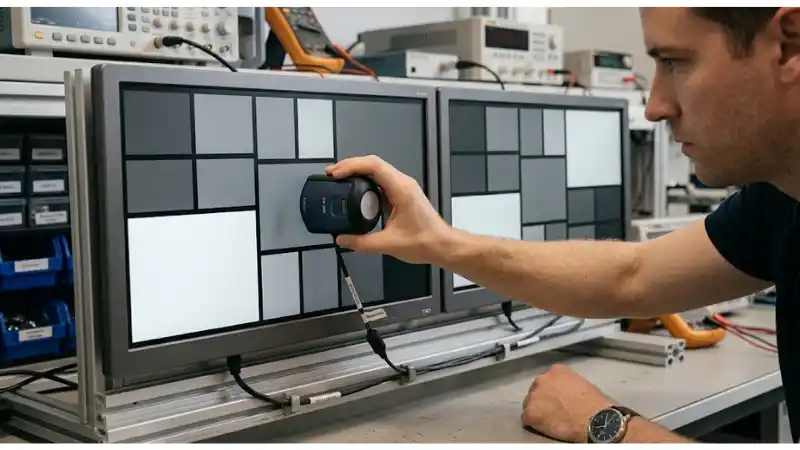

Calibrate the sensor in the installed system
The controller does not need a laboratory-grade lux reading to be useful, but it does need a reading that is stable and meaningful for the installed environment.
Microsoft's ambient-light sensor guidance recommends validating integrated sensors against a professional lux meter and changing environmental light gradually to confirm that readings rise and fall smoothly. That principle is useful for commercial displays even when the controller is not Windows-based.
A practical commissioning check is:
- place a calibrated or otherwise suitable reference light meter near the sensor location without blocking it;
- record the sensor reading and reference reading under several representative lighting conditions;
- repeat the sequence while light increases and while it decreases;
- check for discontinuities, frozen values, unexpected offsets, or excessive noise;
- repeat after the final glass, bezel, enclosure, or sensor cover is installed.
The goal is not necessarily to force the embedded sensor to match the reference meter at every point. The goal is to understand whether the installed sensor produces a repeatable signal that the dimming curve can use. If the sensor is consistently biased because of its optical cover, the mapping can sometimes compensate. If the sensor reading changes unpredictably with light source type, angle, contamination, or screen content, the hardware placement needs attention.
Build the dimming curve from the installed viewing conditions
The dimming curve is the relationship between ambient-light input and commanded display brightness. It can be continuous, piecewise, or threshold-based depending on the controller. What matters is that the mapping is intentional.
Start by defining a usable output envelope:
- Minimum: the lowest output that remains readable and visually acceptable in the intended dark condition.
- Maximum: the highest output the project intends to use under the brightest relevant condition.
- Intermediate points: enough control points to avoid large visible jumps or a curve that responds too strongly in one region.
EIZO's Auto EcoView controls illustrate this concept by exposing independent bright-environment and dark-environment limits and allowing the slope of the response to be changed. The exact mapping for a retail bar LCD should be derived from the actual display, content, ambient light, optical stack, and viewing distance rather than copied from another monitor.
| Curve point | Ambient condition | Sensor reading | Target backlight command | Measured screen luminance | Visual check |
|---|---|---|---|---|---|
| A | Dark / closed-hours condition | Record project value | Record project value | Record measurement | Readable without excessive glare |
| B | Normal indoor condition | Record project value | Record project value | Record measurement | Normal content retains intended contrast |
| C | Bright indoor / window-influenced condition | Record project value | Record project value | Record measurement | Key text and imagery remain usable |
| D | Brightest approved operating condition | Record project value | Record project value | Record measurement | Output remains inside project thermal and optical limits |
Do not confuse the sensor reading with the display luminance. One is the control input; the other is the display output. During commissioning, record both so the curve can be reproduced later.
Prevent hunting with hysteresis, persistence, and smooth transitions
A system that reacts to every small lux change can look worse than a fixed-brightness display. The most visible symptom is hunting: the backlight repeatedly moves up and down around a threshold.
Several control techniques can be combined:
- Hysteresis / deadband: use different up-transition and down-transition thresholds so the controller does not switch back immediately when the reading hovers near one boundary.
- Persistence / dwell time: require the new condition to remain present for a defined interval before changing brightness.
- Filtering: smooth noisy sensor readings before the mapping stage.
- Rate limiting: move toward the target gradually rather than jumping to it in one step.
- Asymmetric response: where justified by the use case, allow brightening and dimming to use different response speeds.
Analog Devices' ambient-light sensor application notes describe the same control concerns: transient shadows can cause nuisance brightness changes, threshold delays can reject fleeting events, overlapping upper/lower thresholds provide hysteresis, and brightness transitions are usually more comfortable when they ramp rather than jump. The exact delay, deadband, and ramp rate remain project-specific.
This is one of the most important areas to test with movement rather than static light levels. A curve can look perfect in a spreadsheet and still hunt badly when a person walks past the sensor or sunlight changes behind moving clouds.

Coordinate the sensor with day/night schedules
A schedule and an ambient-light sensor solve different problems. A sensor responds to measured light; a schedule reflects operating policy.
A useful design can combine both by treating the schedule as an envelope rather than as a competing controller. For example, a site can define a lower maximum during closed hours while still allowing the sensor to adjust within the approved range. Another site may disable sensor-driven increases after a certain time. The correct interaction depends on the installation.
Document which rule wins when both are active:
| Condition | Question to resolve |
|---|---|
| Day schedule + bright ambient | Can the sensor use the full daytime range? |
| Night schedule + unexpected bright ambient | Does the night cap remain authoritative, or can the sensor raise output? |
| Schedule transition while sensor value is stable | Does brightness ramp smoothly or step abruptly? |
| Clock / time-zone error | What behavior is considered safe and visible to operations? |
| Power cycle near a schedule boundary | Which state is restored first: schedule, sensor control, or stored manual value? |
If the approved state depends on OSD settings, timers, remote-control values, or firmware configuration, those values should be controlled under the separate commercial LCD configuration baseline.
Make manual override temporary and observable
Manual brightness override is useful during installation, photography, troubleshooting, or unusual store events. It is also a common path to configuration drift.
Define the override as a state with an owner and an exit condition. The project should answer:
- Who is allowed to enable it?
- Does the interface show that automatic control is currently suspended?
- Does the override expire automatically, end at the next schedule transition, or require a deliberate reset?
- What happens after power loss or reboot?
- Can remote monitoring distinguish "auto," "scheduled," and "manual" states?
Do not release a fleet where one technician can leave a screen at maximum output indefinitely without the operating team knowing that automatic control has been bypassed.
Design a predictable fallback for sensor faults
The controller also needs a defined response when the sensor input is missing or implausible. Failure handling should be simple enough that technicians can diagnose it in the field.
| Failure condition | How to detect it | Project decision to define |
|---|---|---|
| Sensor blocked | Reading remains abnormally low despite known bright conditions | Inspection / cleaning path and fallback brightness policy |
| Sensor sees display or spotlight | Reading changes with content or local lamp state rather than room condition | Relocate, shield, or reorient sensor; do not "tune around" a bad optical position |
| Frozen reading | Sensor value remains unchanged while reference light changes | Alarm, diagnostic flag, or controlled fallback |
| Implausible jump | Reading changes faster or farther than the installed environment can reasonably change | Filtering, plausibility check, or temporary hold |
| Disconnected / invalid input | Controller reports missing data or an invalid range | Fallback state and service notification |
| Override stuck active | Auto state does not return after its intended expiration | Timeout, schedule reset, or explicit alarm |
The fallback does not need to be the same for every project. A fixed safe level, last-known acceptable state, schedule-based value, or other model-supported behavior can all be reasonable depending on risk. What matters is that the behavior is known before deployment.

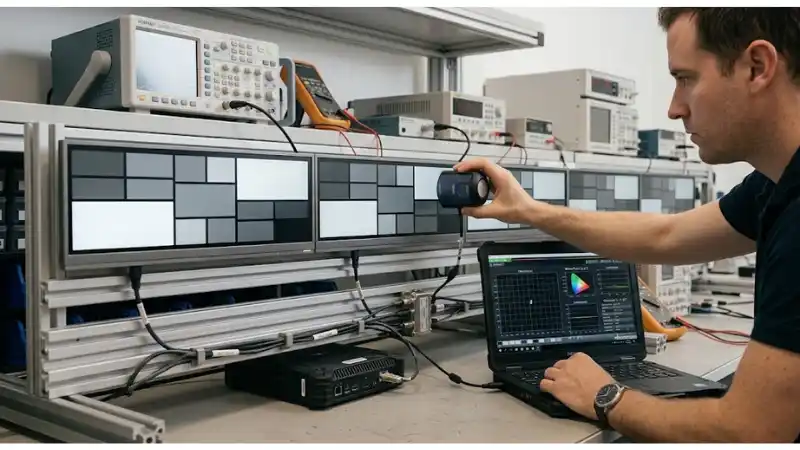

Commission the control loop with both ramps and disturbances
A good acceptance test does more than place the screen in a bright room and a dark room. The control loop needs to be observed while conditions change.
Use the production-equivalent screen, sensor position, enclosure, firmware, configuration, and content path. Then run the following sequence:
- Baseline: confirm the approved model/configuration and record current sensor state, brightness command, and measured luminance.
- Slow upward ramp: increase ambient light gradually and record the curve response.
- Slow downward ramp: decrease ambient light and confirm that hysteresis does not create an unacceptable dead region.
- Short disturbance: create a brief shadow or light spike and confirm it does not cause an unnecessary visible jump.
- Sustained change: hold a new ambient condition long enough to confirm that the system eventually reaches the intended level.
- Sensor obstruction: partially and fully block the sensor, then restore it and observe recovery.
- Schedule boundary: verify the interaction between the dimming curve and the day/night policy.
- Manual override: enable it, confirm its status is visible, and verify the intended exit behavior.
- Power cycle: confirm which control state returns after restart.
Microsoft specifically recommends slowly ramping environmental light up and down when validating ambient-light systems because coarse, discrete changes can produce poor brightness behavior. Use a reference lux meter when sensor accuracy matters and measure display luminance with an appropriate instrument when luminance is part of the acceptance criteria.
Record a curve that can be reproduced after service
A passing test is not enough if nobody can reproduce the approved behavior later. The commissioning record should tie the curve to the exact production state.
| Record field | What to capture |
|---|---|
| Display identity | Exact model, hardware revision where relevant, firmware, and backlight/control revision if documented |
| Sensor identity | Sensor type or module, mounting position, orientation, cover/window, and control zone |
| Curve definition | Ambient breakpoints or mapping, min/max output, hysteresis/deadband, persistence, ramp behavior |
| Schedule interaction | Day/night rules and which control source has priority |
| Override behavior | Who can override, expiry/reset rule, reboot persistence, remote status visibility |
| Measurement method | Reference lux meter if used, luminance instrument if used, measurement geometry, test content, ambient condition |
| Acceptance result | Observed response, defects, approved exceptions, and final baseline revision |
The configuration values themselves belong in the fleet or site configuration baseline. The automatic-brightness record should explain why those values were approved and what measured behavior they produced.
Retest the affected part of the loop when the environment changes
Automatic brightness control is sensitive to changes outside the display. A screen can remain electrically healthy while the original curve is no longer appropriate.
Targeted revalidation is appropriate after changes such as:
- sensor relocation, replacement, cover change, or bezel redesign;
- new fixture lighting, window treatment, architectural lighting, or merchandising that changes the sensor field of view;
- firmware or controller changes that affect sensor processing or backlight control;
- new min/max brightness policy, schedule, or manual-override behavior;
- replacement display, backlight driver, panel, or control board that changes output for the same command;
- new camera/recording requirement if low-brightness operation exposes backlight modulation.
If cameras or machine vision will record the display, brightness control should also be checked against the commercial LCD PWM dimming and camera-flicker guide. Automatic brightness may move the display through operating levels that were never tested during a maximum-brightness showroom demo.
Acceptance should verify behavior, not one preferred setting
There is no universal "correct" dimming curve for every commercial LCD. A useful acceptance specification defines the behavior that matters for the installation:
- the sensor measures a representative lighting condition;
- the sensor response is repeatable in the final enclosure;
- the brightness curve stays inside approved minimum and maximum limits;
- small transient light changes do not cause distracting hunting;
- sustained changes eventually produce the intended output;
- schedule and manual-override priorities are unambiguous;
- sensor faults have a predictable fallback;
- the control state is observable enough for service staff to diagnose;
- the accepted curve and test method are stored as part of the production baseline.
