A commercial LCD can have two video inputs and still have no reliable failover. If its primary player loses power, a display controller may switch to the backup. If the same player freezes while continuing to output a valid HDMI signal, that controller may see no failure at all. A backup player is useful only when the failure can be detected, the alternate path is usable, and the return to normal operation follows an agreed rule.

For retail signage, self-service terminals, and unattended commercial displays, input signal failover should be specified as an end-to-end operating behavior, not as an unqualified "auto source" feature. The buyer needs to know what counts as a failed source, who makes the switching decision, what remains visible during recovery, and how the result is tested on the final hardware and firmware combination.

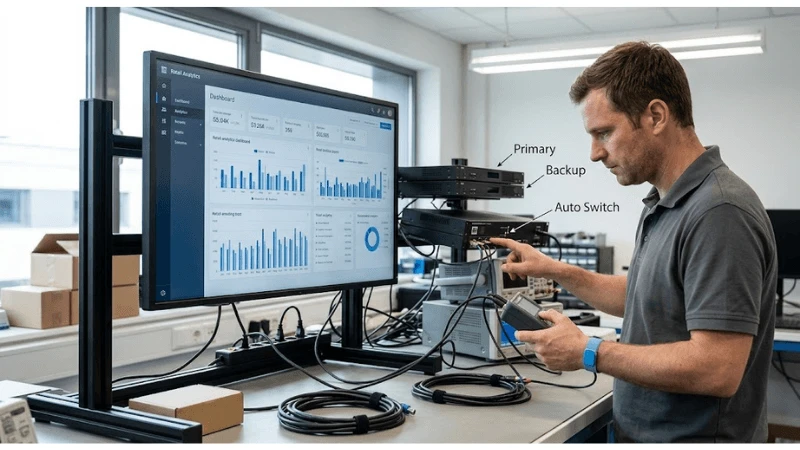

Technician checking two independent video sources connected to a commercial LCD during integration testing.





First, identify what the display can actually detect

Video presence, valid video, and useful content are three different conditions. Treating them as one is a common cause of black-screen incidents that appear to defy an automatic input-selection setting.

Observed condition What it means Can a basic input-presence switch detect it? Practical response
No electrical/video signal on the selected input The source, cable, intermediary device, or its power path is unavailable Often, if the controller supports signal-loss detection Try an available backup input under a documented priority rule
Signal present but unsupported or not correctly negotiated Timing, EDID, hot-plug, or other link negotiation may be wrong Not consistently; behavior depends on the hardware Check input status, source output mode, and each intermediary link
Valid video carrier showing a frozen, black, or outdated frame The player or application may have failed while its output remains active Usually not from carrier detection alone Use player/application health supervision or content-aware monitoring where justified
Display menu or backlight is not functioning The issue may be within display power, panel, backlight, or controller hardware No reliable benefit from source switching alone Follow a display fault-isolation procedure

For example, a media player that crashes to a static black desktop may continue generating a perfectly valid HDMI output. An LCD that switches only on signal loss has no reason to leave that input. An application watchdog, supervised player restart, or independent output selector may be required, depending on the continuity objective. Those functions are not universal features of commercial LCDs.





Decide where the switching decision lives

The point of control affects what faults can be caught and what equipment must remain available. Identify the exact decision-maker before asking suppliers for "automatic failover."

Control arrangement Suitable use Important boundary
Display-controller input priority A local installation with two compatible sources and signal-loss-based recovery Must confirm priority behavior, input detection, and retained settings for the exact display/controller revision
External video switcher or matrix Multiple sources, distributed routing, or a controller-independent switching policy Switcher power, firmware, EDID handling, and routing logic become additional dependencies
Player or application watchdog Detecting frozen playback, stale application state, or media-service failure Can recognize software faults but cannot guarantee recovery from a failed video cable or display input
Remote monitoring with operator approval Fleet operations where diagnosis and controlled restoration are more important than immediate autonomous switching An alert is not a local failover mechanism, especially when the network is unavailable

A single screen with two players connected to separate inputs may need no matrix if the selected LCD controller demonstrably enforces the required priority rule. Conversely, two HDMI sockets on the back of a display do not prove that such a rule exists. For broader commercial display choices, see the Bar LCD and commercial display range; the behavior of any particular input controller still needs configuration-level verification.

Published manufacturer documentation confirms that this behavior is model-specific, not an automatic property of an LCD with two connectors. For example, LG lists a "Fail over" software capability on the 55UH7F-H product specification. That is an LG model example, not a capability claim about KioskTagScreen equipment and not a substitute for checking a current controller datasheet. Even when the feature is listed, the exact fault trigger, priority order, return behavior, firmware revision, and source formats require verification on the proposed system.



A backup is only as independent as its shared dependencies

Trace the physical route from each media source to the panel. Include the player power adapters, AC circuit or UPS, network connection if playback depends on it, HDMI/DisplayPort converter, extender transmitter and receiver, switcher, patch panel, and final input. Mark every common component. Two players fed through one failed extender receiver do not create two working video paths. Likewise, a backup that requires the same unreachable cloud service may not provide useful content when a network incident causes the primary problem.

Independence should be proportional to the business requirement. A local backup video loop may be sufficient for non-interactive retail signage. A kiosk that depends on a live transactional application needs a separate application-continuity design; switching a video feed cannot preserve a payment session or complete an interrupted transaction.





Choose the recovery output: another source, cached content, or a service state

A failed input is a routing event; a failed content service is an application event. A second HDMI source is only one possible continuity strategy. A local player with cached media may be adequate when the business task is to keep a non-interactive information loop on screen; it is not a replacement for the primary transaction application inside a payment or self-service kiosk. The fallback state must be specified as carefully as the switching trigger.

Recovery mode When it is useful Proof required from the proposed equipment
Alternate physical video input Local primary-source hardware or connection failure Input priority, supported modes, trigger detection, and measured visible result
Locally stored emergency media Unattended signage needing a basic offline information screen That media is actually resident and playable without the failed path or unreachable network
Application-level safe state Interactive kiosk where the main application cannot complete a transaction Session handling, user-visible explanation, data integrity, and recovery ownership
Operator-selected maintenance input Diagnosis, deliberate service work, or controlled recovery Permission to override, labeling of active mode, and a defined return to automatic control

Do not promise that the LCD itself can display custom fallback content unless the specific player or display firmware and storage architecture support it. A panel showing its built-in No Signal notice does not demonstrate that a customer-provided emergency video can play.





Make source priority a state machine, not a menu preference

Specify the controller's desired states and the conditions for moving between them. The example below is a proposed operating policy for engineering discussion, not a claim about any KioskTagScreen controller.

Current state Trigger Required action Question to settle before deployment
Primary active Primary judged unavailable after the configured validation interval Select a qualified backup path Does detection use carrier, valid timing, application health, or a combination?
Backup active Primary signal reappears briefly Remain on backup until the chosen return condition is met Is a stability interval, manual approval, or immediate return required?
Backup active Primary qualifies as recovered Return automatically, await approval, or continue on backup according to site policy What is the acceptable disruption from switching back?
Neither source usable Both inputs unavailable Display a defined no-signal indication, local fallback, or other approved state if supported Which device owns the fallback image, and can it display without the failed sources?
Manual override Technician deliberately selects an input Hold that selection according to a documented service rule How is automatic mode restored, and who may do it?
Reboot or AC restoration Display, switcher, or player restarts Recover into a deterministic source-priority state Which settings persist, and what is the actual startup order?

In the absence of an explicit stability or restoration rule, a marginal source can repeatedly reconnect and steal focus from a healthy backup. This is sometimes called source flapping. If the equipment supports configurable detection and return delays, choose their values by observing actual player reboot and link-negotiation behavior; do not copy a generic number into every deployment. If delays cannot be configured, record the fixed behavior and decide whether it is acceptable.

Conceptual failover policy showing backup activation and controlled return to a stable primary video source.





EDID and hot-plug behavior can defeat an otherwise correct policy

HDMI uses more than a video data path. Hot-Plug Detect (HPD) tells the source that a sink is available; the Display Data Channel (DDC) is used to read Extended Display Identification Data (EDID), including supported modes. A source cannot assume its previous resolution and color format remain usable after a switcher or extender changes the connected sink. Texas Instruments video-interface training explains the separate roles of HPD, DDC, and EDID. Their successful exchange does not, by itself, prove that an application is playing useful content or that a specific display has automatic input switching.

Do not assume an intermediate box is an electrically invisible cable. Some switchers offer EDID emulation or stable EDID presentation; others expose a different EDID to the source depending on routing and power state. An HDMI/DisplayPort conversion stage introduces another device-specific behavior. If protected content requires HDCP, all relevant devices must negotiate the required protection correctly; successful switching of unprotected test patterns does not establish protected-content compatibility.

Record the entire mode and handshake path

  • Capture source model, graphics output, firmware/driver version, and the production resolution and refresh rate.
  • Record display input and controller revision, cable length/type, converters, switcher or extender models, and their firmware.
  • Verify the EDID seen by the source in normal, backup-selected, and recovery states, using suitable test equipment or diagnostics where available.
  • Observe what happens if the display powers up before the player, after the player, or while the switcher is rebooting.
  • Repeat with the actual deployed configuration; a short direct cable is an isolation test, not proof that the installed path is reliable.





Separate black-screen fault isolation from the failover policy

When a screen goes black, first preserve the current state. A blind factory reset destroys evidence and may erase source-priority settings. Use the following sequence without opening a powered enclosure or bypassing electrical safety controls.

  1. Confirm whether the LCD itself is operating. Check the documented power indicator and on-screen display (OSD), if accessible. If the OSD does not appear, do not attribute the fault to source selection without checking the display's supported diagnostic path.
  2. Read the selected-input state. Note which port is active, whether the controller reports signal present, and whether the input timing is recognized. Record the menu setting before changing it.
  3. Check the source separately. Confirm that its application is running and that the graphics output is actually producing useful content. A remote screenshot can help, but it may show application output without confirming that the physical HDMI path works.
  4. Isolate intermediate devices. If authorized and practical, compare the deployed route with a known-good source and a short direct connection. Restore one extender, adapter, or switcher at a time to identify the failing boundary.
  5. Test manual selection before automatic behavior. Prove that the backup picture is valid when selected directly. Only then investigate the controller's detection and priority rules.
  6. Retest the original fault. Restore configuration, reproduce the trigger under controlled conditions, and document the selected input, visible image, and restoration result.

For general panel symptoms such as flicker, lines, unstable power, or a no-signal state unrelated to redundancy logic, use the separate LCD display troubleshooting guide. This article addresses continuity across source failures, not all possible panel faults.





Build acceptance tests around observable behavior

Define the observation boundary before timing recovery

A switcher may report that it changed inputs before the viewer sees stable content. For every acceptance run, name two separately observed events: (1) the instant the primary failure is deliberately injected or first detected, and (2) the instant the backup content becomes legible and stays stable. If only one of these times is observable, record the limitation. A controller log timestamp is not interchangeable with a camera recording of the visible picture.

Choose allowable interruption and stability limits as project-specific acceptance criteria; they depend on content type, source boot time, negotiation, switcher firmware, and operator expectations. Do not insert a generic "switches within two seconds" promise without a validated complete system.

A failover demonstration should measure what the viewer sees and what the technician can verify. Agree on the maximum acceptable interruption for the actual use case before testing, then record the observed time rather than writing an unsupported universal switching-speed claim. Use the production cable route, content, player software, controller firmware, and power-up behavior.

Acceptance event Test setup Pass evidence to capture
Cold start, primary present Start from the approved fully off state Selected primary, usable image, startup time, and retained priority settings
Cold start, primary absent Start with backup connected and primary disconnected Selected backup and result without manual intervention where automatic failover was specified
Primary cable loss Interrupt only the primary connection at an approved service point Trigger recognized, backup appears, interruption duration, source-status log
Primary player loses power Power down only the primary device using its approved procedure Backup behavior; identify any unexpected shared power dependency
Primary application freezes but video carrier remains Use a controlled test of stale playback without disconnecting the video output Whether the system detects the problem; explicitly record if carrier-only failover cannot
Primary returns unstable Reboot or briefly interrupt the primary in a repeatable manner No unintended repeated source oscillation under the agreed policy
Display/switcher reboot while on backup Restart the relevant component under controlled conditions Deterministic post-boot selection and settings persistence
Both sources unavailable Remove both sources from service in a safe test Documented no-signal or local fallback behavior; no invented fallback capability
Expected production mode change Run legitimate source-resolution or refresh transitions Image returns without becoming trapped on unsupported timing
Manual service override and release Select backup manually and restore automatic control Operator procedure works; override does not silently remain active

For each test, keep the event timestamp, initial/final selected inputs, visible result, interruption duration where measurable, monitoring event, equipment revisions, and tester's observation. Repeat failure modes that could be intermittent. A test passes only against a pre-agreed acceptance criterion; "the image came back once" is insufficient when continuity is operationally important.



Keep a test record that can distinguish a policy failure from a handshake failure

Use one row per fault injection, not a single "PASS" mark for an entire demonstration. Example recording fields below are a blank test-template structure, not project results or a performance claim.

Field What to capture Why it matters
Configuration ID Display/controller revision, player build, switcher/firmware, input routing diagram Makes the result reproducible and identifies changed dependencies
Starting state Primary/backup powered, selected input, visible content, active override mode Prevents ambiguous failures caused by a wrong precondition
Fault and timestamp Which cable, player or application was interrupted; method; observable start Separates carrier loss from frozen application playback
Observed transition Selected input; visible blackout; first stable backup frame; alarms Tests the viewer's experience, not simply a switch command
Return and recurrence Reconnection behavior, stability/override policy, multiple cycles Exposes flapping, stale source priority, or non-persistent settings
Disposition Pass/fail against the agreed limit; diagnostic notes; test evidence reference Allows procurement, operations and supplier teams to act on a failure

Repeat runs with the application displaying actual production content as well as a basic test pattern. A test pattern confirms a physical video path; it does not prove that the intended content is current. Test an application freeze separately from cable removal, because those faults are not equivalent.

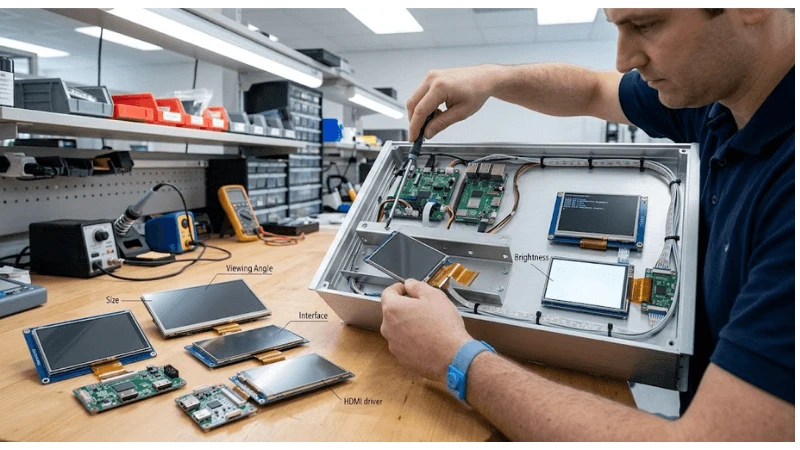

Engineer documenting source-switching observations during commercial LCD failover acceptance testing.





What belongs in the procurement requirement

An RFQ sentence such as "dual HDMI with automatic switching" leaves too much open. State the required outcome in plain language. For example: When the primary source loses video signal, the system shall select the designated backup and display its valid content without technician input, subject to an agreed interruption limit. Return to the primary shall occur only under the documented recovery policy. Loss of application playback while video remains active shall be identified as a separate supervision requirement.

This is an illustrative requirement, not a tested specification for a named product. Ask the display or system supplier to answer these points for the exact proposed configuration:

  • Which component owns signal-loss detection, video switching, and application-health detection?
  • Which input types, output modes, and source priorities are supported by this controller and firmware?
  • Can signal-detection and return-to-primary behavior be configured, and do settings survive AC loss?
  • What happens when the selected source retains a valid carrier but shows frozen or black content?
  • What EDID, HPD, and HDCP conditions apply to the complete signal path?
  • Which logs or menus expose selected input, signal status, and reason for a transition?
  • Can the supplier demonstrate the agreed acceptance matrix using production-equivalent parts?
  • Which change notices trigger requalification of the controller, player image, switcher, or extender?





Keep source continuity separate from scheduled power control

A display scheduled to turn off at closing time is not necessarily experiencing a failed input. Conversely, restoring video after the primary player reboots is not the same as recovering from an AC outage or safely shutting down an operating system. Define those behaviors independently, then test their interaction. The commercial LCD scheduled power-control guide addresses clock scheduling, shutdown order, and power restoration rather than video-source arbitration.

On a deployed estate, preserve a known-good configuration record for the exact controller, player, switcher, and software versions. Re-run the relevant failover tests after changes to display firmware, video extenders, graphics drivers, source timing, input menus, or player software. The deliverable is not simply a screen with multiple sockets: it is a repeatable recovery behavior that operators can understand and verify.





Record what was not proven

An acceptance certificate should have a not tested / not supported column for conditions such as application freeze detection, encrypted playback, long cable runs, network isolation, and fault recovery after a firmware update. Passing a disconnected-HDMI test should not be translated into a claim that the system detects every black screen. If a required failure mode remains untested, keep it out of the guaranteed operating description until the supplier can demonstrate it.

After deployment, re-run the relevant fault tests whenever controller firmware, player software, graphics drivers, EDID settings, converters, or input-routing hardware change. The minimum useful handover contains the approved signal-path diagram, source-priority policy, recorded test conditions, observed results, and a procedure for leaving manual override mode safely.
