A commercial LCD can complete its scheduled power-on event and still show nothing useful when a store opens. The controller may be awake while the media player remains shut down; an external relay may have removed power during an update; or the player may have started before the display finished detecting its video input. A timer setting alone does not establish reliable morning operation.

Specify scheduled power control as a sequence of observable states across the display, player, clock, network, and external power circuit. Define who issues each event, what remains energized overnight, and what should happen after an outage. This guide is for retail display integrators and buyers, including projects that use a local real-time clock (RTC), a content-management system (CMS), an Android or Windows player, or a separately controlled power circuit. The available functions vary by hardware and firmware and must be verified for the actual equipment.

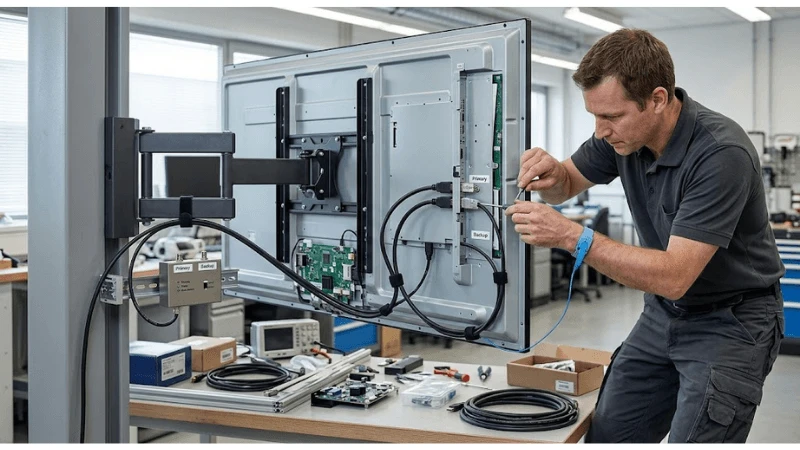

Commercial LCD, separate media player and network equipment arranged for scheduled-power integration testing.





Define the Power State Before Programming the Timer

"Off" is not a single technical state. A black image, an unlit backlight, controller standby, operating-system shutdown, and removal of AC supply are different conditions. Map the supply path to the display controller, backlight, media player, network hardware, and peripherals before selecting an on/off method.

Requested overnight state What may remain active Operational reason Acceptance question
Display standby; player running Standby controller and the active player/network Fast morning visibility or overnight content updates Will the specified command wake the panel, and which devices remain reachable?
Backlight off; player running Controller, player, network, and potentially the panel interface Keep computing available while suppressing visible output Does the hardware offer a distinct backlight state, and what power does it actually draw?
Display standby; player shut down Display standby circuitry and any separately powered controller Lower active computing load with an orderly OS stop What mechanism starts the player again, and who confirms that it has booted?
Switched AC supply removed Only equipment outside the switched circuit or protected by independent power Site-level isolation when required by the design Can the system restart after power returns without a manual button press?
Normal operating state Display, player, and required communications Store-hours playback Is the intended content actually visible on the correct input?

A clock battery, where fitted, may retain time while mains power is absent; it does not by itself energize a disconnected screen. Likewise, a dark display does not prove that the media player is shut down. These distinctions determine whether an external timer or relay can deliver the required outcome.





Choose the Schedule Authority: RTC, CMS, Player, or Building Control

The useful question is not whether the system has a "timer" but which component is authorized to change each power state. Several independent schedulers can conflict: a display RTC might wake the panel at 08:00, a player task might start at 08:15, and a building relay might supply AC only at 08:30. An operator sees a failed schedule even though each device has followed its own instruction.

Control method Suitable use Main dependency or limitation Ask the supplier to demonstrate
Display/controller RTC Local panel standby and wake events Clock retention, supported timer events, and powered standby path Operation without WAN access; behavior after AC interruption
CMS/device management Multi-site calendars, holiday changes, and authorized overrides Platform compatibility, device enrollment, time-zone assignment and offline policy A remote schedule change, local fallback, and on/off result readback
Media-player or OS task Application close, update windows, and controlled OS shutdown Player must be powered when the task occurs; waking after shutdown needs its own mechanism Shutdown completion and a subsequent unattended start
Building system or switched AC circuit Site power windows or facilities coordination Cannot safely replace software shutdown; removing mains may also disable RTC-controlled wake Correct boot state and application recovery after supply restoration

Manufacturer examples show why capabilities must not be generalized. Samsung documents automatic on/off timers and holiday management for its VXT digital-signage platform. LG lists clock, on/off time, power-on delay, and other functions for the specific 60WL30MS-D commercial display. Those are examples of documented vendor implementations, not evidence that any unspecified KioskTagScreen LCD or CMS provides the same functions.



Write an authority and override rule

Record one primary owner for each action: who decides the site calendar, who controls display visibility, who shuts down the player, and who may physically remove power. A CMS can own the calendar while the local device carries a cached fallback only if that arrangement is genuinely supported and tested. If local staff can force a screen on outside business hours, define whether the override expires at the next scheduled event, at a fixed deadline, or only after an authorized reset. An unbounded manual override should not silently defeat the approved schedule.

For CMS publishing, enrollment, and device-management responsibilities beyond power events, see the site's separate Bar LCD CMS integration guide. This article remains focused on scheduled power states and their recovery.

Diagram separating commercial LCD schedule authority, display state, media-player shutdown, optional AC isolation and post-power recovery.





Verify RTC Retention, Site-Local Time, and Daylight-Saving Behavior

An RTC keeps time only within the limits of its hardware power and backup arrangement. Obtain the controller's exact documentation: whether time survives standby, a full AC interruption, and a battery-depleted condition; whether schedules survive a reset; and how time is set again. A system that receives network time when online may still lose the correct schedule if it boots with an invalid clock before synchronization.

Time-zone configuration is part of the system configuration, not merely a regional preference. Specify the site time zone and the interpretation of schedules during daylight-saving changes. A local-clock implementation may not know about seasonal rules; another platform may apply those rules through its operating system or server. An event that falls in a repeated or skipped local hour needs an explicit policy. Do not assume automatic DST support merely because the device displays a date and time.

During factory or site acceptance, exercise a short temporary on/off schedule, then repeat after network disconnection and a controlled power interruption. If the platform supports time-zone changes in a safe test mode, check the next scheduled event after changing site settings. Restore the production clock and calendar afterward; record the device time and an independent reference time so a clock error is not mistaken for a failed switch command.





Sequence Store Closing Without Interrupting the Player

A panel standby command and an operating-system shutdown are not interchangeable. The display controller may tolerate standby transitions while a Windows or Android player is writing logs, downloading content, or installing an update. An unmanaged hard AC cut can interrupt those operations. Microsoft's shutdown documentation distinguishes orderly shutdown from forcefully closing applications and warns that force options can lose unsaved data.

For configurations requiring a player shutdown, the closing workflow should have explicit boundaries:

  1. Close or pause the signage application as specified by the player vendor, and stop new content writes or updates.
  2. Request the operating system's supported shutdown action without assuming that sending the command proves completion.
  3. Confirm the player reached its approved stopped state using the observable indication available on that platform.
  4. Move the display into its documented overnight state; remove external power only if the architecture requires it and the shutdown sequence has been verified.

The order may differ when a player is designed for power-loss tolerance or when the panel must blank immediately while the player completes background work. The engineering requirement is a verified sequence for the actual configuration, not a universal delay or a generic "safe shutdown" claim. Any mains switching should use suitably rated equipment and competent electrical installation; this guide is not a relay-wiring instruction.





Design the Morning Boot for Visible Content, Not Just Power-On

A successful opening is more than a powered controller. The media player must start, reach a usable application state, select the intended content, negotiate a valid display signal, and make the image visible. The display may appear first and temporarily show "No Signal"; the player may appear first and fail to reconnect to the selected input. Test both orders rather than relying on a guessed fixed boot delay.

For a typical player-and-panel installation, record the following chain: AC available → display state restored → player boot completed → video input valid → signage application healthy → expected local or network-delivered content visible. If the display was deliberately left in standby, identify the separate wake command. If the player was shut down, identify the hardware or platform mechanism that brings it back; a future software task cannot run on a player that has no power.



AC restoration is a separate configuration decision

"Power on," "last state," and "standby" after AC restoration can produce different operational results. They may also be independent of the daily timer. Record the exact option name and firmware revision for the selected hardware. On a system fed through a switched AC circuit, confirm that power restoration actually starts both the controller and the player, rather than leaving one of them waiting for a remote-control key.

If the screen has power but loses video during start-up, the issue belongs partly to the separate commercial LCD input failover and black-screen recovery workflow. Keep signal-fault diagnosis separate from daily calendar policy so neither article attempts to own every kind of dark-screen incident.





Specify What Happens During WAN Loss, AC Outages, and Clock Errors

The system's fallback should be decided before rollout. "Resume schedule after outage" is ambiguous: the controller might replay a missed event, adopt the current calendar state, return to its previous power state, or remain off. Ask which behavior is actually implemented, then select an acceptable policy for the store. The table below describes test situations and desired decision points, not guaranteed behavior of a particular product.

Interruption Potential failure Decision to specify Evidence to retain
WAN unavailable at closing Cloud-issued off event is never received Local schedule, approved override, or another explicit safe behavior Event log plus actual screen and player states
WAN unavailable at opening Device is awake but cloud content or authorization is unavailable Whether verified cached content may play offline Content visibly rendered; local app state
AC outage spans an on/off event Device misses an event and boots into an unintended state Evaluate current site calendar versus last state or another chosen recovery policy Power-return timestamp and observed outcome
AC returns after closing time Display starts unnecessarily during a closed period Whether a fresh schedule evaluation should keep it off Controller mode and calendar evaluation after boot
RTC time invalid after restart Wrong event triggers, or no valid event occurs Fail-safe mode and clock resynchronization rule Clock source, corrected time, first valid event
Local manual override is active Timer never resumes or closes unexpectedly Permission, expiration, and return-to-automatic policy Who changed the state and when automatic mode resumed

Do not test an outage by casually cutting the facility supply. Use an approved lab or commissioning method coordinated with the equipment owner. The test must cover the production display controller, actual player image, firmware, power topology, and network arrangement.





Keep Visibility, Maintenance, and Holiday Calendars Separate

Some stores need the screen dark while the player remains online for content delivery, certificate renewal, or maintenance. Others require nearly all electronics off overnight. An operating-hours schedule and a maintenance window may therefore be distinct. Decide which wins if a software update runs into the closing event: defer it, let it finish using an approved grace window, or stop it safely. A timer that cuts the only AC supply without awareness of the player cannot make that choice.

Holiday hours and temporary events also need an explicit owner. Treat exceptional opening and closing times as site-specific calendar records, not permanent changes to the global device template. A temporary promotion or overnight event should have a documented expiry. Otherwise a single manually modified store can remain out of sync with the fleet long after the event ends.

This article defines how power schedules interact with store operations. The broader task of protecting and restoring all OSD, input, and firmware settings belongs to the site's commercial LCD configuration baseline guide.





Prove the Schedule With a Repeatable Acceptance Matrix

A menu screenshot proves that a value was entered, not that a store will see the right content tomorrow. Run temporary events in an approved test window and document the preconditions, expected state, observed result, and any exception. Criteria such as maximum time to visible content and allowed clock deviation should be set by the project; no universal numeric limit follows from the term "commercial LCD."

Test How to exercise it What must be observable
Normal scheduled close Set a near-future closing event Panel and player each reach their specified overnight states
Normal scheduled opening Execute an unattended morning transition Selected input and approved content appear without staff action
Loss of management network Disconnect WAN before one scheduled event Documented offline behavior occurs; time base remains understood
AC outage across an event Use a controlled bench or commissioning power-interruption test Recovery adopts the specified current state; no unrecorded manual recovery
Clock error or resynchronization Use supported test-time settings Next event timing matches the documented site-time policy
Holiday / extended hours Apply and remove a temporary site exception Exception takes precedence as intended, then normal scheduling returns
Manual override Exercise an authorized local or remote override Override is traceable and expires according to policy
Player shutdown during write activity Use a vendor-approved staged update or write test OS/application completes safe stop, or the agreed defer rule is exercised
Firmware/configuration change Reapply or migrate the approved configuration Schedule, time zone, recovery mode, and authority remain as approved

For each run, retain the site and device identifiers, display model and firmware, player/OS version, time-zone and clock source, calendar rule, power-control path, start and end timestamps, observed states, final visible content, and tester approval. Where there is no reliable remote readback, a documented direct observation may be necessary. These are recommended acceptance-record fields, not claims that KioskTagScreen automatically collects them.

Technician observing commercial LCD startup and recording scheduled-power acceptance test results.





When a Scheduled Wake Fails, Locate the Broken State Transition

Before changing the timer again, determine where the state chain stopped. A dark panel with no AC is a supply problem; a controller in standby after the expected wake event is a control or clock problem; an awake display showing "No Signal" is a video/player problem; a valid image of stale content is an application/content problem. Similar symptoms demand different owners and support responses.

  • AC absent: check the approved building-control window or switched circuit; do not assume the LCD can power itself.
  • AC present, controller asleep: check clock validity, RTC retention, schedule enablement, manual override, and post-power-loss option.
  • Controller awake, no input: verify player boot, selected source, video link, and display negotiation; follow the input-failover workflow for deeper diagnosis.
  • Input valid, wrong or stale content: check the media application, authorization, cached assets, and content schedule rather than extending the hardware timer.
  • Remote platform reports "on": distinguish command acknowledgement from actual panel state and visible content; verify what the status field measures.

Fleet monitoring should distinguish expected overnight offline time from a missed wake. If the CMS cannot apply site-calendar-aware alerting, document how the service team interprets alarms around planned transitions. Do not claim end-to-end proof of visible content from a power-state acknowledgement alone.





Procurement Requirements for a Scheduled-Power Deployment

For a commercial bar LCD or stretched LCD project, the request for quotation should identify the actual display and player configuration. Ask for the relevant controller manual, clock-retention method, supported power-state commands, post-AC-loss behavior, permitted scheduler interfaces, and a demonstration using production firmware. Also specify whether the deployment needs offline content, holiday overrides, local lockout, remote state feedback, and software-safe shutdown before external isolation.

The deliverable should be a small acceptance record: the approved site schedule, its owner, the player shutdown/wake design, the recovery policy, and evidence that the installed system reaches the required opening and closing states. That is more useful than an unsupported "RTC / auto on-off: yes" entry on a generic specification sheet.





FAQ

Q: Can an RTC wake the LCD after all AC power has been cut?

A: Not by itself. A retained clock can keep time, but the ability to energize hardware after a complete supply disconnection depends on a separate powered wake path, power-restoration setting, or external controller. Verify the exact circuit and firmware behavior.

Q: Is a CMS schedule more reliable than a local timer?

A: Neither is universally better. CMS control can simplify site calendars and permission management, while a supported local schedule can operate without WAN access. A reliable design states who owns each action and what happens when the network or clock source fails.

Q: Can a smart plug replace the shutdown sequence?

A: Only if every device downstream is approved for abrupt removal of power and the configuration has a verified startup method. A smart plug does not automatically complete application writes or shut down a Windows player cleanly.

Q: Does a scheduled "on" status prove the advertisement is visible?

A: No. The controller may be energized while the input, player, application, or content is not ready. Acceptance should include actual image visibility and the correct approved content where observable.

Q: Should commercial LCD systems be hard-rebooted every night?

A: Not as a default substitute for diagnosing unstable software. Reboot, standby, player shutdown, and AC isolation have different consequences. Use a documented maintenance reason and the least disruptive verified procedure for the actual platform.
