An LED on an electronic shelf label is easy to demonstrate: choose a label, make it flash, and stop it. Store operations become harder when replenishment, online picking, audit, price-check, and exception systems can all request the same light at the same time. Without task ownership and expiry rules, one label can display a perfectly functioning LED that communicates the wrong instruction.

Treat the LED as the output of a governed task state, not as a color command. Every light request needs an authoritative source, target label/location, purpose, priority, start condition, expiry condition, acknowledgement rule, and audit trail. The orchestration layer must also know what to do when a label is rebound, a request is retried, connectivity is lost, or two tasks collide.





Start with task semantics, not color names

Do not begin by deciding that green means replenishment and blue means picking. Begin with the operational tasks that the store actually performs. Then assign a visual vocabulary that staff can learn and the platform can enforce.

Field Purpose
Task ID Allows retries and updates to refer to the same business task instead of creating duplicate lights.
Task type Identifies replenishment, pick, audit, exception, recall, or another approved workflow.
Target Binds the instruction to the intended store, shelf location, product, and label as required by the workflow.
Priority Defines what happens when two active tasks want control of the same visual indicator.
Visual instruction Approved color, flash pattern, or steady state supported by the selected label.
Start / expiry Prevents stale lights from remaining active after the task is no longer useful.
Acknowledgement Defines how staff or the source system indicates that the task was seen or completed.
Final status Closed, expired, cancelled, superseded, failed, or another explicit terminal state.

The exact LED colors and patterns depend on the production label. Do not publish a workflow that assumes every ESL has the same LED count, gamut, or flashing control.

ESL LED task record showing task ID, type, target, priority, expiry and acknowledgement fields



Separate business priority from transport order

The most recently received command should not automatically win. A lower-priority replenishment retry arriving after a high-priority exception can overwrite the visual state if the platform uses "last write wins" without business context.

Define priority at the task level. When two tasks target the same label, the orchestration service should decide whether the new task preempts the old one, queues behind it, merges with it, or is rejected. The decision should be deterministic and auditable.

For example, a retailer might decide that a safety or recall workflow temporarily preempts picking, while a routine audit waits. That is an operational policy, not a universal ESL rule. The important requirement is that the policy is explicit before rollout.

Two ESL LED tasks resolved by a priority rule into active and queued states



Use expiry as a safety control for stale visual instructions

A light that remains active after its task has ended can send an associate to the wrong product. Every task that is meaningful only for a limited period should have an expiry or cancellation rule.

  • Decide whether a task remains valid after a shift change.
  • Close picking tasks when the underlying order is cancelled or completed.
  • Define whether a replenishment cue closes when stock is confirmed.
  • Decide whether a recall or exception requires explicit acknowledgement rather than an automatic timeout.
  • Define what happens when the network is unavailable at the intended expiry time.

Expiry should be based on the business task, not an arbitrary LED timeout copied from another deployment. Store the intended terminal state centrally so the system can reconcile labels after connectivity returns.



Make retries idempotent at the task level

A timeout between the retail application and ESL platform can cause the caller to retry. If each retry creates a new task or extends the visible state unintentionally, a transient network issue becomes an operational error.

Reuse a stable task identifier for retries and define which fields may change. A duplicate create request should return or reconcile the existing task rather than silently starting another independent LED instruction.

This discipline also appears in broader ESL transactions. The ESL POS and ERP Integration guide covers transaction IDs, safe retries, ordering, and reconciliation for the wider data path.



Handle label rebinding as a task transition

When a physical label is reassigned to another SKU or shelf location, any active task associated with the old binding becomes dangerous. Rebinding should therefore check for active tasks before the new relationship is considered ready.

  1. Identify active tasks on the old label/location binding.
  2. Close, cancel, transfer, or quarantine them according to workflow policy.
  3. Commit the new product/location/label relationship.
  4. Confirm that the label's visible state matches the new binding.
  5. Release new tasks only after the binding is valid.

Do not assume that clearing the LED alone resolves the business task. The task record and the device state both need a known outcome.



Choose acknowledgement semantics that match the workflow

"LED command sent" and "associate completed the task" are different events. Depending on the platform, the system may know that a request was accepted, transmitted, or acknowledged by a label; none of those necessarily prove that a person performed the store action.

  • Device-level status indicates whether the label received or executed a supported command when such status is available.
  • Associate acknowledgement can come from a handheld app, scanner, button, or another approved workflow.
  • Business confirmation comes from inventory, order, audit, or exception systems.
  • Supervisor closure provides an explicit route when the normal completion signal is unavailable.

Keep these statuses separate in logs so support can distinguish wireless delivery from operational completion.



Design an offline state staff can understand

Connectivity loss creates a special problem for visual tasks: an already-active LED may continue to show a state that the central system can no longer update. The store needs a policy for how long that visual instruction can still be trusted and how staff are told that the system is offline.

Possible controls depend on the selected ESL platform and label capabilities. The architecture may use centrally enforced expiry, device-side timed behavior, store application status, or a manual exception procedure. Do not claim offline LED behavior that the exact platform has not proven.

After reconnection, reconcile open tasks before sending a new burst of commands. Expired, cancelled, and superseded tasks should not be replayed simply because they were waiting in a queue.

ESL LED task workflow showing offline state, expiry, reconnect and reconciliation



Standardize the staff-facing vocabulary

A multi-store rollout fails if local teams invent their own meanings for colors. Publish a short operational legend that defines approved task types, visual patterns, acknowledgement method, and escalation. Keep the number of meanings small enough that staff can act without consulting a manual for every light.

Accessibility also matters. Do not rely on color alone where the task has safety, compliance, or critical operational consequences. Pair color with a handheld instruction, on-screen task text, location ID, flash pattern, or another cue appropriate to the workflow.



Use standards carefully when evaluating Bluetooth ESLs

The Bluetooth SIG publishes an Electronic Shelf Label Profile 1.0.1 and Electronic Shelf Label Service 1.0.1 for Bluetooth-based ESL control. These specifications show that standardized ESL architectures can include controlled device elements, but they do not prove that a particular KioskTagScreen/LEGOYO label or deployed platform implements Bluetooth ESL, a specific LED gamut, or a particular task policy.

Use the exact product documentation to determine supported LED capabilities. Use the retail orchestration design to determine what those capabilities mean operationally.

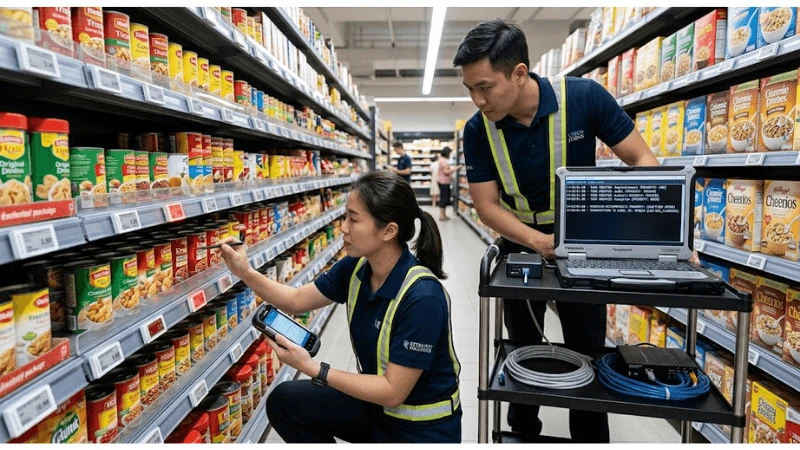

Build a collision and exception test matrix

Scenario What should be proven
Single normal task Correct label, visual instruction, start, acknowledgement, and closure.
Two tasks on one label Priority/preemption rule produces one deterministic active state.
Duplicate retry Same task is reconciled rather than duplicated or unintentionally extended.
Task expires while offline Reconnect does not resurrect a stale task.
Label rebound to a new SKU Old task cannot remain visually active under the new binding.
Associate closes the task after device delay Late device events cannot reopen a completed business task.
Store-specific override Local exception is visible, authorized, and does not silently replace central policy.

Capture the task ID, source system, target label/location, priority, requested visual state, platform/device status available, staff acknowledgement, terminal state, and timestamps needed to reconstruct each scenario.



Keep LED orchestration connected to data readiness

Visual tasking depends on correct product-to-label and shelf-location data. If the binding is wrong, a perfectly orchestrated LED guides staff to the wrong place. Use the ESL Data Readiness Audit to validate identifiers and binding prerequisites before advanced task workflows are scaled.

Broader product context belongs to Electronic Shelf Labels and the Electronic Shelf Label Solution hub. The site's ESL use-case guide provides adjacent context for pick-to-light and replenishment without replacing the control logic defined here.



FAQ

Q: Should the newest LED task always override the previous one?

A: No. Arrival order is not the same as business priority. Define deterministic preemption, queueing, merge, or rejection rules for competing tasks.

Q: Does an LED acknowledgement mean a store task is complete?

A: Not necessarily. Device delivery, associate acknowledgement, and business-system completion are different status layers and should be recorded separately.

Q: Can a task be allowed to blink forever until someone notices it?

A: Only if that behavior is deliberately required and supported. Time-sensitive tasks generally need a defined expiry, cancellation, or escalation rule so stale visual instructions cannot remain ambiguous.

Q: Can Bluetooth ESL standards be used to claim a specific LEGOYO LED feature?

A: No. Standards describe interoperable Bluetooth ESL behavior. Product capability still requires exact model and platform evidence.

Q:

A: LED tasking becomes reliable when the visual signal is tied to a complete business state. Give every task identity, ownership, priority, expiry, acknowledgement, and reconciliation, then test collisions and offline recovery before store staff depend on the lights.
