Electronic Shelf Label Integration With POS and ERP: APIs, Data Mapping, Error Handling, and Rollback

A price update can move through several systems before it reaches a shelf. If one field is mapped incorrectly, one transaction is processed twice, or one promotion fails to expire, the result may be an incorrect price displayed across hundreds or thousands of electronic shelf labels.

That is why electronic shelf label integration should be treated as a controlled pricing workflow rather than a simple connection between software and a screen. A production-ready integration must identify the approved source of every field, validate updates before transmission, prevent duplicate and outdated instructions, detect failures, support recovery, and preserve a complete audit trail.

Retailers evaluating an electronic shelf label solution should examine the integration architecture as carefully as label size, battery life, wireless range, and display quality.

Quick answer: A reliable ESL integration requires a defined system of record, documented field mapping, unique transaction IDs, version controls, safe retry rules, promotion scheduling, update confirmation, exception alerts, rollback procedures, security controls, and end-to-end testing with real store workflows.

What Does an ESL Integration Connect?

An electronic shelf label system normally receives information from several retail platforms. A typical data path may look like this:

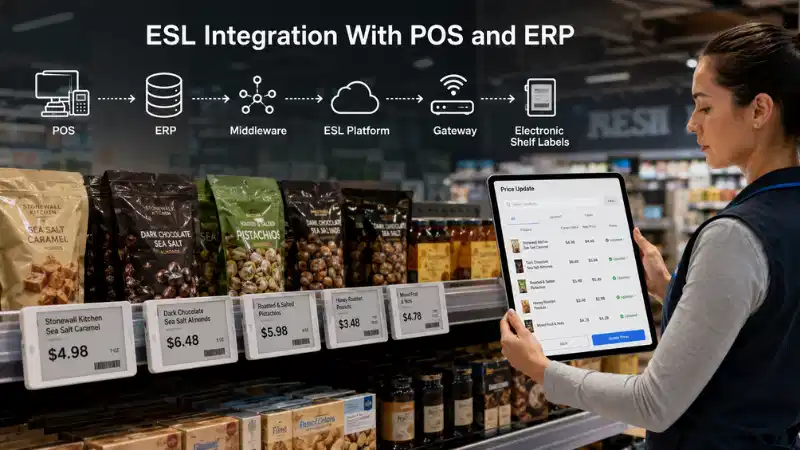

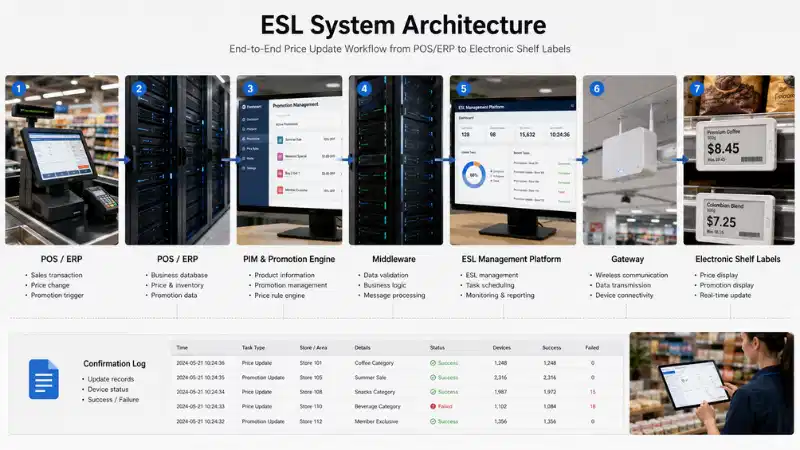

POS or ERP → PIM or Promotion Engine → Middleware → ESL Management Platform → Gateway → Electronic Shelf Label → Confirmation and Audit Logs

Not every retailer uses every component. A small store may connect one POS platform directly to an ESL management system. A multinational retailer may operate several POS systems, regional ERP platforms, separate promotion engines, middleware services, and thousands of gateways.

Before designing the interface, the project team should understand how electronic shelf labels work as a complete system. The physical label is only the final destination in a longer pricing and product-data workflow.

The integration design must answer four questions:

• Which system owns each item of information shown on the label?
• How does an approved change reach the correct store, product, and device?
• How is the result confirmed and reconciled?
• What happens when a system, gateway, label, or transaction fails?

Define the System of Record

The system of record is the approved source for a specific data field. It should be defined before APIs, file imports, templates, or synchronization jobs are developed.

Without clear ownership, two systems may send different values for the same field. The ESL platform may then display whichever instruction arrives last rather than the value the retailer intended to publish.

Define Conflict Rules

The integration specification should state what happens when:

• The POS and ERP contain different selling prices;
• Two promotions overlap;
• A local store override conflicts with a central price;
• A product is removed from the assortment but remains bound to a label;
• An identifier exists in one system but not another;
• A price arrives without a valid effective time;
• An older transaction arrives after a newer version.

Do not rely on an undocumented "last update wins" rule. Use explicit priority, validation, rejection, quarantine, or approval logic.

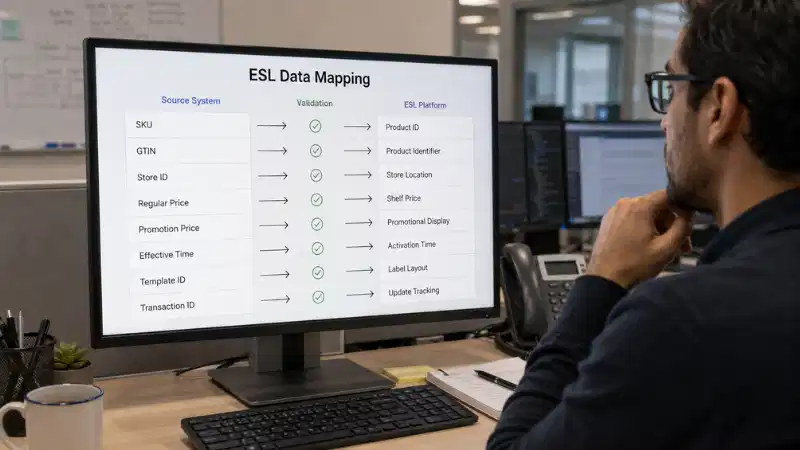

Create a Complete ESL Data-Mapping Specification

Data mapping defines how fields from the source system correspond to fields in the ESL platform. The mapping document should identify the source field, destination field, format, validation rule, fallback behavior, owner, and error treatment.

Where GTIN is part of the product master, the retailer can use the GS1 guidance on Global Trade Item Numbers when defining identifier governance.

The mapping should also define field length, decimal format, character encoding, currency, language, null handling, and truncation rules. A product name that fits a large display may not fit a compact E-Ink label. Retailers still choosing display technology can review the practical differences between LCD and E-Ink shelf labels.

Choose the Right Integration Architecture

The right architecture depends on update frequency, system complexity, required latency, store count, available IT resources, and recovery requirements.

Push APIs are often suitable for near-real-time price changes. Scheduled pull processes may be adequate when updates occur at known intervals. Middleware becomes valuable when the retailer must normalize several POS or ERP formats before sending them to one ESL platform.

The wireless design begins after the ESL platform has accepted and prepared the transaction. The comparison of Bluetooth, Wi-Fi, and Sub-GHz ESL communication explains the next stage between gateways and physical labels.

Design the End-to-End Price Update Workflow

A controlled workflow should separate approval, validation, transmission, confirmation, and exception handling.

1. Approve the change. An authorized source system releases a price, promotion, or content update.
2. Create a transaction ID. The same ID follows the update through every connected component.
3. Validate the data. Check identifiers, prices, store, effective time, product status, and template.
4. Reject invalid records. Incomplete or contradictory data should not reach a shelf.
5. Route the update. Send the transaction to the correct store, environment, and ESL platform.
6. Render the template. Combine approved fields with the correct display layout.
7. Queue the transaction. Schedule immediate or future transmission.
8. Send through the gateway. Deliver the update to the intended label.
9. Record the device result. Capture the strongest confirmation supported by the supplier architecture.
10. Reconcile the final state. Compare the source transaction, ESL result, and physical audit where required.
11. Escalate exceptions. Failed, delayed, rejected, or unconfirmed records enter a visible workflow.

Confirmation capabilities vary by supplier. A system may report that a request was accepted, that a gateway transmitted it, that a device acknowledged it, or that a refresh operation completed. These statuses should not automatically be treated as proof that the physical screen was visually correct.

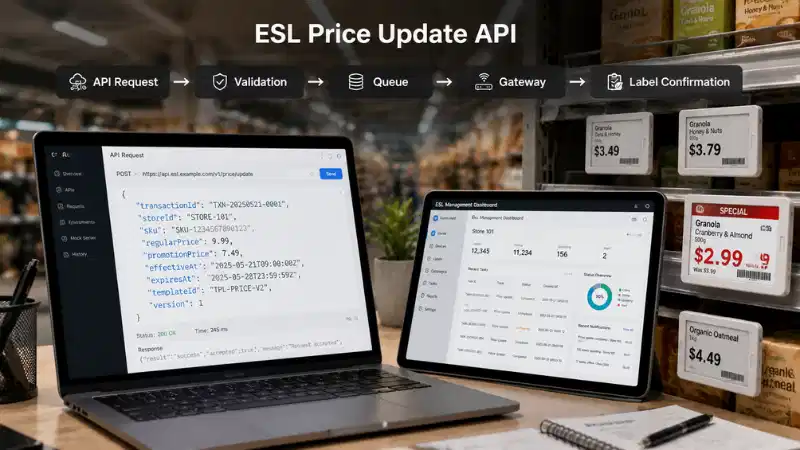

Example ESL Price Update API

The following payload is an illustrative example. Actual field names, authentication methods, endpoints, and response formats depend on the selected platform.

{
  "transactionId": "TX-20260713-000184",
  "storeId": "STORE-021",
  "sku": "SKU-88912",
  "gtin": "09506000134352",
  "regularPrice": 12.99,
  "promotionPrice": 9.99,
  "currency": "USD",
  "effectiveAt": "2026-07-17T08:00:00-07:00",
  "expiresAt": "2026-07-20T23:59:59-07:00",
  "templateId": "PROMO-2.9-EINK",
  "version": 18
}

Illustrative Accepted Response

{
  "transactionId": "TX-20260713-000184",
  "status": "QUEUED",
  "acceptedAt": "2026-07-13T07:42:16-07:00",
  "targetStore": "STORE-021",
  "targetLabels": 1
}

Illustrative Validation Error

{
  "transactionId": "TX-20260713-000184",
  "status": "REJECTED",
  "errorCode": "INVALID_EFFECTIVE_PERIOD",
  "message": "Promotion expiration must be later than the effective time."
}

Illustrative Duplicate Response

{
  "transactionId": "TX-20260713-000184",
  "status": "ALREADY_PROCESSED",
  "originalResult": "CONFIRMED"
}

The same transaction ID should be searchable in the POS or ERP, middleware, ESL platform, monitoring system, and exception report.

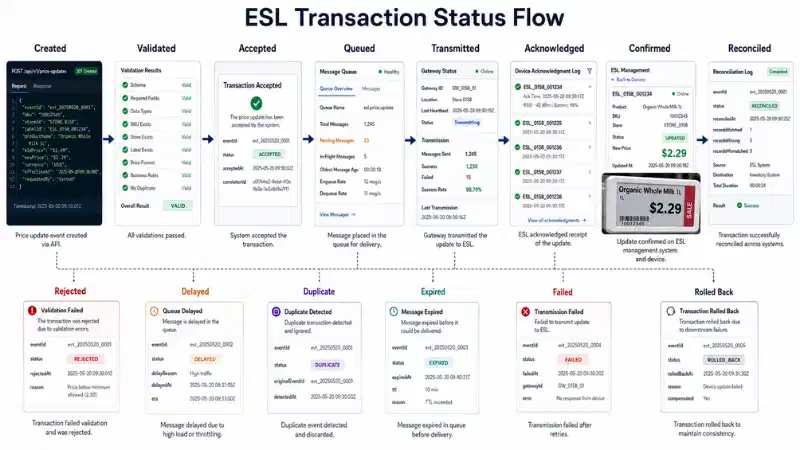

Define a Transaction State Model

Do not describe every non-error transaction as "successful." A useful state model might include:

Created → Validated → Accepted → Queued → Transmitted → Acknowledged → Confirmed

Exception paths may include:

Rejected, Delayed, Duplicate, Expired, Failed, Manually Corrected, or Rolled Back

Prevent Duplicate, Missing, and Out-of-Order Updates

Use a Unique Transaction ID

Every approved change should receive a unique identifier. A timeout must not cause a second, unrelated transaction to be created for the same business event.

Make Repeated Requests Safe

An idempotent operation can be repeated without creating additional unintended effects. HTTP defines certain methods as idempotent, but business-level idempotency still requires the application to recognize and control duplicate transactions. The relevant HTTP semantics are described in RFC 9110.

For price updates, the receiving system can store the transaction ID and return the original result when the same request is submitted again.

Use Versions and Sequence Controls

A delayed older transaction must not overwrite a newer approved price. Useful controls include:

• Source-record version numbers;
• Transaction sequence numbers;
• Effective timestamps with time-zone offsets;
• Template versions;
• Rules that reject stale instructions.

Reconcile Submitted and Completed Transactions

"Zero silent data loss" requires a measurable process. At a minimum, reconciliation should compare:

• Valid transactions released by the source system;
• Transactions accepted by middleware;
• Transactions accepted by the ESL platform;
• Transactions transmitted to gateways;
• Transactions confirmed or otherwise closed;
• Open exceptions and expired instructions.

A transaction that disappears without an alert is more dangerous than a record that is visibly rejected.

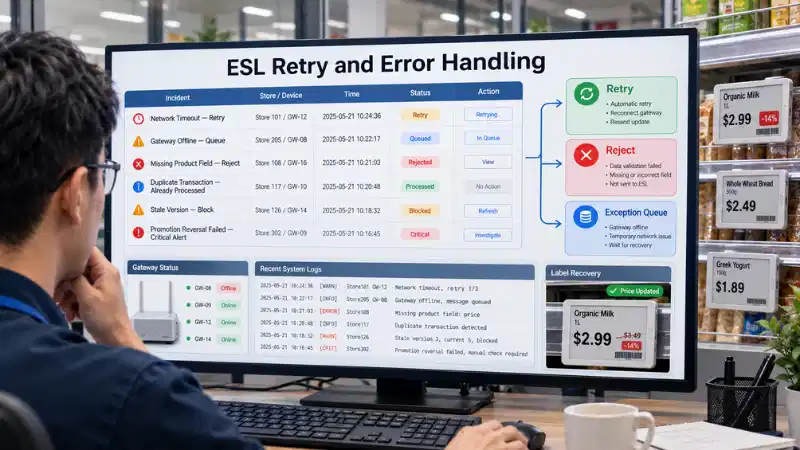

Build a Safe Retry and Error-Handling Strategy

Retries can recover from short interruptions, but uncontrolled retries can create duplicate updates, congestion, or a retry storm.

An illustrative backoff sequence might retry after 5 seconds, 30 seconds, 2 minutes, and 10 minutes before moving the transaction to an exception queue. The actual schedule should reflect promotion urgency, platform limits, store operations, and the supplier's documented behavior.

A dead-letter or exception queue should record the transaction, reason, retry history, owner, next action, and final resolution. The site's guide to common ESL update failures can help define realistic fault categories.

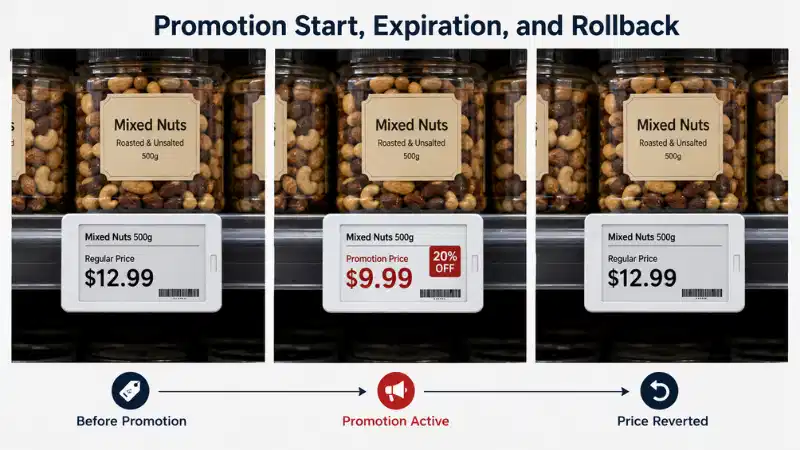

Control Promotion Scheduling and Price Reversion

A promotion is not successful merely because it starts correctly. The approved regular or replacement price must also return when the offer expires.

Test the following conditions:

• A future scheduled promotion;
• An immediate promotion;
• An extended campaign;
• An early termination;
• Two competing promotions;
• A store-specific offer;
• A regional campaign across different time zones;
• An emergency correction during an active promotion;
• Recovery after the promotion engine or integration is unavailable;
• The automatic return to the approved post-promotion price.

Define Time-Zone Rules

Store-local time, server time, and platform time may differ. The specification should state:

• Which time zone is stored;
• Whether every timestamp includes an offset;
• How daylight-saving transitions are handled;
• What happens when an instruction arrives after its effective time;
• Which transaction wins when promotion periods overlap.

Retailers exploring frequent automated price changes should distinguish technical scheduling from the broader commercial decisions involved in ESL dynamic pricing.

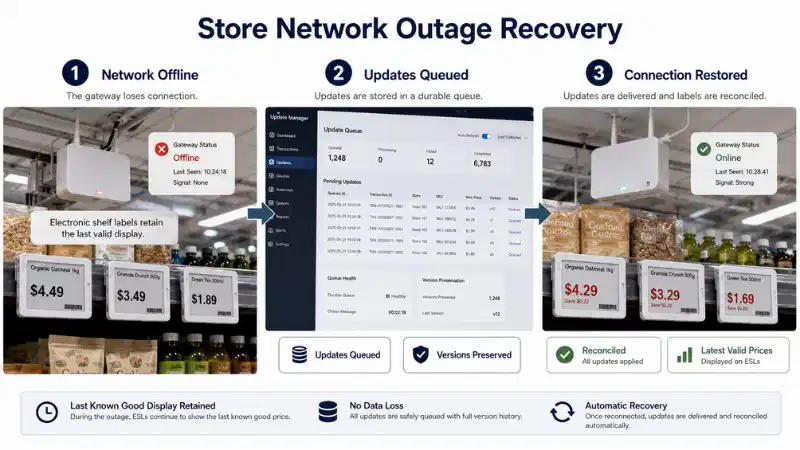

Plan for Store and Network Outages

A store may temporarily lose connectivity to central systems while its labels continue displaying the last successfully rendered content. The recovery design should define what happens to updates released during the outage.

A controlled recovery process should:

1. Retain unprocessed updates in a durable queue;
2. Preserve their original transaction IDs and versions;
3. Reject updates that have expired during the outage;
4. Process valid updates in the correct business order;
5. Prevent older queued prices from replacing newer approved values;
6. Reconcile the final store and label states;
7. Escalate records that remain unconfirmed.

The project team should test separate failures for the central API, middleware, store network, gateway, and individual label. These failures do not have the same recovery path.

Create a Controlled Rollback Process

Rollback restores a previously approved state after an incorrect price, template defect, failed campaign, or deployment problem.

The platform should preserve:

• The previous approved price;
• The previous promotion state;
• The previous template version;
• The product-to-label binding;
• The original and corrective transaction IDs;
• The approving user or process;
• The reason for rollback;
• The final verification result.

Define the Rollback Scope

Different incidents may require rollback of:

• One label;
• One SKU in one store;
• One product across several stores;
• One department;
• One campaign;
• One store;
• A regional group of stores.

Broad rollback permissions should be restricted. A store employee who can replace and bind one label may not need authority to reverse an entire promotion.

Verify the Rollback Result

Do not close the incident because a corrective instruction was submitted. Confirm that it was accepted, transmitted, completed, reconciled, and retained in the audit trail.

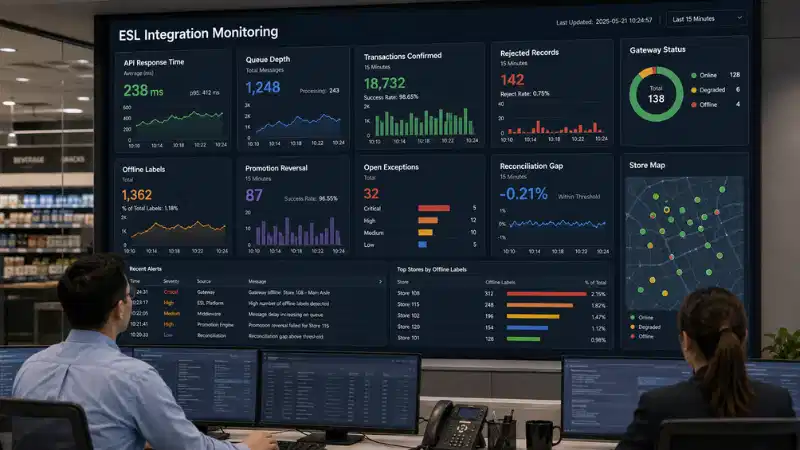

Build Monitoring, Logging, and Reconciliation

A production ESL integration should provide enough observability to determine where and why a transaction failed.

Use the median and P95 for update completion time rather than relying only on an average. Report maximum values, failed transactions, and unconfirmed records separately. Device refresh performance should also be distinguished from backend processing and queue delays. The article on ESL refresh rates and display performance explains the display-specific portion of the process.

Preserve an End-to-End Audit Trail

The audit trail should make it possible to determine which value was approved, where it was sent, when it became effective, and how an exception was resolved.

Record at least:

• Source system;
• Transaction ID;
• Product, store, and label identifiers;
• Previous and new values;
• Promotion and template versions;
• Approving user or system process;
• Approval, transmission, and confirmation timestamps;
• Final status;
• Retry count;
• Error code;
• Manual intervention;
• Rollback or corrective transaction.

Screenshots alone are not an adequate audit method because they do not prove the source, timing, transaction path, or user action. The business consequences of weak price controls are discussed in what happens when price displays are wrong.

Protect the ESL API and Management Platform

An ESL platform may connect customer-facing prices with cloud services, store networks, mobile binding tools, APIs, gateways, and administrator accounts. Security controls should cover both software access and operational approvals.

Review:

• Role-based permissions and least-privilege access;
• Multi-factor authentication where available;
• API authentication and credential rotation;
• Protection of keys, tokens, and secrets;
• Approval rules for bulk price changes;
• Separation between template editing and price approval;
• Rate limiting and resource-consumption controls;
• Audit logs for users, integrations, and devices;
• Supplier support access;
• Account removal and recovery procedures.

The OWASP API Security Top 10 identifies risks including broken authentication, authorization failures, unrestricted resource consumption, security misconfiguration, and unsafe API consumption.

The NIST Cybersecurity Framework 2.0 can also help organizations structure governance, identification, protection, detection, response, and recovery activities around the integration.

Test the Integration Before Store Rollout

A successful connection test is not enough. The complete workflow should be tested under normal, high-volume, invalid-data, and outage conditions.

Physical deployment testing should follow a documented ESL installation process. A well-designed API cannot compensate for poor gateway placement, incompatible mounting, or incorrect product-to-label binding.

Illustrative Integration Failure Scenario

The following composite scenario is illustrative and does not represent a named customer.

A retailer schedules a weekend promotion covering 8,000 labels. The dashboard reports a 99.7% completion rate, which initially appears acceptable.

A transaction-level review finds:

• Twelve records were rejected because required product identifiers were missing;
• Six requests were processed twice after a timeout;
• Four promotion reversals remained queued after the campaign ended;
• Two transactions disappeared between middleware and the ESL platform without an alert.

The overall percentage hides four different problems. Validation can prevent incomplete records. Idempotency can control duplicate requests. Escalation rules can address delayed promotion reversals. Reconciliation is required to identify silent loss.

The correct response is not to approve rollout because the overall result exceeded 99%. The team should correct each root cause and repeat the complete campaign test.

ESL Integration Acceptance Checklist

How Integration Affects Cost and ROI

Integration cost is not limited to initial API development. It may include:

• Source-system development;
• Middleware licenses;
• Data cleansing and mapping;
• Template development;
• Test environments;
• Monitoring and logging;
• Security reviews;
• Support and maintenance;
• Future POS or ERP upgrades;
• Regional and language variations;
• Exception-handling labor.

A low-cost connection can become expensive when employees repeatedly correct failed imports or manually reconcile uncertain shelf states. The ESL ROI calculation framework can help organize the business case, but the assumptions should include integration support, monitoring, maintenance, and exception work.

The baseline should also compare the complete digital workflow with the existing process. The analysis of electronic shelf labels versus paper labels identifies useful labor and material categories.

Questions to Ask an ESL Integration Provider

Supplier evaluation should include integration evidence rather than only battery claims, label dimensions, and communication range. The overview of electronic shelf label manufacturers can support early screening, while final acceptance should depend on the retailer's own systems and tests.

Final Takeaway

Electronic shelf label integration is a price-control workflow, not merely a connection between a POS system and a display.

A dependable design defines the source of truth, maps every required field, validates data before transmission, assigns unique transaction IDs, prevents duplicate and stale updates, controls promotion timing, manages outages, verifies rollback, and preserves an end-to-end audit trail.

Retailers should not approve rollout because one API request succeeded or one demonstration label changed correctly. The integration must continue to operate during batch updates, invalid records, temporary outages, promotion expirations, system upgrades, and recovery events.

When these controls are tested with representative retail data and documented acceptance criteria, electronic shelf labels can support faster and more controlled price execution without creating hidden manual work. That integration discipline is essential if the retailer expects ESLs to streamline retail operations at scale.
