A camera module can pass a bench test and still fail in a finished self-service kiosk. Its image may be sharp before assembly but soft after the module is pushed back from the front window. A user's face may fit the frame at one height and be cropped when a shorter or seated user approaches. A document may look readable under test lighting but reflect a bright ring light when the final cover glass is installed. A replacement camera may enumerate correctly through USB while pointing at a slightly different target plane.
Kiosk camera module integration is the work of making the complete camera path perform its intended capture task after the lens, sensor, mounting bracket, bezel, protective window, illumination, electronics, software and service procedure are brought together. This guide focuses on the optical and enclosure integration of cameras for document capture, face framing, assisted service and comparable kiosk workflows. Camera availability, image capture and user-visible privacy state must also remain predictable when the device restarts or is replaced.
For the wider hardware portfolio, see Kiosk Display. This page does not claim that every KioskTagScreen model includes a camera, facial recognition, infrared illumination, autofocus, USB Video Class support, or a privacy shutter. Those depend on the specific released project configuration.
Choose the Capture Task Before Choosing the Camera
Start with the object, not a megapixel number. A face-framing camera and an ID-document camera have different working distances, orientation constraints and lighting risks. In a remote-assistance call, the application may only need a stable picture of the user. A document-validation workflow may need a legible region of interest and control of reflections from laminated cards. A barcode or QR capture task may need a different lens, target size, illumination and decode pipeline; it should not be assumed to work merely because the module can produce a video frame.
| Capture job | Geometry to define | What to test in the finished kiosk |
|---|---|---|
| Face framing or live assistance | Standing and seated user positions, expected distance, vertical framing margin | Head and face remain inside the useful frame across intended positions without requiring awkward posture |
| Document imaging | Document plane, document size, orientation, locating surface and working distance | Required edges and features are captured, sufficiently sharp and not hidden by glare |
| Assisted identification workflow | Purpose-specific framing, lighting, focus and user guidance | Application obtains the required usable image under representative conditions; any identity-decision performance needs separate validation |
| Optional monitoring or support view | Approved scene boundaries and privacy state | The video is available only in the intended session or operating mode, with a meaningful user-facing indication where required |
Document the minimum and maximum intended working distance, target dimensions, expected user positions, orientation, and whether the application requires a still image or continuous video. Do not use a generic camera datasheet as evidence that an actual kiosk supports identity verification, document authenticity assessment or any particular capture accuracy.
Calculate the Field of View, Then Check What the Bezel Removes
Field of view (FOV) describes the angular coverage of the optical system. For a rectilinear-lens approximation, the horizontal scene width at working distance D is approximately 2 × D × tan(horizontal FOV / 2). That estimate is a starting point, not a production acceptance result: lens distortion, focus distance, sensor cropping, digital stabilization, application aspect-ratio changes and the bezel aperture can all change the usable image.
Basler's field-of-view guidance explains that lens/sensor-based angle calculations and calculations derived from object size and working distance may give slightly different results. Use the actual camera and lens documentation for initial selection, then measure the effective horizontal and vertical framing in the finished enclosure.
Keep the complete target inside the usable frame
For a document workflow, use a positioning fixture or guided placement area so the required document corners fall inside the capture region with allowance for normal placement variation. For a face camera, mark the expected standing and seated eye positions and verify that the view is useful at both ends of the approved distance range. In both cases, do not design to the exact last pixel at the nominal position: tolerances in the bracket, lens, front panel and user location can eliminate the apparent margin.
Account for a recessed camera and a thick front panel

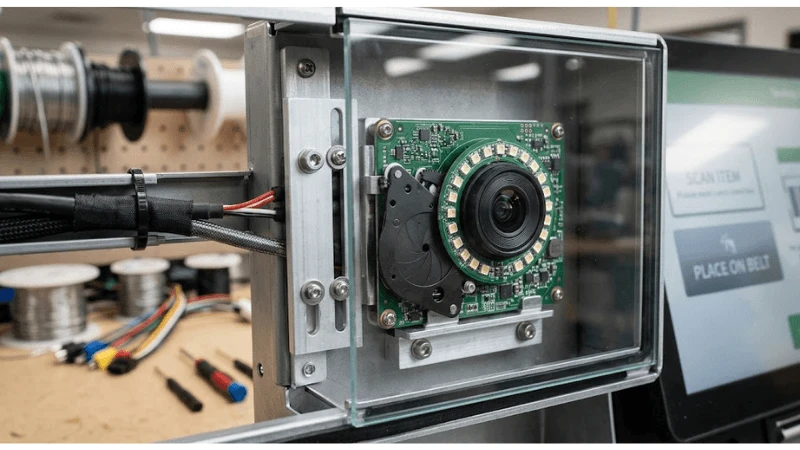

A camera set behind a small aperture sees a cone whose edges can be blocked by the bezel, gasket or protective window frame. The farther the lens entrance pupil is recessed, the more important the aperture geometry becomes. Verify the actual usable cone with the production-equivalent bezel, cover window and mounting angle installed. Look for dark corners, asymmetric cropping and reflections at the extreme positions, not just at the center.
Include the camera-to-bezel position in controlled drawings: lens centerline, tilt, permitted shift, recess, opening, retaining features and any part of the enclosure that can move those relationships during assembly. The optical result should survive normal tolerance variation, not only a carefully aligned prototype.

Control Focus at the Intended Image Plane
Autofocus, fixed focus and manually adjusted focus are different product options; none should be assumed without checking the exact module. A module may capture a sharp image on the bench because the target is placed at the lens's convenient focus distance, while the installed document tray or user position sits outside its useful depth of field.
Use a repeatable target at the approved near, nominal and far working distances. Review the center and the areas of the frame that contain important data, not just a visually attractive central subject. For documents, verify small required features and edge regions. For people, verify that realistic head position and normal movement do not make the frame unusable. When a mechanical focus adjustment is part of the selected assembly, document how it is secured and what must be retested after handling or replacement.
Focus problems should be separated from motion blur, noise and reflections. A soft frame is not proof that the lens is out of focus: long exposure in weak lighting can blur moving hands or faces, a dirty window can lower contrast, and aggressive image processing can remove detail. Compare a stationary target under controlled illumination before moving a lens or replacing a module.
Treat Cover Glass and Illumination as One Optical Assembly
The front window protects the camera but introduces additional optical surfaces. Depending on its material and coatings, it can create reflections, flare, reduced contrast or glare from nearby LEDs and overhead lights. A fingerprint or cleaning residue can scatter light and resemble a sensor or focus defect. The critical question is not whether the cover material is generally transparent; it is whether the final optical stack permits the intended image under the real lighting conditions.
Locate lights so they illuminate the target, not the camera window
Built-in ring lights and side LEDs can improve a dim document or face image, but they can also reflect directly into the lens through the protective window or from a glossy ID card. Before deciding that more light is needed, test the illumination direction, diffuser, camera angle, window position and reflective target. If the workflow uses infrared illumination, verify the sensor, optics, cover window and safety/compliance requirements for the exact hardware rather than treating visible-light performance as an infrared specification.
Run tests with the kiosk display showing both bright and dark content. Display light can spill onto the user or document and change automatic exposure or white balance. The local illumination, nearby signage, ceiling lights and window daylight may all be present at different times; a single quiet laboratory scene is not a sufficient lighting envelope.
Validate exposure, color and flicker behavior
Automatic exposure and white balance help a general-purpose camera adapt to changing conditions, but they are not guaranteed to preserve the details a workflow needs. Compare stable exposure, motion blur, blown highlights, dark-region detail and color consistency across the intended ambient-light range. Periodically modulated LED lighting can interact with exposure and rolling-shutter capture; the observed artifacts depend on the selected camera and lighting system. If the test shows bands or unstable brightness, investigate exposure and illumination behavior in the released configuration instead of copying a universal camera setting.
Where the software permits it, retain the actual control state during a failed capture: exposure mode, gain, white balance, resolution, frame rate and any image-processing options. Not every driver exposes every control. Absence of a readback should be recorded as a diagnostic limitation rather than invented as a supported feature.

Verify the Camera Interface and Application Route
A camera module that powers on is not necessarily usable by the kiosk application. The integration must confirm electrical power, connector retention, device enumeration, supported video formats, frame sizes, frame intervals, software permissions and recovery from device loss.
If a USB camera uses the USB Video Class (UVC) model, confirm the exact USB interface descriptors and modes implemented by that module. The USB-IF document library provides the USB Video Class specification documents. UVC describes a device-class interface; it does not guarantee that a particular camera supports every resolution, image control, privacy behavior or application feature.
Capture with the actual kiosk application, not only the camera supplier's demo tool. Check that the application selects the intended camera after reboot, handles a missing or reconnected device, and behaves predictably if the requested video mode is unavailable. A second camera device or software update may change enumeration order; selecting only "camera 0" can be fragile if hardware configuration changes.
The cable route is part of this interface. A module can pass an open-door test but fail when a cable is bent behind the final panel or pulled during replacement. The Kiosk Cable Harness Design guide owns strain relief, connector support and internal routing; this camera guide checks the resulting capture behavior and interface state.
Make Camera Privacy State Observable and Consistent
The camera should operate only for approved workflow purposes, and the user or operator should not be misled about whether capture is active. Depending on the project, this can involve an application indicator, an approved hardware signal or a mechanical shutter. Each has different failure modes: an application icon may become stale after a crash; a software mute may not mechanically block the lens; and a shutter can be physically open while the interface says "private."
Verify the real camera state against the indicator or shutter in the exact supported workflow: before consent or initiation where applicable, during capture, after normal completion, after abandonment or timeout, after an app crash and after a remote-assistance disconnect. If the design promises physical blocking, demonstrate it physically. If it promises capture state indication, test it against actual device state rather than a decorative icon.
Do not retain test images containing real customers merely to prove technical quality. Use synthetic documents, test targets and appropriately consented participants under an approved data-handling process. The broader Kiosk Privacy by Design article owns session clearing, data minimization, public sightlines and wider privacy policy; this page remains limited to the camera's acquisition and indicator/shutter boundary.
Test the Finished Camera Against Realistic Failure Cases

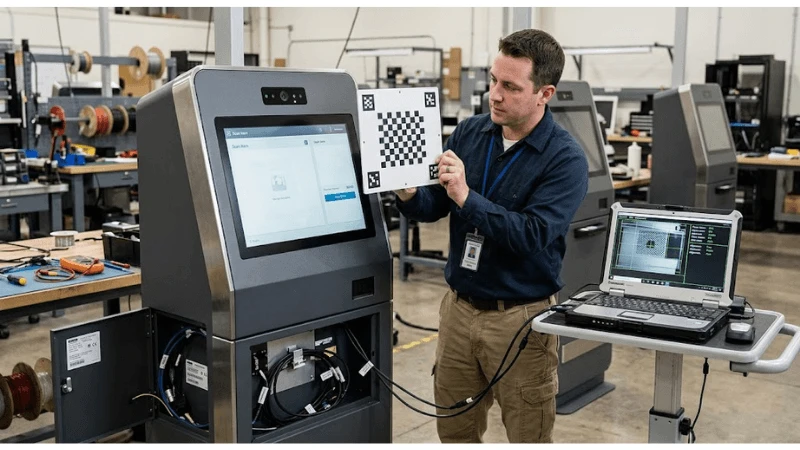

Camera qualification is most useful when it tries to disprove the design assumptions. A production-equivalent kiosk must include the final bezel, window, bracket, illumination, cable routing and released camera software. Move one variable at a time so the observed failure can be traced to a cause.
| Observed failure | Practical first check | Useful evidence |
|---|---|---|
| Face or document edges are cropped | Actual user/target distance, bracket position, bezel aperture, active video crop | Full-frame test target image with geometry and hardware revision |
| Image soft after enclosure assembly | Focus plane, lens tilt, cover-window cleanliness, motion blur versus defocus | Stationary near/nominal/far target captures under controlled light |
| Bright patch hides document detail | LED or overhead-light reflection off cover window or glossy target | Same target with light direction or intensity changed |
| Image brightness pulses or stripes | LED modulation, exposure time, rolling-shutter behavior, display light | Video sample plus ambient-light and exposure state |
| Camera works in demo software but not kiosk app | Application permissions, device route, negotiated resolution/format/frame rate | Device enumeration and application capture log |
| Capture fails after service replacement | Mechanical datum, replacement lens/module revision, focus setting, cable seating | Pre-/post-replacement test target and revision record |
| Privacy indicator conflicts with video state | Capture process, application status, shutter position and restart behavior | State transition record using non-sensitive test data |
Separate Engineering Qualification From Production Checks

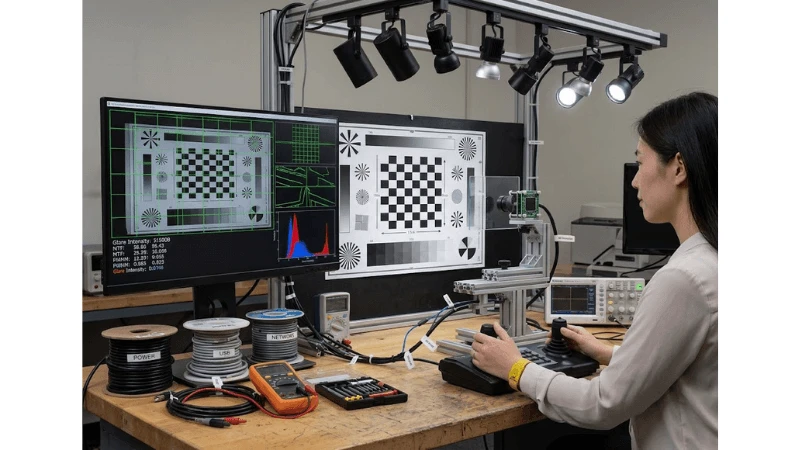

Engineering qualification explores the operating boundary: the extremes of working distance, user height, lighting, glare, focus, tolerance, cleaning and recovery. Production inspection should confirm the smaller set of critical characteristics that prevent normal units drifting outside that qualified boundary. A camera that passes a single centered preview at final assembly may still have a misaligned bracket, obstructed window or wrong capture mode.
For a practical production handover, retain the released camera/lens module identity and revision, sensor and video format where relevant, bracket/window geometry, document/user target definition, permitted mounting variation, lighting configuration, focus method, camera application version and the approved test images or measurements. Use a simple acceptance fixture or test target when it helps make alignment and image quality repeatable. The pass criteria must come from the actual workflow and approved supplier/project documentation, not a universal minimum megapixel count or made-up recognition percentage.
After service, verify the optical result-not just device power
Replacing a camera can disturb both the optical axis and the cable route. A technician should have access to an approved check that confirms the required target lies inside the usable frame, focus is correct at the task distance, the window and lighting do not create unacceptable reflections, the intended video mode is available and the privacy state returns to normal. For the technician's physical access envelope, refer to Kiosk Maintenance Access.
Supplier Questions That Expose Integration Gaps
Instead of asking whether a kiosk "has a camera," specify the capture job and ask what the quotation actually includes:
- Which exact camera, lens, sensor, interface and firmware or driver revision will be supplied?
- What target size and working-distance range is supported by the proposed optical configuration?
- What are the mounting, lens-center, tilt, focus and bezel-window datums and tolerances?
- Does the quoted hardware include autofocus, fixed focus, illumination or a shutter, or are these project options?
- Which resolution, frame format, frame rate and control modes work in the intended kiosk application?
- How is camera availability and privacy/capture state represented to the user and service team?
- Which image-quality checks are performed on production units, and how is a replacement requalified?
- Which substitutions to glass, gasket, camera, lens, LED, bracket, cable or software require retesting?
Ask for evidence tied to the released configuration. A specification for an uninstalled camera board does not prove the field of view, lighting quality, usable focus or privacy behavior of the completed kiosk.
When to Revalidate the Camera Integration
Retest the affected camera functions after changes to the lens, module, bracket, bezel opening, cover glass or coating, window gasket, illumination, display brightness policy, camera driver, image-processing pipeline, video format, cable route, user workflow or installed site lighting. An apparent drop-in replacement can still have a different lens angle, focus plane, exposure behavior, physical offset or USB capability.
Also recheck any recurring field symptom-cropped images, repeated focus adjustment, unexplained capture retries, glare complaints or contradictory privacy indications-even when the component list has not changed. Keep the defective state and the specific unit revision in the investigation record before a restart or adjustment erases the evidence.
What a Successful Integration Looks Like
A camera is ready for a kiosk project when the required subject can be framed and captured across the approved working positions, under relevant installed lighting, through the final bezel and window, with stable application routing and a trustworthy privacy state. The production team must be able to reproduce that result, and the service team must know what to verify after replacement.
The next step is not to buy a higher-resolution module by default. It is to lock the capture task, optical geometry, interface and test evidence for the exact configuration. For a project-specific kiosk design, use the inquiry page to clarify the camera option, target conditions, integration responsibilities and qualification plan before considering it an included delivered feature.
