A transparent showcase can remain electrically functional while its optical system slowly changes: diffuser film yellows, light-guide surfaces discolor, dust bakes onto warm optics, or replacement LED modules no longer match the original side. That is the practical reason to treat transparent LCD backlight diffuser aging color shift as a system problem rather than a specification-line feature. This guide is for Transparent-display operators, visual-merchandising teams, service organizations, integrators, and buyers and answers one narrow question: How do you detect and manage diffuser, light-guide, or backlight aging in a transparent LCD showcase before gradual yellowing or uneven output compromises the physical product presentation? The focus is optical-component aging + replacement matching + lifecycle evidence, not general brightness drift.
A credible approval needs more than a supplier data sheet. Begin with model-specific documentation, connect it to drawings and configuration for the complete transparent showcase, then confirm the difficult interactions on production-equivalent hardware. Attach the exact revision and the condition under which it passed. After rollout, compare incidents with that baseline so old evidence is not reused after a revision. The important interfaces include glass, frame, lighting, optical films, physical products, content alignment, and service access. When a numerical limit matters, source it from the applicable standard, the exact model, or an approved project requirement instead of turning a convenient example into a universal specification.
Related LEGOYO system pages include Transparent LCD Screen, Transparent LCD Touch Integration, Transparent LCD Content Design. They establish adjacent product and integration context; this article keeps its own keyword owner and engineering boundary.
The topic-lock research reviewed public category/technical material from Crystal Display Systems, Pro Display, and Japan Display Inc.. The purpose was to identify common buyer language and gaps in implementation detail. Competitor claims are not used as LEGOYO facts, and competing commercial pages are not linked from the final article.
Set the boundary before selecting a fix
Commercial LCD luminance-drift and general transparent lighting pages own broader brightness topics; this page owns transparent-showcase optical diffusion components, aging signatures, service matching, and replacement planning. The controlling object is the complete transparent showcase, not a loose component on a laboratory table. The integration team should bound the supported condition around baseline optical photos/measurements after commissioning, diffuser/light-guide material and revision tracking, and LED/backlight module matching by side or batch; name the owner of each interface; and state what the user or technician sees when it falls outside the approved state. That approach separates a real component defect from a fixture, configuration, content, environment, or service problem.
Write exclusions next to the scope. This article focuses on optical-component aging + replacement matching + lifecycle evidence, not general brightness drift and should not absorb every adjacent topic merely because the same hardware is involved. The first adverse case to place in the plan is "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one." If the project cannot explain how that condition is detected, contained, and retested, the boundary is still too vague for procurement or acceptance.
Scope-to-evidence map
| Control point | Review action | Adjacent dependency | Output |
|---|---|---|---|
| baseline optical photos/measurements after commissioning | make the state observable | Interaction with LED/backlight module matching by side or batch | traceable evidence package tied to production revision |
| diffuser/light-guide material and revision tracking | challenge a tolerance edge | Interaction with cleaning products that contact optical films | traceable evidence package tied to production revision |
| LED/backlight module matching by side or batch | reproduce a service state | Interaction with heat exposure near optical components | traceable evidence package tied to production revision |
| cleaning products that contact optical films | confirm recovery after disturbance | Interaction with visual comparison zones for yellowing or color shift | traceable evidence package tied to production revision |
| heat exposure near optical components | establish the reference condition | Interaction with service replacement sequence and contamination control | traceable evidence package tied to production revision |
| visual comparison zones for yellowing or color shift | expose the dependency | Interaction with post-replacement brightness/color rebalance where supported | traceable evidence package tied to production revision |
Engineering controls to specify explicitly
The controls below come directly from the failure boundary for transparent LCD backlight diffuser aging color shift. They are intentionally more specific than generic product features. For each one, define the reference state, the interaction that can change it, the production/service check, and the change that invalidates the old result.
Baseline optical photos/measurements after commissioning
Baseline optical photos/measurements after commissioning is an installation condition, not a drawing label. Bound the variable that controls it, which part or configuration establishes the reference, and how a technician can validate it without relying on tribal knowledge. Pair the check with diffuser/light-guide material and revision tracking, because those two conditions can move together after a service intervention. The negative case "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated configuration fault.
Diffuser/light-guide material and revision tracking
The design review for diffuser/light-guide material and revision tracking needs a reference that survives production and field service. Document the variable that controls it, which part or configuration establishes the reference, and how a technician can verify it without relying on tribal knowledge. Pair the check with LED/backlight module matching by side or batch, because those two conditions can move together after a replacement. The negative case "One side receives a newer LED module and becomes visibly different" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated drift.
Led/backlight module matching by side or batch
For LED/backlight module matching by side or batch, the key issue is whether the final assembly keeps the intended state after tolerance, service and environment are added. Frame the variable that controls it, which part or configuration establishes the reference, and how a technician can prove it without relying on tribal knowledge. Pair the check with cleaning products that contact optical films, because those two conditions can move together after a change. The negative case "A cleaning chemical clouds or stains an exposed diffuser surface" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated integration error.
Cleaning products that contact optical films
Put cleaning products that contact optical films into the requirement set before tooling and quotations are frozen. Pin down the variable that controls it, which part or configuration establishes the reference, and how a technician can exercise it without relying on tribal knowledge. Pair the check with heat exposure near optical components, because those two conditions can move together after a configuration edit. The negative case "Dust deposits near warm LEDs create localized discoloration" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated edge-case breakdown.
Heat exposure near optical components
Heat exposure near optical components is an installation condition, not a drawing label. Establish the variable that controls it, which part or configuration establishes the reference, and how a technician can demonstrate it without relying on tribal knowledge. Pair the check with visual comparison zones for yellowing or color shift, because those two conditions can move together after a site alteration. The negative case "A diffuser replacement restores transmission but changes spatial uniformity" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated mismatch.
Visual comparison zones for yellowing or color shift
The design review for visual comparison zones for yellowing or color shift needs a reference that survives production and field service. Define the variable that controls it, which part or configuration establishes the reference, and how a technician can check it without relying on tribal knowledge. Pair the check with service replacement sequence and contamination control, because those two conditions can move together after a substitution. The negative case "A service team replaces electrical parts without recording the optical revision or baseline" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated service escape.

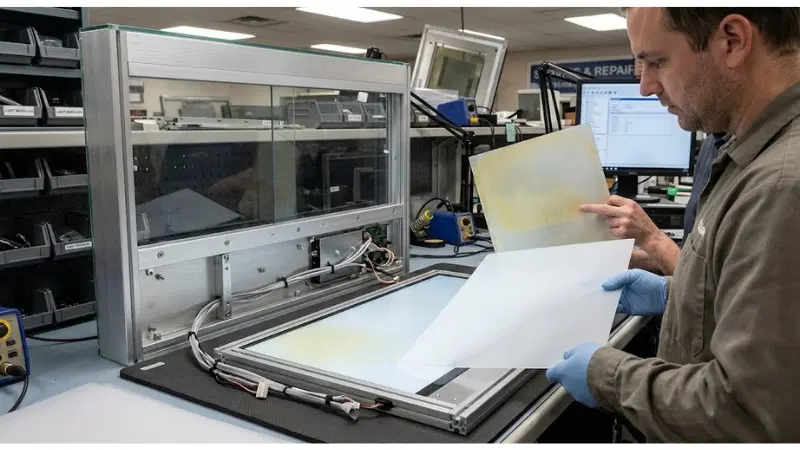

Service replacement sequence and contamination control
For service replacement sequence and contamination control, the key issue is whether the final assembly keeps the intended state after tolerance, service and environment are added. Describe the variable that controls it, which part or configuration establishes the reference, and how a technician can inspect it without relying on tribal knowledge. Pair the check with post-replacement brightness/color rebalance where supported, because those two conditions can move together after a field modification. The negative case "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated failure.
Post-replacement brightness/color rebalance where supported
Put post-replacement brightness/color rebalance where supported into the requirement set before tooling and quotations are frozen. Set the variable that controls it, which part or configuration establishes the reference, and how a technician can confirm it without relying on tribal knowledge. Pair the check with baseline optical photos/measurements after commissioning, because those two conditions can move together after a revision. The negative case "One side receives a newer LED module and becomes visibly different" is useful because it forces the review away from nominal geometry or default settings. The expected outcome should say what remains functional, what becomes unavailable, and what evidence distinguishes this condition from an unrelated latent defect.

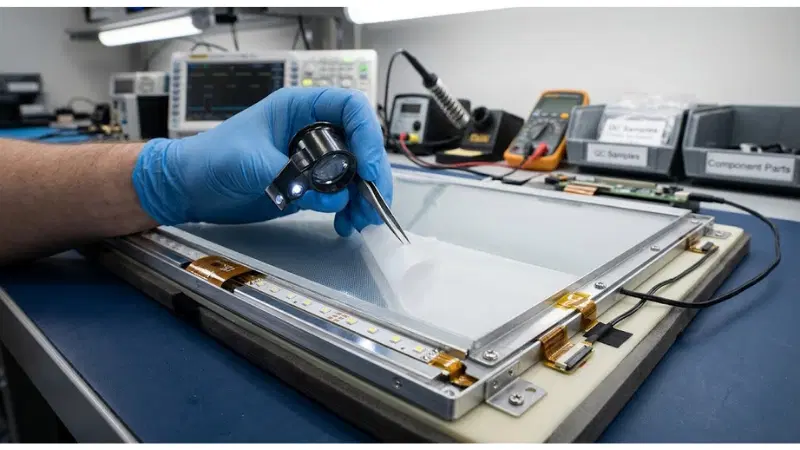

Trace the interfaces that can move the result
Transparent lcd backlight diffuser aging color shift sits inside the complete transparent showcase and can be changed indirectly by glass, frame, lighting, optical films, physical products, content alignment, and service access. Build the interface map before troubleshooting. That prevents the first visible symptom from becoming the assumed root cause and gives service teams a sequence for checking recent changes before parts are swapped.
| Interface layer | Variables to connect | Practical challenge | Traceability |
|---|---|---|---|
| Mechanical/fixture | baseline optical photos/measurements after commissioning; cleaning products that contact optical films | Read back the configured state before and after restart, reset or replacement | preserve unit/revision and result |
| Electrical or device state | diffuser/light-guide material and revision tracking; heat exposure near optical components | Exercise representative and difficult site conditions rather than laboratory defaults | preserve unit/revision and result |
| Configuration/software | LED/backlight module matching by side or batch; visual comparison zones for yellowing or color shift | Repeat the task with service access, cleaning, replenishment or replacement steps included | preserve unit/revision and result |
| Environment/content | cleaning products that contact optical films; service replacement sequence and contamination control | Compare a substitute part or revision with the approved evidence before release | preserve unit/revision and result |
| Service/operations | heat exposure near optical components; post-replacement brightness/color rebalance where supported | Hold the approved baseline and move one physical variable at a time | preserve unit/revision and result |
| Supplier/lifecycle | visual comparison zones for yellowing or color shift; baseline optical photos/measurements after commissioning | Observe power/device state while the linked mechanical or optical condition is changed | preserve unit/revision and result |
The map should be useful during a real incident. A technician should be able to answer: what changed last, which of baseline optical photos/measurements after commissioning or diffuser/light-guide material and revision tracking could explain the symptom, and what quick observation preserves evidence before recovery is attempted? If the answer requires unwritten knowledge from the original designer, the handover is incomplete.
Failure modes worth provoking on purpose
Failure testing should answer two questions at once: can the system continue or fail safely, and can the team tell why it happened? Both matter for fleet support. For transparent LCD backlight diffuser aging color shift, the following cases are high-value because they exercise the actual integration boundary rather than an isolated feature.
| Failure condition | Controlled investigation | Likely checkpoints | Evidence / closure |
|---|---|---|---|
| Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one | capture the system state before applying the recovery action | Check baseline optical photos/measurements after commissioning and LED/backlight module matching by side or batch | commissioning evidence; corrective action; targeted retest |
| One side receives a newer LED module and becomes visibly different | repeat after the normal service or reset procedure | Check diffuser/light-guide material and revision tracking and cleaning products that contact optical films | commissioning evidence; corrective action; targeted retest |
| A cleaning chemical clouds or stains an exposed diffuser surface | compare a known-good unit or reference condition | Check LED/backlight module matching by side or batch and heat exposure near optical components | commissioning evidence; corrective action; targeted retest |
| Dust deposits near warm LEDs create localized discoloration | verify the following transaction/content cycle, not just the immediate reset | Check cleaning products that contact optical films and visual comparison zones for yellowing or color shift | commissioning evidence; corrective action; targeted retest |
| A diffuser replacement restores transmission but changes spatial uniformity | reproduce it on a production-equivalent assembly | Check heat exposure near optical components and service replacement sequence and contamination control | commissioning evidence; corrective action; targeted retest |
| A service team replaces electrical parts without recording the optical revision or baseline | change only the suspected variable while holding the baseline | Check visual comparison zones for yellowing or color shift and post-replacement brightness/color rebalance where supported | commissioning evidence; corrective action; targeted retest |
Keep symptom, cause and consequence separate
When "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one" occurs, record the user-visible symptom first, then the device/configuration state, recent field modification, diagnostic finding, and final correction. Do the same for "One side receives a newer LED module and becomes visibly different." This makes incidents comparable across sites. A reboot, reseat or adjustment can be an approved recovery step, but it should not erase the clues needed to determine whether the same failure is recurring.

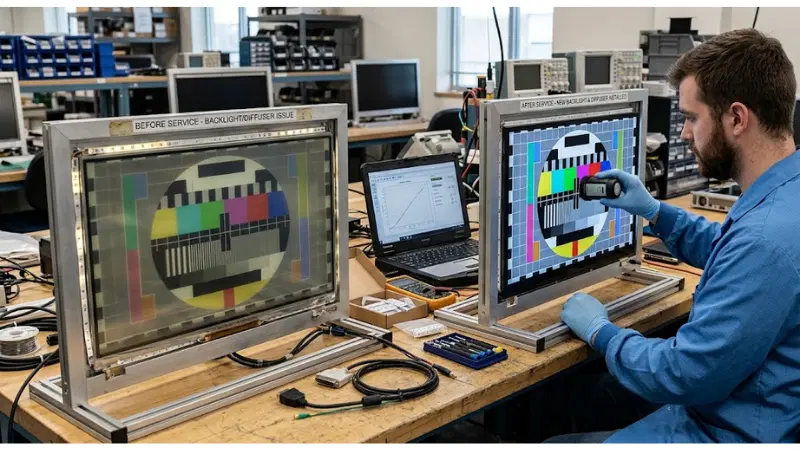

Turn the risk into an acceptance plan
Build acceptance from the final assembly backward. First freeze a reference unit, then exercise the normal workflow, difficult boundary states, recoverable faults and one post-service confirmation. Exact numerical limits remain tied to model documentation, standards or buyer-approved requirements; the table below describes method and evidence rather than inventing a universal number.
| Test ID | Primary focus | Method | Adverse condition | Evidence |
|---|---|---|---|---|
| A20-1 | baseline optical photos/measurements after commissioning | Baseline baseline optical photos/measurements after commissioning; then challenge LED/backlight module matching by side or batch | Include adverse case: Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one | record setup, observation, disposition and retest |
| A20-2 | diffuser/light-guide material and revision tracking | Baseline diffuser/light-guide material and revision tracking; then challenge cleaning products that contact optical films | Include adverse case: One side receives a newer LED module and becomes visibly different | record setup, observation, disposition and retest |
| A20-3 | LED/backlight module matching by side or batch | Baseline LED/backlight module matching by side or batch; then challenge heat exposure near optical components | Include adverse case: A cleaning chemical clouds or stains an exposed diffuser surface | record setup, observation, disposition and retest |
| A20-4 | cleaning products that contact optical films | Baseline cleaning products that contact optical films; then challenge visual comparison zones for yellowing or color shift | Include adverse case: Dust deposits near warm LEDs create localized discoloration | record setup, observation, disposition and retest |
| A20-5 | heat exposure near optical components | Baseline heat exposure near optical components; then challenge service replacement sequence and contamination control | Include adverse case: A diffuser replacement restores transmission but changes spatial uniformity | record setup, observation, disposition and retest |
| A20-6 | visual comparison zones for yellowing or color shift | Baseline visual comparison zones for yellowing or color shift; then challenge post-replacement brightness/color rebalance where supported | Include adverse case: A service team replaces electrical parts without recording the optical revision or baseline | record setup, observation, disposition and retest |
What the evidence package should contain
- Production model/revision and the parts that establish baseline optical photos/measurements after commissioning
- Fixture, enclosure, content or configuration needed to reproduce diffuser/light-guide material and revision tracking
- Method and tool used to inspect or measure LED/backlight module matching by side or batch, including tool status where relevant
- Expected behavior for the difficult case "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one" and the observed behavior
- Defect disposition and corrective action if cleaning products that contact optical films does not meet the project boundary
- Explicit retest triggers covering heat exposure near optical components, supplier substitution and field service
A useful traceable evidence package lets a reviewer reconstruct why the unit passed months later. Photographs without configuration context, measurements without the test condition, or logs without unit identity are easy to collect and difficult to use. Store the evidence with the requirement and defect disposition rather than in an unrelated project folder.
RFQ questions that reveal hidden scope
A useful RFQ turns technical assumptions into supplier responses that can be compared side by side. For transparent LCD backlight diffuser aging color shift, require answers that name the exact model/revision, included elements, exclusions, and service method. The questions below are intended to reveal whether two quotations describe the same responsibility boundary.
- Which diffuser, light-guide, and backlight components are serviceable on the quoted assembly?
- How are optical part revisions and matched sets identified?
- What cleaning agents and methods are approved for exposed optical films?
- What baseline evidence should be captured at commissioning for later comparison?
- Can one side/module be replaced independently without creating a visible mismatch?
- What post-service visual or instrument checks confirm acceptable optical matching?
Before comparing price, normalize these five items
- Identify the exact quoted revision and every part/configuration that affects baseline optical photos/measurements after commissioning
- Ask for reviewable evidence around diffuser/light-guide material and revision tracking and the exclusions around LED/backlight module matching by side or batch
- Name who owns integration and field verification of cleaning products that contact optical films
- Record the service/replacement method that can change heat exposure near optical components
- Treat any workaround affecting visual comparison zones for yellowing or color shift as a documented deviation with owner and retest
A different architecture is not automatically worse. If a supplier handles baseline optical photos/measurements after commissioning another way, check whether the method still serves the use case, can be prove on delivered hardware, and can be maintained after replacement. Keep the outcome and evidence requirement fixed; avoid mandating an implementation unless the project genuinely depends on it.
Keep the approved state alive after handover
Service documentation should tell technicians what must stay unchanged and what to retest when it does change. For transparent LCD backlight diffuser aging color shift, give operations the baseline configuration, diagnostic or inspection cues, safe recovery method, replacement constraints, and retest triggers. This is especially important when the immediate service action can make the symptom disappear without proving its cause.
Metrics that can reveal drift
- yellowing/color-shift complaints
- single-side backlight replacements
- optical-film cleaning damage
- diffuser/light-guide replacement frequency
- post-service optical mismatch
Trend these signals by site, production revision, service action and time. For example, repeated movement in "yellowing/color-shift complaints" after a particular replacement or configuration release is stronger evidence than isolated anecdotes. The goal is to connect field behavior back to baseline optical photos/measurements after commissioning, diffuser/light-guide material and revision tracking, or another controlled variable while the evidence is still recoverable.
Write retest triggers into the service package
- A hardware or material site alteration can alter baseline optical photos/measurements after commissioning or diffuser/light-guide material and revision tracking
- Software, driver or configuration changes can alter LED/backlight module matching by side or batch where it participates in the result
- Fixture, mounting, lighting, cleaning, cable, power or site changes can move cleaning products that contact optical films
- A replacement part or supplier lot changes the baseline for heat exposure near optical components
- A repeat of "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one" challenges an assumption used during the original approval
- Relocation or reassembly disturbs visual comparison zones for yellowing or color shift or another physical datum
For neighboring decisions, use How Transparent LCD Showcases Work, Clear LCD Screen vs Traditional Retail Displays, LEGOYO Solutions, LEGOYO Products, Supermarket Solutions. Those pages should remain separate owners for their broader subjects; use them to understand dependencies rather than copying their acceptance result into this one.
Final decision gate: approve, revise, or stop
- Boundary: can another team reproduce the configuration and exclusions around baseline optical photos/measurements after commissioning?
- Interface: is ownership clear where diffuser/light-guide material and revision tracking interacts with LED/backlight module matching by side or batch?
- Acceptance: did the evidence include the adverse condition "Gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one"?
- Recovery: can "One side receives a newer LED module and becomes visibly different" be contained without erasing diagnostic context?
- Lifecycle: will a future field modification affecting cleaning products that contact optical films trigger a comparison with the baseline?
Close transparent LCD backlight diffuser aging color shift as approve, revise, or stop rather than "looks fine." If an unresolved item must move into pilot operation, state the temporary control, evidence owner, and the exact event that closes the gap. That keeps a pilot assumption from quietly becoming the fleet standard.
FAQ
Q: What is the first thing to verify when gradual yellowing is normalized by staff until a new replacement unit is installed beside the old one?
A: Confirm the approved baseline for baseline optical photos/measurements after commissioning and diffuser/light-guide material and revision tracking before changing parts or settings. Capture the state and recent service/configuration changes, then reproduce the symptom if it is safe to do so.
Q: How should baseline optical photos/measurements after commissioning be documented?
A: Use a model/revision-specific datum, drawing, configuration readback, inspection method or test record. The document should tell production and service how to recognize the approved state and when a retest is required.
Q: Can supplier documentation replace project testing for transparent LCD backlight diffuser aging color shift?
A: No. Supplier documentation defines product capability and limits. Project testing verifies the chosen fixture, software, environment, content, workflow and service method in the final integrated configuration.
Q: How can a team distinguish "One side receives a newer LED module and becomes visibly different" from another fault?
A: Compare the symptom with the controlled variables most likely to affect it-especially LED/backlight module matching by side or batch and cleaning products that contact optical films. Change one suspected variable at a time and keep logs, measurements or photos tied to the exact unit.
Q: What changes should force a retest of heat exposure near optical components?
A: Retest after substitutions or service changes that can alter the same load path, optical path, electrical state, configuration or environment. A recurring field incident is also a valid trigger even when no planned engineering change is known.
Q: How should two supplier solutions be compared?
A: Normalize exact configuration, included accessories, evidence, integration responsibility, deviations, service access and replacement strategy. Initial price is not comparable until those boundaries are aligned.
Final recommendation
The practical objective is not more documentation; it is fewer ambiguous decisions in production and service. For transparent LCD backlight diffuser aging color shift, keep baseline optical photos/measurements after commissioning, diffuser/light-guide material and revision tracking, and LED/backlight module matching by side or batch inside the same evidence chain. Test at least one difficult condition, preserve the result, and make future field modification trigger an explicit comparison rather than an assumption.
