A row of Bar LCD displays can look misaligned even when every screen is securely mounted and appears level when checked by itself.

The reason is cumulative geometry.

A long shelf installation combines fixture straightness, shelf deflection, bracket position, enclosure geometry, adjustment range, cable forces, and installation residuals. Across several displays, those contributions can produce a stepped top edge, changing seam gaps, one enclosure projecting farther forward, or gradual rotation that becomes obvious only at the far end of the run.

This is especially visible in stretched LCD shelf installations in supermarkets and grocery stores, where several long-format screens are intended to read visually as one continuous merchandising surface.

For a multi-unit shelf run, use one shared mechanical reference rather than treating each display as an independent mounting task.

shared datum → fixture geometry → bracket position → display datum → adjacent-unit seam → final verification

There is no universal seam gap, rail-straightness limit, angular tolerance, or allowable front-face step for every Bar LCD installation. These requirements need to come from the industrial design, display drawing, fixture design, installation process, visual-content requirement, and approved project specification.

Bar LCD shelf-run mechanical alignment with shared datum and seam control



Define One Coordinate System for the Entire Shelf Run

Before installing the first display, define how position and rotation will be described.

For a horizontal shelf run, useful directions can include:

  • the longitudinal direction along the shelf;
  • the vertical direction;
  • the outward direction perpendicular to the nominal display plane.

The drawing should also define how rotation is referenced.

Terms such as pitch, roll, and yaw can become ambiguous when different teams use different axis conventions. Installation documents can reduce that ambiguity by describing the observable geometry directly:

  • the top edge slopes relative to the shared horizontal reference;
  • one end of the display projects farther forward than the other;
  • the display face tilts upward or downward relative to the specified plane;
  • the entire display sits ahead of or behind the neighboring units.

ASME Y14.5 Dimensioning and Tolerancing provides established engineering concepts for datum reference frames and geometric tolerancing. A retail shelf installation does not need to become a complex GD&T exercise, but the same fundamental discipline is useful: define the reference geometry before assigning or measuring a tolerance.



Use a Datum Hierarchy Instead of Chaining One Display to the Next

Not every alignment reference has the same role.

A practical shelf-run hierarchy can distinguish:

  • global fixture datum: the shared reference used to control the complete row;
  • display positioning reference: the feature used to locate each enclosure or bracket relative to that global datum;
  • local seam check: the relative measurement between neighboring displays used to confirm the final visual interface.

The local seam should not quietly become the primary reference for the next display.

Consider the chained approach:

Screen 2 aligned to Screen 1 → Screen 3 aligned to Screen 2 → Screen 4 aligned to Screen 3

Each residual positioning error can then become part of the reference used for the next screen. Every adjacent pair may look acceptable while the full run gradually walks upward, downward, forward, or rotationally.

A shared installation datum prevents that local error from becoming the global reference.

An illustrative datum scheme might use:

  • a common horizontal reference for display height;
  • a reference plane for front-face position;
  • a defined longitudinal origin or pitch reference.

The exact features depend on the shelf and bracket architecture. Local seam measurements remain useful, but they should confirm alignment to the shared geometry rather than replace it.

Shared datum hierarchy for aligning multiple Bar LCD displays on a retail shelf

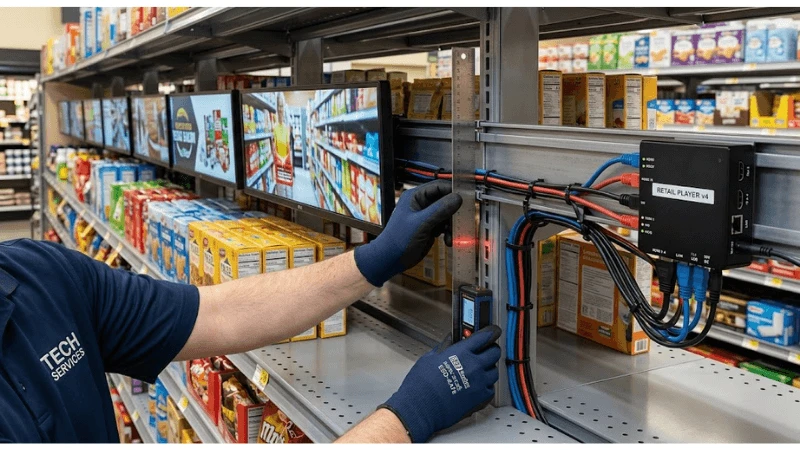

Measure the Rail and Shelf Before Adjusting the Displays

Display adjustment should not be used to hide an unknown fixture error.

Measure the installation structure first.

Relevant fixture conditions can include:

  • rail straightness;
  • rail twist;
  • shelf level or slope where it affects the mounting reference;
  • mounting-hole or slot position;
  • bracket seating surfaces;
  • local deformation;
  • joints between fixture sections;
  • deflection under the intended merchandising load.

The load condition matters. A shelf aligned while empty can move after merchandise, lighting hardware, players, adapters, or cable bundles are added. If those loads are part of normal operation and can influence the mounting structure, final alignment should be verified in the relevant installed condition.

This is particularly important when the fixture has been customized around a specific enclosure. A custom LCD retail-signage design may change bracket interfaces, enclosure datums, cable exits, service access, and adjustment range at the same time.

If the rail is outside the approved project requirement, decide whether the fixture should be corrected or whether the bracket system has sufficient controlled adjustment to compensate. Consuming nearly all available adjustment merely to make a poor rail appear straight leaves little reserve for part variation or later service.



Understand How Tolerances Accumulate at Each Display

The final position of one screen is not controlled by one dimension.

For one alignment direction, a useful conceptual model is:

total position error = fixture deviation + bracket-position error + enclosure-datum error + installation residual

The terms can have positive or negative direction, so this is not a universal worst-case formula. Its value is in identifying the contributors to installed geometry.

For adjacent displays, the seam condition depends on the difference between the complete geometry chains of both units.

This is why a supplier tolerance for the display enclosure alone cannot predict the installed seam.

A well-controlled enclosure can still produce poor shelf alignment when:

  • the rail is not straight;
  • brackets locate differently;
  • adjustment slots are set inconsistently;
  • a cable bundle pushes an enclosure forward;
  • the bracket moves while locking fasteners are tightened.

Likewise, a well-made fixture cannot compensate for uncontrolled enclosure datums or inconsistent installation.

Where a formal tolerance analysis is needed, worst-case and statistical methods answer different questions. The selected method should match the manufacturing and assembly process; statistical treatment should not be used simply to make an unstable geometry chain appear acceptable.

The required dimensional consistency should also be considered when selecting commercial-grade LCD hardware for a repeated retail installation rather than treating all long-format displays as mechanically interchangeable.



Control Each Visible Alignment Mode Separately

"Alignment" is too broad to be a useful inspection result. Record the observable errors separately.

Alignment condition What the installer sees Typical contributors
Vertical offset One display sits higher or lower than its neighbor Rail height, bracket position, enclosure datum, installation adjustment
Horizontal seam gap The physical gap between neighboring enclosures changes Pitch location, enclosure length, bracket position
Front-face step One display sits farther forward or backward Bracket depth, rail twist, trapped cable, enclosure depth
In-plane rotation The top edge of one display slopes relative to the row Bracket rotation, unequal adjustment, enclosure geometry
Out-of-plane rotation One end projects farther forward than the other Rail twist, bracket seating, fixture distortion
Face tilt The display face tilts upward or downward relative to the specified plane Bracket angle, mounting surface, enclosure interface

A correction for vertical offset is not necessarily a correction for front-face step, and movement in one adjustment axis can disturb another.

Bar LCD alignment errors including seam gap height offset front-face step and rotation



Why Small Angular Errors Become More Visible on Long Displays

Rotation becomes more visually obvious as the distance from the rotation center increases.

For an illustrative rigid display of width W with a small in-plane angular error θ:

edge offset ≈ W × θ

where θ is expressed in radians and the angle is small.

This is a geometric illustration, not an acceptance formula. It explains why the same angular error can produce a larger visible edge displacement on a longer screen.

For example, the visual sensitivity of a compact 28-inch Bar LCD installation will not be identical to a longer 43.9-inch Bar LCD when the same angular error is applied.

On even longer formats such as a 49.5-inch Bar LCD, a continuous line, shelf-price strip, or panoramic graphic can make a small physical rotation especially visible.



Use Adjustment Features Without Consuming All Adjustment Reserve

Slots, shims, adjustable brackets, or other positioning features make installation practical, but their available range should be treated as a controlled design resource.

Before rollout, identify:

  • which axis each adjustment feature controls;
  • its usable adjustment range;
  • how the final position is locked;
  • whether tightening changes the display position;
  • whether adjustment remains accessible after production cables are installed;
  • whether sufficient reserve remains for normal fixture and part variation.

If most screens reach one end of their adjustment range simply to compensate for the rail, the installation has little remaining reserve for manufacturing variation, future replacement, or service.

After the locking hardware is tightened, measure again. The pre-tightening position should not be assumed to be the released position.



Keep Cables and Service Loops From Moving the Screen

Alignment can change after the electrical installation is completed.

A stiff HDMI cable, power lead, converter, or short service loop can push against the enclosure and produce:

  • a front-face step;
  • local rotation;
  • incomplete bracket seating;
  • a different final position after service reinstallation.

The bracket should establish display position. Cable stiffness should not become an unintended positioning force.

Check the completed alignment with final production cable routing installed. Provide enough controlled service loop for connection and removal, and support heavy adapters or cable bundles independently when the system architecture requires it.

This interaction becomes more important as displays are integrated with players, lighting, networking, or other devices. Hardware and service architecture should therefore be considered during the upstream Bar LCD selection process for retail shelves, not only after the brackets have been fabricated.

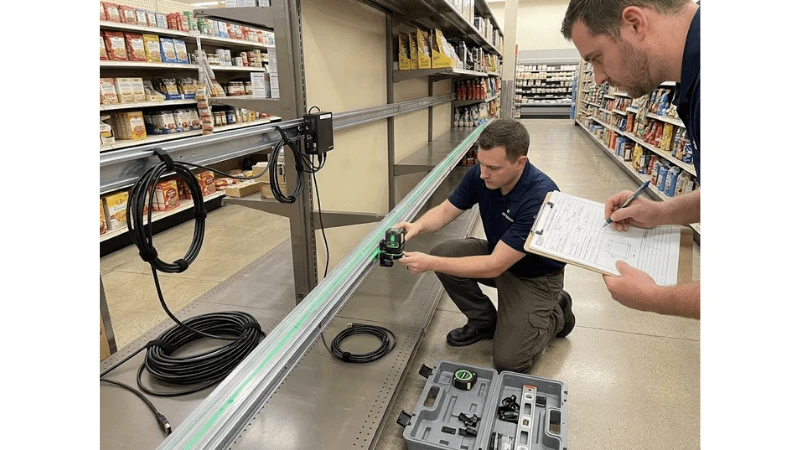

Measure Alignment With a Defined Method

An acceptance record should state what was measured, the reference used, the measurement points, the instrument or method, and the condition of the installation.

Condition Example measurement approach
Shared height reference Laser line, laser plane, or another controlled horizontal reference
Rail straightness Suitable straightedge, laser reference, or dimensional measurement method
Seam gap Defined edge-to-edge measurement points
Relative height Measurement from the shared datum at defined enclosure locations
Front-face step Reference plane or straightedge with an appropriate depth measurement
In-plane rotation Endpoint height difference or suitable angular measurement
Out-of-plane rotation Multiple depth measurements to the same reference plane
Reinstallation repeatability Before/after measurements at identical reference points

These are examples rather than mandatory instruments.

The selected measurement method must be capable of supporting the tolerance decision. NIST guidance on metrological traceability emphasizes that traceability alone does not guarantee fitness for purpose; measurement uncertainty still needs to be appropriate for the measurement need.

An instrument that displays many decimal places is therefore not automatically suitable for accepting a tight seam or step requirement.

Bar LCD shelf alignment measurement using laser datum seam and depth checks



Use an Alignment Acceptance Record

A repeatable shelf-run installation benefits from a record that connects the drawing requirement to the actual installed geometry.

Record field What to capture
Shelf-run datum Defined global reference used for the row
Fixture condition Installed loading and relevant operating condition
Display position Unit number or physical location in the run
Seam gap Measurements at defined seam locations
Height offset Measurement from the shared vertical reference
Front-face step Measurement relative to the defined front reference plane
Rotation Defined in-plane or out-of-plane measurement result
Cable state Final production routing installed and supported
Adjustment condition Final locked position and remaining adjustment reserve where relevant
Post-tightening result Measurement after final fastener locking
Reinstallation result Result after the defined service removal/reinstall procedure

The acceptance record should use the same measurement points and reference conventions for every display in the run.



Do Not Change Measurement References Mid-Run

Even accurate instruments can produce an inconsistent acceptance process if the measurement reference changes between installers or units.

Examples include:

  • the first screens measured from the shared rail reference while later screens are measured only from their neighbor;
  • one installer measuring enclosure edges while another measures active-image edges;
  • one section measured before cable installation and another after final cable routing;
  • some screens measured under load and others with the fixture unloaded.

The procedure should define:

  • reference datum;
  • exact measurement points;
  • whether the inspected feature is the enclosure, bezel, or active area;
  • fixture/load condition;
  • measurement method;
  • instrument;
  • recording convention.

Comparability depends on keeping these conditions consistent across the entire shelf run.



Use Content as a Visual Check, Not the Primary Metrology

A continuous line, grid, or graphic crossing multiple screens is useful because the eye is highly sensitive to discontinuity.

Diagnostic content can include:

  • a horizontal line spanning the full row;
  • a rectangular grid;
  • reference marks near adjacent screen edges;
  • a graphic feature that crosses every seam.

This can expose vertical steps, rotation, inconsistent visible gaps, and incorrect content mapping.

It should remain a secondary check. A graphic can itself be mis-scaled, cropped, offset, or mapped incorrectly. A broken line does not prove that the enclosures are physically misaligned, while digital compensation can sometimes hide mechanical misalignment.

Measure the mechanical installation first, then use controlled content to confirm the visible result.

This distinction matters when comparing mechanical shelf alignment with the broader digital-signage system. The screen geometry should be established independently of content behavior, even when the final installation is part of a wider commercial LCD display deployment.

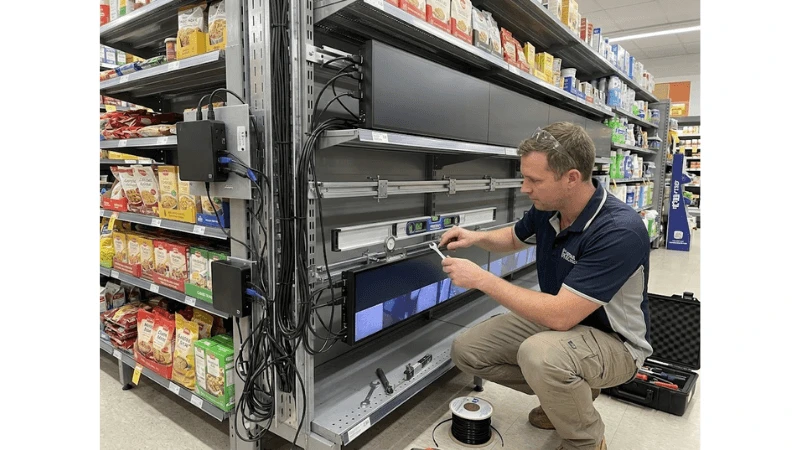

Test a Representative Multi-Unit Shelf Run

A single-screen fit check cannot expose cumulative geometry.

The representative installation should use:

  • production display enclosures;
  • production brackets;
  • production rail or a representative fixture;
  • final cable types and routing;
  • relevant shelf loading;
  • normal installation and service-access constraints.

A practical sequence is:

  1. Measure and record the fixture before display adjustment.
  2. Establish the shared shelf-run datum.
  3. Install the reference unit using the production process.
  4. Install the remaining units against the shared datum.
  5. Lock all adjustment features using the released hardware.
  6. Remeasure after tightening.
  7. Record seam gap, relative height, front-face step, and rotation at the defined points.
  8. Complete production cable routing and recheck the geometry.
  9. Apply line/grid content as a secondary visual check.
  10. Perform the service-reinstallation check.

The project defines the pass/fail limits. A tolerance from another screen size or fixture should not be transferred automatically.

A long product such as a 49-inch Bar LCD display can interact differently with the rail, bracket, cable bundle, and service access than a shorter enclosure, so the released alignment configuration should remain tied to the actual hardware.



Test Removal and Reinstallation Repeatability

A shelf run that aligns only during initial commissioning is difficult to maintain.

Select a display intended to be field-serviceable and record its pre-removal geometry.

  1. Remove the unit using the normal service procedure.
  2. Leave the neighboring displays in their approved positions.
  3. Reinstall the same unit using production hardware and access conditions.
  4. Restore cables and service loops.
  5. Lock the adjustment mechanism.
  6. Measure the same alignment features again.

Record:

  • seam gap;
  • height offset;
  • front-face step;
  • relative rotation;
  • any adjustment required during reinstallation.

If normal service requires the entire row to be realigned from the beginning, that is an important service-design consequence rather than merely an installer inconvenience.



Recheck Long Shelf Runs When the Geometry Can Change

Initial alignment is not the only condition that matters over the life of a long fixture.

Targeted remeasurement may be appropriate after changes such as:

  • a significant merchandising-load change;
  • fixture relocation or shelf reconfiguration;
  • replacement of brackets, spacers, shims, or displays;
  • changes to cable bundles or adapter placement;
  • service work that disturbs the mounting reference;
  • a significant impact or vibration/shock event;
  • temperature-related dimensional movement where the fixture length, materials, and environment make it relevant;
  • longer-term fixture or furniture movement that changes the original reference geometry.

Temperature effects should be evaluated as part of the real material and fixture system rather than converted into a universal Bar LCD thermal-expansion allowance.

Projects still selecting between fundamentally different shelf-display technologies should resolve that architecture before the final fixture tolerance is frozen. The comparison of LCD bar screens and LED bar screens belongs upstream of the detailed mechanical alignment plan.



Troubleshoot Alignment Problems by Symptom

Symptom First areas to investigate
The row gradually walks upward or downward Chained local alignment, rail slope, cumulative bracket positioning error
One screen is high while its neighbors are correct Local bracket position, enclosure datum, installation adjustment
Seam gap changes along the run Longitudinal pitch location, enclosure length variation, bracket position
One screen projects forward Trapped cable, bracket depth, incomplete seating
One end of a display projects farther forward Rail twist, bracket seating, out-of-plane rotation
Alignment changes after shelf loading Fixture or shelf deflection
Screen moves after fasteners are tightened Adjustment-locking sequence, bracket movement during tightening
Alignment changes after service Reinstallation repeatability, cable routing, changed adjustment reference
Physical measurements pass but a graphic line is broken Content mapping, scaling, crop, or player configuration
Graphic looks straight but enclosure faces do not Digital compensation may be hiding mechanical misalignment

Preserve the original geometry before adjusting the display. A quick correction can remove evidence that distinguishes a fixture problem from a bracket, enclosure, or cable-routing problem.



Bar LCD Shelf-Run Alignment Checklist

  • Define one coordinate system for the complete shelf run.
  • Document the global fixture datum and local display references separately.
  • Avoid chaining each new display only to the previous screen.
  • Measure rail straightness, twist, and fixture condition before display adjustment.
  • Verify the fixture under the relevant installed/load condition.
  • Include enclosure and bracket variation in the geometry chain.
  • Record vertical offset, seam gap, front-face step, and rotation separately.
  • Confirm that adjustment range has sufficient reserve.
  • Remeasure after final fastener tightening.
  • Check alignment with final production cables installed.
  • Use fixed measurement points and references throughout the run.
  • Confirm that the measurement method is suitable for the acceptance requirement.
  • Maintain an Alignment Acceptance Record for the representative run.
  • Use line/grid content as a secondary visual check.
  • Test a representative multi-screen installation rather than only a single display.
  • Verify removal and reinstallation repeatability.
  • Recheck geometry when fixture load, hardware, service condition, or relevant environmental conditions change.

A visually continuous Bar LCD shelf run is not created by making every screen individually level. It comes from controlling the complete geometry chain from one shared reference through the fixture, bracket, enclosure, adjustment mechanism, cable routing, measurement process, and service procedure.

Before freezing that geometry chain, choose the display format and mounting architecture that the fixture will actually use. The Bar LCD display buying guide can support upstream format selection before detailed shelf-run tolerances are released.

For a project-specific installation, prepare the display size, quantity, shelf-run length, fixture construction, bracket concept, alignment datums, required seam geometry, measurement method, service-access requirement, and final cable architecture when you request a project quotation.

Send Inquiry
