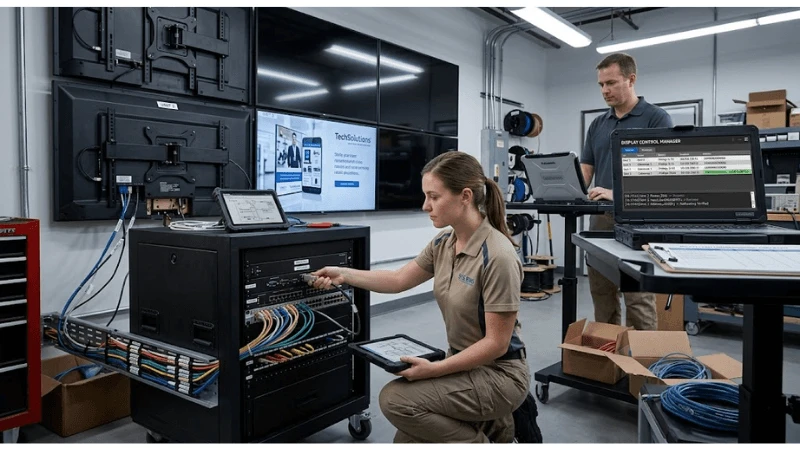

Commercial LCD RS-232 and LAN control commissioning for multiple displays



Separate the Four Layers of Remote Display Control

Commissioning becomes easier to diagnose when remote control is divided into four layers.

Layer What it proves Typical failure
Physical / link path The controller and display can exchange electrical or network traffic Wrong cable, serial wiring error, disconnected port, failed switch link
Transport / endpoint Traffic is reaching the intended serial address or network endpoint Duplicate Set ID, stale IP address, wrong port, closed connection
Application protocol The display recognizes the command framing, code, parameters, and addressing Wrong command revision, terminator, parameter, or response parser
Device state The display actually reached the requested operational condition Command response returned but power, input, brightness, or another state remains wrong

One generic "connected" status is not enough. A controller may be connected to the network but targeting the wrong screen. A TCP session can be healthy while the application command is invalid. A valid application response can also leave the final operational state different from the requested state.

This distinction is particularly important when remote display control is only one part of a larger digital signage solution containing media players, switches, management servers, and scheduling software.

Commercial LCD remote control stack from transport to verified display state



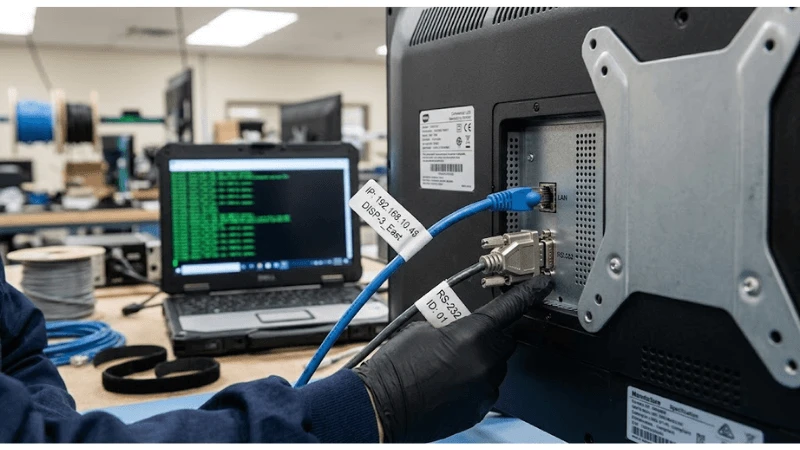

Commission the RS-232 Path Before Testing Commands

Start with the exact serial interface documented for the production display.

Commercial displays can expose different physical connectors even when the control function is described as RS-232C. A product may use a conventional serial connector, a phone-jack-style interface, an adapter, or another manufacturer-defined implementation.

Samsung Business documentation for the DH48D commercial signage display, for example, lists RS232C In/Out and RJ45 as external-control interfaces. LG's 49SM5B documentation likewise lists RS232C and RJ45 external control. These are implementation examples, not universal wiring or protocol specifications.

A practical RS-232 commissioning record should capture:

Field What to record
Display identity Exact model, hardware revision where relevant, and firmware
Control connector Actual physical connector and required adapter
Cable topology Direct connection, manufacturer-supported IN/OUT chain, or another documented topology
Pinout Manufacturer-defined wiring
Serial rate Approved baud rate for the exact product
Framing Data bits, parity, stop bits, and flow-control requirement where applicable
Device address Set ID or equivalent application-level identity
Command document Exact protocol/manual revision used during commissioning
Response format Expected acknowledgement, query response, and error structure

These values should not be copied from another display simply because both products have an RS-232 port.



Map Physical Position, Set ID, and Display Identity

A serial address such as Set ID should be treated separately from the physical position of the screen.

A useful deployment record can associate:

Physical position Serial-chain position Control address Display identity
Shelf A / Screen 1 First Project-defined value Recorded unit
Shelf A / Screen 2 Second Project-defined value Recorded unit
Shelf A / Screen 3 Third Project-defined value Recorded unit

The exact address range and daisy-chain behavior remain model-specific.

Commissioning should prove that:

  • each individually controlled display has the intended address;
  • duplicate addresses are detected before rollout;
  • the controller's logical map matches the physical installation;
  • replacement displays receive the correct identity before release;
  • factory reset or power interruption does not silently invalidate the control map.

This mapping becomes more important in long retail runs such as stretched LCD shelf installations, where a technician needs to know exactly which physical screen corresponds to a command target.

Commercial LCD physical position Set ID IP address and device identity mapping



Commission the LAN Endpoint Before Testing Application Commands

LAN control introduces another identity layer.

Before sending commands, establish how the control application locates the intended display.

Record where relevant:

  • MAC address;
  • hostname;
  • assigned IP address;
  • static, DHCP, reservation, or another approved addressing method;
  • subnet and gateway;
  • transport protocol;
  • destination port;
  • authentication or access controls supported by the product;
  • management-platform device identifier.

An installation-time IP address should not become the permanent device identity by accident. When endpoint addresses can change, the control architecture needs a repeatable discovery or remapping method.

A successful ping confirms only part of the network path. It does not prove that:

  • the display-control service is reachable;
  • the correct control port is available;
  • the application session has been established;
  • the display accepts the intended command protocol;
  • the requested display state changes.

Systems that combine remote display settings with players, sensors, local applications, or network management should document these dependencies as part of the broader smart LCD integration architecture.



Use the Exact Command Set for the Exact Model and Firmware

Neither "RS-232" nor "LAN" defines the commercial-display application command set.

The manufacturer determines details such as:

  • command codes;
  • parameters;
  • Set ID representation;
  • read/query commands;
  • write commands;
  • response frames;
  • error responses;
  • terminators;
  • escaping or framing rules;
  • supported functions;
  • firmware-dependent behavior.

Record the exact command document used during commissioning. When the model, control board, or firmware changes, compare the applicable command documentation before assuming compatibility.

A parser written for one version can fail when a later implementation changes an error code, parameter range, response representation, or supported command.

That is one reason a commercial-grade LCD platform should be evaluated not only for panel characteristics, but also for the control and management interfaces required by the deployment.



eparate TCP Transport From Display-Protocol Success

For implementations that use TCP, IETF RFC 9293 defines TCP as a transport protocol providing a reliable byte-stream service with connection and retransmission behavior.

TCP does not know what a commercial-display command means.

Three questions therefore require separate evidence:

1. Was the application data transported?

Evidence can include a valid serial transmission, established TCP connection, or successful application send operation.

2. Did the display application protocol respond?

Evidence can include an expected response frame, an explicit acknowledgement, or a manufacturer-defined error.

3. Did the display reach the requested state?

Evidence can include power-state read-back, source read-back, brightness read-back, or another observable result appropriate to the command.

The three stages should not be collapsed into a single "success" flag.



Use a Clear Command Outcome Model

A commissioning application or service log becomes easier to interpret when command outcomes are classified consistently.

Outcome Meaning Recommended next action
Confirmed Expected protocol response was received and the resulting state was verified where verification is available Record completion
Rejected The display returned a defined protocol or parameter error Correct command, address, parameter, model, or firmware mismatch before retrying
Unknown Transmission may have occurred, but no reliable application result or state verification is available Query state before deciding whether a retry is safe
State mismatch A response was received but read-back or observable behavior does not match the requested state Investigate device state, timing, mode restrictions, or command semantics

This taxonomy prevents a timeout, protocol rejection, and state mismatch from being handled as if they were the same failure.



Use Read-Back for States That Matter

Where the manufacturer's protocol supports queries, critical state changes should be verified rather than inferred from the write command alone.

A practical pattern is:

write command → receive protocol response → allow model-specific state-change time → query state → compare actual state with requested state

The required delay before read-back is product-specific and should come from the actual control implementation or qualified commissioning test.

Read-back can be useful for states such as:

  • power;
  • input/source;
  • brightness or backlight where exposed by the protocol;
  • orientation;
  • mute or volume where relevant;
  • control identity;
  • selected operating modes.

If the protocol cannot query a required state, define another observable verification method rather than treating a missing error as proof of success.

Commercial LCD command response state verification and recovery workflow



Design Retries Around Command Semantics

A timeout creates an important ambiguity: the command may have failed, or the command may have executed while its response was lost.

Before replaying the command, consider what duplicate execution would do.

A command that explicitly sets a state, such as:

set brightness to a defined value

normally has different retry behavior from a state-relative operation such as:

toggle power

or:

advance to the next input

Repeating a state-setting operation often has a different risk profile from repeating an operation whose result depends on previous state. In software terms, the first type is more likely to behave idempotently.

For an uncertain result, a stronger recovery sequence is:

  1. Wait for the defined response window.
  2. Query the current state where supported.
  3. Compare actual state with the requested state.
  4. Retry only when the command semantics and current state make the retry appropriate.
  5. Record the retry and final outcome.

The retry engine should distinguish no connection, timeout with unknown outcome, explicit protocol rejection, and confirmed state mismatch.



Control Command Pacing and Multi-Display Batches

A command that works reliably on one screen does not prove that the production controller can command a complete fleet at maximum rate.

Model-specific behavior can involve:

  • inter-command timing;
  • device processing time;
  • serial-chain behavior;
  • simultaneous network sessions;
  • polling frequency;
  • controller queueing;
  • batch size;
  • reconnect behavior.

Test the production controller with realistic group operations rather than inventing one universal inter-command delay.

Useful cases include:

  • powering a group on;
  • querying every display in a zone;
  • switching multiple displays to the same source;
  • applying a common setting;
  • recovering only the displays that lost connectivity.

LG's current SuperSign documentation provides a real manufacturer example of remote management at fleet scale: SuperSign Control+ supports network control and monitoring, while SuperSign C supports compatible signage connected through LAN or RS-232C serial ports.

This does not define the required rate for another product. It illustrates why network management, serial control, device identity, and logging need to be commissioned as one operational system.



Verify Recovery After Power and Network Changes

A control system that works only while every component stays continuously powered and connected has not completed deployment commissioning.

Test restart sequences relevant to the production architecture, such as:

  • display restart while the controller remains online;
  • controller restart while displays remain online;
  • Ethernet-switch restart;
  • display and media-player restart together;
  • serial-controller restart;
  • loss and restoration of one supported device in a serial chain.

Verify that:

  • serial identities persist as intended;
  • LAN endpoints are restored or rediscovered;
  • control sessions reconnect;
  • stale endpoints are removed from the active control map;
  • queued commands are not replayed incorrectly;
  • the actual device state is checked before automation resumes where required.

For dynamic network addressing, the test should prove the real endpoint-discovery method rather than relying on the display receiving the same address by chance.

This type of recovery behavior is especially relevant when displays are part of a broader smart retail display solution with centralized management and remote operations.



Keep a Reproducible Control-Commissioning Record

For every supported display model or firmware family, retain a record that another technician can reproduce without relying on the original commissioning engineer's memory.

Record field What to capture
Display identity Model, relevant hardware revision, firmware
Physical control path RS-232 connector/cable or LAN path
Serial configuration Rate, framing, flow-control requirement where applicable
Logical identity Set ID, hostname, IP, platform device ID, or other required identifier
LAN configuration Addressing method, transport, endpoint, port, access requirement
Command document Exact manufacturer protocol/manual revision
Tested functions Required write and query commands
Response handling ACK, error, timeout, and parser behavior
State verification Read-back or approved observable verification
Retry policy Timeout handling, state-query logic, duplicate-command rules
Batch behavior Representative group operations tested
Recovery Power, network, controller, and endpoint-recovery results
Logging Fields needed to correlate target, command, response, state, and retry
Exceptions Unsupported or firmware/model-specific differences

The hardware used for this record should match the actual released platform. When a project depends on non-standard connectors, customized control boards, unusual enclosure access, or another hardware change, the impact should be reviewed as part of the custom LCD design process.



Troubleshoot RS-232 and LAN Control by Symptom

Symptom First areas to investigate
No RS-232 response from one display Connector, cable, serial framing, address, model-specific command protocol
Every display in a serial chain fails Controller port, first connection, chain topology, serial configuration
The wrong display responds Duplicate Set ID, incorrect physical-to-logical mapping
LAN display responds to ping but commands fail Control service, destination port, transport session, application framing, protocol revision
Commands work after controller restart but later stop Session lifecycle, stale connection, controller queue, endpoint mapping
Command receives a response but state is wrong Response semantics, delayed state change, read-back logic, operating-mode restrictions
Only large group operations fail Command pacing, session limits, serial-chain timing, controller queueing
Failures begin after firmware update Command-document revision, parser behavior, new defaults, unsupported functions
Replacement display does not respond Model/firmware mismatch, default address, control enablement, network settings
Control fails after a network or power outage Address persistence, rediscovery, reconnect logic, stale endpoint, queued commands
Duplicate action occurs after timeout recovery Blind retry of a state-relative or otherwise non-idempotent command
Logs say "sent" but provide no diagnosis Logging stops at the transport layer and does not record protocol/state outcome



Preserve the failure state before repeatedly rebooting devices. Capture the target identity, command, protocol response, current state, serial/network condition, and recent configuration changes first.



Retest When the Control Path Changes

Targeted recommissioning is appropriate when a change can affect addressing, protocol interpretation, endpoint discovery, response parsing, or operational recovery.

Relevant changes include:

  • display model;
  • controller-board revision;
  • firmware;
  • serial adapter or cable topology;
  • Set ID scheme;
  • network-addressing policy;
  • switch, router, or VLAN architecture;
  • control port or transport;
  • command parser;
  • controller software;
  • retry logic;
  • polling frequency;
  • batch behavior;
  • replacement display;
  • remote-management platform.

A content-only update does not normally require complete RS-232/LAN recommissioning unless it changes the control application or the state being validated.

Hardware selection should therefore be stabilized before the final command matrix is released. Teams still choosing the display platform can use the Bar LCD buying guide for retail shelves as an upstream selection resource before model-specific control commissioning begins.



Commercial LCD RS-232 and LAN Commissioning Checklist

  • Record the exact display model and firmware.
  • Treat RS-232 and LAN as parts of the communication path rather than complete application protocols.
  • Verify the physical serial connector, adapter, and cable topology against manufacturer documentation.
  • Document serial communication settings.
  • Keep Set IDs or equivalent control addresses unique where the architecture requires it.
  • Map physical screen position to logical device identity.
  • Document the LAN addressing and endpoint-discovery strategy.
  • Verify control ports and transport types against the supported implementation.
  • Version-control the exact manufacturer command documentation.
  • Test command framing, parameters, terminators, and response parsing.
  • Separate transport result from application-protocol response.
  • Separate application response from actual display-state verification.
  • Use read-back for critical states where supported.
  • Classify command outcomes consistently as confirmed, rejected, unknown, or state mismatch.
  • Design retries around the consequences of duplicate execution.
  • Avoid blindly replaying state-relative commands after an uncertain result.
  • Test realistic multi-display batch behavior.
  • Verify recovery after display, network, controller, and infrastructure restarts.
  • Log target, command, response, state, retry, and final disposition.
  • Recommission replacement units before placing them into automated control.
  • Retest after firmware, addressing, network, protocol, or controller changes.

A reliable commercial LCD control system is not proven by showing that a laptop can send one RS-232 or LAN command. It is proven when the deployed system can identify the intended screen, deliver the correctly framed command, interpret the response, confirm the resulting state, manage uncertain outcomes without creating unintended duplicate actions, and recover predictably after the interruptions that matter to the installation.

For projects that still need to define screen format, hardware family, control interfaces, or deployment architecture, the broader display product range can be reviewed before the final control specification is frozen.

For project-specific commissioning, prepare the display model, quantity, serial/LAN topology, network-addressing policy, required control functions, firmware, management platform, read-back requirements, restart scenarios, and logging requirements when you request a project quotation.

Send Inquiry
