Bar LCD Multi-Unit Content Synchronization: Start-Time Sync, Frame Timing, Drift, and Recovery

Aug 18, 2026

Leave a message

Grace Lin
Grace Lin
Grace has spent the past seven years working directly with supermarket and convenience store buyers — mostly helping them figure out whether an ESL rollout actually makes sense for their operation, and then making it work when it does. She's covered

Several adjacent bar LCD screens can look perfectly coordinated during a static promotion and immediately reveal timing errors when a moving graphic crosses the seam between them.

A car, arrow, price ribbon, product image, or background animation intended to travel continuously across several displays can appear split when one screen presents a different source frame from its neighbor.

The engineering question is therefore not simply whether all screens start at approximately the same time. It is whether the playback architecture maintains the level of synchronization the visual design actually requires through startup, continuous playback, loop boundaries, content updates, player restarts, and final display output.

A useful timing chain is:

asset timeline → player clock → playback start → decoder → frame pacing → video output → display processing

Different synchronization methods control different parts of that chain.

There is no universal allowable timing error for every installation. A small relative offset may be difficult to notice when each screen carries independent information and immediately obvious when one object crosses a narrow physical seam. Projects still deciding on the wider display format can review the differences between LCD bar screens and LED bar screens before specifying a synchronization architecture.

Bar LCD single-player and multi-player synchronization architecture comparison



Define How Synchronized the Screens Actually Need to Be

Not every multi-screen campaign requires frame-level synchronization.

Synchronization requirement Typical content What matters visually
Independent playback Each screen presents separate information Exact relative frame timing usually has little visual importance
Approximate simultaneous start Coordinated but visually independent clips Screens should begin together, but minor relative timing differences may be acceptable
Event-level synchronization Several screens change scenes together Scene transitions should occur as one coordinated event
Frame-level continuity One visual object or master canvas spans adjacent displays A relative frame offset becomes visible directly at the seam

If three screens each show a separate price promotion, a coordinated scheduled start may be enough. If one product animation travels continuously across the entire shelf run, the requirement is much tighter.

At 60 frames per second, one source frame lasts approximately 16.7 ms. At 30 fps, one frame lasts approximately 33.3 ms. These values describe frame duration only; they are not proposed acceptance tolerances.

For retail shelf applications, synchronization requirements should therefore be defined together with the intended motion design and viewing geometry. A broader overview of how stretched displays are used in that environment is available in the guide to stretched LCD screens for supermarket and grocery displays.

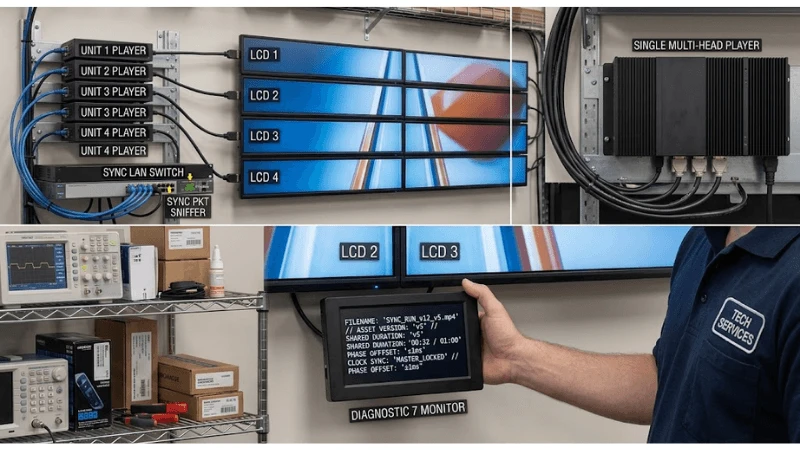

Choose Single-Player or Multi-Player Architecture

The first architecture decision is whether several displays can share one player or whether each Bar LCD requires its own player.

One player driving several outputs

A multi-output player can remove some inter-player variables because the content timelines originate inside one device.

Potential advantages include:

  • one local system clock;
  • one software configuration;
  • fewer independent player restarts;
  • simpler asset-version control.

However, one player does not automatically guarantee that every physical output is frame locked.

The architecture still needs to verify:

  • the number of supported outputs;
  • whether those outputs support synchronized operation;
  • output resolution and timing;
  • required frame rate;
  • display-side processing;
  • cable and interface compatibility.

A project built around compact units such as a 28-inch bar display may be physically easy to arrange in a multi-unit run, but the media-player output architecture still determines whether one continuous moving canvas can remain temporally aligned.

One player per Bar LCD

A distributed architecture gives each display an independent player. This can make installation modular and simplify replacement, but it introduces additional timing variables:

  • separate player clocks;
  • independent decoder startup;
  • individual local storage;
  • firmware and software differences;
  • network state;
  • player reboot and rejoin behavior.

Multi-player systems therefore need an explicit synchronization mechanism when the visual design requires tight continuity.

BrightSign provides one useful implementation example in its official Video Sync documentation. Its architecture separates player clock synchronization from jam/start sync, ongoing frame sync, and HDMI clock synchronization. The exact mechanism is platform-specific, but the architectural lesson is broader: connecting several players to the same network is not itself a frame-synchronization system.

Hardware size selection should be treated separately from this timing architecture. The site's Bar LCD display buying guide is a more appropriate place to compare shelf-display formats and general selection factors.



Understand the Complete Timing Chain

1. Asset timeline

Every synchronized player must be working from a compatible content timeline.

If one unit contains:

  • an older asset revision;
  • a different duration;
  • a different edit;
  • inserted material that does not exist on the other units;

no clock protocol can make the visual result correct.

2. Player clock

A common clock lets distributed players agree on time.

IEEE 1588-2019 defines the Precision Time Protocol for precise synchronization of clocks in packet-based networked systems. That solves an important timing problem, but synchronized clocks alone do not specify which decoded media frame each display is currently presenting.

3. Playback start

Players still need a defined rule for entering the common media timeline.

Two applications can agree on the current time while starting their decoders at slightly different moments if each receives an independent play command.

4. Decode and buffering

The media pipeline must open the asset, initialize the decoder, fill any required buffers, and prepare the appropriate frame.

Differences in decoder implementation, storage state, processing load, or software behavior can create a fixed startup offset unless the synchronization platform actively accounts for them.

5. Ongoing frame pacing

Starting together does not prove that players will remain together.

A system that requires long-term frame continuity needs an ongoing relationship to a shared timeline rather than only a one-time simultaneous command.

6. Video-output timing

Even when the correct media frame is ready inside each player, the final video output needs to maintain the timing required by the project.

7. Display processing

The timing chain does not necessarily end at the HDMI or other video connector.

An LCD can apply processing such as:

  • input scaling;
  • aspect-ratio conversion;
  • image enhancement;
  • noise reduction;
  • motion-related processing;
  • different picture or operating modes.

These functions can introduce processing latency. Two panels receiving properly synchronized inputs may therefore still show a fixed visible offset if their internal processing paths differ materially.

The lowest-risk multi-unit installation normally keeps display model, firmware, input mode, picture mode, and processing configuration consistent across the synchronized run. This is one reason a project using commercial-grade LCD displays should control the complete deployed configuration rather than treating every display with a compatible connector as interchangeable.



Clock Synchronization Is Not Frame Synchronization

Suppose two players share accurately synchronized clocks.

At a scheduled time, both applications issue a PLAY instruction.

Player A still needs time to:

  • open the file;
  • initialize the decoder;
  • prepare its buffer;
  • present the first frame.

Player B may complete the same process on a slightly different schedule.

Their clocks can remain synchronized while the first visible video frame appears at different moments.

A stronger architecture keeps media playback referenced to the shared timeline after startup. Some digital-signage platforms additionally synchronize output clocks so that the visible scanout is coordinated, not just the software clock.

For this reason, an NTP/PTP status screen or matching wall-clock timestamp is useful evidence about player clocks, but it is not sufficient evidence of visible frame synchronization.

Bar LCD clock synchronization versus frame synchronization showing players with matched clocks but different video frames



Keep Frame-Rate and Output-Timing Definitions Exact

Frame-rate labels that appear almost identical should not be treated casually in a synchronized multi-screen system.

For example:

  • 30.000 fps is not numerically identical to 29.97 fps;
  • 60.000 fps is not numerically identical to 59.94 fps.

The content master, encoded assets, player video mode, and display input mode should therefore be recorded explicitly rather than described only as "30 fps" or "60 Hz" when the actual system uses a fractional rate.

This does not mean every project must use one particular frame rate. It means the synchronized configuration must use the timing mode expected by the selected platform.

BrightSign's Multiscreen VideoMode documentation, for example, states that the frame rates on all screens in its multi-output configuration must be an exact match for precise synchronization. That is a platform-specific requirement, but it illustrates why 59.94 and 60 should not be assumed to be interchangeable during commissioning.

When evaluating different hardware sizes, record the approved timing mode just as carefully as physical dimensions. A system using a 43.9-inch bar display should not inherit an output configuration from another installation without confirming that the complete timing chain remains compatible.



Prepare Every Screen Asset From One Master Timeline

Before investigating network or player timing, prove that the content itself matches.

For a campaign split across several displays, record:

  • asset identifier;
  • revision;
  • checksum or hash;
  • pixel dimensions;
  • frame rate;
  • duration;
  • codec/profile required by the selected player;
  • start frame;
  • loop design.

If the screens show slices of one larger visual composition, generate those slices from the same master timeline.

Independent post-split edits are risky. Removing or adding one source frame to only one screen asset creates a permanent relative timing difference that player-clock synchronization cannot repair.

Use asset identity rather than filenames alone

A filename such as campaign-final.mp4 is not sufficient proof that two players contain the same content.

Two different files can carry the same filename. A controlled asset identifier, version, or checksum makes content divergence much easier to detect.

The wider publishing, scheduling, and device-management workflow belongs to the digital-signage management layer. Projects that need a broader integration view can refer to smart LCD screen integration; synchronization testing should begin only after the required assets are known to be present and approved.



Separate Content Distribution From Playback Synchronization

A network can perform two different jobs:

Distribution: moving assets and playlists to the player.

Synchronization: maintaining the timing relationship between active players.

For locally cached playback, an asset may be transferred well before the scheduled presentation. A temporary WAN outage during playback may then have no direct effect on relative frame timing if the local synchronization mechanism continues to operate correctly.

By contrast, activating a campaign before one player has received the complete approved asset can produce:

  • fallback content;
  • delayed activation;
  • a different playlist version;
  • an apparently unsynchronized screen.

All synchronized units should therefore reach a known content-ready state before the campaign enters the shared playback timeline.



Distinguish Fixed Offset From Progressive Drift

Two screens may begin with a small fixed difference, or they may gradually move farther apart.

Those are different failure signatures.

Fixed startup offset remains approximately constant. Likely investigation areas include start event timing, decoder startup, output timing, and display-side processing.

Progressive drift increases over time. That suggests the players are not maintaining the same effective playback timeline.

A long-run test should therefore check synchronization:

  • shortly after startup;
  • after sustained playback;
  • after several media loops;
  • near the longest expected continuous campaign period.

The test duration should be defined by the project rather than copied from another deployment.

This type of extended test is particularly relevant when a long shelf run uses several units such as a 49.5-inch Bar LCD in adjacent positions, because even a small timing difference becomes easier to notice when the customer visually follows motion across multiple physical seams.



Treat Loop Boundaries as Their Own Synchronization Test

A system can remain synchronized during one playback cycle and fail when the asset reaches its end.

Possible causes include:

  • different asset durations;
  • different end-of-file behavior;
  • one player independently restarting its asset;
  • playlist-transition differences;
  • dynamically inserted content.

If the selected platform treats each loop as a new playback transition, the players may need to resynchronize at that boundary.

Test several consecutive loops. Watching only the first playback cycle cannot establish that the system will remain synchronized during normal operation.



Define How a Restarted Player Rejoins the Group

One of the most important field conditions is:

What happens when one player reboots while the other screens continue?

Three general recovery models are possible.

Wait for the next common boundary

The restarted player remains blank or on fallback content until the group reaches a defined common start point.

This is straightforward but leaves a temporarily missing segment.

Restart the synchronized group

All screens return to a known start point.

This restores a known relative state but interrupts displays that were still operating correctly.

Rejoin the current timeline

The restarted player determines the current shared playback state and resumes at the appropriate position.

This can provide less disruptive recovery but requires explicit platform support.

BrightSign's Video Wall Sync Architecture is one real implementation example: its synchronized players share PTP timing and playback-state information, allowing a restarted follower to return to the appropriate file position rather than simply beginning again at frame zero.

The important requirement is not to copy that architecture. It is to define and test the rejoin behavior of the platform actually used by the project.

A long format such as a 49-inch bar digital-signage display can form a visually prominent part of a larger synchronized composition, making uncontrolled reboot behavior especially noticeable.

Bar LCD player reboot recovery showing a restarted player rejoining the current synchronized timeline



Measure Synchronization With a Diagnostic Test Asset

Normal marketing content is often a poor measurement tool because it may contain slow motion, static sections, fades, or cuts that hide relative frame differences.

Create a diagnostic asset designed specifically to expose synchronization errors.

Useful elements include:

  • a burned-in frame counter;
  • a moving vertical line;
  • continuous horizontal motion across screen boundaries;
  • abrupt color changes on known frames;
  • periodic synchronization markers;
  • a label identifying the screen slice.

For example, a master composition can contain a vertical line that moves smoothly from the leftmost screen to the rightmost.

At each physical seam, the two neighboring slices should show the expected parts of that line at the same source-frame position. If one screen is ahead, the moving object visibly breaks.

Add source-frame numbers

A frame counter makes the relative measurement easier to reproduce.

If one screen shows source frame 1,251 while its neighbor shows frame 1,250, the observed relative difference at that instant is one source-video frame.

At 60 fps, one source frame represents approximately 16.7 ms of timeline. That conversion is a measurement aid, not an assertion that a one-frame offset passes the project requirement.

Bar LCD synchronization test using frame counters and a moving line across adjacent display seams



Test the Visible Seam, Not Only the Player Logs

Logs and synchronization status are useful diagnostic evidence, but the final result is the visible output.

Capture adjacent screens within the same view so that their shared seam is evaluated at one moment.

Useful visible tests include:

  • moving vertical line;
  • product image crossing a seam;
  • fast horizontal pan;
  • synchronized abrupt color change;
  • frame-counter asset.

Camera evidence should be interpreted carefully. Rolling-shutter capture, camera frame rate, shutter time, and display scan behavior can create artifacts that are different from what a person sees directly.

For meaningful diagnosis, combine:

  • player and event logs;
  • frame counters;
  • controlled test patterns;
  • camera evidence;
  • direct visual inspection.

The synchronization result should also be distinguished from mechanical alignment. If a moving image is temporally correct but appears displaced because two screens are mounted at different heights or angles, the root cause is physical geometry rather than frame timing.



Control Display-Side Processing Across the Screen Run

When a visible fixed offset remains after player timing has been verified, inspect the displays themselves.

Relevant differences can include:

  • different Bar LCD models;
  • different firmware revisions;
  • different input or picture modes;
  • scaling on one unit but not another;
  • image enhancement enabled on only part of the run;
  • different source resolutions reaching neighboring screens.

A good commissioning baseline keeps synchronized units as consistent as practical.

If different display models must be mixed, test their visible output latency rather than assuming that matching resolution and refresh rate guarantee matching presentation timing.

Custom projects can introduce additional processing or interface differences, so this issue should be considered while defining a custom LCD retail-signage configuration, not only after the hardware has been installed.

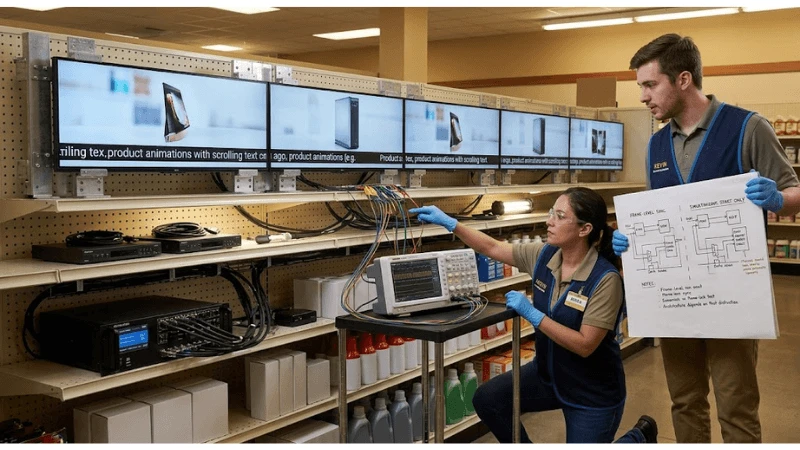

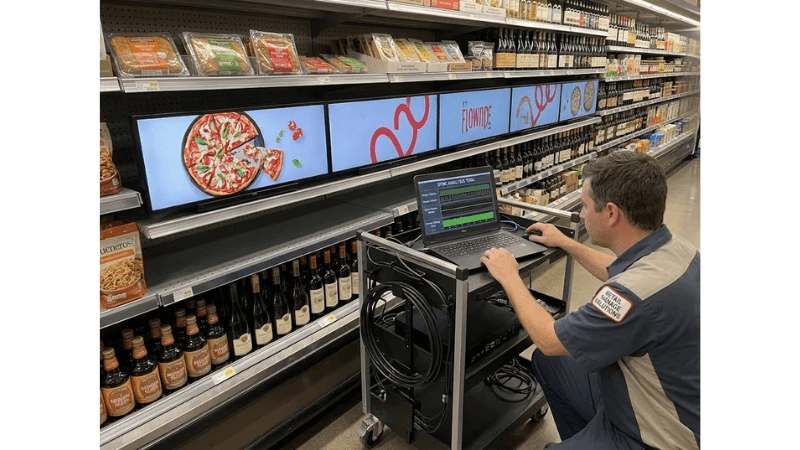

Build a Production-Equivalent Synchronization Test

Use the final or production-equivalent:

  • Bar LCD models;
  • media players;
  • player firmware and software;
  • video cables;
  • output modes;
  • display processing settings;
  • local storage;
  • synchronization network;
  • CMS or playback application;
  • approved content assets.
  • Test What it helps reveal
    Verify asset hashes on every player Content-version mismatch
    Confirm exact output resolution and frame rate Output-timing mismatch, including fractional-rate differences
    Confirm display model and processing mode Display-side fixed latency differences
    Start the synchronized group from cold boot Initial start behavior
    Run frame-counter and moving-seam content Visible relative frame offset
    Observe several loop boundaries Loop resynchronization
    Run through the required extended playback period Progressive drift
    Power-cycle one follower player Rejoin behavior
    Restart the leader or sync controller where applicable Group recovery
    Delay one content download Asset-readiness and activation control
    Interrupt WAN access during locally cached playback Distribution dependency versus synchronization dependency
    Replace one player with an approved spare Replacement commissioning
    Update player or synchronization software Timing regression



A multi-unit project should use the actual display sizes and deployment topology it intends to release. Testing one isolated unit cannot prove the timing behavior of a shelf run built from several 35.5-inch bar displays or another repeated configuration.



Keep a Reproducible Synchronization Measurement Record

A synchronization test becomes more useful when another engineer can reproduce it later.

Record field What to capture
Test time Timestamp relative to startup or campaign activation
Loop number Current playback loop or state transition
Screen A frame Visible diagnostic frame number
Screen B frame Visible diagnostic frame number
Relative offset Observed difference in source frames or the approved project unit
Output timing Resolution and exact frame/refresh mode
Display configuration Model, firmware, input mode, processing mode
Player configuration Model, firmware/software, synchronization role
Asset identity Revision and checksum
Rejoin state Normal, recovering, restarted, or other defined state
Visible seam result Pass, fail, or investigate against the project requirement

The record deliberately does not prescribe a universal pass/fail frame count. The acceptable result must come from the campaign's visual requirement and the capability being specified for the selected architecture.

Troubleshoot Synchronization by Symptom

Symptom First condition to investigate
Screens always differ by roughly the same amount Playback start, decoder startup, output timing, or display processing
Screens start together but gradually separate Missing ongoing synchronization or playback drift
Error appears only after the asset loops Loop boundary, asset duration, or playlist transition
One screen shows a different scene Asset or playlist version mismatch
One player always starts from frame zero after reboot Rejoin strategy
Clocks report synchronized but the seam is visibly wrong Frame synchronization, output timing, or display-side latency
Problem appears after changing 59.94/60 or 29.97/30 output configuration Exact frame-rate and video-mode consistency
Problem is most visible during fast horizontal motion Existing small relative frame difference exposed by the content
A replacement player behaves differently Player model, firmware, decoder, or output configuration
A replacement display has a consistent fixed offset Display model, firmware, scaling, or picture-processing path
All screens reset at the same time Common power, network, controller, or player architecture rather than relative frame sync
Synchronization is good until a campaign update Asset version, timing metadata, or activation readiness

A symptom identifies the first layer to investigate; it does not prove one root cause.



Retest After Changes That Can Affect the Timing Chain

Relevant changes include:

  • media-player model;
  • firmware or operating system;
  • synchronization software;
  • decoder implementation;
  • output resolution;
  • integer or fractional frame rate;
  • content encoding;
  • asset duration;
  • playlist structure;
  • loop behavior;
  • network architecture used for synchronization;
  • leader/follower configuration;
  • display model or firmware;
  • display scaling or picture mode;
  • replacement player or display.

A purely mechanical bracket change normally belongs to physical alignment rather than temporal synchronization unless it also changes cables, display modes, or another part of the timing chain.

Likewise, a text-only content edit that preserves the same encoded timing structure does not automatically justify repeating every synchronization test.

The practical retest question is:

Can this change alter the shared media timeline, frame pacing, video-output timing, display latency, or the way a restarted player rejoins the group?

If yes, repeat the affected synchronization tests.



Bar LCD Multi-Screen Synchronization Checklist

  • Define whether the campaign needs independent playback, coordinated start, event-level sync, or frame-level continuity.
  • Freeze the single-player or multi-player architecture.
  • Generate all cross-screen assets from one approved master timeline.
  • Verify asset versions by identifier or checksum.
  • Record the exact source and output frame rates, including fractional rates where applicable.
  • Document the player-clock synchronization method for distributed players.
  • Confirm that the selected platform provides the playback synchronization required by the campaign.
  • Keep display models, firmware, input modes, and image-processing settings consistent where practical.
  • Test initial startup, long-run drift, and repeated loop boundaries.
  • Define and test the player-rejoin strategy.
  • Verify all required assets are ready before synchronized activation.
  • Use frame counters or moving seam references during commissioning.
  • Evaluate the actual physical seams rather than relying only on logs.
  • Keep a reproducible measurement record.
  • Repeat targeted testing after player, timing, content, network-sync, or display-processing changes.

Having the same file, the same schedule, and the same clock does not necessarily mean that two Bar LCDs are presenting the same visible frame.

A robust multi-unit design controls the full timing chain and verifies the result where the customer can see it: at the physical seam between the displays.

Teams still defining the overall hardware configuration can use the site's LCD display screen range and Bar LCD selection guidance to establish the display format before freezing the synchronization architecture.

For a custom multi-screen project, provide the screen quantity, Bar LCD model or size, physical layout, player architecture, target frame rate, content structure, synchronization requirement, and reboot/recovery expectations when you request a project-specific quotation.

Send Inquiry
