Commercial LCD Optical Bonding Inspection: Bubbles, Haze, Delamination, and Rework

Aug 19, 2026

Leave a message

Elly Huang
Elly Huang
Elly works on transparent display and kiosk configurations, mostly coordinating between store design teams and Legoyo's technical side. A lot of her projects have been in fashion retail and electronics showrooms, where the display has to fit into a c



Commercial LCD optical bonding defects showing bubble, particle, haze, edge void, and delamination

An optically bonded commercial LCD display can pass its electrical test and still fail visual inspection.

A trapped bubble may appear only on a white screen. A small particle can cast a persistent shadow over fine text. Adhesive haze can reduce clarity without creating one obvious spot. An edge void may remain cosmetic, or become more important if it progresses toward the active viewing area.

The useful inspection question is not simply, "Is there a defect?"

Where is the defect, under what viewing condition is it visible, and does it affect the required optical, touch, or mechanical function?

That distinction matters especially in touchscreen kiosk displays, where the bonded stack may include cover glass, touch sensing, optical adhesive and the LCD itself.





Start by Identifying Where the Defect Actually Is

Before deciding that the bonding process failed, identify which layer is producing the symptom.

Observation Possible location First check
Mark disappears after approved cleaning Outer cover surface Surface contamination rather than an internal bond defect
Bubble remains fixed beneath the surface Bond line Inspect under several controlled backgrounds
Dark speck stays at the same physical position on every image Bond line, cover layer, polarizer or LCD Change content and viewing angle to locate the layer more precisely
Large area looks cloudy Adhesive, coating, contamination or another optical layer Clean the outer surface and compare with a known-good reference
Bright or dark pressure pattern appears only after enclosure assembly Mechanical stress rather than the bond line Compare the bonded module before and after final mounting
Defect moves with image content rather than physical position LCD or video path Use known test patterns before investigating the bond

Do this localization step before attempting rework.

Removing a bonded cover because surface residue was misidentified as internal haze can create more risk than the original symptom.

This distinction is particularly important in custom touchscreen kiosk displays, where cover glass, touch sensing and the final enclosure can all influence what a technician sees.

Commercial LCD optical bonding stack showing cover glass, OCA, touch sensor, polarizer, and LCD defect locations



Use More Than One Test Background

One test image is not enough. Bonding defects can change substantially in visibility depending on the image and illumination behind them.

Use at least:

  • the display powered off;
  • a full black field;
  • a dark-gray field;
  • a mid-gray field;
  • a full white field;
  • fine black text or a grid on white;
  • representative high-contrast application content.

A transparent bubble that is difficult to see on black may become obvious on white. A small particle may look insignificant on a uniform field but interfere directly with a barcode, price digit, fine label or touch target.

Keep display brightness, inspection distance, viewing angle and room lighting consistent when comparing units.

For a self-service terminal, include representative interface content as well as uniform fields, because a defect positioned over an actionable button or text element can have a different user impact from the same defect outside the interface area.

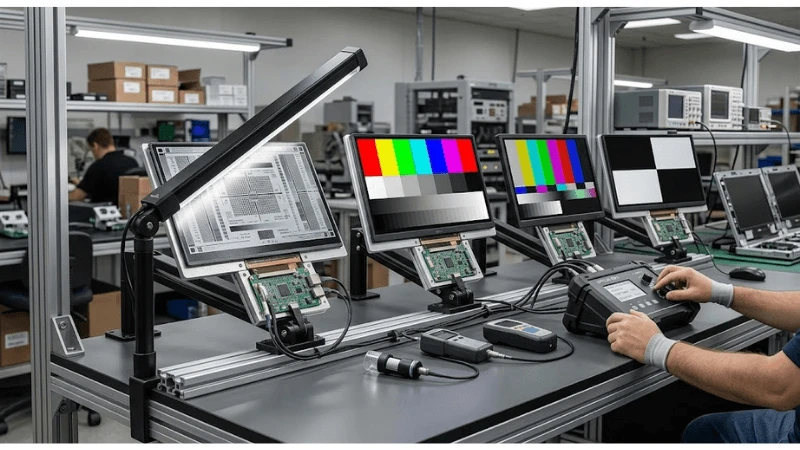

Commercial LCD optical bonding inspection using black, gray, white, and high-contrast test patterns



A Practical Optical-Bonding Inspection Sequence

1. Record the Exact Assembly

Before inspection, record:

  • LCD model;
  • touch sensor, if used;
  • cover-glass revision;
  • bonding material and process;
  • supplier or production lot;
  • bonded assembly serial or traceability ID.

Do not identify the assembly only as "21.5-inch bonded display." The stack and process matter.

3M's optically clear adhesive technical resources describe different OCA material approaches and note that LCD bonding requires attention to mura during lamination. They also distinguish film OCA from liquid optical adhesive processing. :contentReference[oaicite:9]{index=9}

2. Clean Only the Outer Surfaces

Use the approved cleaning method for the cover material, then inspect again before classifying haze, particles or spots as internal defects.

This removes a common false-positive path: fingerprints, protective-film residue, cleaning streaks or other surface contamination being treated as a reason to open the bond stack.

3. Inspect the Unit Powered Off

With the screen off, inspect for:

  • surface scratches;
  • adhesive overflow;
  • visible particles;
  • edge lift;
  • edge voids;
  • cover-glass damage;
  • obvious trapped bubbles.

Use controlled reflected lighting. Do not compare one unit under a strong work lamp with another unit under diffuse ambient light.

4. Run the Test-Pattern Sequence

Inspect the black, gray, white and high-contrast patterns while keeping the following variables fixed between samples:

  • display brightness;
  • image scaling;
  • inspection distance;
  • viewing angle;
  • room and inspection lighting.

For custom products such as custom LCD retail signage, define these conditions before comparing supplier lots or different cover-glass revisions.

5. Inspect the Entire Perimeter

Do not inspect only the center active area.

Check all edges for:

  • incomplete bond;
  • edge void;
  • adhesive overflow;
  • lifted regions;
  • contamination;
  • seal irregularity.

If the project defines an edge mask or black-border region, distinguish a defect that remains fully outside the visible area from one that intrudes into the active image.

6. Verify Touch Function Separately

If the bonded assembly includes a touch sensor, test:

  • center touch;
  • corners;
  • edge targets;
  • drag gestures;
  • multi-touch where the application requires it.

Optical appearance and touch function are separate acceptance categories.

A visually clean stack can still have a touch-integration problem. A small cosmetic defect also does not automatically mean touch performance failed.

This separation is important in touchscreen monitor kiosk applications, where optical clarity and input accuracy both contribute to the finished user interface.



How to Classify Common Optical-Bonding Defects

Bubble or Void

A bubble or void is a localized interruption in the intended continuous optical bond.

Do not record only "bubble present." Record:

  • physical location;
  • approximate dimensions when the approved specification uses dimensional criteria;
  • distance from the active area or edge;
  • number of defects;
  • backgrounds on which the defect is visible;
  • whether it changes after any specified conditioning;
  • whether it appears stable or progresses.

There is no universal bubble-size limit that applies to every bonded commercial LCD assembly.

Use the supplier specification, approved cosmetic standard, drawing or project-specific acceptance requirement.

Particle or Foreign Material

A trapped particle can sometimes be more objectionable than a larger transparent bubble because it may create a dark point or shadow.

Its importance depends on:

  • appearance;
  • location;
  • active content;
  • viewing distance;
  • application.

A particle over a price digit, barcode, button label or fine text can be more significant than the same particle under an opaque border.

That difference matters in retail systems such as digital endcap displays, where small high-contrast text and product information may sit close to the customer's normal viewing area.

Use one approved classification vocabulary when comparing units or suppliers. Do not let one report say "dust," another "dot," and another "minor particle" if they describe the same defect category.

Haze

Haze is different from a discrete bubble. It appears as a cloudy or veiling reduction in optical clarity.

Before classifying it as an internal bonding problem, exclude:

  • outer-surface contamination;
  • protective-film residue;
  • coating damage;
  • condensation;
  • cleaning streaks.

If internal haze remains and the project contains a quantitative requirement, use an agreed measurement method.

ASTM D1003-21 covers haze and luminous-transmittance measurement for transparent plastics and notes that the resulting data can be useful for quality control and specification. :contentReference[oaicite:10]{index=10}

ISO 14782:2021 specifies a method for measuring haze in transparent plastics and remains a current published standard. :contentReference[oaicite:11]{index=11}

Neither standard creates a universal haze pass/fail value for an optically bonded commercial LCD. The approved assembly specification still defines the acceptance criterion.

Adhesive Overflow

Evaluate overflow according to where it occurs and what it can affect.

Possible concerns include:

  • a visible cosmetic edge;
  • contamination of adjacent components;
  • interference with gasket or enclosure fit;
  • touch or sensor area contamination;
  • future service difficulty.

Bonding material and process matter. 3M's OCA technical guidance distinguishes film adhesives from liquid optical adhesives; liquid processes involve dispensing and curing steps and require control of overflow. :contentReference[oaicite:12]{index=12}

Do not assume that a rework method developed for one bonding material or stack applies to another.

Edge Lift or Delamination

Map edge lift or delamination rather than describing it only as "edge defect."

Record:

  • which edge is affected;
  • start and end positions;
  • approximate penetration toward the active area where the specification requires measurement;
  • whether it is visible from the front;
  • whether it changes after specified conditioning or handling.

A stable cosmetic condition outside the visible area may have a different disposition from a defect progressing toward the active image.

The boundary must come from the supplier/OEM requirement or approved project specification. Do not invent a universal number of millimeters allowed.



Use a Defect Map Instead of Writing "Bubble Found"

Production and supplier comparison become much more useful when each defect is mapped consistently.

Unit Defect Location Size / Count Visible pattern Active-area impact Disposition
A-017 Bubble Upper right Project-measured value White No Review
A-018 Particle Center 1 White / grid Yes Reject
A-019 Edge void Left edge Project-measured value Off / white No Review

The values above illustrate the record structure only. Use the actual project units and acceptance criteria.

Traceability is especially useful when bonded modules are integrated into larger custom digital kiosk display assemblies, because later service teams need to distinguish an original optical defect from damage or stress introduced during final integration.



Separate Cosmetic Defects From Functional Failures

A bonded-display acceptance plan should treat at least three categories separately.

Optical Appearance

  • bubbles;
  • particles;
  • haze;
  • edge voids;
  • delamination;
  • visible adhesive overflow.

Display Function

  • image quality;
  • pixel behavior;
  • uniformity;
  • absence of new pressure-related mura.

Touch and Interface Function

  • edge accuracy;
  • center accuracy;
  • gesture behavior;
  • controller stability.

An electrically functional display should not automatically pass if a visible bond defect interferes with the commercial viewing task. A cosmetic defect also does not automatically prove an electrical or touch failure.

This distinction applies across many commercial-grade LCD applications, where optical appearance and operational function may be governed by different acceptance requirements.



Be Careful With Mura After Lamination

If a new non-uniform pressure pattern appears only after lamination, do not immediately classify it as trapped contamination.

LCDs can be mechanically sensitive, and 3M specifically notes that LCD bonding requires managing mura through a gentler lamination process. :contentReference[oaicite:13]{index=13}

Also determine whether the pattern appeared only after the bonded module entered the finished enclosure. If so, compare the free module and installed condition before opening the optical stack.

This is particularly important with long or custom enclosures such as stretched LCD displays for supermarket installations, where the final chassis geometry can introduce mechanical conditions that were not present during bench inspection.



When Haze Should Be Measured

Visual comparison may be sufficient for an obvious localized defect. Quantitative haze measurement becomes more useful when:

  • buyer and supplier repeatedly disagree about global clarity;
  • lot-to-lot optical quality must be compared;
  • the project contains a numerical optical requirement;
  • a subtle haze change affects visible contrast;
  • engineering needs a quantitative before/after comparison.

If haze is measured, document:

  • specimen or assembly condition;
  • measurement method;
  • instrument;
  • calibration/status where applicable;
  • measurement area;
  • number of readings;
  • environmental condition;
  • reference criterion.

A numeric result without its test method is not a useful acceptance specification.

For projects still at the hardware-qualification stage, a bar LCD display buying guide or equivalent product-selection process should establish the model and construction before supplier QA teams start comparing bonded assemblies.



Rework, Accept, or Scrap?

Do not make the disposition decision from the defect name alone.

1. Is the defect actually inside the bonding stack?

If it is removable surface contamination, do not open the stack.

2. Does it affect the active viewing or touch area?

Location and application matter.

3. Does the approved specification allow it?

Use the actual customer, OEM, supplier or project requirement.

4. What additional risk does rework create?

Rework may involve separating layers close to:

  • cover glass;
  • touch sensor;
  • polarizer;
  • LCD cell;
  • adhesive-coated films.

The permissible process depends on the exact material and assembly construction. A supplier should define whether that stack is safely reworkable, conditionally reworkable or non-reworkable for the specific defect.

Do not create a universal rework rule.

Finished smart LCD display systems may include touch electronics, players, enclosures and other integration layers, so the cost and technical risk of opening an already completed assembly can differ substantially from reworking a bare bonded module.

Commercial LCD optical bonding quality inspection for accept, rework, or reject decisions



Inspect the Assembly Again After Rework

Removing the original bubble does not automatically mean the unit passes.

Repeat:

  • visual defect inspection;
  • black, gray and white patterns;
  • haze or clarity checks where required;
  • edge inspection;
  • touch verification;
  • final fit inspection when the process can change alignment or stack geometry.

Check specifically for defects introduced during rework:

  • new particles;
  • scratches;
  • polarizer damage;
  • new bubbles;
  • edge lift;
  • touch misalignment.

Rework closes only when the finished assembly passes again.



Compare Supplier Lots Using the Same Vocabulary

Supplier A may use "bubble" while Supplier B uses "void." One supplier may classify a particle by measured dimension while another looks only at whether it sits inside the active area.

Before comparing lots, yield data or quality claims, normalize:

  • defect terminology;
  • inspection background;
  • lighting;
  • viewing distance;
  • active-area definition;
  • counting method;
  • rework classification;
  • sampling plan;
  • acceptance threshold.

Otherwise supplier-quality statistics are not directly comparable.

The same principle is useful in transparent LCD display applications, where optical clarity is especially noticeable and a change in inspection conditions can strongly affect subjective judgments.



Illustrative Inspection Scenario

Consider a bonded touchscreen assembly with a cloudy patch near the center.

This is an illustrative engineering scenario, not a LEGOYO customer case.

  1. Photograph the condition before cleaning.
  2. Clean only the outer cover using the approved method.
  3. Repeat the same white and mid-gray patterns.
  4. Check whether the cloudy region stays fixed relative to the physical screen.
  5. Compare the unit with a known-good assembly under the same lighting.
  6. Inspect the perimeter and visible bond line.
  7. Test touch function in the same region.
  8. If haze remains internal, apply the project's quantitative optical method only when one is specified.

If the mark disappears during controlled surface cleaning, destructive bond rework is not justified.

If the condition remains inside the optical stack, classify and disposition it using the approved bonding criteria.

This type of controlled isolation is preferable to opening a finished custom retail LCD assembly before confirming where the defect actually originates.



Commercial LCD Optical Bonding Inspection Checklist

  • Record the exact stack and production revision.
  • Clean external surfaces using the approved method.
  • Inspect the display powered off.
  • Use black, gray, white and high-contrast patterns.
  • Keep lighting, viewing distance and brightness controlled.
  • Inspect the complete active area and perimeter.
  • Distinguish bubbles, particles, haze and delamination.
  • Distinguish surface contamination from internal defects.
  • Map defect location instead of writing a vague note.
  • Evaluate optical, display and touch functions separately.
  • Check for pressure-related mura after bonding and final integration.
  • Use supplier/project criteria for dimensional acceptance limits.
  • Use a defined haze method only when quantitative measurement is required.
  • Document reworkability for the exact bonding process.
  • Repeat optical and functional inspection after rework.
  • Retain unit/lot identity and final disposition.

A useful optical-bonding inspection does not end with "looks fine."

It should allow another QA team to observe the same condition, classify it using the same terminology, and reach the same disposition under the same inspection rules.



FAQ

Q: How do you inspect bubbles after optical bonding?

A: Clean the outer surface first, then inspect the same unit powered off and with black, gray, white and high-contrast test patterns. Record the bubble's physical location, count, visibility condition and any dimensions required by the approved specification. Do not apply a universal bubble-size limit.

Q: What causes haze after optical bonding?

A: Several conditions can produce a cloudy appearance, including surface residue, coating damage, contamination and internal optical-stack effects. First eliminate removable surface causes. If haze remains internal and the project requires a quantitative result, use an agreed measurement method and project-specific criterion.

Q: Can an optically bonded LCD be reworked?

A: Sometimes, but reworkability depends on the exact adhesive, touch/cover construction, LCD stack and supplier process. Rework should not be assumed from the general term "optical bonding." The approved process must also account for new defects that can be introduced during separation and rebonding.

Q: Is every edge void or delamination defect an automatic reject?

A: No universal answer applies. Disposition depends on the approved specification, defect location, active-area impact, progression, visibility, mechanical implications and the rework policy for that stack.

Send Inquiry
