Buyers often see this issue as a feature checkbox, but the field failure normally occurs at the interface between hardware, software, fixture, and operating workflow. When graphics point to a physical object behind the panel, content coordinates depend on product position, panel geometry, viewing zone, fixture tolerances, and calibration-not just video resolution. This guide is written for Visual merchandisers, exhibit designers, content teams, fixture engineers, and integrators. Its practical question is straightforward: How do you keep digital graphics aligned with physical products behind a transparent LCD after fixture changes or product resets? The answer is not a universal number or a one-line product claim. It is a controlled method that defines the operating condition, the configuration being approved, the evidence required for acceptance, and the conditions that force a retest.
A transparent LCD showcase is an optical and mechanical system: the physical product, interior lighting, transparent panel, glass, enclosure, player, content, and customer viewing zone all affect the result. A change behind the screen can be as important as a change to the screen itself. For that reason, this article treats transparent LCD content product alignment as a system decision. Exact limits-such as electrical ratings, optical tolerances, mechanical loads, environmental severities, safety limits, communication timing, or maintenance intervals-must come from the exact production model, applicable standards, and the buyer's approved project requirements. Where those sources do not establish a universal value, this guide deliberately does not invent one.
Before freezing the specification, keep the topic connected to the wider LEGOYO content architecture. Useful starting points are Transparent LCD Screen, Transparent LCD Touch Integration, Transparent LCD Content Design. Those pages establish the product and adjacent-system boundary; this article owns the narrower problem described above rather than repeating their broader material.
For content-gap research, the planning review compared how Crystal Display Systems Transparent LCD, Japan Display Inc. Transparent Display, Pro Display Transparent LCD present the broader product category. Those commercial sources informed topic differentiation only; the final article does not use competitor marketing claims as project facts or link readers to competing commercial pages.
Define the decision boundary before choosing a fix
The first deliverable should be a one-page decision boundary for transparent LCD content product alignment. It should identify the exact site/use case, the production hardware and software revision, who operates the feature, what failure looks like to that user, and what evidence is required before the design can be accepted. This avoids a common B2B procurement failure: comparing attractive component features before agreeing what the installed transparent showcase must actually do.
For this topic, explicitly include physical product datum or locating fixture, panel active-area datum, content coordinate system, viewer/reference zone. Then add product depth behind the panel, fixture and shelf tolerances, calibration target or reference marks, content version tied to product layout version. These are not independent checklist items. A change to one can invalidate the others. The project record should therefore tie each condition to an owner and a retest trigger.
Minimum scope record
- Exact production model, revision, accessory/fixture configuration, and software/firmware versions relevant to transparent LCD content product alignment
- Defined users and normal workflow, including who handles exceptions and service
- Site/environment assumptions that can change the result
- Interfaces to adjacent systems, devices, content, power, network, fixtures, or data sources
- Acceptance method and evidence owner for every critical requirement
- Change triggers that require comparison with the approved baseline or a formal retest
The scope should also say what this article does not own. Existing content-design and viewing-geometry pages are broader. This page owns registration workflow, physical datums, calibration targets, product-reset tolerances, and reapproval triggers. Keeping that boundary explicit reduces cannibalization in the content strategy and, more importantly, prevents engineering teams from using one test as evidence for a different risk.
Design controls worth specifying explicitly
A strong specification for transparent LCD content product alignment should convert the following topics from assumptions into controlled requirements. Each control needs a normal state, an exception state, evidence, and a change trigger.

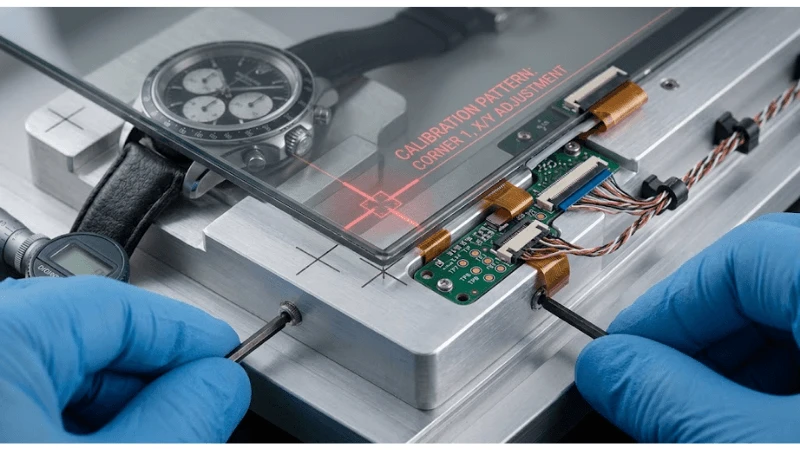

Physical product datum or locating fixture
Treat physical product datum or locating fixture as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with panel active-area datum because that neighboring condition can change the result without producing an obvious hardware alarm.
For procurement, ask for the model-specific boundary and supporting documentation. For commissioning, add local evidence. A supplier document can establish what a product was designed to support; it cannot prove that the buyer's exact fixture, data, software, environment, content, and operating workflow have been integrated correctly.
Panel active-area datum
Treat panel active-area datum as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with content coordinate system because that neighboring condition can change the result without producing an obvious hardware alarm.
For operations, make abnormal state visible. A resilient design should not require store staff to infer whether a system is healthy from customer complaints. Provide a diagnostic state or record that distinguishes configuration error, unavailable dependency, service condition, and a genuine component fault wherever the technology allows it.
Content coordinate system
Treat content coordinate system as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with viewer/reference zone because that neighboring condition can change the result without producing an obvious hardware alarm.
For procurement, ask for the model-specific boundary and supporting documentation. For commissioning, add local evidence. A supplier document can establish what a product was designed to support; it cannot prove that the buyer's exact fixture, data, software, environment, content, and operating workflow have been integrated correctly.
Viewer/reference zone
Treat viewer/reference zone as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with product depth behind the panel because that neighboring condition can change the result without producing an obvious hardware alarm.
For operations, make abnormal state visible. A resilient design should not require store staff to infer whether a system is healthy from customer complaints. Provide a diagnostic state or record that distinguishes configuration error, unavailable dependency, service condition, and a genuine component fault wherever the technology allows it.
Product depth behind the panel
Treat product depth behind the panel as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with fixture and shelf tolerances because that neighboring condition can change the result without producing an obvious hardware alarm.
For procurement, ask for the model-specific boundary and supporting documentation. For commissioning, add local evidence. A supplier document can establish what a product was designed to support; it cannot prove that the buyer's exact fixture, data, software, environment, content, and operating workflow have been integrated correctly.
Fixture and shelf tolerances
Treat fixture and shelf tolerances as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with calibration target or reference marks because that neighboring condition can change the result without producing an obvious hardware alarm.
For operations, make abnormal state visible. A resilient design should not require store staff to infer whether a system is healthy from customer complaints. Provide a diagnostic state or record that distinguishes configuration error, unavailable dependency, service condition, and a genuine component fault wherever the technology allows it.
Calibration target or reference marks
Treat calibration target or reference marks as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with content version tied to product layout version because that neighboring condition can change the result without producing an obvious hardware alarm.
For procurement, ask for the model-specific boundary and supporting documentation. For commissioning, add local evidence. A supplier document can establish what a product was designed to support; it cannot prove that the buyer's exact fixture, data, software, environment, content, and operating workflow have been integrated correctly.
Content version tied to product layout version
Treat content version tied to product layout version as an interface, not a label in a drawing. State what establishes the approved condition, what downstream behavior depends on it, and how a technician can verify it on production-equivalent equipment. Then test its interaction with physical product datum or locating fixture because that neighboring condition can change the result without producing an obvious hardware alarm.
For operations, make abnormal state visible. A resilient design should not require store staff to infer whether a system is healthy from customer complaints. Provide a diagnostic state or record that distinguishes configuration error, unavailable dependency, service condition, and a genuine component fault wherever the technology allows it.
Map the installed system and its interfaces
Draw the path from trigger or source through the hardware/software stack to the result a user can observe. For transparent LCD content product alignment, the drawing should be specific enough that a technician can point to where a fault could be introduced and where it can be measured. Avoid a marketing architecture with only cloud, device, and user icons; the useful drawing includes the interfaces that can create ambiguous ownership.
A practical interface map for this project includes the following control points. The evidence column is deliberately generic because the exact tool depends on the production design; the important requirement is that the team chooses a repeatable method before acceptance.
| Control point | What must be defined | Useful evidence |
|---|---|---|
| Physical product datum or locating fixture | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Panel active-area datum | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Content coordinate system | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Viewer/reference zone | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Product depth behind the panel | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Fixture and shelf tolerances | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Calibration target or reference marks | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
| Content version tied to product layout version | Define the production condition and its owner. | Record observable state, configuration, and exception evidence. |
Once the map exists, assign a named owner to every boundary: OEM hardware, fixture/mechanical design, electrical integration, platform/software, store operations, service, and procurement acceptance as applicable. Many costly field faults persist because each team can prove its own component is working while nobody owns the end-to-end outcome.
Configuration identity matters
Always record the configuration that produced a pass. At minimum, capture the hardware revision, connected accessories, relevant cable/fixture version, firmware and software, settings that affect the behavior, and site condition. If a supplier substitutes a part or the field team changes a route, bracket, controller, player, driver, template, or setting, the project should be able to tell whether the original evidence still applies.

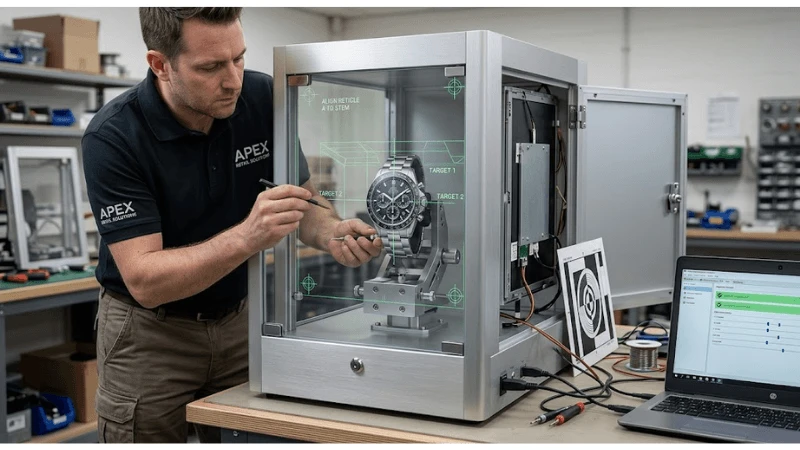

Build an acceptance test that represents the field
Acceptance testing should prove the workflow described by How do you keep digital graphics aligned with physical products behind a transparent LCD after fixture changes or product resets? Start with a known-good production configuration, capture the baseline, then introduce one controlled variation or failure at a time. Do not approve the project solely because the normal demo path works once.
| Step | Test activity | Evidence to retain |
|---|---|---|
| 1 | Define physical datums and a repeatable product-locating method before producing precision overlay content | Configuration, expected result, actual result, evidence, owner, disposition |
| 2 | Use calibration graphics to register the content coordinate system to the production panel active area | Configuration, expected result, actual result, evidence, owner, disposition |
| 3 | Check alignment from the intended range of viewer positions, not only a camera centered on the display | Configuration, expected result, actual result, evidence, owner, disposition |
| 4 | Reset/remove/reinstall the product several times using the store workflow and measure repeatability | Configuration, expected result, actual result, evidence, owner, disposition |
| 5 | Replace or adjust a relevant fixture component and prove the recalibration procedure can restore the intended result | Configuration, expected result, actual result, evidence, owner, disposition |
| 6 | Version the content layout and physical product/fixture layout together so incompatible combinations are detectable | Configuration, expected result, actual result, evidence, owner, disposition |
Factory, site, and pilot tests do different jobs
Factory acceptance is useful for repeatable configuration checks, controlled fault injection, assembly review, and supplier evidence. Site acceptance exposes real mounting, power, lighting, RF, network, store fixtures, access, cleaning, and operator conditions. A pilot adds time: shift changes, replenishment, maintenance, content or data changes, peak periods, replacement parts, and real exception ownership. Reuse the same requirement IDs across all three stages so evidence remains traceable.
Do not average away a serious failure
A high overall pass percentage can hide an unacceptable edge case. Classify requirements by consequence before testing. A rare defect that can misidentify a product, interrupt a transaction, strand a customer document, create an electrical/EMC problem, or silently desynchronize operations may justify a stronger control than a more frequent cosmetic defect. The project should decide that priority before test results are known.
Retest the neighbors after a fix
When a defect is corrected, rerun the failed case and the neighboring cases the change could affect. A new bracket can change RF; a new seal can change temperature; a new driver can change enumeration; a new template can change scan layout; a new timing rule can change recovery. Closing only the original symptom is not sufficient when the fix crosses an interface.
Failure modes to design for before rollout
The following failures are intentionally more specific than "device not working." They represent plausible ways a transparent LCD content product alignment project can be technically connected but operationally wrong. Use them as FMEA inputs, pilot scenarios, and support-ticket categories; do not treat the table as a claim that every product will experience every condition.
| Failure mode | Detection principle | Required response |
|---|---|---|
| A product is returned to the shelf a few centimeters away and callout graphics now point to empty space | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
| Content is created from nominal CAD dimensions while the production fixture has different offsets | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
| Alignment is correct from one camera/viewpoint but appears wrong from the real shopper zone because of parallax | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
| A panel or fixture is replaced and the old calibration is reused without checking datums | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
| Merchandising changes product depth but only updates the video asset | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
| Different stores improvise product positioning and create site-specific overlay drift | Make the condition observable and preserve context. | Assign correction, owner, and targeted retest. |
A useful failure response protects the next transaction or store task, exposes the condition to the correct owner, and preserves enough evidence to diagnose it. "Reboot until it works" may temporarily restore service but destroys information about cause and can hide systematic faults. Where reboot or reset is an approved recovery action, log why it was used and whether the fault returned.
Separate symptom, cause, and consequence
For transparent LCD content product alignment, a visible symptom can have causes in hardware, installation, software, data, content, environment, or service. The incident record should therefore capture the symptom seen by the user, the system state at that moment, recent changes, the diagnostic finding, and the final corrective action. This makes recurring "random" failures comparable across sites instead of producing isolated anecdotes.
Procurement questions that expose hidden scope
For transparent LCD content product alignment, a useful RFQ asks the supplier to state the exact configuration and evidence boundary. Avoid yes/no questions such as "supported?" when the real issue is how the function behaves in the buyer's installed system.
- What mechanical datums and product-locating features can be built into the showcase?
- What active-area tolerances and panel replacement variation should the content team plan for?
- Can the media player apply project-specific offsets/scaling without re-encoding every asset?
- What commissioning target or calibration file can be used at each site?
- Which merchandising changes require recalibration or new content?
- How should alignment acceptance be documented across multiple stores?
Ask the supplier to mark each response as standard, optional, integrator-supplied, buyer-supplied, or project-specific engineering. Request drawings and documentation that match the quoted revision. If the answer depends on site conditions, the dependency should be written into the quote or technical schedule instead of left as a sales-call assumption.
Normalize quotations before comparing price
Two quotations are not comparable when one includes fixtures, cables, licensed software, commissioning, diagnostic access, spares, and training while another assumes the buyer will provide them. Build a compliance matrix with requirement ID, supplier response, evidence, deviation, owner, and commercial impact. This is especially important for integrated retail hardware because the missing item often appears later as site labor or custom engineering rather than as a visible line in the hardware price.
Operations and change control after handover
A passing installation can drift. For transparent LCD content product alignment, the handover package should include the approved configuration, relevant drawings, test records, known failure symptoms, recovery actions, service access instructions, and a clear list of changes that require renewed verification. Store layout changes, replacement parts, firmware/software updates, cleaning processes, cabling changes, and local configuration edits are common sources of drift.
Metrics worth trending
- overlay-alignment complaints
- product resets outside the locating tolerance
- fixture/panel replacements triggering recalibration
- content and layout version mismatches
- stores using unapproved ad hoc offsets
Trend exceptions by site, hardware/software revision, fixture family, service action, and time. The purpose is not to create a dashboard for its own sake; it is to detect patterns that a single help-desk ticket cannot show. If a particular replacement part, store fixture, or software release appears repeatedly, the issue can be moved from reactive support into change control.
Adjacent LEGOYO guidance that can help maintain the wider system boundary includes Clear LCD vs Traditional Display, Products, Solutions, Supermarket Solutions. Use those pages for neighboring decisions rather than expanding this article until it competes with them.
Retest triggers to place in the handover
- Hardware or accessory revision changes the approved assembly
- Firmware, operating system, driver, CMS, application, API, or template change can affect the tested behavior
- Fixture, mounting, lighting, power, network, RF, cleaning, airflow, or service condition changes
- A substitute component is introduced because the original reaches end of life
- A recurring field failure challenges an assumption used during initial acceptance
Decision framework: approve, revise, or stop
| Decision layer | Required artifact | Approval question |
|---|---|---|
| Scope | Use case, site, users, exact configuration | Is the boundary explicit enough to reproduce? |
| Design | Interface map and controlled requirements | Does every critical assumption have an owner? |
| Evidence | Production-equivalent test records | Can another reviewer understand why it passed? |
| Recovery | Detection, degraded state, service action | Can operators recognize and recover from abnormal states? |
| Lifecycle | Baseline, revisions, spares, retest triggers | Can the approved state be maintained after handover? |
For transparent LCD content product alignment, the final status should be approve, revise, or stop-not "looks fine." Record residual risks and their owner. If an item cannot be proven before rollout, state the temporary control and the date/event when evidence will be collected. This prevents an unresolved pilot assumption from silently becoming the production standard.
The strongest next step is to give the supplier the site conditions, interface map, intended workflow, and acceptance evidence you expect. If you are evaluating a LEGOYO project, use Request a Quote after those inputs are ready; a more complete requirement set makes configuration review and quotation comparison more useful.
FAQ
Q: Can a supplier data sheet alone prove transparent LCD content product alignment is acceptable?
A: No. A data sheet can establish model-specific boundaries, but the project must still verify the installed interactions that matter to the intended workflow. Use supplier documentation as an input to the acceptance plan, not as a substitute for it.
Q: How large should the pilot be?
A: There is no universal device count. Choose a pilot large and varied enough to include the difficult conditions that could change the result: representative fixtures, edge locations, user behaviors, operating states, service actions, and failure recovery. A smaller pilot with deliberately selected risk cases can be more useful than a larger convenience sample.
Q: What should trigger a retest of physical product datum or locating fixture?
A: Retest when a change can affect the approved condition, including a model or revision substitution, changes to panel active-area datum, content coordinate system, software/firmware, mounting, site environment, or a recurring field failure. The handover record should name these triggers before the project closes.
Q: How should acceptance evidence be stored?
A: Keep the requirement ID, exact configuration, method, expected result, actual result, evidence location, reviewer, defect disposition, and date together. Screenshots or photographs without configuration context are weak evidence; logs without a physical/site reference can be equally ambiguous.
Q: Should every store use the same threshold?
A: Use common definitions and methods where possible, but do not copy a threshold into a different risk or environment without justification. Exact numerical limits should come from applicable standards, model-specific documentation, validated project requirements, or approved pilot evidence-not from an unrelated example.
Final recommendation
Treat transparent LCD content product alignment as a controlled project boundary rather than a feature claim. Define the exact production configuration, make failure observable, test the hard conditions deliberately, and carry the approved state into service and change control. That approach is slower than a showroom checkbox at the beginning, but it is far faster than diagnosing an ambiguous fleet problem after rollout.
