A transparent LCD screen can fit correctly at room temperature and still become mechanically constrained after the showcase warms up.
The reason is simple: panel glass, cover glass, metal frames, gaskets, adhesives, electronics and other parts of a transparent display case do not necessarily expand by the same amount. If the mounting system leaves too little freedom for relative movement, normal temperature change can reduce edge clearance and create preload at a corner or along the glass edge.
The problem is therefore not simply "too much heat." It is temperature change combined with mechanical constraint. Improving airflow may reduce temperatures, but it cannot correct a glass corner that is already hard-packed against the frame.
Why Temperature Can Turn Clearance Into Mechanical Load
Differential expansion between the glass and frame
The free thermal movement of a material can be estimated from:
ΔL = α × L × ΔT
- ΔL = change in length;
- α = coefficient of thermal expansion;
- L = original length;
- ΔT = temperature change.
When two materials are mechanically connected, their relative movement is often more important than the expansion of either material by itself. For a simplified first check:
relative free movement ≈ (αframe − αglass) × L × ΔT
Use supplier data for the actual materials in the load path. Corning, for example, publishes a defined coefficient of thermal expansion for its EAGLE XG LCD substrate glass in its official EAGLE XG material data. That value applies to that glass composition; it is not a universal CTE for every transparent LCD.
The same principle applies to the frame alloy, protective glass, gasket and adhesive system.
A larger transparent LCD panel can also accumulate more absolute dimensional movement than a smaller panel under the same material and temperature assumptions, which is why panel dimensions belong in the calculation.
Free thermal movement is not the same as actual glass stress
The formula above estimates how much a material would like to change dimension when it is free to move. It does not by itself calculate stress inside a mounted glass assembly.
Actual stress also depends on:
- where movement is restrained;
- glass geometry and thickness;
- edge and surface condition;
- contact area;
- gasket or adhesive stiffness;
- frame rigidity;
- temperature distribution through and across the glass.
This distinction prevents a common engineering mistake: calculating a differential movement value and treating that number as if it were automatically a glass-stress value.

Temperature Gradients Matter as Much as Average Temperature
A transparent display rarely warms uniformly.
One edge may be close to an LED bar, driver, power supply or media player. Another may be beside a ventilation opening, exterior glass or an HVAC outlet. Product illumination and internal electronics described in broader transparent LCD display solutions can therefore create localized thermal conditions rather than one uniform cabinet temperature.
SCHOTT's technical guidance on thermal loads in glass explains that non-uniform temperature distributions can generate thermal stress and bending. The resulting condition depends on the glass properties, geometry and actual temperature field rather than on one cabinet-air reading alone. See SCHOTT's technical information on thermal loads in optical glass.
For troubleshooting, this means a single sensor in the center of the cabinet may miss the location that is actually driving a mechanical problem.
Pay Particular Attention to Glass Edges and Corners
The center of the visible area is not necessarily the most mechanically sensitive location.
Glass strength is strongly influenced by surface and edge condition. SCHOTT notes that edges and chamfers can be more sensitive to breakage than polished faces. That makes corner support, edge clearance and pre-existing chips important when assessing a constrained display assembly.
A glass edge with an existing defect pressed against a hard stop is a different mechanical condition from an undamaged edge supported by a compliant gasket.
Touch and cover-glass assemblies deserve the same attention. In a transparent touch screen integrated into a glass cabinet, the panel, cover layers and enclosure must be considered as a mechanical stack rather than as independent parts.
Signs the Panel May Be Mechanically Constrained
| Observation | More likely issue | First check |
|---|---|---|
| Clearance is visible when cool but nearly disappears after warm-up | Differential thermal movement | Measure the same edge and corner positions in cool and warm states |
| One corner is tight while the opposite corner remains compliant | Local hard-pack or tolerance-stack issue | Inspect the corner support and gasket compression |
| The panel becomes difficult to remove after operating for several hours | Thermal movement or frame distortion | Record temperature and geometry before forcing removal |
| New edge damage appears after service | Local preload, damaged edge or incorrect seating | Inspect the serviced corner and adjacent support |
| The glass or image plane appears temporarily bowed during warm-up | Temperature gradient or mechanical restraint | Map temperatures and geometry across both sides |
| A replacement panel requires force to enter the old frame | Frame geometry or lost clearance | Measure the empty frame before installing the replacement |
These symptoms indicate where to investigate. They do not, by themselves, prove a specific fracture mechanism.
Calculate Differential Movement Before Choosing Clearance
Do not select frame clearance from a convenient universal rule.
Start with:
- the actual panel dimensions;
- glass or module CTE from the panel supplier;
- cover-glass CTE where an additional glass layer participates mechanically;
- frame-material CTE;
- the credible minimum and maximum temperatures;
- manufacturing and assembly tolerances;
- gasket compression and movement capability;
- adhesive joint geometry and movement capability.
A transparent LCD touch configuration, for example, may add cover or bonded layers that change the mechanical stack compared with a simpler panel installation.
Thermal movement and manufacturing tolerance occur at the same time. They should not be checked independently and then assumed to fit together afterward.
The final clearance requirement therefore belongs to the exact panel, frame and mounting architecture rather than to "transparent LCD" as a generic product category.

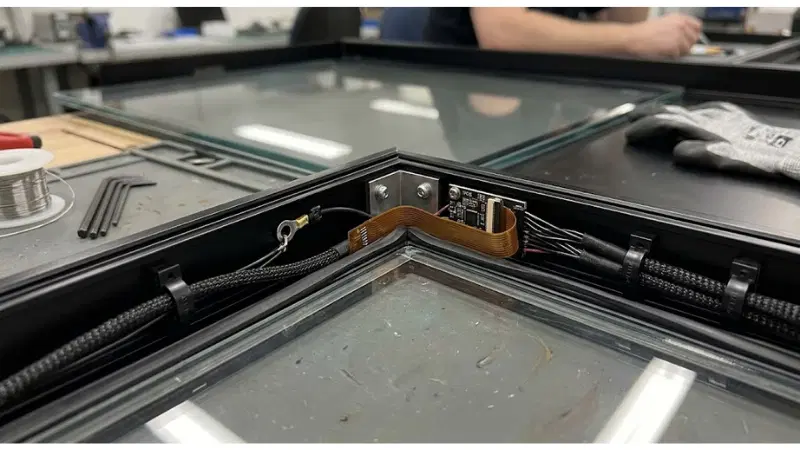

Check Edge and Corner Support

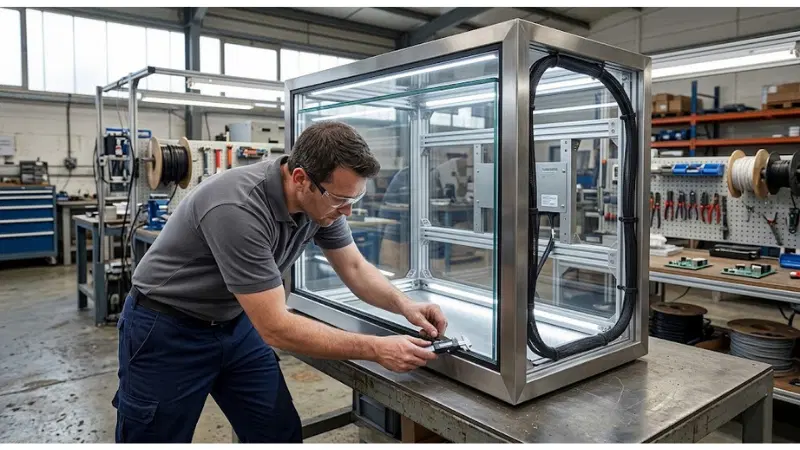

Look for hard-packed corners
A useful inspection starts with all four corners. Compare whether each corner:
- retains the intended clearance;
- sits against a compliant support;
- contacts a hard metal or plastic stop;
- has a gasket compressed to its mechanical limit;
- shows evidence of forced installation or reassembly.
One hard-packed corner and three compliant edges do not create a uniformly supported panel.
If the constrained corner cannot accommodate movement, reducing cabinet temperature may reduce the amount of movement but does not remove the hard mechanical boundary.
Check gasket condition, not only gasket presence
A gasket can isolate glass from a hard frame and accommodate limited movement, but only within the operating range of that specific gasket.
Inspect for:
- uneven compression;
- local crushing at one corner;
- hardening or permanent deformation;
- movement during service;
- a replacement with different thickness or stiffness.
Do not assign a universal gasket-compression percentage unless the gasket supplier and project drawing support it.
Check whether a bonded path allows relative movement
Bonded assemblies require the same mechanical reasoning. Ask:
- Is the adhesive expected to accommodate shear movement?
- Is the actual bond-line geometry consistent with the adhesive design?
- Has a compliant continuous joint been replaced with a short rigid local bond?
- Does the joint connect materials with significantly different thermal movement?
Dow's structural glazing engineering manual illustrates the general mechanical principle that panel expansion and contraction create movement in a glazing joint and that joint geometry must accommodate that movement.
This is a general glazing-engineering analogy, not a transparent LCD mounting specification. The actual adhesive system must be designed from its own product data and the real display assembly.
Map the Temperature Gradient Across the Installed Showcase
Do not record only one "cabinet temperature."
Useful measurement locations can include:
- upper glass edge;
- lower glass edge;
- left glass edge;
- right glass edge;
- individual corners where a local constraint is suspected;
- frame points adjacent to those glass locations;
- nearby LED, driver or electronics zones;
- cabinet air temperature.
A complete transparent LCD showcase with an enclosure should be mapped in its production configuration because shelves, lighting, electronics, interior panels and airflow can all change the temperature field.
Record the same locations under at least:
- a cool or reference condition;
- normal stabilized operation;
- cooldown after operation.
If the project has a credible additional boundary condition, such as high ambient temperature or a defined cold-storage state, test that condition according to the panel and electronics supplier limits.
The objective is to determine whether the area losing mechanical clearance is also experiencing unusual temperature or differential movement.

Thermal Cameras Are Useful, but Reflective Surfaces Can Mislead Them
Thermography is useful for finding thermal patterns and locating candidate hot zones. Absolute temperature measurement requires more care.
FLIR explains that thermal-camera measurements depend on emissivity and reflected apparent temperature, especially when a target has a low-emissivity or reflective surface. See FLIR's guidance on emissivity and reflected temperature.
For transparent display troubleshooting:
- use thermal images to locate patterns and suspicious hot regions;
- record the relevant emissivity and reflection settings when numerical IR readings matter;
- be cautious with shiny frame surfaces;
- confirm critical glass or frame temperatures with an appropriate contact sensor when practical;
- do not compare thermal images captured with materially different measurement settings as if they were identical tests.
Separate Thermal Expansion From Static Cabinet Distortion
A panel may lose clearance because its frame changes dimension with temperature, but it can also lose clearance because the cabinet is permanently twisted, a shelf is deflecting the enclosure, a hinge is loading the frame, the floor is uneven, or transport has changed the structure.
A movable installation such as a floor-stand transparent display should therefore be checked in its final support condition rather than assumed to reproduce bench geometry automatically.
A useful diagnostic sequence is:
- measure the cool geometry;
- operate the system normally without changing structural loads;
- measure the same geometry in the warm state;
- allow the system to cool;
- check whether the movement is substantially reversible.
Reversible movement that follows temperature is consistent with a thermal component. Geometry that does not return toward the reference state suggests that permanent frame distortion, assembly movement or another mechanical issue may also be present.
When a Simple Clearance Calculation Is Not Enough
The simplified thermal-expansion calculation is useful for estimating relative free movement. It is not a complete glass-stress model.
More detailed engineering analysis should be considered when the installation includes factors such as:
- complex or highly constrained mounting geometry;
- large non-uniform temperature gradients;
- bonded or laminated structures that restrict relative movement;
- known chips or damage at a glass edge;
- multiple load paths whose stiffness is difficult to estimate;
- safety-critical or high-consequence glass applications.
SCHOTT's thermal-load guidance notes that detailed thermal-stress distributions can require finite-element analysis because material properties alone do not define the complete stress field.
At that point, the required inputs may include actual geometry, material properties, edge condition, contact boundaries, joint stiffness and measured temperature distribution. A generic SEO article cannot replace that project-specific engineering analysis.

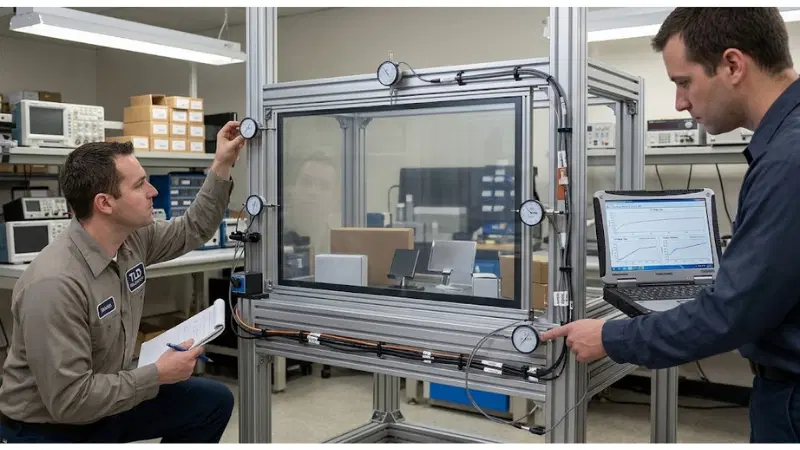

Validate the Final Assembly Through a Thermal Cycle
A room-temperature bench fit is not sufficient.
Test the final or production-equivalent assembly with:
- production frame;
- actual panel;
- production cover or touch glass;
- production gaskets and adhesives;
- final LED lighting;
- normal electronics;
- representative ventilation;
- representative product or shelf load where relevant.
The difference between testing a loose module and a completed showcase is especially important for cabinet products such as integrated transparent displays.
| Item | What to record |
|---|---|
| Initial thermal state | Ambient, glass-edge and adjacent-frame temperatures |
| Initial geometry | Edge/corner clearance and support condition |
| Operating state | Lighting, media source, display state and cabinet configuration |
| Warm-state temperatures | The same measurement locations used initially |
| Warm-state geometry | The same clearance and support positions |
| Mechanical observation | Contact, binding, bowing, local preload or no visible symptom |
| Cooldown | Whether temperature and geometry move back toward the reference state |
| Disposition | Pass, investigate or redesign according to the project's defined requirements |
The purpose is not to force a failure. It is to determine whether normal and representative boundary conditions consume the movement allowance intended by the design.

Cold Transport Requires a Separate Check When Relevant
Equipment that arrives cold and is then moved into a warmer environment may experience a temporary temperature field different from normal steady operation.
Do not invent a universal cold-start waiting time. Instead:
- define the credible transport or storage condition;
- follow panel and electronics supplier limits;
- observe whether rapid warm-up creates a larger temporary gradient;
- treat condensation as a separate environmental issue;
- repeat the same temperature and geometry measurements used for normal operation.
What to Retest After Service or Replacement
Repeat the mechanical/thermal check after any service operation that changes the load path or available movement, especially:
- panel replacement;
- cover-glass replacement;
- gasket substitution;
- adhesive change;
- frame repair;
- LED, player or power-module relocation;
- cabinet transport and reassembly;
- service that required forcing or realigning the frame.
A replacement panel should not be forced into an opening simply because the previous unit fitted. Measure the frame and confirm the intended support condition first.
Practical Transparent LCD Mechanical Acceptance Checklist
Before approving the completed installation, confirm that:
- the actual panel and frame materials are documented;
- differential movement has been evaluated using supplier-specific material data;
- manufacturing tolerance has been included in the clearance analysis;
- edge and corner clearance remains available through the tested temperature states;
- no corner is hard-packed against a rigid stop;
- gaskets remain within their specified working condition;
- adhesive joints do not unintentionally lock expected relative movement;
- local heat sources near the glass have been included in temperature mapping;
- glass and adjacent-frame temperatures use repeatable measurement locations;
- thermal-camera data are interpreted with emissivity and reflection effects in mind;
- warm-state geometry is compared with the same cool-state reference points;
- the production-equivalent cabinet is tested rather than only a loose panel;
- service changes affecting the load path trigger a targeted retest;
- complex stress conditions are escalated beyond simplified clearance calculations when necessary.
For procurement projects, these requirements can also be documented alongside the broader transparent LCD specifications used for retail installations.
There is no defensible universal frame-clearance number for every transparent LCD system. The correct design depends on actual dimensions, material properties, temperature range, tolerance stack, support geometry and joint behavior.
The practical objective is straightforward: support the glass without turning normal thermal movement into damaging edge or corner preload.
If thermal expansion, glass mounting or temperature-cycle acceptance is an important requirement for a new installation, discuss the transparent LCD configuration and mechanical requirements with LEGOYO before finalizing the enclosure design.
