A transparent LCD showcase can look excellent on opening day and still be expensive to maintain if the player, power supply, lighting, controller, cables, or internal glass cannot be reached without disturbing the display stack. Serviceability is therefore not a handover detail. It is part of the enclosure architecture.
The design goal is simple: routine service should reach the component that needs attention without forcing a technician to dismantle unrelated optical parts, remove fragile glass unnecessarily, stretch moving cables, unload merchandise, or rebuild alignment from scratch.
This guide focuses on the physical maintainability of a transparent LCD showcase: access zones, hinge and panel geometry, moving-cable routing, replaceable-module boundaries, product-versus-electronics access, cleaning access, service tests, and the documentation needed after handover. Exact loads, cable bend radii, fastener torque, electrical clearances, and environmental limits must come from the selected hardware and supplier documentation rather than a generic article.
Design the showcase around four different access jobs
One large door rarely serves every maintenance task well. A stronger design starts by separating access according to what the technician or store team is trying to reach.
| Access job | Typical items | Design objective |
|---|---|---|
| Product access | Merchandise loading, replenishment, display arrangement | Open the merchandise area without exposing electronics or disturbing the display stack |
| Routine cleaning | Outer cover, interior glass, dust-prone optical surfaces | Reach surfaces that require cleaning without removing structural or calibrated parts |
| Planned electronics service | Player, power supply, controller, lighting driver, fans or filters where used | Replace serviceable modules through a dedicated access path |
| Rare optical-stack service | Transparent LCD panel, backlight/light-guide assembly, bonded or protected optical layers | Allow controlled specialist access while keeping this path separate from routine service |
This access hierarchy is the core Page Job. If a routine media-player replacement requires removing the transparent panel, the architecture is mixing two service levels that should normally be separated.
The broader transparent LCD showcase guide explains the complete display system. This page stays narrower: how that system should be opened, serviced, closed, and restored without creating a second fault.

Map the service envelope before choosing hinges or removable panels
"The door opens" is not a complete service requirement. The designer should draw the full service envelope around the installed showcase.
Include at least:
- door or panel swept volume;
- technician hand and tool clearance;
- the path needed to remove each replaceable module;
- adjacent shelving, walls, merchandise, lighting, trim, and neighboring displays;
- the position of cables at closed, partially open, and fully open states;
- where the door or panel is supported while service is performed;
- which surfaces a technician must avoid touching;
- where removed fasteners, covers, or modules can be placed safely.
A prototype should be checked in the actual intended orientation. A panel that can be removed easily on a workbench may become awkward once the showcase is mounted against a wall, recessed into millwork, or installed next to another cabinet.
For each planned service task, ask one concrete question: Can the technician complete this task in the installed position without first removing a component that is not part of the repair? If the answer is no, that dependency should be intentional and documented rather than discovered after rollout.

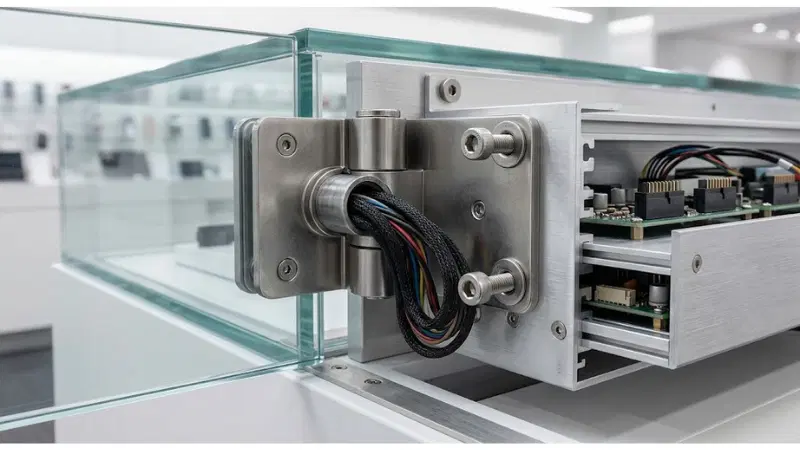

Hinge design is a load-path and access problem, not just a door-choice problem
A transparent display door may carry glass, trim, touch layers, lighting, wiring, or decorative hardware. The hinge system therefore needs to be reviewed together with the moving mass, center of gravity, opening direction, support structure, and service sequence.
Useful design questions include:
- Does the door remain stable at the service position, or must a technician hold it while working?
- Is a mechanical stop, stay, gas spring, support arm, or secondary restraint required for the selected door mass and orientation?
- Does opening the door apply twist or peel load to the transparent panel or bonded optical stack?
- Does the hinge-side frame remain rigid enough that repeated opening does not change panel alignment?
- Can the hinge or support hardware be serviced without first removing the display panel?
- What happens if the door is opened farther than the intended service angle?
Do not publish a universal hinge-load limit. The allowable load and cycle life belong to the exact hinge, mounting geometry, door mass, fasteners, substrate, and supplier documentation. The article's job is to make those dependencies visible before the enclosure is frozen.
Thermal expansion creates a separate mechanical risk. If frame clearance and glass stress are the issue, use the dedicated transparent LCD thermal expansion and glass-stress guide.
Design moving cables as a controlled flex zone
Cables crossing a moving door or removable module deserve their own layout, not an improvised service loop. The route has two different regions:
- static region: cable is fixed to the enclosure and should not move during normal service;
- dynamic region: cable is expected to bend as the access panel opens and closes.
Keep the transition between those regions deliberate. Provide strain relief on the fixed side, protect the moving section from sharp edges and pinch points, and position the flex zone so the cable bends rather than twists around the connector.
| Cable-routing risk | What to check on the prototype |
|---|---|
| Connector carries the door load | Confirm strain is transferred to a proper restraint before it reaches the connector |
| Cable is pinched at partial opening | Observe the complete opening arc, not only fully closed and fully open positions |
| Service loop rubs a frame edge | Cycle the access panel and inspect the full contact path |
| Different cables fight for the same flex space | Separate or guide power, signal, lighting, sensor, and other harnesses as required by the design |
| Replacement cable is shorter or stiffer | Define the approved cable specification and rerun the motion check after substitution |
| Technician reconnects the cable incorrectly | Use clear connector identification, keyed connections where available, and a documented route |
The minimum bend radius and flex-life requirement must come from the actual cable or harness specification. Do not infer them from another cable with the same connector.

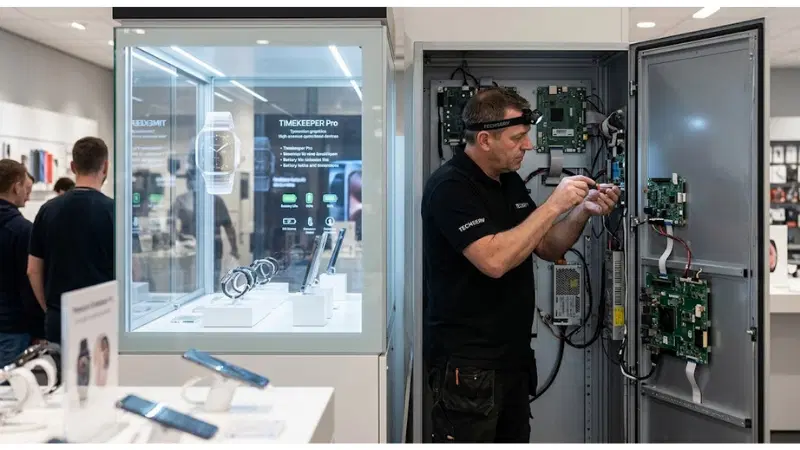

Separate merchandise access from electronics access
Transparent showcases often combine two very different activities: store staff open the cabinet to arrange products, while trained service staff open it to reach electronics. Combining both through the same unrestricted door can expose wiring, power components, control boards, or calibrated optical parts during routine merchandising.
A clearer architecture uses separate zones where the fixture allows it:
- a product zone that store staff can access without reaching the electronics compartment;
- a service zone for player, controller, power, lighting drivers, cooling components, and cable terminations;
- a protected optical zone that is opened only when the display or optical assembly itself requires work.
The exact partition depends on the showcase. The principle is more important than the shape: the most frequent task should require the least disruptive access path.
This separation also improves fault isolation. If the media player fails, the technician should be able to reach the player without creating new dust, alignment, cable, or glass-handling risks in the optical stack.
Define replaceable modules before the enclosure is finalized
A component is not meaningfully "field replaceable" just because screws can eventually be removed. A field-replaceable module should have a defined removal path, connector strategy, mounting method, replacement identification, and restoration check.
Build a replaceable-module matrix during design:
| Module | Normal access path | What must be disconnected | What must be verified after replacement |
|---|---|---|---|
| Media player | Electronics service panel | Power, video/data, network or control connections as applicable | Boot, output resolution, content playback, network/control state |
| Power supply / driver | Electronics service panel | Approved input/output connectors and protective earth where applicable | Electrical function, cable security, lighting/display operation |
| Lighting module | Lighting/service compartment | Power/control harness | Uniform illumination, product visibility, no new reflection or hot spot |
| Controller / interface board | Electronics service panel | Signal and control harnesses | Display state, communications, correct configuration |
| Transparent LCD / optical assembly | Specialist optical-service path | Model-specific display and mechanical interfaces | Alignment, optical appearance, content, lighting relationship, full acceptance checks as required |
The matrix does not claim that every showcase contains these exact modules or that every module is customer-replaceable. It is a design tool: list the parts that the actual system expects to replace and make the access consequences visible.
Protect the optical stack from routine service
Transparent LCD systems are more sensitive to service contamination than a conventional rear-covered monitor because the viewer is intentionally looking through part of the optical system at physical merchandise behind it. Fingerprints, dust, cable shadows, shifted lighting, misaligned glass, or a changed background can become visible immediately.
Routine service should therefore avoid unnecessary contact with:
- transparent LCD surfaces;
- cover glass or bonded optical layers;
- light-guide or backlight components;
- internal surfaces that are difficult to clean after reassembly;
- alignment features that control the relationship between the screen, lighting, and product cavity.
If the design requires protective glass or bonded layers, the protective glass and lamination guide owns the optical-loss and bonding trade-offs. This service-access page only asks whether those layers must be disturbed during normal maintenance.
Make internal cleaning possible without dismantling the showcase
Internal optical surfaces can collect dust or marks over time, especially when merchandise doors are opened regularly. A showcase that cannot be cleaned internally without removing structural parts can turn a minor housekeeping task into a display-service event.
During prototype review, identify every surface that may become visible to the shopper and demonstrate how it will be reached for cleaning. Confirm:
- which panel opens or removes;
- whether the technician can reach the full visible surface;
- whether cleaning requires disconnecting any electronics;
- whether the cleaning path passes near unprotected cables or optics;
- how the panel is returned to its correct alignment;
- which cleaning materials are approved for the actual glass, coatings, polarizers, films, adhesives, or other surfaces.
Do not generalize chemical compatibility. The approved cleaning method should come from the exact material or component supplier. Anti-reflection or other front-glass treatments can require their own care; that topic belongs to the separate transparent LCD anti-reflection glass guide.
Use a service sequence test before freezing the design
The best way to review serviceability is to perform the actual maintenance tasks on a production-equivalent prototype. Do not only inspect CAD clearances.
For each expected task, run a service sequence from start to finish:
- put the showcase in the defined safe service state;
- open the intended service panel or door;
- observe cable motion through the full access path;
- reach the target module with the approved tools;
- disconnect and remove the module without disturbing unrelated parts;
- install the replacement or reinstall the original part;
- route and secure cables back to the approved state;
- close and secure the access panel;
- restore power and operation according to the approved procedure;
- verify display, lighting, content, product visibility, and any function affected by the service task.
Record the failure points, not just the successful result. Examples include a screw that cannot be reached with the showcase installed, a cable that becomes trapped at half-open, a connector hidden behind another module, a lighting bar that must be removed to reach the power supply, or a door that cannot stay safely open during service.
The purpose is not to publish a universal maximum service time. The project can define its own service-time target if that matters commercially. The article's role is to ensure the service sequence is measurable and repeatable.

Review serviceability with a dependency matrix
A replacement task can create a chain of secondary work. A dependency matrix exposes that chain before rollout.
| If this component is serviced... | Does it disturb... | Possible follow-up check |
|---|---|---|
| Media player | Signal path or configuration | Content playback, resolution/output state, network/control function |
| Power module | Cable routing or grounding | Electrical function, cable security, lighting/display operation |
| Lighting module | Illumination geometry | Product appearance, brightness uniformity, reflections |
| Door / hinge hardware | Panel alignment or cable sweep | Closing alignment, cable pinch check, safe hold-open behavior |
| Transparent panel / optical assembly | Alignment, cleanliness, lighting relationship | Full optical and display-function requalification appropriate to the project |
This makes the handover procedure much more useful than a generic instruction to "test the unit after service." The technician knows which neighboring functions can be affected by the repair.

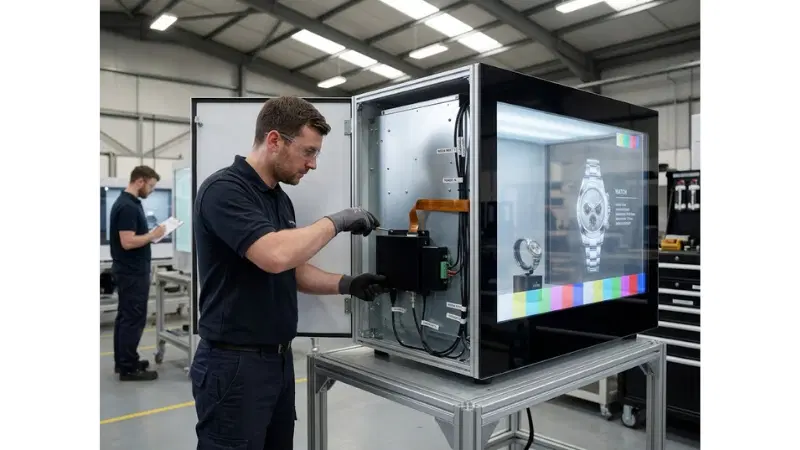

Define acceptance around real maintenance tasks
A service-access design should pass because the required maintenance can be completed safely and reproducibly-not because the door looks convenient in a rendering.
A project-specific acceptance sheet can include:
| Acceptance item | Evidence | Typical fail condition |
|---|---|---|
| Access envelope | Photo/video or witnessed service sequence in installed geometry | Door, tool, or module removal path conflicts with the fixture or surrounding installation |
| Hinge/support behavior | Full opening-cycle observation using production-equivalent door mass | Door will not remain controlled in the service state or loads the display/trim unexpectedly |
| Cable motion | Open/close observation and post-cycle inspection | Pinch, abrasion, connector strain, uncontrolled twist, or route migration |
| Module replacement | Complete remove/reinstall task | Unrelated optical or structural parts must be dismantled without that being an approved service requirement |
| Cleaning access | Demonstrated reach to the intended internal surfaces | Visible surfaces cannot be cleaned through the designed access path |
| Post-service restoration | Functional and visual checks appropriate to the serviced module | Display, lighting, alignment, content, or enclosure state cannot be restored reproducibly |
Exact pass limits belong in the project documents. For example, hinge load, cable flex radius, electrical clearances, fastener torque, or optical acceptance values should reference the actual selected components and applicable engineering documentation.
Keep service access separate from neighboring Transparent LCD Page Jobs
Serviceability overlaps several other engineering topics, but it should not absorb them.
- Thermal design: airflow, cooling, heat sources, and temperature limits belong to the transparent LCD cabinet thermal design guide.
- Protective glass: impact protection, optical loss, bonding, and cover-glass trade-offs belong to the protective-glass guide.
- Optical acceptance: transmittance and haze measurement belong to the transparent LCD transmittance and haze guide.
- Power-off behavior: blackout and player-failure visual states belong to the transparent LCD power-off and fail-state guide.
This page owns one job: make the installed hardware maintainable without turning every routine repair into a partial showcase rebuild.
Build the handover package around the service architecture
After the prototype passes, the service design needs to survive staff turnover, supplier revisions, and replacement work. The handover package should contain enough detail for another technician to reproduce the approved access method.
Useful records include:
- access-panel and door drawings;
- hinge, support, stop, or restraint identification where applicable;
- approved cable-route drawings or annotated photos;
- replaceable-module list with part/revision identification;
- connector labels and reconnection map;
- approved service sequence for each planned module;
- cleaning-access procedure and material restrictions supplied for the actual surfaces;
- post-service verification checklist;
- spare-part and substitution rules;
- retest triggers when a hinge, cable, player, power module, lighting component, panel, glass, or enclosure revision changes.
If the live project uses a different module or access architecture, the handover package should reflect that exact configuration rather than copying this list mechanically.
Final design rule: routine maintenance should disturb the fewest possible layers
The strongest Transparent LCD service-access architecture minimizes collateral work. Product replenishment should not expose electronics. Player replacement should not require optical-stack removal. Cable movement should be designed as a controlled flex zone. A replaceable module should have a documented path in and out. Cleaning should reach visible internal surfaces without rebuilding the enclosure.
That is the maintainability test: when one component needs service, how many unrelated layers of the showcase must be touched before the system can return to its approved state?
