Commercial LCD Black Uniformity: How to Test Backlight Bleed and Edge Leakage

Aug 19, 2026

Leave a message

Elly Huang
Elly Huang
Elly works on transparent display and kiosk configurations, mostly coordinating between store design teams and Legoyo's technical side. A lot of her projects have been in fashion retail and electronics showrooms, where the display has to fit into a c



Commercial LCD black uniformity comparison showing backlight bleed, edge leakage, viewing-angle glow, and mura

A commercial LCD can look uniform while showing a bright promotion and then reveal a glowing corner, bright edge, or cloudy patch as soon as the content turns dark. That does not automatically mean the panel is defective.

Black uniformity depends on more than the LCD panel itself. Viewing angle, backlight state, ambient light, panel variation, mechanical stress from the enclosure, picture settings, and even the camera used to document the problem can change what an observer sees.

For buyers and integrators working with commercial LCD display screens, the practical question is therefore not simply whether light leakage exists. The useful question is whether the dark-scene non-uniformity remains objectionable under the viewing conditions and installed configuration the display is expected to support.

Answering that question requires a repeatable test.







What Different Black-Uniformity Problems Look Like

Several effects can create a bright or uneven region on an otherwise dark LCD. They should not be treated as interchangeable.

Visible pattern Possible mechanism Useful first check
Bright strip or flare fixed to one edge Backlight bleed or local edge leakage Check whether it remains fixed from the normal viewing position
Corner brightness changes strongly as the observer moves Viewing-angle-related glow Repeat the observation from the centerline and intended customer angles
Irregular cloudy or blotchy region Panel/backlight non-uniformity or mura Compare black, dark gray, and mid-gray patterns
New bright area appears after installation Bezel pressure, chassis twist, or other mounting interaction Compare the panel before and after final mechanical integration
Entire screen looks gray rather than one local region Signal range, black-level, or picture configuration Check the source and display pipeline before blaming panel uniformity
One replacement unit looks different beside otherwise matched displays Panel, lot, optical-stack, mechanical, or configuration variation Compare model/revision, settings, installation state, and reference unit

The shape and behavior of the defect matter more than the label applied to it.

Backlight Bleed and Edge Leakage

Backlight bleed normally appears as a localized bright region near an edge or corner. Because an LCD relies on a backlight behind the liquid-crystal and optical layers, small spatial differences can become much easier to see when the intended image is black.

A bright patch that remains in approximately the same physical location while the observer changes position deserves a different investigation from glow that changes substantially with viewing angle.

This distinction becomes particularly relevant in commercial-grade LCD installations, where the screen may operate for long periods under a fixed mounting geometry and viewing environment.

Viewing-Angle Glow

Some apparent corner brightness is strongly angle-dependent. Move horizontally and vertically while keeping the same test pattern on screen. If the bright region changes substantially as the viewing position changes, viewing-angle behavior is likely contributing.

LG's official LCD troubleshooting guidance also notes that apparent edge brightness can change with viewing angle. The exact behavior varies by model and panel design, so the manufacturer's own specification should take priority for a specific product. See LG's light-leakage guidance.

Viewing geometry matters in retail. A technician may inspect a display from 30 cm away while a shopper normally sees it from one or two meters. This is especially important for stretched LCD screens in supermarket and grocery environments, where the customer viewing angle can be very different from the installation angle.

Acceptance should reflect the intended viewing geometry rather than an arbitrary extreme angle.

Mura or Clouding

Mura is a broader category of non-uniform luminance or color. It may appear as clouding, patches, streaks, gradients, or other low-contrast spatial variations.

A black field can expose some forms of non-uniformity, but a dark-gray field is often equally useful because it can reveal patterns that are difficult to interpret on absolute black.

Do not assume every cloudy region is caused by edge leakage. Panel manufacture, optical films, thermal state, backlight distribution, and mechanical interaction can all influence spatial uniformity.

For projects that require formal measurement rather than visual comparison alone, the Society for Information Display's Information Display Measurements Standard includes dedicated procedures for uniformity, mura, and viewing-angle measurements.

Mounting-Induced Pressure Patterns

A display that looks acceptable before integration but develops a bright edge or irregular patch after installation should trigger a mechanical investigation.

The LCD module is part of a larger load path. The bezel, internal tray, chassis, bracket, cabinet, fasteners, cable routing, foam, gasket, and service components can all change how force reaches the panel assembly.

This is particularly important in custom LCD retail-signage designs, where the mechanical enclosure is developed around a specific shelf, fixture, kiosk, or architectural requirement.

A mounting-related optical artifact should be investigated mechanically. Do not try to hide it by changing brightness, contrast, or unrelated picture settings.

Commercial LCD viewing-angle test comparing fixed edge leakage with angle-dependent corner glow



Why Dark Content Exposes Problems That Bright Content Hides

Bright advertisements can mask small differences in black luminance because the screen is dominated by much higher-luminance content. A black or near-black image removes much of that masking effect.

This is why a display may pass a casual showroom demonstration and still reveal an objectionable bright corner during:

  • luxury product photography on a black background;
  • dark menu transitions;
  • video fades;
  • black brand screens;
  • cinema-style advertising;
  • dark user-interface themes.

The issue can be particularly noticeable on LCD advertising displays that frequently switch between bright promotional graphics and dark premium-brand content.

The reverse is also important. A mild effect that becomes dramatic only in an unrealistically dark room, at an extreme angle, with an overexposed photograph may not represent the actual retail use case.

Dell's official LCD troubleshooting examples demonstrate how the same in-specification display can make leakage look far more obvious under dark inspection conditions than under its defined normal viewing condition. The specific lighting levels in that guidance are Dell product criteria, not universal commercial-LCD limits, but the underlying lesson is useful: inspection conditions must be controlled.



Set Up a Reproducible Dark-Scene Inspection

1. Use Controlled Test Content

Use at least:

  • a full black field;
  • a very dark gray field;
  • a mid-gray field;
  • representative dark retail content.

Black exposes leakage and glow. Dark gray helps reveal spatial non-uniformity. Representative content shows whether the effect actually interferes with the intended visual task.

Do not use a random advertisement or photograph as the only diagnostic reference.

2. Fix the Display State

Record:

  • input source;
  • picture mode;
  • backlight or brightness setting;
  • contrast setting;
  • local-dimming state, if applicable;
  • automatic brightness or ambient-light-control state;
  • HDR or SDR mode where relevant.

Two displays cannot be compared fairly when one is using a different picture configuration. In integrated smart LCD display solutions, source configuration and controller behavior should be recorded alongside the display settings.

3. Allow the Display to Stabilize

Use the warm-up condition defined by the selected display manufacturer or the approved project procedure.

The objective is not to invent one universal warm-up time. It is to avoid comparing a freshly powered unit with another screen that has already reached a stable operating condition.

4. Define the Ambient Condition

Black uniformity can look very different in:

  • a brightly illuminated supermarket;
  • a normal office;
  • a dim luxury showroom;
  • a dark laboratory.

Test the condition that matters to the application. If several conditions matter, record them separately.

A screen installed in a digital endcap display, for example, should ultimately be judged in the lighting and viewing geometry relevant to the endcap rather than only in a dark workshop.

5. Define Viewing Distance and Angle

Inspect first from the normal customer or operator position. Then move off-axis deliberately to determine whether the effect changes with viewing angle.

Do not let an extreme inspection angle become the acceptance condition unless that angle is genuinely part of the application requirement.

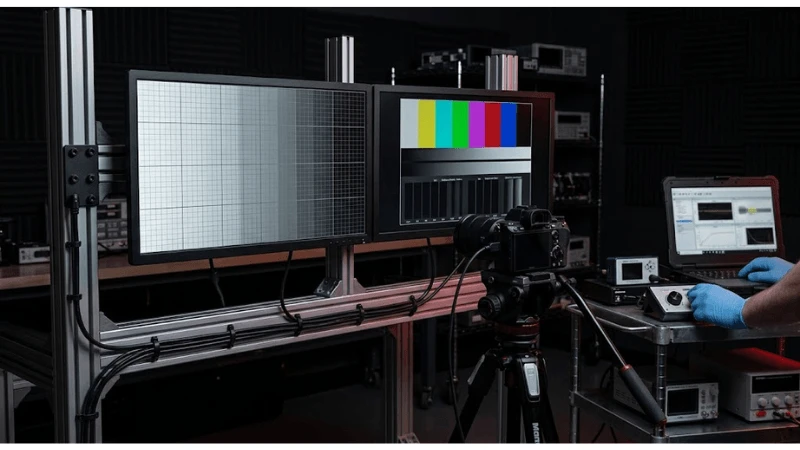

Commercial LCD dark-scene black uniformity test using black, dark gray, and mid-gray patterns



Fast Decision Tree: What Should You Check Next?

Observation Next check If the result does not change
The entire black screen looks gray Check source range, display input range, picture mode, and processing Continue with black-level and signal diagnosis before panel rejection
Only one edge or corner is bright Change viewing position If the region stays fixed, compare another unit and inspect mechanical integration
The bright area changes strongly with viewing angle Return to intended customer viewing position Judge it under the defined application geometry
The defect appeared after installation Compare with the pre-installation reference condition Inspect bezel, chassis, spacers, fasteners, cables, foam, and fixture load path
Only one production unit is significantly worse Verify identical settings, revision, ambient condition, and installation state Escalate to supplier criteria or instrumented comparison if necessary
Technicians disagree about visual severity Lock test pattern, geometry, environment, and display state Use an agreed measurement method and project-specific acceptance criterion



Separate Local Uniformity Problems From Signal Problems

Black uniformity is spatial. That gives you a useful diagnostic boundary.

If one area of the screen is consistently brighter than another, investigate optical uniformity, viewing behavior, backlight distribution, panel variation, or mechanical interaction.

If the whole screen changes together, investigate the signal and picture pipeline first.

  • Localized right-corner glow: likely an optical, viewing-angle, panel-variation, or mechanical question.
  • All blacks become gray after replacing a media player: investigate video range and source configuration before replacing the LCD.
  • Black level is correct but reflections make one side appear lighter: investigate the viewing environment and reflection geometry.

This distinction prevents unnecessary panel replacement and is also useful when commissioning a larger digital signage solution containing players, controllers, networked displays, and multiple content formats.



Check Bezel Pressure, Chassis Twist, and Mounting Stress

The final commercial display should be evaluated as an assembly, not only as a loose LCD module.

A panel may pass incoming inspection and behave differently after it is installed into:

  • a custom metal bezel;
  • an ultra-wide shelf enclosure;
  • a kiosk door;
  • a wall-mounted chassis;
  • a double-sided display housing.

The same principle applies to ultra-wide products such as a 49-inch bar LCD display or a double-face LCD bar screen: the finished enclosure and mechanical load path are part of the optical result.

If a uniformity defect appears after assembly, compare the affected region with the structure behind or around it. Look for:

  • uneven bezel pressure;
  • chassis twist;
  • incorrect spacers;
  • fasteners pulling the enclosure out of plane;
  • cable bundles forcing one region of the chassis;
  • foam or gasket compression;
  • service parts reinstalled differently.

Any mechanical change should follow the relevant product and integration instructions. The purpose of the comparison is to establish correlation, not to casually loosen or modify an operating commercial display.

If engineering corrects a confirmed mechanical condition, repeat exactly the same dark-scene test afterward. A controlled before/after result is more useful than a subjective description such as "the panel looks better now."

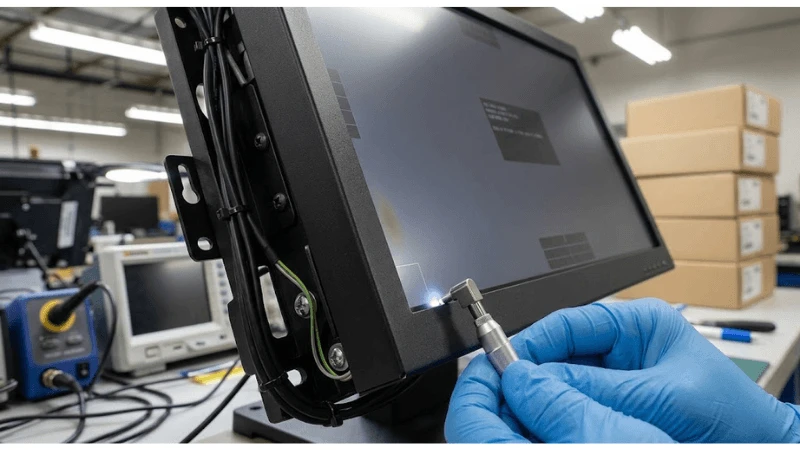

Commercial LCD mounting stress inspection showing bezel pressure, chassis twist, and edge light leakage



Use Photos as Evidence Without Letting the Camera Create the Defect

Photographs are useful for:

  • documenting defect location;
  • comparing the same unit before and after assembly;
  • comparing production lots;
  • showing a remote engineer what a technician observed.

They become weak evidence when the camera setup is uncontrolled.

Modern phones can automatically change exposure, ISO, shutter time, HDR processing, tone mapping, shadow lifting, and white balance. Those changes can make a mild bright corner look much more dramatic than it appears to the human observer.

For comparative evidence, keep the camera position and exposure behavior as consistent as practical and record the viewing environment.

Do not define acceptance from an intentionally overexposed photograph unless the project specification explicitly defines that photographic method.

Human visual acceptance and camera documentation are different evidence types.



When Visual Inspection Is Enough-and When to Measure

Not every commercial LCD project needs laboratory luminance mapping.

A controlled visual comparison may be sufficient when:

  • the intended viewing task is straightforward;
  • the supplier has model-specific inspection criteria;
  • the result is clearly acceptable or unacceptable under the defined normal condition;
  • no contractual numerical uniformity requirement exists.

Instrumented measurement becomes more useful when:

  • buyer and supplier repeatedly disagree about visual severity;
  • many panels need objective comparison;
  • side-by-side displays require tighter matching;
  • the project specifies measurable uniformity;
  • the defect is subtle but operationally important;
  • engineering needs to quantify a before/after mechanical change.

The SID/ICDM Information Display Measurements Standard provides standardized display-measurement procedures, including uniformity, mura, and viewing-angle methods. ISO 9241-307 also provides analysis and compliance-test methods for electronic visual displays.

These standards are useful references for methodology, but the pass/fail criterion still has to match the selected display, project specification, contractual requirement, or manufacturer-approved limit.

Do not invent a universal "10% leakage" or "20% corner difference" rule and apply it to every LCD.

If quantitative acceptance is required, define the measurement method and acceptance criterion together:

  • test pattern;
  • display operating state;
  • warm-up condition;
  • measurement locations or area;
  • viewing geometry;
  • ambient condition;
  • instrument and measurement procedure;
  • reference unit or specification;
  • pass/fail threshold.



Compare Lots and Replacement Displays Under the Same Conditions

Black uniformity can vary between individual LCD units. That matters when displays are installed side by side or when a replacement screen is placed next to an older unit.

For replacement qualification, record at least:

  • LCD/display model;
  • panel or product revision where available;
  • picture configuration;
  • installed mechanical state;
  • black/dark-gray inspection result;
  • reference photos or measurements if used.

A replacement should not be rejected merely because a long-exposure phone image differs slightly from the old unit. Conversely, "same model number" should not automatically override a large visible mismatch under the approved viewing condition.

This is particularly relevant when buyers select hardware using a bar LCD display buying guide and later need replacement continuity across a shelf deployment.

It is also important to keep optical acceptance separate from the initial technology decision. A comparison such as LCD bar screen vs. LED bar screen helps determine which display architecture suits an application; black-uniformity acceptance begins after the LCD solution and its operating conditions have been defined.



Illustrative Engineering Scenario

Consider an ultra-wide retail display that passes incoming inspection on the bench.

After the display is installed into a custom shelf enclosure, a bright region appears along the lower-right edge whenever the campaign fades to black.

This is an illustrative engineering scenario, not a LEGOYO customer case.

A useful investigation would be:

  1. reproduce the same black and dark-gray test patterns;
  2. record picture mode, backlight state, viewing position, and ambient condition;
  3. compare the bright region on-axis and off-axis;
  4. compare the installed result with the approved pre-installation condition;
  5. map the bright region against the bezel and chassis structure;
  6. have the mechanical team inspect the relevant load path using the approved service procedure;
  7. repeat exactly the same optical test after the mechanical condition is corrected.

If the localized bright edge disappears or is substantially reduced after the mechanical condition is restored, the evidence supports an installation interaction rather than an unexplained panel failure.

If the defect remains unchanged, continue with panel comparison and the supplier's applicable inspection criteria.

The same logic can be applied to bar-shaped LCD screen deployments where long, narrow enclosures make mechanical integration an important part of the final result.



Commercial LCD Dark-Scene Acceptance Checklist

  • Define the intended viewing distance and angle.
  • Define the ambient-light condition that matters to the application.
  • Use controlled black, dark-gray, and representative content.
  • Record picture mode and backlight state.
  • Disable or record automatic brightness behavior during comparison.
  • Allow the display to reach the specified or approved operating condition.
  • Inspect from the normal viewing position before testing extreme angles.
  • Distinguish localized leakage from a whole-screen black-level problem.
  • Compare the finished mounted assembly with the approved reference condition.
  • Investigate optical artifacts that appear only after mechanical integration.
  • Keep camera evidence tied to a repeatable capture condition.
  • Compare replacement units using identical settings and installation conditions.
  • Use manufacturer-specific or project-approved numerical criteria when quantitative acceptance is required.
  • Retest after panel, bezel, chassis, mounting, configuration, or replacement changes that could alter the result.



Final Acceptance Rule

The final question is simple:

Under the defined commercial viewing condition, does the installed LCD reproduce dark content without a localized uniformity defect that interferes with the intended visual task?

If the answer is unclear, improve the test condition before arguing about the panel. Standardize the content, settings, viewing geometry, ambient condition, installation state, and evidence first.

That approach produces a more defensible result whether the screen is part of a conventional retail display, a custom shelf enclosure, or a broader commercial display project.



FAQ

Q: Is some backlight bleed normal on an LCD?

A: Some degree of edge or corner brightness can occur on LCDs, particularly during very dark content, but "normal" should not be defined without the model, viewing condition, intended use, and applicable manufacturer or project criteria. A mild effect visible only under an artificial dark-room test should not automatically be treated the same as a bright hot spot clearly visible during normal commercial use.

Q: Is viewing-angle glow the same as backlight bleed?

A: Not necessarily. A useful practical distinction is behavior: viewing-angle-related glow changes significantly as the observer moves, while a fixed local leakage pattern tends to remain attached to the same physical region of the display. Some real-world cases can contain more than one effect, so repeat the same test from several controlled viewing positions.

Q: Can mounting pressure cause LCD light leakage or uneven black areas?

A: Mechanical integration can affect spatial uniformity. If a display is acceptable before installation but develops a new bright region afterward, investigate bezel pressure, chassis distortion, spacers, fasteners, cable routing, foam, gaskets, and other parts of the load path before assuming the panel itself failed.

Q: Can a phone camera exaggerate backlight bleed?

A: Yes. Automatic exposure, ISO, long shutter times, HDR processing, and shadow lifting can make dark-scene non-uniformity look much stronger in a photograph than to the eye. Use photos to document location and compare controlled before/after conditions, not as an uncontrolled universal pass/fail test.

Q: What percentage of black-uniformity difference is acceptable?

A: There is no single percentage that should be applied to every commercial LCD. If the project requires quantitative acceptance, use the selected manufacturer's specification or an agreed measurement method and project criterion. Keep test pattern, measurement geometry, operating state, environment, sample locations, instrument method, and pass/fail threshold defined as one consistent procedure.

Send Inquiry
